IBELL FL8289
IBELL FL8289 Rechargeable Torch Flashlight User Manual
Model: FL8289
Introduction
The IBELL FL8289 Rechargeable Torch Flashlight is designed for powerful illumination and durability. Featuring an ultra-bright LED light, it provides a long beam range suitable for various outdoor and indoor activities. Its robust aircraft-grade aluminum body ensures longevity and resistance to wear. The rechargeable design offers an eco-friendly and convenient lighting solution.
Figure 1: The IBELL FL8289 Rechargeable Torch Flashlight, showcasing its sleek design and the 18-month warranty label.
Product Features
- Super Bright LED Light: Equipped with an ultra-bright LED for powerful illumination.
- Ultra-Long Beam Range: Provides an impressive beam range for distant visibility.
- Durable Aircraft Aluminum Body: Constructed from high-quality aircraft aluminum for ruggedness and corrosion resistance.
- Rechargeable and Portable: Eco-friendly rechargeable design with a compact size for easy portability.
- Unbreakable Front Cover Glass: Designed for enhanced durability.
- Long LED Lamp Life: LED lamp life up to 100,000 hours.
Figure 2: Key features of the IBELL FL8289 flashlight, highlighting its long-lasting LED, rechargeable battery, and robust construction.
Setup and Charging
Before first use, ensure the flashlight is fully charged. The IBELL FL8289 comes with a built-in rechargeable battery.
Components Overview:
Figure 3: The main components of the IBELL FL8289 package: the flashlight unit, charging adapter, rechargeable battery, and battery cap with spring.
- Battery Insertion: If the battery is not pre-installed, unscrew the tail cap of the flashlight. Insert the rechargeable battery with the positive (+) end facing towards the head of the flashlight. Securely screw the tail cap back on.
- Charging: Connect the provided AC/DC charging adapter to a standard 120V power outlet. Plug the other end of the charger into the charging port on the flashlight. An indicator light (if present) will show charging status. Allow sufficient time for a full charge (refer to specifications for runtime).
- First Use: Once fully charged, disconnect the charger. The flashlight is now ready for operation.
Operating Instructions
The IBELL FL8289 flashlight is designed for simple and effective operation.
- Power On/Off: Locate the power button on the body of the flashlight. Press the button once to turn the flashlight on. Press it again to turn the flashlight off.
- Brightness: The flashlight provides a super bright LED light with 2000 lumens. There are no explicit mode changes mentioned, indicating a single, powerful beam.
- Beam Range: The ultra-long beam range allows for illumination of distant objects.
Figure 4: Demonstrating the handling of the IBELL FL8289 flashlight, highlighting its ergonomic design despite its large size.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your IBELL FL8289 flashlight.
- Cleaning: Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the lens is clean for maximum light output.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Recharge the flashlight when the light begins to dim. If storing for an extended period, charge the battery every 3-6 months to prevent deep discharge.
- Storage: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.
- Water Resistance: The flashlight is water resistant. However, it is not designed for submersion. Avoid exposing the charging port to moisture when not in use.
Troubleshooting
If you encounter issues with your IBELL FL8289 flashlight, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Battery is discharged or incorrectly inserted. | Charge the battery fully. Ensure the battery is inserted with correct polarity (+/-). Check if the tail cap is screwed on tightly. |
| Light is dim. | Low battery charge. | Recharge the flashlight. |
| Charging indicator not working. | Charger not properly connected or faulty. | Ensure charger is securely plugged into both the wall outlet and the flashlight. Try a different power outlet. |
| Flashlight flickers. | Loose battery connection or low battery. | Ensure battery is securely seated and tail cap is tight. Recharge the battery. |
Specifications
Detailed technical specifications for the IBELL FL8289 Rechargeable Torch Flashlight:

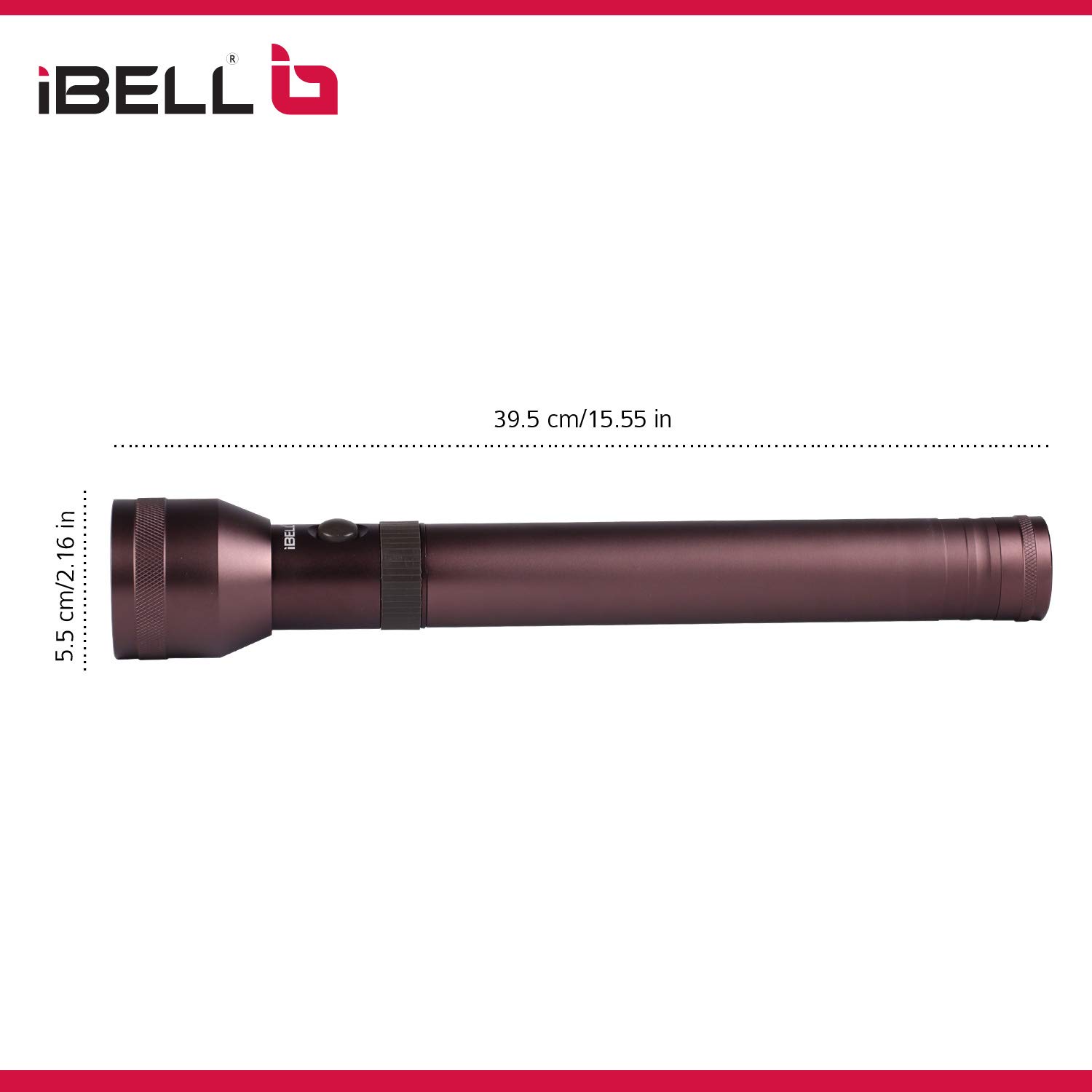

Figure 5: Physical dimensions of the IBELL FL8289 flashlight, measuring 39.5 cm (15.55 inches) in length and 5.5 cm (2.16 inches) in diameter.
| Feature | Detail |
|---|---|
| Model Number | FL8289 |
| Special Feature | Waterproof, Lightweight, Sturdy, Rechargeable |
| Colour | Flashlight | Brown |
| Power Source | AC/DC |
| Light Source Type | LED |
| Material | Aluminium |
| White Brightness | 2000 Lumens |
| Included Components | Flashlight |
| Product Dimensions (Length x Diameter x Height) | 39.5W x 5.5D x 5.5H Centimeters |
| Voltage | 120 Volts |
| Battery Type | Rechargeable NiCAD (Nickel-Cadmium) |
| Number of Batteries | 1 (included) |
| Water Resistance Level | Water Resistant |
| Runtime | 10 hours |
| Item Weight | 860 Grams |
| Country of Origin | China |
Warranty and Support
Your IBELL FL8289 Rechargeable Torch Flashlight comes with a comprehensive warranty and dedicated support.
- Warranty Period: The product includes a 1-year standard warranty. An additional 6 months warranty can be availed upon product registration.
- Registration: To avail the additional 6 months warranty, registration must be completed within 30 days from the date of purchase.
- Customer Support: For warranty claims, technical assistance, or any other inquiries, please contact IBELL customer service.
- Contact Number: 1800-2020-260
- Email: connect@ibellstore.com
- Manufacturer Address: Innovative Technologies, Fida's Building, Thottumugham P.O, Aluva, Kerala - 683105.
