Homdox 3000 PSI Electric Pressure Washer User Manual

Introduction

This manual provides essential information for the safe and efficient operation of your Homdox 3000 PSI Electric Pressure Washer. Please read these instructions carefully before assembly, operation, or maintenance. Keep this manual for future reference.

The Homdox Electric Pressure Washer is designed for various cleaning tasks, delivering up to 3000 PSI of pressure with an 1800W motor. It features a Total Stop System (TSS) for energy saving and extended pump life.

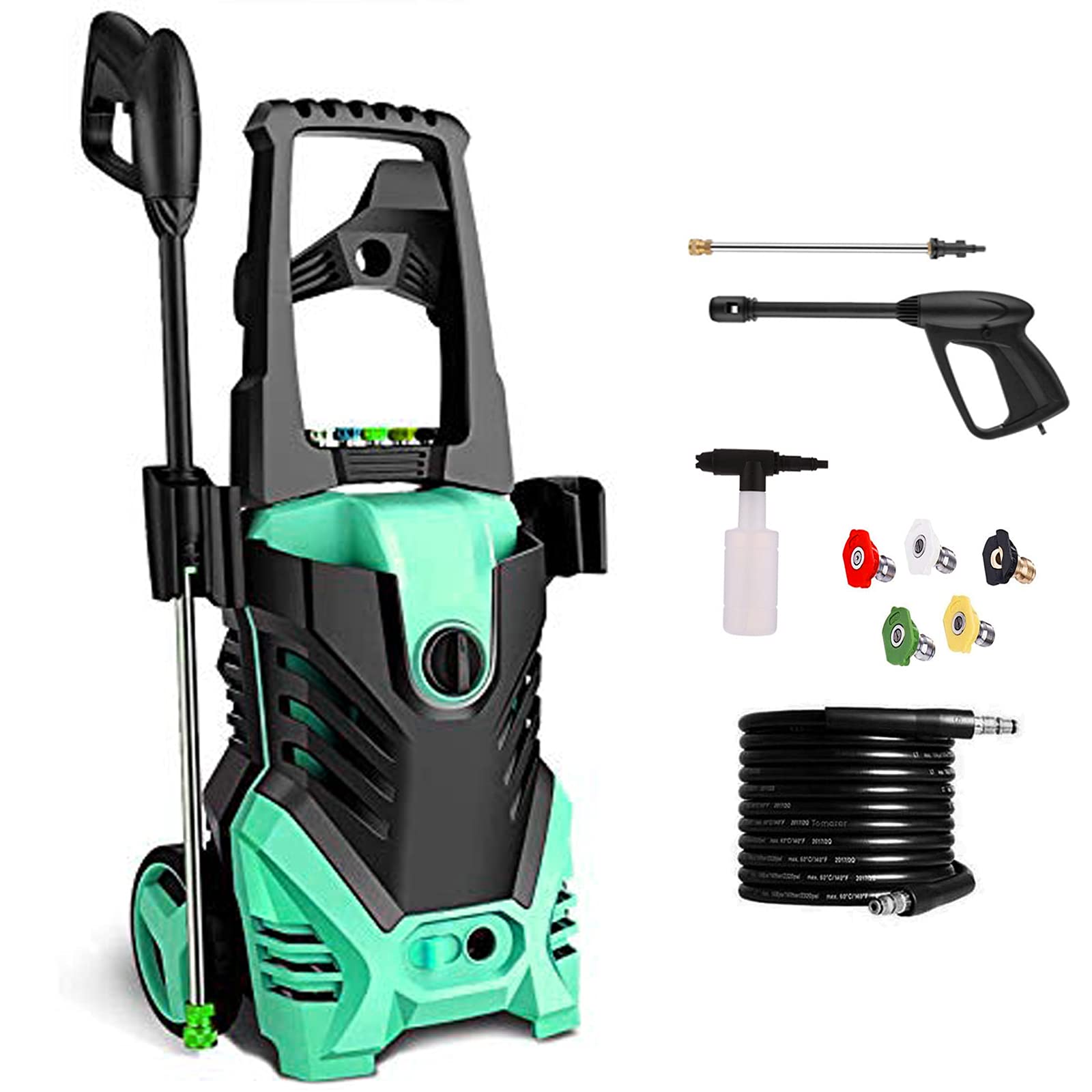

Image: The Homdox 3000 PSI Electric Pressure Washer main unit, showcasing its compact design.

Important Safety Information

WARNING: When using this product, basic precautions should always be followed, including the following:

• Read all instructions before using the appliance.
• Do not direct the water stream at people, pets, electrical devices, or the unit itself.
• Always wear appropriate safety gear, including eye protection, during operation.
• Ensure all connections are secure before starting the pressure washer.
• Do not operate the unit if the power cord or other parts are damaged.
• Keep children and bystanders away from the operating area.
• Always disconnect the power supply before performing any maintenance or cleaning.

Package Contents

Verify that all items listed below are included in your package:

• 1 x High Pressure Washer Unit
• 1 x Spray Gun
• 1 x Connection Lance
• 1 x Adjustable Spray Lance
• 5 x Quick-Connect Nozzles (0°, 15°, 25°, 40°, and Soap)
• 1 x 19.7ft (6m) High Pressure Hose
• 1 x 32.8ft (10m) Electric Cord
• 1 x Water Filter
• 1 x Cleaning Pin
• 1 x Screwdriver and Wrench
• 1 x User Manual (this document)

Assembly and Setup

1. Attach Wheels: Securely attach the wheels to the main unit as per the diagrams in the included quick-start guide.
2. Connect Handle: Assemble and attach the handle to the main unit.
3. Connect High-Pressure Hose: Connect one end of the high-pressure hose to the pressure washer's outlet and the other end to the spray gun. Ensure connections are tight.
4. Connect Water Supply: Attach a garden hose (not included) to the water inlet on the pressure washer. Ensure the water filter is in place. Connect the other end of the garden hose to a water faucet.
5. Connect Spray Lance: Attach the desired spray lance (connection lance or adjustable spray lance) to the spray gun.
6. Select Nozzle: Choose the appropriate quick-connect nozzle for your task and insert it into the spray lance until it clicks into place.

Image: Illustration showing the assembly of the electric pressure washer components.

Operating Instructions

1. Initial Start-up

1. Ensure all connections (water, hose, gun, nozzle) are secure.
2. Turn on the water supply completely.
3. Squeeze the spray gun trigger to purge air from the system until a steady stream of water emerges.
4. Plug the power cord into a grounded electrical outlet (100-120V/60Hz).
5. Turn the pressure washer ON using the power switch.

2. Nozzle Selection and Usage

The Homdox pressure washer includes 5 quick-connect nozzles for various cleaning tasks:

• 0° (Red): For concentrated, high-pressure cleaning of tough, localized stains. Use with extreme caution.
• 15° (Yellow): For intense cleaning of hard surfaces with a narrower spray pattern.
• 25° (Green): For general cleaning of most surfaces with a wider spray pattern.
• 40° (White): For gentle cleaning of delicate surfaces or wide area rinsing.
• Soap (Black): For applying detergent at low pressure.

To change nozzles, turn off the pressure washer and squeeze the trigger to release any residual pressure. Pull back the collar on the spray lance and remove the current nozzle. Insert the new nozzle and push the collar forward until it locks.

Image: A close-up view of the pressure washer nozzle in action, demonstrating the water spray.

3. Total Stop System (TSS)

The Total Stop System (TSS) automatically shuts off the pump when the spray gun trigger is not engaged. This conserves energy, reduces noise, and prolongs the life of the pump. The pump will restart automatically when the trigger is squeezed again.

4. Cleaning Applications

This pressure washer is suitable for cleaning various surfaces, including:

• Vehicles (cars, SUVs, ATVs, boats, RVs)
• Homes (siding, windows)
• Outdoor surfaces (driveways, decks, patios, fences)

Image: A person cleaning outdoor stairs with the pressure washer, demonstrating its effectiveness on hard surfaces.

Image: The pressure washer being used to clean a car, highlighting its suitability for vehicle maintenance.

Image: Cleaning a wooden deck railing with the pressure washer, showing its use on outdoor wooden structures.

Maintenance

• After Each Use:
  • Turn off the power switch and disconnect the power cord.
  • Turn off the water supply.
  • Squeeze the spray gun trigger to release any remaining pressure.
  • Disconnect the garden hose and high-pressure hose.
  • Drain all water from the pump and hoses to prevent freezing damage.
  • Clean the nozzles and water filter.
• Storage: Store the pressure washer in a dry, frost-free environment.
• Cleaning Pin: Use the provided cleaning pin to clear any blockages in the nozzle tips.

Troubleshooting

Specifications

• Model: Homdox 3000 PSI Electric Pressure Washer
• Power Source: Corded Electric
• Voltage: 100-120V/60Hz
• Wattage: 1800W
• Rated Pressure: 2200 PSI
• Max Pressure: 3000 PSI
• Flow Rate: 1.80 GPM
• Max Inlet Water Pressure: 1 Mpa
• Protection Type: IPX5
• Water Temperature: 0-40°C (32-104°F)
• Power Cord Length: 32.8 ft (10m)
• High Pressure Hose Length: 19.7 ft (6m)
• Dimensions: 11.7 x 10.5 x 29.6 inches (approximate)

Warranty and Support

This Homdox pressure washer comes with a 2-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or replacement parts, please contact Homdox customer service through your retailer or the official Homdox website. Please have your purchase receipt and product model information ready.
