AXA Resolute 12-60 Cable Lock User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your AXA Resolute 12-60 Cable Lock. The AXA Resolute 12-60 is a lightweight and portable cable lock designed to offer quick and comfortable protection for bicycles in low to medium risk environments. It features a high-quality twisted steel cable, securely integrated with a combination locking mechanism, and protected by a thick vinyl sleeve to prevent damage and abrasion.

2. Safety Information

• Ensure the lock is properly engaged before leaving your bicycle unattended.
• Do not attempt to force the lock mechanism if it is stiff; apply a small amount of lubricant if necessary.
• Keep the combination code confidential and store it in a safe place, separate from the lock.
• Regularly inspect the cable and locking mechanism for any signs of wear or damage. Discontinue use if damage is observed.
• This lock is designed for bicycle security. Do not use it for purposes other than its intended use.

3. Package Contents

Verify that all items are present in the package:

• 1 x AXA Resolute 12-60 Cable Lock
• 1 x User Manual (this document)

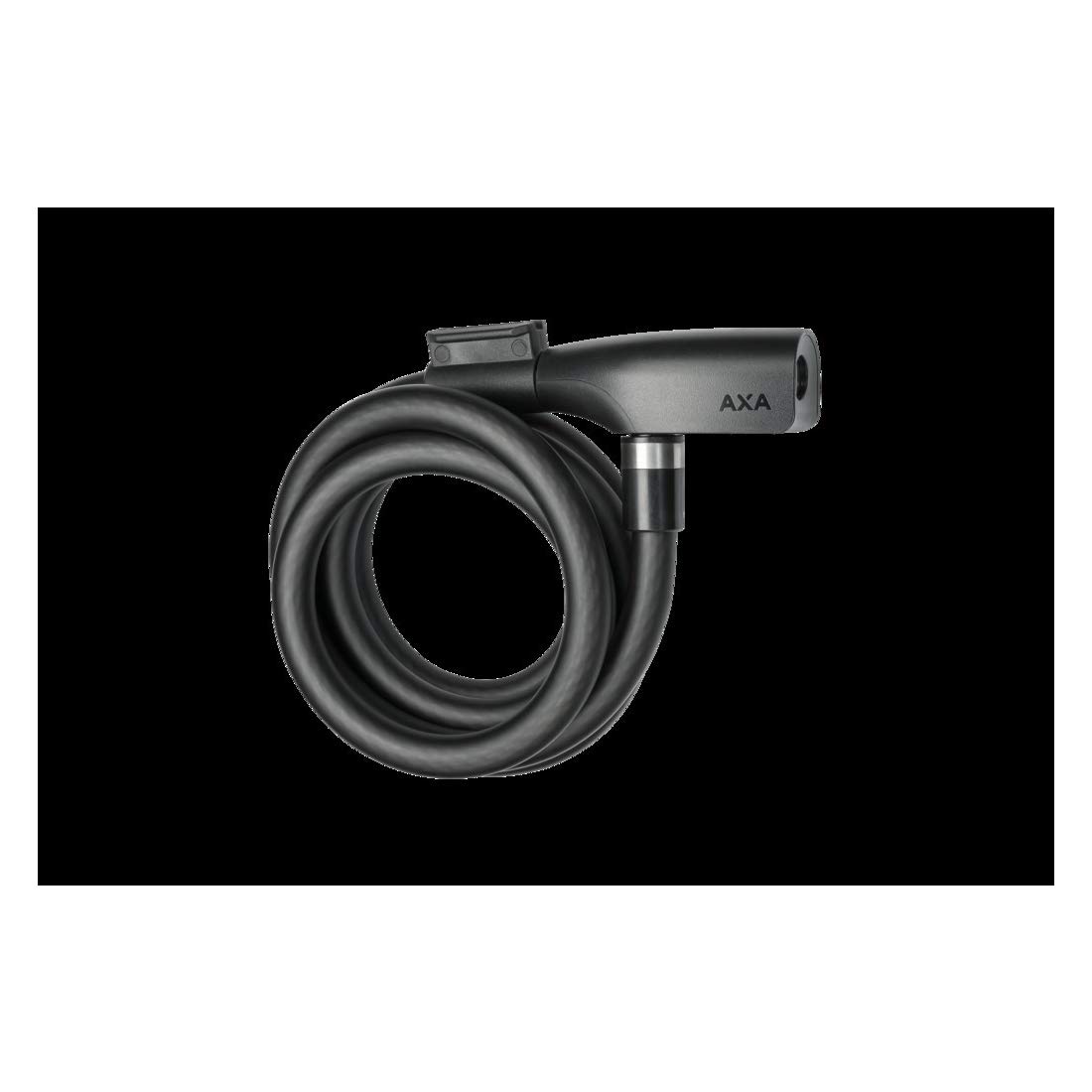

Image of the AXA Resolute 12-60 Cable Lock, showing its black coiled cable and locking mechanism.

4. Setting the Combination

Your AXA Resolute 12-60 Cable Lock comes with a preset combination, typically 0-0-0-0. Follow these steps to set your personal combination:

1. Open the Lock: Align the preset combination (0-0-0-0) with the indicator marks and pull the cable head out of the locking mechanism.
2. Rotate the Reset Knob: Inside the locking mechanism, locate a small knob or lever. Rotate it 90 degrees clockwise (or as indicated by an arrow) to the reset position.
3. Set Your New Combination: With the knob in the reset position, set your desired 4-digit combination by rotating the number wheels. Choose a memorable but secure combination.
4. Return the Reset Knob: Rotate the knob back 90 degrees counter-clockwise to its original position. This locks in your new combination.
5. Test the Combination: Scramble the numbers and then re-enter your new combination to ensure it opens the lock correctly.

Important: Do not forget your combination. There is no master key or override function to reset a forgotten combination.

5. Operating the Lock

5.1. Locking Your Bicycle

1. Position the Cable: Wrap the cable around your bicycle frame, wheel, and a fixed object (e.g., a bike rack, lamppost). Ensure the cable passes through both the frame and at least one wheel for maximum security.
2. Insert Cable Head: Insert the free end of the cable into the locking mechanism.
3. Scramble Combination: Once the cable head is fully inserted, scramble the number wheels to secure the lock.
4. Verify Security: Gently pull on the cable to ensure it is firmly locked and cannot be removed.

5.2. Unlocking Your Bicycle

1. Enter Combination: Align your personal 4-digit combination with the indicator marks on the lock body.
2. Release Cable: Pull the cable head out of the locking mechanism.
3. Remove Cable: Unwind the cable from your bicycle and the fixed object.

6. Maintenance

• Cleaning: Wipe the lock body and cable with a damp cloth to remove dirt and grime. Avoid harsh chemicals.
• Lubrication: Periodically apply a small amount of lock lubricant (e.g., graphite-based or silicone spray) into the locking mechanism and on the number wheels to ensure smooth operation. Do not use oil-based lubricants as they can attract dirt.
• Storage: When not in use, store the lock in a dry place to prevent corrosion.

7. Troubleshooting

7.1. Lock is Stiff or Difficult to Open/Close

Solution: Apply a small amount of lock lubricant into the mechanism and rotate the number wheels several times to distribute it. Ensure the combination is perfectly aligned.

7.2. Cannot Set New Combination

Solution: Ensure the lock is open with the current combination. Verify that the reset knob/lever is fully rotated to the reset position before setting new numbers, and then fully returned to its original position to lock the new combination.

7.3. Forgotten Combination

Solution: Unfortunately, if the combination is forgotten and not recorded, there is no way to reset the lock without knowing the current combination. It is crucial to remember or securely store your combination.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation included with your product at the time of purchase or visit the official AXA website. For technical support or further assistance, please contact AXA customer service through their official channels.
