Start-X Remote Starter Kit Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation and operation of your Start-X Remote Starter Kit. This kit adds remote start functionality to your vehicle, allowing you to pre-heat or cool your vehicle for a comfortable driving experience. Please read all instructions carefully before beginning installation.

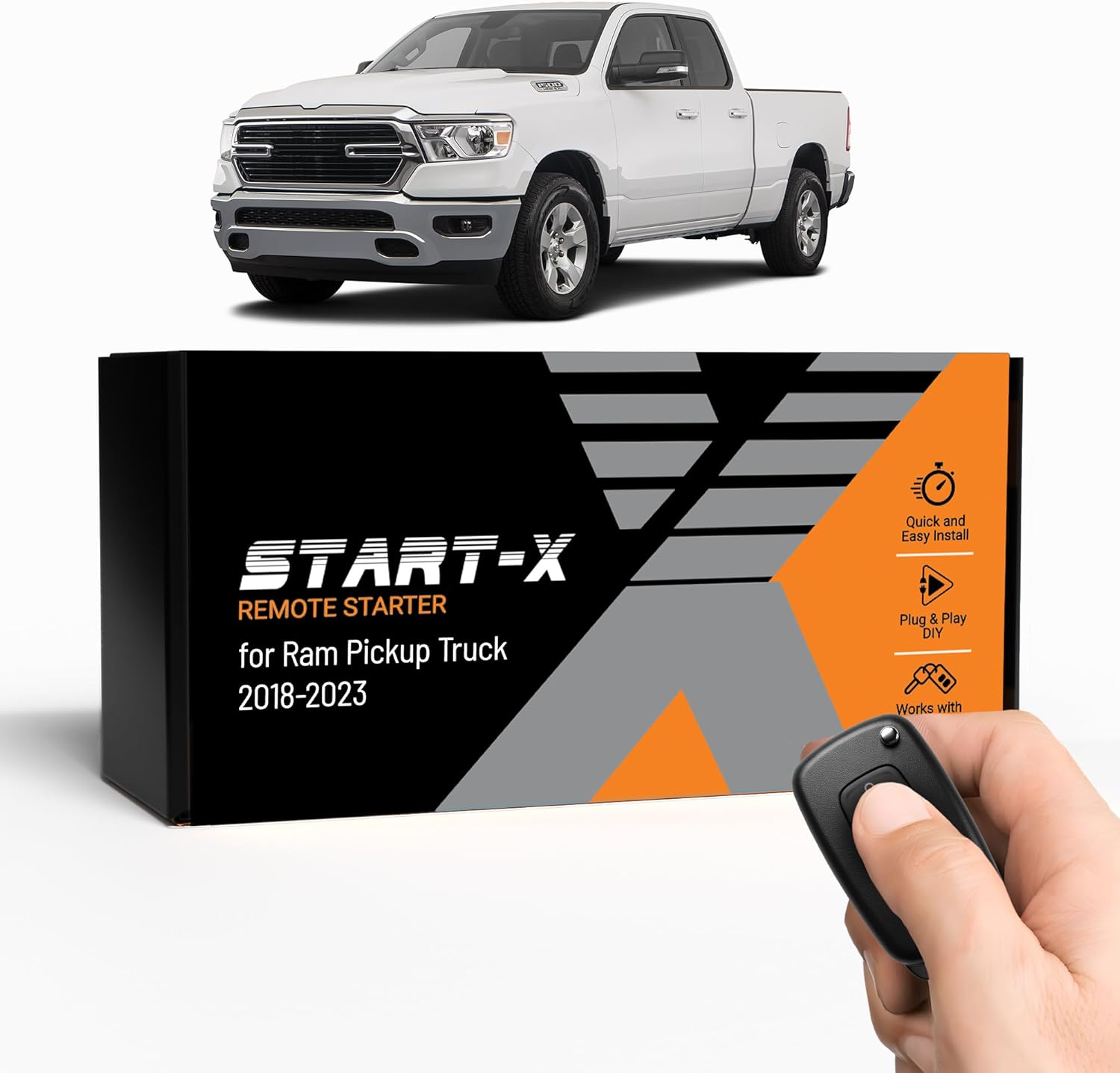

Image: The Start-X Remote Starter Kit packaging shown with a RAM pickup truck and a hand demonstrating the key fob.

2. Vehicle Compatibility and Requirements

This remote starter kit is compatible with the following vehicles:

• RAM 1500, 2500, and 3500 pickup trucks (Model Years: 2018, 2019, 2020, 2021, 2022, 2023).
• Compatible with Classic models.

Important Requirements:

• Designed for tip-start key ignition vehicles only. Not compatible with push-to-start vehicles.
• Vehicle must have a gas engine and automatic transmission.
• Your factory remote is required for operation (no additional remote is included).
• A Windows PC or Mac computer is required to complete the initial module programming.

Image: Visual representation of vehicle requirements: automatic transmission, key ignition only, and gas fuel type.

3. Kit Contents

Your Start-X Remote Starter Kit includes the following components:

• Remote Start Module
• Vehicle-specific T-Harness
• Pry Tool
• Zip Ties
• Installation Guide
• Welcome Card
• Warning Sticker

Image: An overview of all components included in the Start-X Remote Starter Kit packaging.

4. Initial Setup and Programming

Before physical installation, the remote start module requires programming using a computer.

1. Sign up at weblinkupdater.com.
2. Download and install the necessary software.
3. Connect the remote starter module to your computer using the included USB cable.
4. Open the weblink software.
5. Follow the on-screen instructions to flash the module with your vehicle's specific firmware.
6. Ensure the module is successfully programmed before proceeding with physical installation.

Image: A person using a laptop, illustrating the requirement of a Windows PC or Mac for module programming.

5. Installation

The Start-X Remote Starter Kit features a plug-n-play T-harness design, eliminating the need for wire cutting or splicing for most connections. Some vehicle disassembly may be required to access the necessary connection points.

5.1 General Installation Steps

1. Access the vehicle's steering column and lower dash area. This typically involves removing a few screws and gently prying off plastic panels.
2. Locate the vehicle's ignition harness.
3. Disconnect the factory ignition harness.
4. Connect the vehicle-specific T-harness in-line with the factory ignition harness.
5. Connect the remote start module to the T-harness.
6. Secure the module and excess wiring using the provided zip ties to prevent interference with pedals or other moving parts.
7. Test the remote start functionality before reassembling all panels.
8. Reassemble the vehicle's dash panels.

5.2 Installation Videos

For detailed visual guidance, please refer to the official installation videos provided by Start-X. These videos offer clear step-by-step instructions specific to your vehicle model.

6. Operating the Remote Starter

Your Start-X Remote Starter Kit utilizes your existing factory remote for operation.

6.1 Remote Start Procedure

1. Ensure your vehicle doors are closed and locked.
2. Press the LOCK button 3 times on your factory remote.
3. The vehicle will start and run for a pre-set duration (typically 15 minutes).

6.2 Remote Shut-Off Procedure

To turn off the vehicle remotely:

• Press the LOCK button 3 times again on your factory remote.

6.3 Driving After Remote Start

To drive your vehicle after remote starting:

1. Unlock the vehicle using your factory remote.
2. Enter the vehicle and insert your key into the ignition.
3. Turn the key to the ON position (do not crank).
4. Press the brake pedal. The remote start system will disengage, and you can now shift into gear and drive.

Image: Illustrates the benefit of remote start for warming up the vehicle in winter and cooling it down in summer.

Image: Various key fob designs, highlighting compatibility with your original factory remote.

7. Safety Features

The Start-X Remote Starter Kit includes built-in safety features:

• As a safety precaution, if a door is opened while the vehicle is running via remote start, the engine will shut down. The vehicle must be restarted with the key before driving.
• The remote starter will automatically shut off after 15 minutes if not entered and driven.

8. Maintenance

The Start-X Remote Starter Kit is designed for maintenance-free operation. Ensure all connections remain secure and free from moisture or damage. Periodically check for any loose wiring or connections.

9. Troubleshooting

If you encounter issues with your remote starter, consider the following:

• Remote Start Not Activating: Ensure all doors are closed, the hood is latched, and the vehicle is in Park. Verify your factory remote is functioning correctly.
• Vehicle Shuts Down Unexpectedly: Check if any doors were opened after remote starting. This is a safety feature.
• Lights Not Turning Off: If your vehicle has automatic headlights and they remain on after remote start shuts down, this is normal behavior for some models.
• Programming Issues: Double-check all steps in the initial setup and programming section, ensuring the correct firmware is flashed for your specific vehicle.

For further assistance, please contact the technical and customer support team.

10. Specifications

11. Warranty and Support

For any technical questions, installation assistance, or customer support, please refer to the contact information provided in your kit's welcome card or visit the official Start-X website. The technical and customer support team is available to provide additional help.
