1. Introduction
Thank you for choosing the Jeep Breeze Stroller by Delta Children. This lightweight and compact stroller is designed for convenience and comfort, featuring a one-hand fold, oversized canopy, reclining seat, and shock-absorbing frame. Please read this manual thoroughly before assembly and use to ensure safe operation and proper maintenance of your stroller.
Image 1.1: Front-side view of the Jeep Breeze Stroller, showcasing its compact design and canopy.
2. Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always secure your child with the 5-point safety harness.
- Never leave your child unattended in the stroller.
- This stroller is designed for children weighing up to 50 lbs (22.7 kg). Do not exceed this weight limit.
- Ensure the stroller is fully locked and stable before placing a child in it.
- Do not hang bags or other items on the handle, as this can cause the stroller to tip over.
- Avoid placing hot liquids or heavy objects in the storage basket.
- Keep fingers clear of moving parts when folding or unfolding the stroller.
- This product is JPMA certified to meet or exceed all safety standards set by ASTM.
3. Setup and Assembly
The Jeep Breeze Stroller requires minimal assembly. Follow these steps to prepare your stroller for use:
- Unfolding the Stroller: Release the folding latch (if present) and gently pull the handle upwards until the frame locks into place. Ensure all locking mechanisms are engaged with an audible click.
- Attaching Wheels: The wheels are typically pre-attached. If not, refer to the quick-start guide for specific wheel attachment instructions. Ensure wheels are securely fastened.
- Canopy Installation: Attach the canopy to the designated points on the stroller frame. Ensure it is securely clipped or snapped into place.
- Child Bar: The child bar can be easily attached or removed by pressing the release buttons on either side and sliding it into the designated slots.

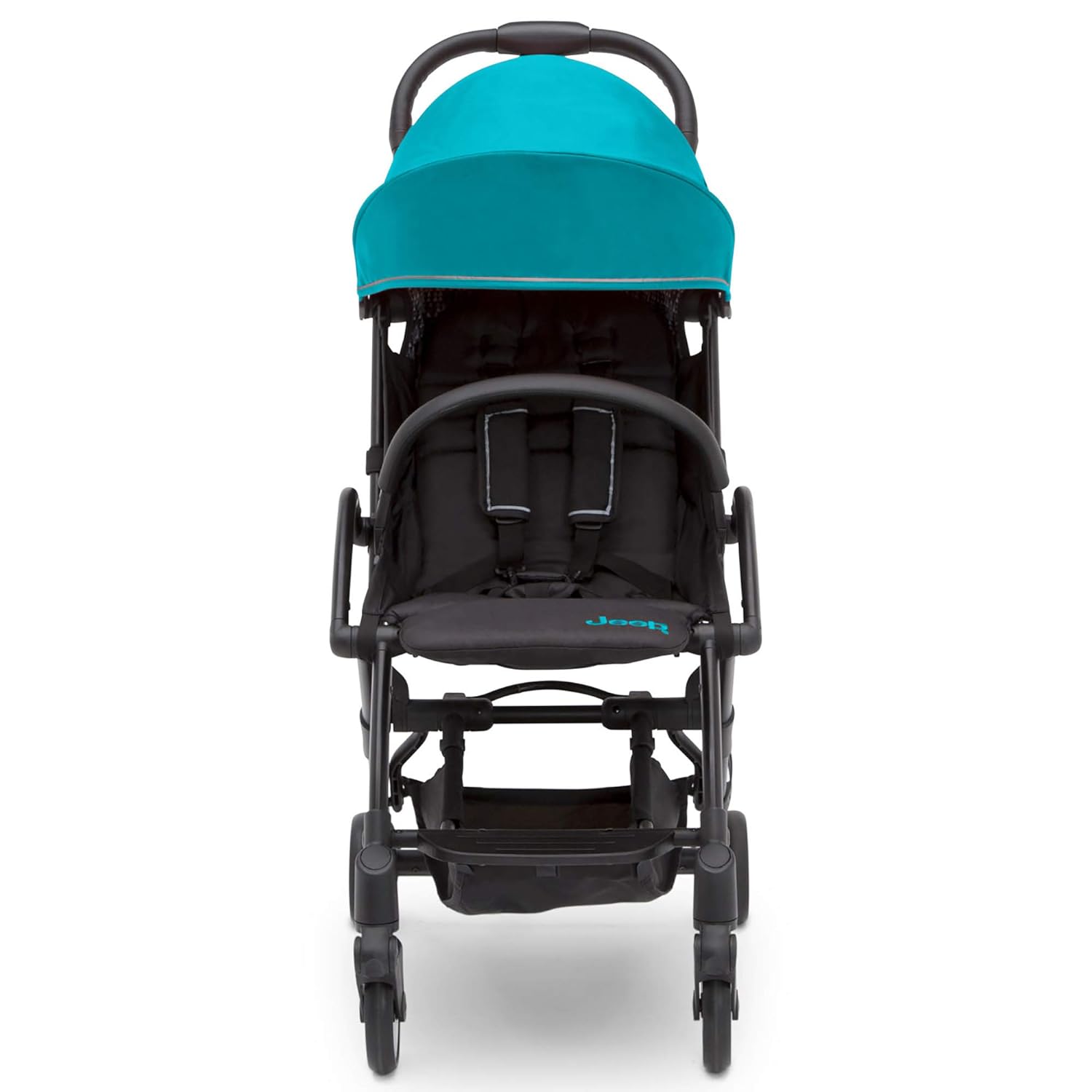

Image 3.1: Front view of the stroller, showing the child bar and canopy in place.
4. Operating Instructions
4.1. One-Hand Compact Fold
The stroller features a convenient one-hand compact fold mechanism. To fold, locate the folding release button/lever, typically on the handle. Press the button and push down or pull up (depending on the model) to initiate the fold. The stroller will collapse into a compact, upright position, making it easy for storage and transport.
Image 4.1: The stroller shown in its compact, folded configuration for easy storage.
4.2. Reclining Seat
The seat offers a 2-position recline for your child's comfort. To adjust the recline, locate the recline mechanism on the back of the seat. Squeeze the lever or buckle to adjust the seat to the desired position. Ensure the seat is securely locked in place before use.
Image 4.2: The stroller seat adjusted to a reclined position for child comfort.
4.3. Oversized Canopy
The stroller features an oversized canopy with an extendable sun visor to provide ample protection from the elements. Simply pull the canopy forward to extend it. The sun visor can be pulled out for additional coverage. A peek-a-boo window allows you to check on your child without disturbing them.
Image 4.3: Top view of the stroller with its oversized canopy fully extended.
4.4. Adjustable Footrest
The footrest can be adjusted to provide optimal support for your child's legs. Locate the adjustment mechanism beneath the footrest and adjust it to the desired height. Ensure it clicks into place.
4.5. Wheels and Brakes
The stroller is equipped with 5-inch swivel front wheels for easy maneuverability and 5-inch locking back wheels with a one-step brake. To engage the brake, press down firmly on the brake pedal located near the rear wheels. To release, lift the pedal. Always engage the brake when the stroller is stationary.
The all-wheel suspension system provides a smooth ride, and the airless foam wheels eliminate the need for inflation.
4.6. 5-Point Safety Harness
Always secure your child using the 5-point safety harness. Place each arm through the shoulder straps, bring the waist straps around, and connect all buckles into the central buckle. Adjust the straps for a snug, secure fit. The harness includes reflective shoulder pads for added visibility.
4.7. Storage Basket
A spacious storage basket is located beneath the seat for carrying essential items. Do not overload the basket; refer to the weight limits in the specifications section.
4.8. Product Video Overview
Video 4.8: An official product video from Delta Children showcasing the features and functionality of the Jeep Breeze Stroller.
5. Maintenance
- Cleaning: Clean the fabric parts with a damp cloth and mild soap. Do not use harsh abrasives or bleach. The frame can be wiped clean with a soft, damp cloth.
- Wheels: Regularly check the wheels for debris and ensure they rotate freely. Clean any dirt or hair from the wheel axles.
- Storage: Store the stroller in a dry, cool place away from direct sunlight to prevent fading and material degradation.
- Inspections: Periodically check all fasteners, rivets, and straps to ensure they are secure and not damaged. Replace any worn or broken parts immediately.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stroller does not fold or unfold smoothly. | Locking mechanisms are not fully disengaged/engaged, or debris is obstructing the frame. | Ensure all latches are released. Check for obstructions and clear them. Apply a silicone-based lubricant to moving parts if necessary. |
| Wheels are squeaky or difficult to turn. | Dirt or debris in the wheel axles, or lack of lubrication. | Clean the wheels and axles. Apply a small amount of silicone-based lubricant to the moving parts of the wheels. |
| Brake is not engaging or releasing properly. | Debris obstructing the brake mechanism, or mechanism is misaligned. | Clear any debris from the brake mechanism. If the issue persists, contact customer support. |
| Harness is difficult to buckle or unbuckle. | Buckle may be dirty or misaligned. | Clean the buckle with a damp cloth. Ensure all parts are aligned correctly before attempting to buckle. |
7. Specifications
- Model Number: 13298-2016
- Brand: Delta Children
- Recommended Use: Holds up to 50 lbs (22.7 kg)
- Frame Material: Aluminum
- Fabric Type: Mesh
- Item Weight: 13.2 lbs (6 kg)
- Assembled Dimensions (L x W x H): 33.25" x 17.75" x 40.94" (84.46 cm x 45.09 cm x 103.99 cm)
- Folded Dimensions (L x W x H): 17.75" x 9.69" x 24.13" (45.09 cm x 24.61 cm x 61.29 cm)
- Harness Type: 5-Point Safety Harness
- Wheel Size: 5" swivel front wheels, 5" locking back wheels
- Safety Certification: JPMA certified, meets or exceeds ASTM standards
Image 7.1: Visual representation of the stroller's assembled dimensions.
8. Warranty and Support
Manufacturer Warranty: This product is covered by a 90-day manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, replacement parts, or technical assistance, please contact Delta Children customer service. Keep your proof of purchase for warranty validation.
Contact Information: Please refer to the Delta Children official website or product packaging for the most current customer support contact details.
