1. Introduction
Thank you for choosing the Bomann VS7316-1 Inox Refrigerator. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.

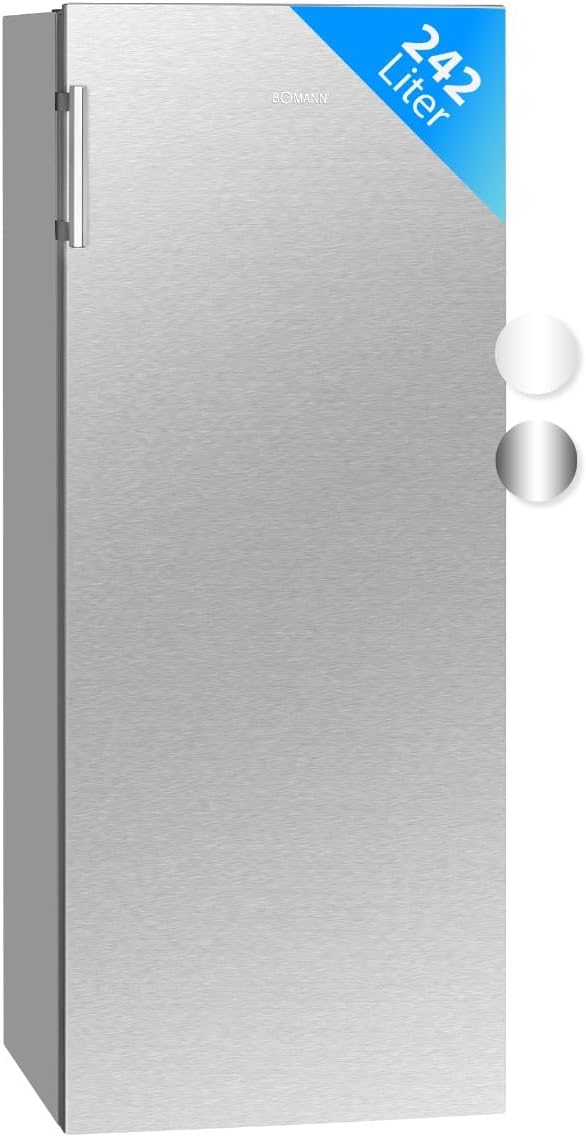

Image 1.1: Front view of the Bomann VS7316-1 Inox Refrigerator, showcasing its stainless steel finish and sleek design.
2. Safety Information
To ensure safe operation, always adhere to the following safety guidelines:
- Electrical Safety: Ensure the appliance is connected to a properly grounded power outlet. Do not use extension cords or adapters. Disconnect from power before cleaning or maintenance.
- Ventilation: Maintain adequate ventilation around the refrigerator to prevent overheating. Do not block air vents.
- Placement: Place the refrigerator on a stable, level surface away from direct sunlight, heat sources, and moisture.
- Flammable Materials: Do not store explosive substances or highly flammable materials inside or near the appliance.
- Children: This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children should be supervised to ensure they do not play with the appliance.
- Disposal: Dispose of the appliance according to local regulations for refrigerants and insulation materials.
3. Setup
3.1 Unpacking and Inspection
Carefully remove all packaging materials. Inspect the refrigerator for any damage during transit. Report any damage to your retailer immediately. Keep packaging materials away from children.
3.2 Placement and Leveling
Place the refrigerator on a firm, level floor. Ensure there is sufficient space around the appliance for proper air circulation (at least 10 cm at the back and sides, and 30 cm above). Adjust the leveling feet to ensure the appliance is stable and the door closes properly.
3.3 Door Reversal
The door hinge is reversible, allowing the door to open from either the left or right side. Refer to the diagram below for instructions on how to reverse the door. This procedure should be performed by a qualified technician or a person with sufficient technical knowledge.
Image 3.1: Diagram illustrating the process of reversing the refrigerator door to change its opening direction.
3.4 First Use
Before first use, clean the interior of the refrigerator with a mild detergent and warm water. Wipe dry thoroughly. After cleaning, plug in the appliance and allow it to cool for at least 2-3 hours before placing food inside. The temperature control should be set to a medium setting initially.
4. Operating the Refrigerator
4.1 Temperature Control
The refrigerator features a continuous temperature control dial located inside the compartment. Turn the dial to adjust the cooling intensity. A higher number typically indicates a colder temperature. Adjust the setting based on ambient temperature and the amount of food stored.
4.2 Internal LED Lighting
The refrigerator is equipped with energy-efficient LED interior lighting, which illuminates automatically when the door is opened. This provides clear visibility of the contents while consuming minimal energy.
Image 4.1: The refrigerator's interior with bright LED lighting, highlighting its energy efficiency class.
4.3 Storage Compartments
The refrigerator offers a net capacity of 242 liters with various storage options:
- Glass Shelves: Five adjustable glass shelves allow for flexible organization of food items.
- Door Compartments: Four door compartments provide convenient storage for bottles, jars, and smaller items.
- Vegetable Drawer: A dedicated drawer at the bottom helps keep fruits and vegetables fresh for longer.
Image 4.2: Detailed interior view of the refrigerator, illustrating its 242-liter capacity, five adjustable glass shelves, four door compartments, and a vegetable drawer.
Image 4.3: The refrigerator's interior, demonstrating ample space for various bottle sizes in the door compartments.
Image 4.4: An example of the refrigerator's interior, organized with various food items on its shelves and in door bins.
Image 4.5: A visual guide to storing different food categories like vegetables, dairy, meat, beverages, and fruits to maintain freshness.
5. Maintenance and Care
5.1 Cleaning
Regular cleaning helps maintain hygiene and efficiency. Always unplug the refrigerator before cleaning.
- Interior: Clean the interior with a solution of warm water and mild detergent. Avoid abrasive cleaners or solvents. Rinse with clean water and dry thoroughly.
- Exterior: Wipe the exterior surfaces with a soft, damp cloth. For stainless steel, use a specialized stainless steel cleaner.
- Door Seal: Clean the door gasket regularly to ensure a tight seal.
5.2 Defrosting
This refrigerator features a semi-automatic defrosting system. Frost buildup on the back wall is normal and will melt periodically. The water drains into a tray above the compressor where it evaporates. Ensure the drain hole is not blocked to allow proper water flow.
5.3 Power Saving Tips
- Do not place hot food directly into the refrigerator. Allow it to cool to room temperature first.
- Avoid opening the door too frequently or for extended periods.
- Ensure the door seal is clean and intact to prevent cold air leakage.
- Place the refrigerator in a cool, well-ventilated area away from direct sunlight and heat sources.
6. Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | No power; temperature setting too high; door not closed properly. | Check power supply; adjust temperature control; ensure door is sealed. |
| Unusual noise | Appliance not level; objects touching the back wall; compressor noise. | Adjust leveling feet; move objects; compressor noise is normal. |
| Water on floor | Blocked drain hole; excessive humidity. | Clear the drain hole; ensure door is not left open for long periods. |
| Door not closing properly | Appliance not level; door gasket dirty or damaged; food blocking. | Adjust leveling feet; clean/replace gasket; rearrange food. |
7. Specifications
Key technical specifications for the Bomann VS7316-1 Inox Refrigerator:
- Model Name: VS 7316.1 inox
- Product Dimensions (DxWxH): 55P x 59l x 144H cm (55 x 59 x 144 cm)
- Net Capacity: 242 Liters
- Color: Stainless Steel (Acciaio Inox)
- Installation Type: Freestanding
- Number of Doors: 1
- Defrost System: Semi-automatic
- Voltage: 220 Volt
- Special Features: Energy Efficiency, Adjustable Shelves, LED Interior Lighting
- Shelf Type: Glass
- Number of Shelves: 5
- Number of Door Shelves: 4
- Annual Energy Consumption: 104 Kilowatt hours per year
- Refrigerant: R-600A
- Door Opening Direction: Reversible
- Item Weight: 38 Kilograms
- Country of Origin: China
Image 7.1: Dimensional drawing of the refrigerator, indicating its width (55.1 cm), height (143.4 cm), and depth (54.2 cm).
Image 7.2: The energy efficiency label for the refrigerator, indicating its classification as Class E.
8. Warranty and Support
8.1 Manufacturer's Warranty
This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
8.2 Customer Support
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Bomann customer support. Contact details can typically be found on the manufacturer's website or in the documentation provided with your appliance.
