Spider Farmer 60"x60"x80" Grow Tent Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Spider Farmer 60"x60"x80" Grow Tent. Designed for indoor hydroponic growing, this tent offers a controlled environment for optimal plant development. Please read this manual thoroughly before setup and use to ensure safe and efficient operation.

2. Safety Information

• Ensure the grow tent is assembled on a flat, stable surface to prevent tipping.
• Keep all electrical components, such as grow lights and fans, properly secured and away from water sources.
• Do not overload the hanging bars. The tent is designed to support up to 150 lbs.
• Regularly inspect zippers and fabric for any damage that could compromise lightproofing or structural integrity.
• Maintain adequate ventilation to prevent heat buildup and ensure fresh air circulation for plants.

3. Package Contents

Verify that all components are present before beginning assembly:

• Grow Tent Canvas (1)
• Steel Poles (various lengths, labeled E, F, G, H, J)
• Corner Adapters (labeled D)
• Waterproof Floor Tray (1)
• Hanging Bars (2)
• Controller Lanyard (1)
• Power Strip Hook (1)
• Velcro Straps for cable organization
• Tool Bag (1)
• Instruction Manual (this document)

Image: Illustrated guide to the frame components and their quantities for the 60"x60"x80" grow tent.

4. Setup and Assembly

Follow these steps for tool-free assembly:

1. Assemble the Base Frame: Connect the appropriate steel poles (refer to the diagram in Section 3) to the corner adapters (D) to form the base of the tent.
2. Construct Side and Top Frames: Continue connecting poles and adapters to build the vertical sides and the top frame. Ensure all connections are secure.
3. Drape the Tent Canvas: Carefully pull the grow tent canvas over the assembled frame. Ensure the main door zipper is fully open to facilitate placement.
4. Install Hanging Bars: Attach the two hanging bars to the designated points on the top frame. These bars will support your grow lights and other equipment.
5. Place Floor Tray: Insert the waterproof floor tray at the bottom of the tent. This tray is removable for easy cleaning.
6. Secure Accessories: Utilize the integrated controller lanyard, power strip hook, and Velcro straps to organize your equipment and cables.

5. Operating Instructions

5.1 Lightproofing and Reflectivity

The tent features 1680D Oxford canvas and diamond reflective mylar to ensure 100% light reflectivity and prevent light leaks. The premium SBS zippers with a double protection zipper flap further enhance light containment, creating a completely controlled environment for your plants.

Image: Illustration demonstrating the lightproof technology of Spider Farmer tents compared to others, highlighting the zipper flap and material density.

5.2 Ventilation and Airflow

Utilize the multiple ventilation ports for proper air extraction and intake. These ports are designed to prevent stale air and promote healthy plant growth. Ensure your inline fan and carbon filter (recommended 6-inch inline fan for this model) are correctly installed and connected to the tent's ducting ports.

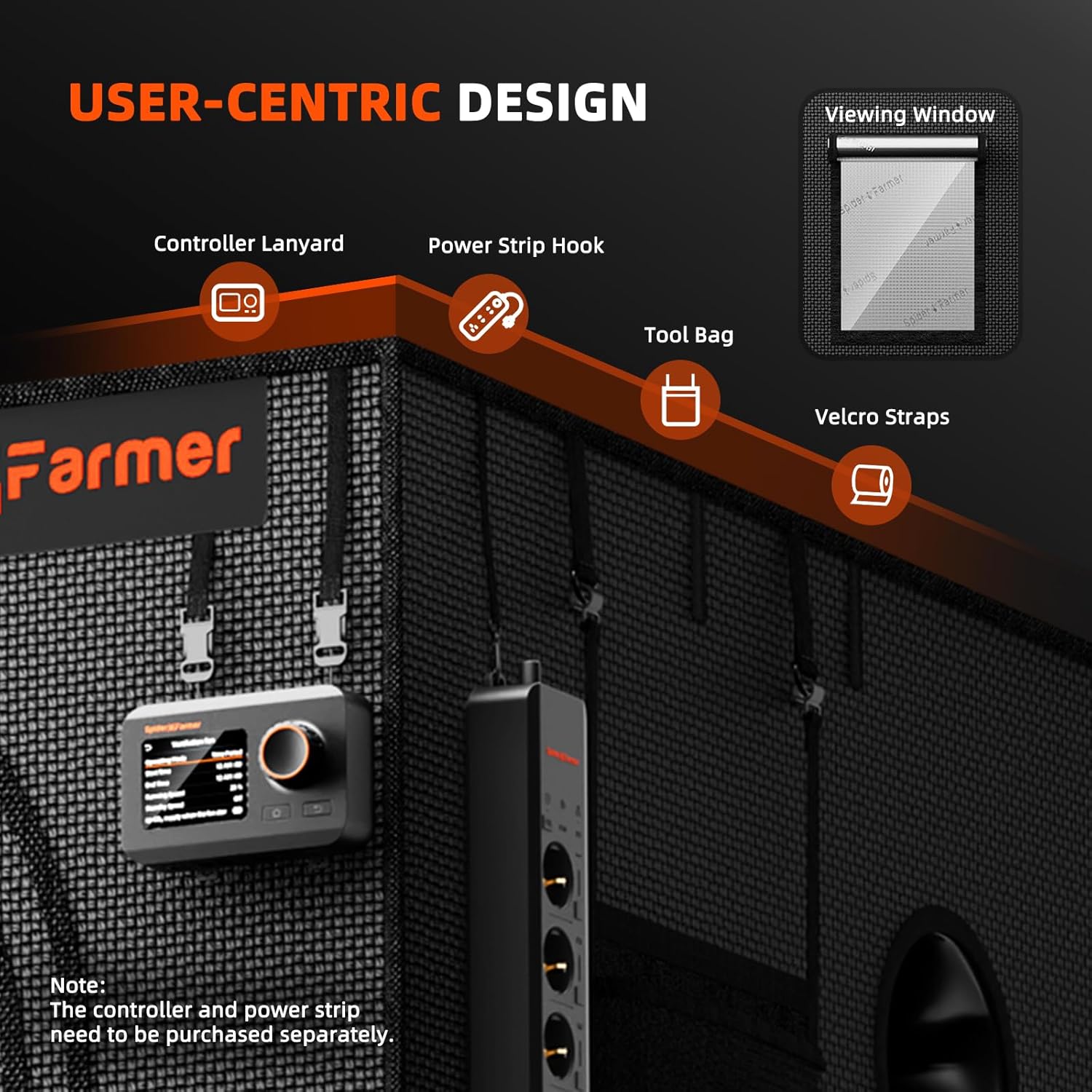

5.3 User-Centric Features

• Enlarged View Window: The 11.8"x15.7" view window allows for easy observation of your plants without disturbing the internal environment.
• Controller and Power Strip Hooks: Dedicated hooks are provided for securely hanging your controller and power strip, keeping them organized and off the floor.
• Tool Bag: A convenient tool bag is included for storing essential gardening tools.
• Side Buckle: The main door can be neatly fastened to the side buckle for quick and easy access when needed.

Image: Visual representation of the grow tent's user-friendly features, including the view window, controller lanyard, power strip hook, and tool bag.

6. Maintenance

• Cleaning the Tent: The 1680D Oxford canvas is tear-proof and waterproof. For general cleaning, wipe down the interior and exterior with a damp cloth. For deeper cleaning, the removable floor tray can be taken out and washed.
• Zipper Care: Periodically check the SBS zippers for smooth operation. Keep them free from debris to prevent sticking or damage.
• Frame Inspection: Regularly inspect the hardened steel poles and reinforced adapters for any signs of wear or damage to maintain structural integrity.
• Mylar Reflectivity: Ensure the diamond reflective mylar interior remains clean to maximize light efficiency. Gently wipe with a soft, damp cloth if needed.

Image: Detailed view of the premium SBS zipper, emphasizing its smooth and durable design for frequent use.

7. Troubleshooting

• Light Leaks: If light leaks are observed, check all zipper closures, ensuring the double protection flap is properly aligned. Inspect seams for any tears or gaps.
• Unstable Frame: Verify that all steel poles are fully inserted into the corner adapters. Ensure the tent is on a level surface.
• Poor Airflow: Check that all ventilation ports are open as needed and not obstructed. Ensure your inline fan is operating correctly and filters are clean.
• Zipper Sticking: Clean the zipper teeth with a soft brush to remove any debris. Apply a zipper lubricant if necessary.

8. Specifications

Image: Diagram illustrating the dimensions of the 60"x60"x80" grow tent and recommendations for compatible grow lights and inline fans.

9. Warranty and Support

For warranty information, product support, or any inquiries, please contact Spider Farmer customer service through their official website or the retailer where the product was purchased. Keep your proof of purchase for warranty claims.

Online Resources:

• Visit the Spider Farmer Store on Amazon for additional products and information.
