1. Product Overview
The VIPARSPECTRA P1500 LED Grow Light utilizes advanced SMD LED technology to deliver high PAR output and energy efficiency, promoting robust plant growth across all stages. Its fanless design ensures quiet operation, and the integrated dimmer function allows for precise light intensity control.
Key Features:
- Lower Operation Cost & Dimmable Function: Features SMD LED Technology for high PAR output, energy efficiency, and long lifespan. An integrated dimmer knob allows brightness adjustment for each growth phase.
- Full Spectrum Light: Composed of 660nm red light, IR, 3000K, and 5000K white light, providing comprehensive spectrum for plants from vegetative to flowering stages.
- Sleep-Friendly Design: Silent, fanless operation with large aluminum heat sinks for effective heat dissipation and extended lifespan.
- Optimal Coverage Area: Provides 3'x3' vegetative coverage at 20 inches and 2.5'x2.5' flowering coverage at 16 inches.
2. Setup Instructions
Follow these steps to properly set up your VIPARSPECTRA P1500 LED Grow Light.
2.1 Package Contents:
- 1 x P1500 LED Lighting Unit
- 1 x Hanging Kit (includes adjustable rope hangers)
- 1 x 6ft Power Cord (pre-connected to driver)
- 1 x User Instructions (this manual)
2.2 Installation:
- Unpack: Carefully remove all components from the packaging.
- Attach Hanging Kit: Securely attach the adjustable rope hangers to the designated points on the grow light unit.
- Hang the Light: Suspend the grow light in your desired growing area using the hanging kit. Ensure it is stable and level.
- Connect Power: Plug the 6ft power cord into a compatible electrical outlet (120 Volts).
- Initial Dimmer Setting: For initial setup, it is recommended to start with a lower dimmer setting (e.g., 25-50%) and gradually increase as plants adapt.
3. Operating Instructions
Understand how to operate your P1500 grow light for optimal plant development.
3.1 Dimmer Function:
The P1500 features an adjustable dimmer knob, allowing you to control light intensity from 5% to 100%. This flexibility is crucial for adapting to different plant growth stages and species. Note that the light cannot be turned off completely via the dimmer knob; a minimum of 5% brightness is maintained.
3.2 Full Spectrum Lighting:
The P1500 provides a full spectrum of light, including 660nm red light, IR (Infrared), 3000K warm white, and 5000K cool white LEDs. This spectrum mimics natural sunlight, supporting photosynthesis and healthy growth from seedling to bloom.
3.3 Recommended Hanging Heights and Coverage:
Adjust the hanging height and dimmer setting according to your plants' growth stage for optimal results.
- Seedlings: 22"-26" height, 60% brightness.
- Vegetative Stage: 18"-22" height, 100% brightness. Provides approximately 3'x3' coverage.
- Flowering Stage: 14"-18" height, 100% brightness. Provides approximately 2.5'x2.5' coverage.
3.4 Product Video:
Watch this official video from VIPARSPECTRA for a visual overview of the P1500 LED Grow Light.
4. Maintenance
Proper maintenance ensures the longevity and optimal performance of your grow light.
- Cleaning: Regularly wipe the light surface and heat sinks with a dry, soft cloth to remove dust and debris. Ensure the unit is unplugged before cleaning.

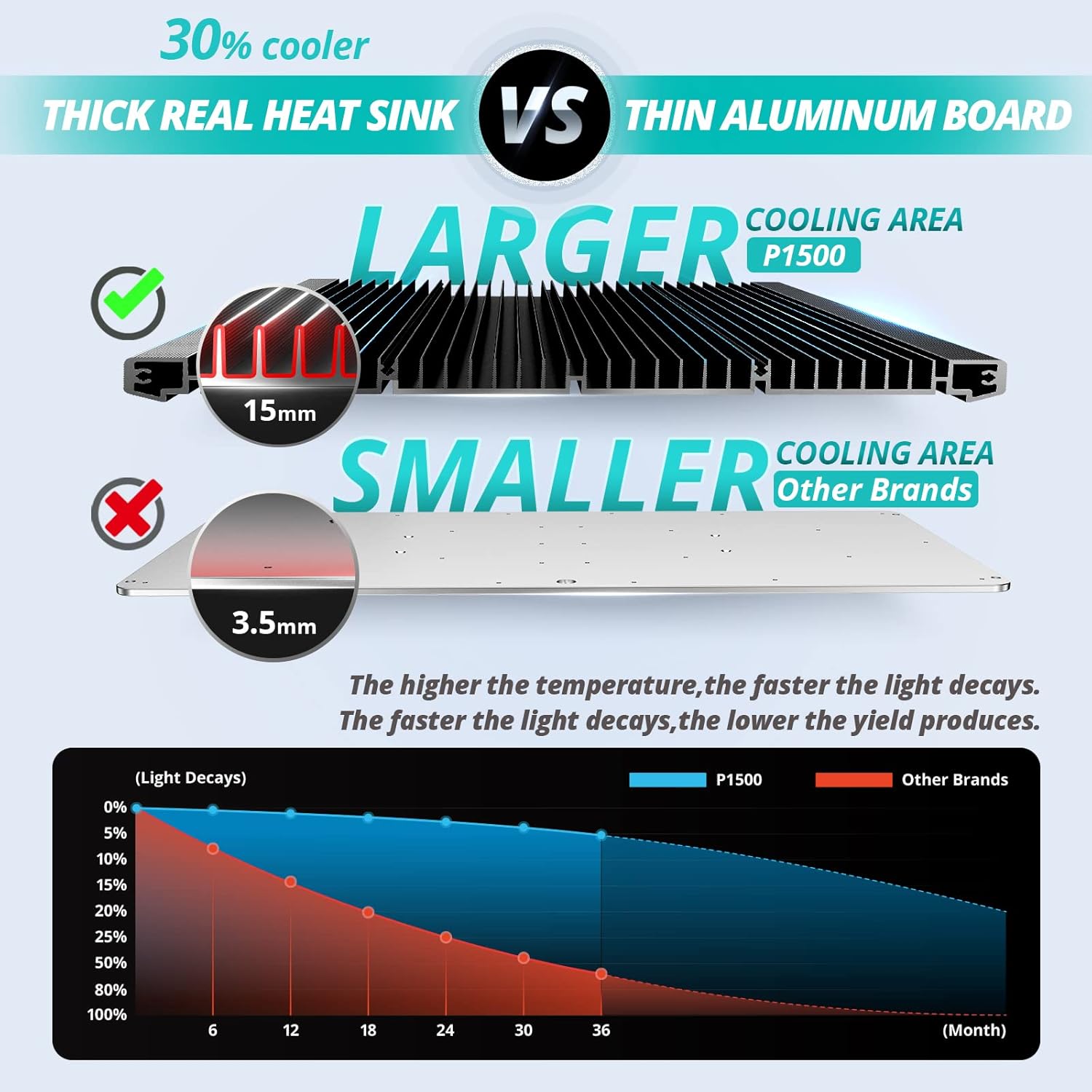

- Heat Dissipation: The P1500 features large aluminum heat sinks for efficient cooling. Ensure adequate airflow around the unit to prevent heat buildup, especially in enclosed spaces.
- Inspection: Periodically check the power cord and hanging components for any signs of wear or damage.
5. Troubleshooting
If you encounter any issues with your VIPARSPECTRA P1500, refer to the following common troubleshooting steps.
- Light Not Turning On:
- Ensure the power cord is securely plugged into both the light unit and a functional electrical outlet.
- Check the dimmer knob; it must be set above the minimum 5% brightness for the light to be visible.
- Verify the power outlet is working by plugging in another device.
- Plants Showing Stress/Burn:
- The light may be too close to the plants or the intensity too high. Refer to Section 3.3 for recommended hanging heights and adjust the dimmer accordingly.
- Ensure proper ventilation in your growing area to manage temperature.
- Unusual Noise:
- The P1500 is designed for silent, fanless operation. If you hear unusual noises, unplug the unit immediately and contact customer support.
If these steps do not resolve the issue, please contact VIPARSPECTRA customer support for further assistance.
6. Specifications
Detailed technical specifications for the VIPARSPECTRA P1500 LED Grow Light.
| Feature | Specification |
|---|---|
| Model | P1500 |
| Brand | VIPARSPECTRA |
| Light Source Type | LED |
| Number of Light Sources | 450 |
| Light Source Wattage | 150 Watts |
| Voltage | 120 Volts |
| Amperage | 1.25 Amps |
| Bulb Features | Dimmable |
| Material | Aluminum |
| Product Dimensions | 13.7"L x 11"W x 2.6"H |
| Item Weight | 8.68 pounds |
| Vegetative Coverage | 3'x3' at 20" |
| Flowering Coverage | 2.5'x2.5' at 16" |
7. Warranty and Support
VIPARSPECTRA stands behind the quality of its products.
7.1 Warranty Information:
The VIPARSPECTRA P1500 LED Grow Light comes with a 3-year warranty. Please retain your proof of purchase for warranty claims.
7.2 Customer Support:
For any questions, technical assistance, or warranty inquiries, please contact VIPARSPECTRA customer support through their official website or the retailer where the product was purchased. Provide your model number (P1500) and purchase details for efficient service.
