S7 TIG-200 Welder Instruction Manual

1. Introduction

Thank you for choosing the S7 TIG-200 3-in-1 Multifunctional Welding Machine. This powerful and versatile welder is designed for a variety of welding applications, offering ARC, DC TIG, and Pulse TIG capabilities. It operates efficiently on both 110V and 220V power supplies, making it suitable for diverse work environments. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your welding machine.

Important Safety Information

Always prioritize safety when operating welding equipment. Failure to follow safety guidelines can result in serious injury or damage to the equipment.

• Ensure primary and secondary wiring is correct and input voltage matches the machine's specifications before use.
• After powering on, avoid contact with any live parts of the primary circuit.
• Always ensure protective covers are in place on primary and secondary connections.
• The machine includes automatic protection features against over-current, over-voltage, overheating, and overload.
• The unit features an IP211 protection standard for water resistance.
• A unique coating is applied to prevent shock transfer.
• Disconnect the power supply before moving the welding machine. Do not move it by pulling the cables.
• In case of an unexpected power failure during welding, immediately disconnect the power.
• After use, clean the workspace, disconnect the power supply, and securely store the equipment.

Figure 1: S7 TIG-200 Welder highlighting its safety features.

2. Package Contents

Upon unpacking, please verify that all the following components are included in your package:

• 1 x S7 TIG-200 Welder Unit
• 1 x 13.2ft/4m WP-17 TIG Torch
• 1 x Set of TIG Torch Consumables (collets, collet bodies, ceramic cups)
• 1 x 220V to 110V Adapter
• 1 x 6ft/2m Ground Clamp
• 1 x 6ft/2m Electrode Holder

Figure 2: All components included with the S7 TIG-200 Welder.

3. Setup Guide

3.1 Power Connection

The S7 TIG-200 welder supports dual voltage input (110V/220V). Ensure your power source matches the machine's requirements and use the appropriate adapter if necessary.

• Connect the power cable to a suitable electrical outlet.
• Verify the voltage setting on the machine, if adjustable, matches your power supply.

3.2 Connecting Accessories

Proper connection of welding accessories is crucial for safe and effective operation.

• TIG Torch: Connect the TIG torch cable to the designated TIG output terminal on the front panel. Ensure a secure connection.
• Ground Clamp: Attach the ground clamp cable to the workpiece or welding table, ensuring good electrical contact. Connect the other end to the ground terminal on the welder.
• Electrode Holder (for ARC welding): If performing ARC welding, connect the electrode holder cable to the appropriate terminal.
• Gas Hose (for TIG welding): Connect your shielding gas supply (e.g., Argon) to the gas inlet on the rear of the machine using a suitable hose and regulator.

Figure 3: Front panel of the S7 TIG-200 Welder with connection points.

4. Operating Modes

The S7 TIG-200 offers three primary welding modes: DC TIG, Pulse TIG, and ARC (Stick) welding.

4.1 TIG Welding (DC TIG / Pulse TIG)

• Material Compatibility: Ideal for stainless steel, mild steel, copper, alloy steel, iron, and carbon steel.
• Welding Thickness: Supports thicknesses from 0.3mm to 4.8mm.
• Features: Utilizes hot start TIG and non-contact arc initiation for clean and efficient starts.
• Procedure: Ensure proper shielding gas flow. Set desired amperage and pulse settings (if using Pulse TIG). Maintain a consistent arc length and travel speed for optimal results.

4.2 ARC Welding (Stick Welding)

• Material Compatibility: Suitable for various ferrous metals.
• Welding Thickness: Supports thicknesses from 15mm to 42mm.
• Procedure: Select the appropriate electrode for your material and application. Set the amperage according to the electrode manufacturer's recommendations. Maintain a steady hand and consistent arc.

Figure 4: Wide application range of the S7 TIG-200 Welder.

5. Maintenance

Regular maintenance ensures the longevity and reliable performance of your S7 TIG-200 welder.

• Cleaning: Periodically clean the exterior of the machine with a dry, soft cloth. Ensure ventilation openings are free from dust and debris. For internal cleaning, consult a qualified technician.
• Cable Inspection: Regularly inspect all welding cables, torch, and ground clamp for any signs of damage, fraying, or loose connections. Replace damaged components immediately.
• Consumables: Check and replace TIG torch consumables (collets, collet bodies, ceramic cups, tungsten electrodes) as they wear out to maintain arc quality.
• Storage: Store the welder in a clean, dry environment, away from excessive dust, moisture, and corrosive materials.

6. Troubleshooting

This section provides solutions to common issues you might encounter. For problems not listed here, please contact customer support.

7. Technical Specifications

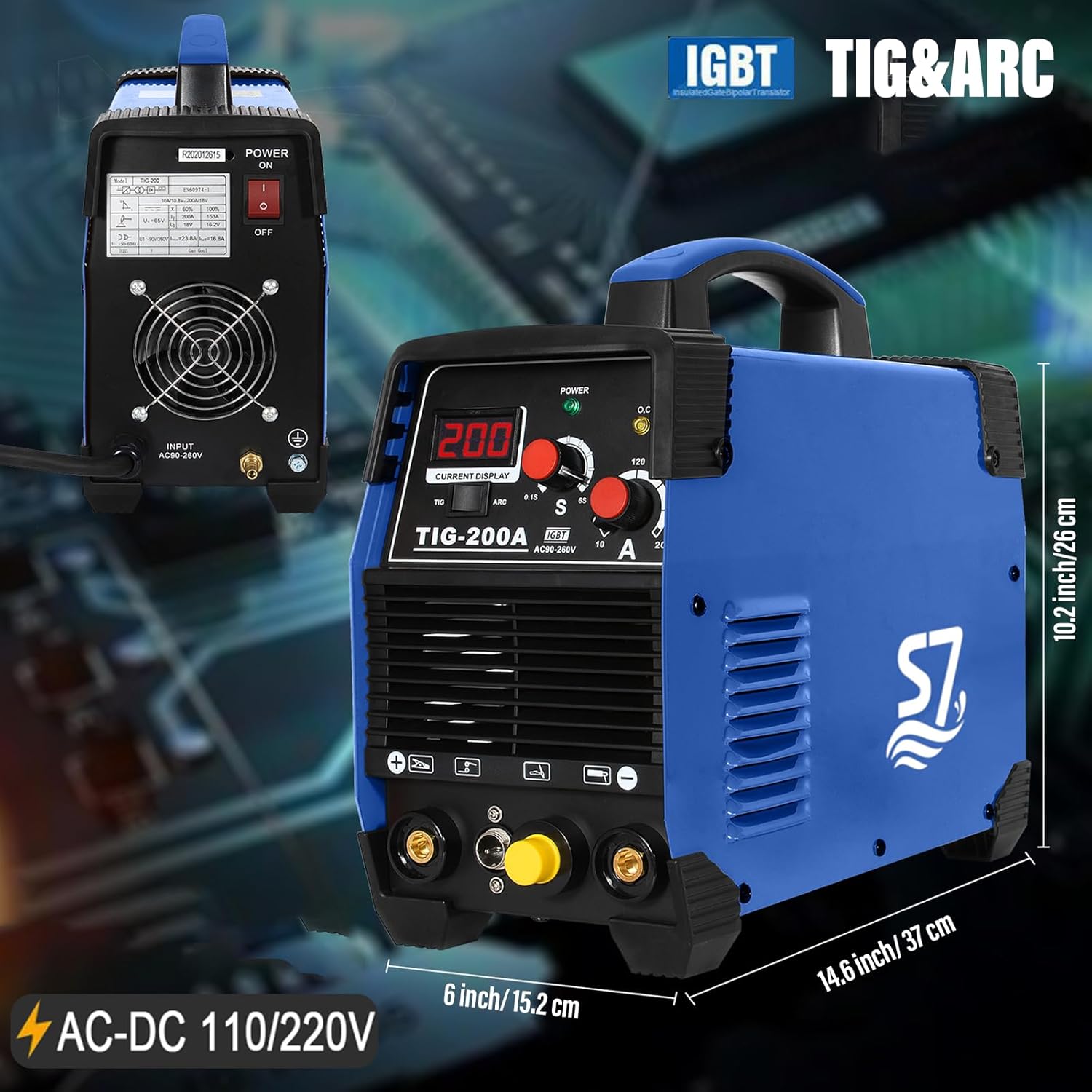

Figure 5: Dimensions of the S7 TIG-200 Welder.

8. Warranty and Support

The S7 TIG-200 welding machine comes with a manufacturer's warranty covering defects in materials and workmanship under normal use. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.

For technical support, warranty claims, or any questions regarding your S7 TIG-200 welder, please contact our customer service team. You can find contact information on our official website or through the retailer where you purchased the product.

Please retain your proof of purchase for warranty purposes.
