ALFA One Pizza Oven Instruction Manual

Introduction

The ALFA One Pizza Oven is a compact, wood-fired outdoor countertop oven designed for efficient and even cooking. Crafted with patented Forninox technology, it reaches optimal cooking temperatures in as little as 10 minutes, allowing you to bake pizzas in 90 seconds. Its insulated dome ensures consistent heat distribution, while the built-in thermometer helps monitor internal temperatures. This versatile oven requires minimal assembly and no curing before use, making it ready for a variety of dishes beyond pizza, including roasts, vegetables, and desserts.

• Compact Design: Reaches cooking temperatures in 10 minutes and bakes pizza in 90 seconds.
• Forninox Technology: Patented technology for efficient heating with minimal fuel.
• Even Cooking: Specially shaped insulated dome retains heat for consistent results.
• Quick Setup: Minimal assembly required, no curing needed before first use.
• Versatile: Suitable for pizzas, roasts, vegetables, and desserts.

Setup

Follow these steps to assemble your ALFA One Pizza Oven. Ensure all components are present and undamaged before beginning assembly.

1. Base Assembly: Secure the feet and reinforced base plate to form the oven's sturdy foundation.
2. Wheel Installation: Attach the wheels to the base for easy mobility.
3. Chimney Assembly: Connect the chimney top to the chimney pipe and then attach the complete chimney unit to the oven body.
4. Oven Body Placement: Carefully lift and place the main oven body onto the assembled legs and base, securing it with the provided screws.
5. Fire Bricks: Insert the refractory fire bricks onto the cooking surface inside the oven. Ensure they are placed snugly to retain heat effectively.
6. Drip Pan: Install the drip pan beneath the cooking area.
7. Gas System (if applicable): Connect the pressure regulating valve and gas lines according to the diagram in your specific manual.
8. Handles and Hooks: Attach the left and right handles and any accessory hooks to the oven body.
9. Oven Door: Assemble the oven door handle and attach the door to the oven opening.

Operating Instructions

Achieve perfect results with your ALFA One Pizza Oven by following these operating guidelines.

1. Fueling: Place small pieces of dry, seasoned wood (such as oak) in the designated firebox area. Avoid using treated wood or excessive amounts of kindling.
2. Ignition: Ignite the wood using a fire starter. Allow the flames to establish and the oven to begin heating.
3. Preheating: Monitor the built-in thermometer. The oven is ready when it reaches the desired cooking temperature, typically around 750°F (400°C) for pizzas. This usually takes about 10-15 minutes.
4. Cooking: Use a pizza peel to carefully place your pizza onto the hot refractory stone. For even cooking, rotate the pizza every 30-45 seconds. Pizzas cook very quickly, often in 60-90 seconds.
5. Temperature Management: Adjust the amount of wood to maintain consistent heat. The insulated dome and refractory tiles help retain heat for continuous cooking.
6. Other Dishes: For roasting meats or vegetables, allow the flames to die down slightly and cook with residual heat or smaller, consistent flames. Use appropriate oven-safe cookware.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your ALFA One Pizza Oven.

• Ash Removal: After each use, once the oven has completely cooled, remove any ash and debris from the firebox and cooking surface. A small brush or vacuum designed for ash can be used.
• Stone Cleaning: The refractory cooking stones are largely self-cleaning at high temperatures. For stubborn residue, gently scrape with a metal brush or scraper. Avoid using water or harsh chemicals on the hot stone.
• Exterior Cleaning: Wipe down the stainless steel exterior with a damp cloth and mild detergent. Avoid abrasive cleaners that could scratch the finish.
• Chimney Maintenance: Periodically check the chimney for any soot buildup and clean as necessary to ensure proper ventilation.
• Storage: If storing outdoors, consider using a protective cover to shield the oven from weather elements.

Troubleshooting

Here are some common issues and their potential solutions:

• Oven Not Reaching Temperature:
  • Ensure you are using dry, seasoned hardwood.
  • Check for proper airflow through the chimney and firebox.
  • Add more fuel gradually to increase heat.
• Pizza Burning on Top/Bottom:
  • If the top is burning, the flames might be too high or too close to the pizza. Reduce fuel or adjust placement.
  • If the bottom is burning, the stone might be too hot. Allow the oven to cool slightly or lift the pizza with the peel for a few seconds.
  • Ensure even rotation of the pizza during cooking.
• Excessive Smoke:
  • Use only dry, seasoned wood. Wet or unseasoned wood produces more smoke.
  • Ensure the chimney is clear and has good draft.
• Difficulty Lighting:
  • Use appropriate fire starters and small kindling to get the fire going.
  • Ensure adequate airflow during ignition.

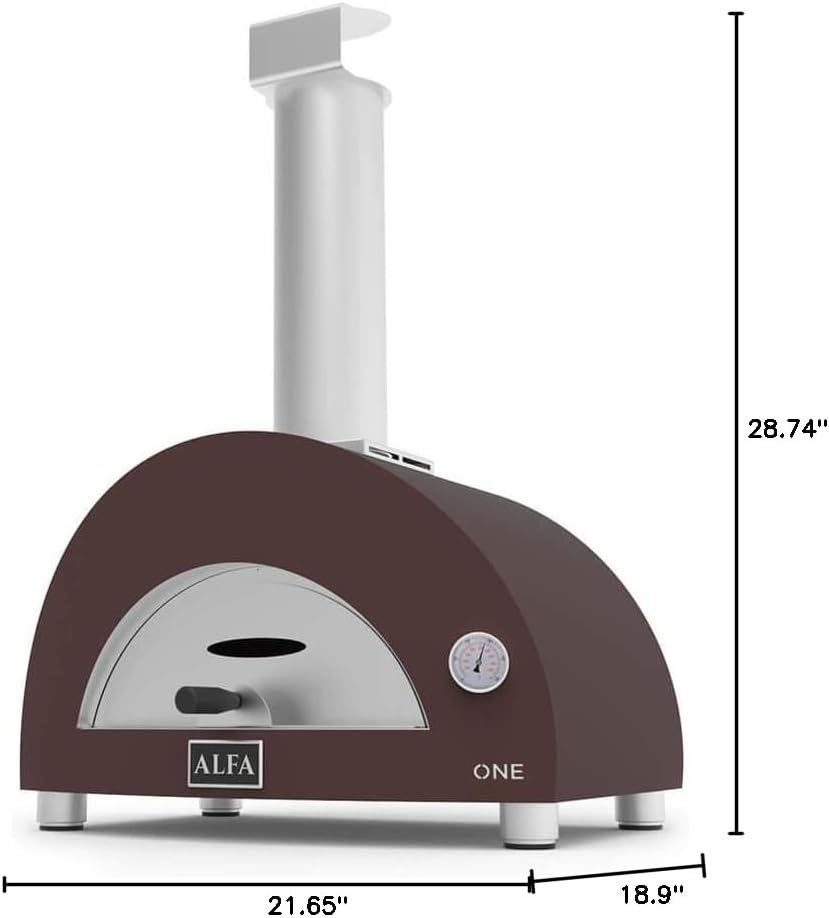

Specifications

Warranty and Support

For warranty information, please refer to the documentation included with your product at the time of purchase. For technical support, spare parts, or service inquiries, please contact ALFA customer service through their official website or the contact details provided in your product packaging. Keep your purchase receipt and model number handy for faster service.
