1. Introduction
This instruction manual provides comprehensive guidance for the installation, maintenance, and proper use of your UpStart Components WB15X335 Microwave Door Handle Replacement. Designed for durability and easy at-home installation, this part is an affordable solution to extend the life of your microwave oven. Please read this manual carefully before proceeding with any installation or maintenance.
2. Safety Information
Always prioritize safety when working with electrical appliances. Failure to follow these safety guidelines may result in injury or damage.
- Disconnect Power: Always unplug the microwave oven from the power outlet before attempting any repair or installation.
- Wear Protective Gear: Consider wearing gloves to protect your hands during the installation process.
- Handle with Care: While durable, handle the replacement part carefully to avoid damage.
- Professional Assistance: If you are unsure about any step, consult a qualified technician.
3. Compatibility
The WB15X335 Microwave Door Handle Replacement is compatible with a range of GE microwave oven models. Please verify your microwave's model number before installation to ensure compatibility.
Compatible GE Microwave Models:
- JVM1340WW02, JVM1350WW02, JVM1339WW02, JVM1331WW02, JVM1330WW02
- JVM1350WW03, JVM1330WW03, JVM1341WW02, JVM1340WW03
- JVM1331WW04, JVM1331WW05, JVM1341WW03, JVM1330WW05
- JVM1339WW03, JVM1331WW03, JVM1331WW01, JVM1350WW01
- JVM1330WW01, JVM1330WW04, JVM1339WW01, JVM1340WW01, JVM1341WW01
Compatible Part Numbers:
- WB15X335, AP2021148, 245574
- AH232260, EA232260, PS232260, WB15X0335
4. Package Contents
Your package should contain the following item:
- 1 x UpStart Components WB15X335 Microwave Door Handle Replacement (White Plastic)
5. Installation Guide
This section provides step-by-step instructions for replacing your microwave door handle. While installation is generally straightforward, always proceed with caution.

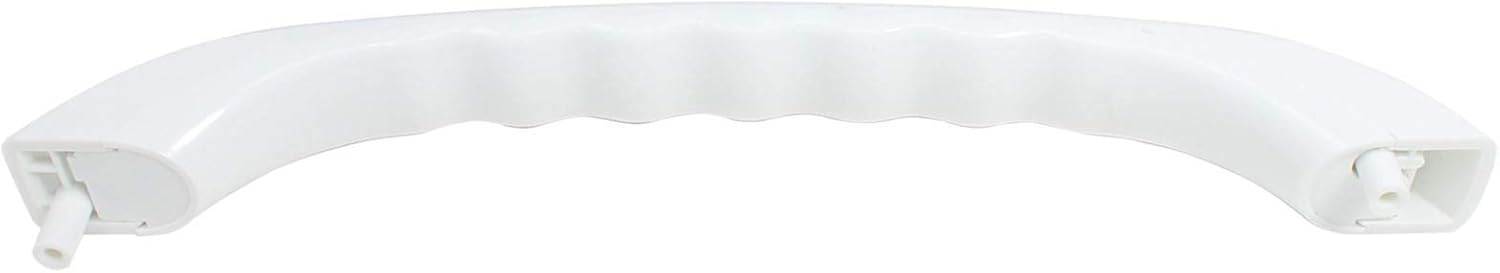

Figure 5.1: Overall view of the UpStart Components WB15X335 Microwave Door Handle Replacement. This white plastic handle is designed for easy grip and durability.
- Prepare the Microwave: Ensure the microwave oven is unplugged from the wall outlet. Open the microwave door fully.
- Remove Old Handle (if applicable): Depending on your microwave model, the old handle may be secured by screws from the inside of the door panel or by clips. Carefully locate and remove any fasteners. Gently pull the old handle away from the door.
- Inspect Mounting Points: Examine the mounting points on the microwave door for any debris or damage. Clean if necessary.
- Position New Handle: Align the new WB15X335 handle with the mounting holes on the microwave door. The handle has specific pegs or tabs on each end designed to fit into these holes.
Figure 5.2: Close-up of one end of the handle, showing the mounting peg designed to fit into the microwave door.
Figure 5.3: Close-up of the opposite end of the handle, illustrating the second mounting peg for secure attachment.
- Secure the Handle: Gently push the handle into place until the pegs are fully seated in the door's mounting points. If screws were used with the old handle, reinsert and tighten them from the inside of the door panel. Ensure the handle is firmly attached and does not wobble.
- Test Functionality: Once the handle is securely installed, close the microwave door and plug the appliance back into the power outlet. Open and close the door several times to ensure the handle operates smoothly and the door latches correctly.
6. Operating the Handle
The replacement handle functions identically to the original. To open the microwave door, simply grasp the handle firmly and pull. Avoid excessive force or twisting motions, as this can put undue stress on the handle and its mounting points, potentially leading to premature wear or damage.
Figure 6.1: Side profile of the WB15X335 handle, showing its ergonomic curve designed for comfortable grip.
7. Maintenance and Care
To ensure the longevity and appearance of your new microwave door handle, follow these simple maintenance tips:
- Cleaning: Wipe the handle regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the plastic finish.
- Inspection: Periodically check the handle for any signs of looseness or damage. If the handle feels loose, ensure the mounting screws (if applicable) are tightened.
- Avoid Impact: Protect the handle from impacts or heavy objects that could cause cracks or breakage.
8. Troubleshooting
If you encounter any issues after installing your replacement handle, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Handle feels loose after installation. | Mounting pegs not fully seated or screws not tightened. | Ensure pegs are fully inserted. If applicable, tighten mounting screws from inside the door panel. |
| Handle does not fit into mounting holes. | Incorrect handle model or debris in mounting holes. | Double-check microwave model compatibility. Clean any debris from the mounting holes. Do not force the handle. |
| Door does not latch properly after handle replacement. | Handle installed incorrectly, obstructing latch mechanism. | Re-check handle alignment and ensure it does not interfere with the door latch. Reinstall if necessary. |
9. Specifications
Key specifications for the UpStart Components WB15X335 Microwave Door Handle Replacement:
- Material: Plastic
- Color: White
- Exterior Finish: White
- Specific Uses For Product: Door (Microwave Oven)
- Special Feature: Durable, Easy to Install
- Hand Orientation: Right (as typically installed on microwave doors)
- Unit Count: 1 Count
- Part Number: AP-WB15X335 (also compatible with WB15X335, AP2021148, 245574, AH232260, EA232260, PS232260, WB15X0335)
- Manufacturer: UpStart Components
10. Warranty and Support
UpStart Components stands behind the quality of its products.
Warranty Information:
This product comes with a 1 Year Warranty provided by UpStart Components. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Customer Support:
For any questions, concerns, or technical assistance regarding your WB15X335 Microwave Door Handle Replacement, please contact UpStart Components customer support through the retailer where the product was purchased or visit the official UpStart Components website for contact details.
