1. Introduction
The Vive Folding Electric Wheelchair (Model MOB1029S) is designed to provide reliable mobility and maximum comfort for adults and seniors. This compact, foldable power chair features a durable aluminum frame, powerful dual motors, and a long-lasting battery, making it suitable for various terrains and travel. This manual provides essential information for the safe and effective use of your electric wheelchair.
Image 1.1: The Vive Folding Electric Wheelchair in its operational and folded states.
2. Safety Information
Read all safety instructions before operating the wheelchair. Failure to follow these instructions may result in injury or damage to the product.
- Weight Capacity: The wheelchair is designed to accommodate users up to 220 pounds (99.8 kg). Do not exceed this weight limit.
- Total Weight: The total weight of the wheelchair is 95 pounds (43 kg). Exercise caution when lifting or transporting the unit, especially when folding or unfolding.
- Lap Belt: Always use the adjustable lap belt for added safety and stability during operation.
- Terrain: While designed for various terrains, exercise caution on uneven surfaces, inclines, and declines. Avoid steep slopes exceeding 6 degrees.
- Environmental Conditions: Avoid operating the wheelchair in extreme weather conditions, such as heavy rain or snow, to prevent damage to electronic components.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Setup and Assembly
The Vive Folding Electric Wheelchair arrives largely pre-assembled. Follow these steps for initial setup.
- Unfolding the Wheelchair: Carefully unfold the wheelchair until it locks into its open position. Ensure all locking mechanisms are securely engaged before use.
- Attaching the Joystick Controller: The 360-degree joystick controller can be positioned for either left or right-handed operation. Securely attach it to the desired armrest.
- Adjusting Footrests: Adjust the footrests to a comfortable height for the user.
- Initial Battery Charge: Before initial use, fully charge the battery. Connect the charger to the wheelchair's charging port and then to a standard electrical outlet. The battery charge indicator on the joystick will show charging status.
Image 3.1: Wheelchair dimensions and folded design for transport.
4. Operating Instructions
Familiarize yourself with the joystick controller and wheelchair functions before operating.
- Power On/Off: Press the power button on the joystick controller to turn the wheelchair on or off.
- Speed Adjustment: Use the speed up/down buttons on the joystick to select your desired speed, up to a maximum of 4 mph.
- Directional Control: Use the 360-degree controller stick to steer the wheelchair. Push forward to move forward, pull back to reverse, and move left or right to turn. The wheelchair offers a zero turning radius for easy maneuverability.
- Safety Horn: Press the safety horn button on the joystick to alert others.
- Battery Indicator: Monitor the battery charge level using the indicator lights on the joystick.
- USB Charging Port: A USB port is available on the joystick for convenient charging of personal devices.
Image 4.1: Intuitive joystick control for easy maneuvering.
Image 4.2: The wheelchair's all-terrain design with durable 16-inch rear wheels.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Vive Folding Electric Wheelchair.
- Battery Care: To maximize battery life and range (up to 12 miles per charge), fully charge the battery after each use. Avoid completely draining the battery. Store the wheelchair in a cool, dry place when not in use.
- Cleaning: The seat and other surfaces are made from easy-to-clean material. Use a damp cloth with mild soap to wipe down surfaces. Avoid using abrasive cleaners or excessive water directly on electronic components.
- Tire Inspection: Regularly inspect the flat-free front tires and large sport rear tires for any signs of wear or damage.
- Fastener Check: Periodically check all nuts, bolts, and fasteners to ensure they are secure. Tighten any loose components as necessary.
6. Troubleshooting
This section addresses common issues you might encounter with your electric wheelchair.
- Wheelchair Does Not Power On:
- Ensure the battery is fully charged and properly connected.
- Check all electrical connections for looseness.
- Verify the power button on the joystick is functioning correctly.
- Reduced Performance or Range:
- This may indicate a low battery charge. Fully charge the battery.
- Ensure tires are free of debris that could impede movement.
- If the issue persists after charging, contact customer support.
- Unusual Noises or Movement:
- Immediately cease operation and inspect the wheelchair for any loose components, such as nuts or bolts.
- Check for any obstructions in the wheels or motor area.
- If unable to identify or resolve the issue, contact customer support.
- Joystick Malfunction:
- Ensure the joystick cable is securely connected.
- If the joystick is unresponsive or erratic, contact customer support for diagnosis and potential replacement.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | MOB1029S |
| Brand | Vive |
| Product Dimensions (Open) | 39.5"D x 27"W x 38"H (100.3 cm D x 68.6 cm W x 96.5 cm H) |
| Package Dimensions | 30 x 29 x 16.8 inches (76.2 cm x 73.7 cm x 42.7 cm) |
| Item Weight | 95 Pounds (43 kg) |
| Maximum Weight Capacity | 220 Pounds (99.8 kg) |
| Maximum Speed | 4 mph (6.4 km/h) |
| Battery Range | Up to 12 miles (19.3 km) per charge |
| Frame Material | Aluminum |
| Tire Type | Flat-free front tires, large sport rear tires |
Image 7.1: Detail of the sturdy aluminum frame supporting up to 220 pounds.
Image 7.2: Illustration of the powerful intuitive motor.
8. Warranty and Support
Vive Health is committed to providing quality products and customer satisfaction.
- Warranty: The Vive Folding Electric Wheelchair is covered by a 5-Year Limited Guarantee. This warranty covers manufacturing defects under normal use. Please refer to the official Vive Health website or your purchase documentation for complete warranty terms and conditions.
- Customer Support: For assistance with setup, operation, maintenance, troubleshooting, or any other inquiries, please contact Vive Health customer support. Contact information can typically be found on the manufacturer's website (Vive Store) or product packaging.
9. Media Resources
This section provides additional visual aids for understanding your product.
Product Images

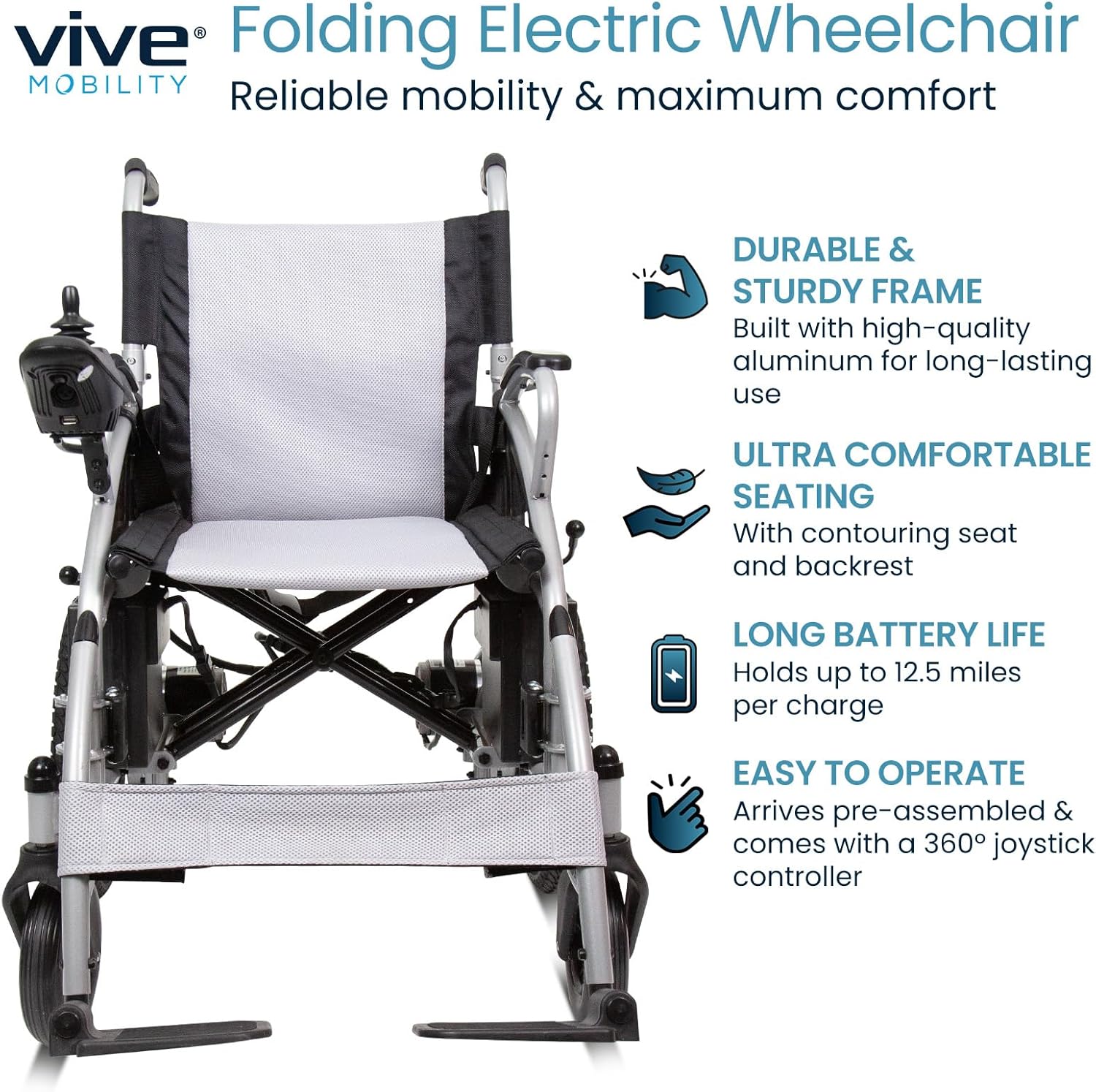

Image 9.1: Key features of the Vive Folding Electric Wheelchair.
Image 9.2: Demonstrating the wheelchair's long-lasting battery and certifications.
Image 9.3: Features contributing to seating comfort.
Official Product Videos
No official product videos from the seller were found with relevant content for embedding in this manual.
