1. Introduction
Thank you for choosing the Whirlpool ACE 7.5 SUPREME Semi-Automatic Top Loading Washing Machine. This appliance is designed for efficient and convenient laundry care, featuring a 7.5 kg capacity and a 5-star energy rating. This manual provides essential information for the safe installation, operation, maintenance, and troubleshooting of your washing machine. Please read it thoroughly before first use and keep it for future reference.
Key features include a 1400 RPM motor for faster drying, an Ace Wash Station for sorting and stacking, and a rust-proof body for durability.
Figure 1: Front view of the Whirlpool ACE 7.5 SUPREME washing machine, showcasing its design and a 4-year comprehensive warranty sticker.
2. Safety Information
To ensure safe operation and prevent injury or damage, please observe the following safety precautions:
- Always connect the washing machine to a properly grounded electrical outlet.
- Do not operate the machine with a damaged power cord or plug.
- Keep children and pets away from the appliance during operation.
- Do not wash items that are soiled with flammable substances.
- Ensure the water inlet and drain hoses are securely connected to prevent leaks.
- Never reach into the machine while it is operating.
- Unplug the appliance before cleaning or performing any maintenance.
3. Setup and Installation
Careful installation is crucial for optimal performance and longevity of your washing machine.
3.1 Unpacking
- Remove all packaging materials, including the base packing.
- Check for any damage during transit. If damaged, do not install and contact customer service.
- Ensure all included components are present: 1 Washing Machine, Inlet Pipe, User Manual, Spin Cap.
3.2 Placement
- Place the machine on a firm, level surface to minimize vibration and noise.
- Ensure there is adequate space around the machine for ventilation and access.
- Avoid direct sunlight or placement near heat sources.

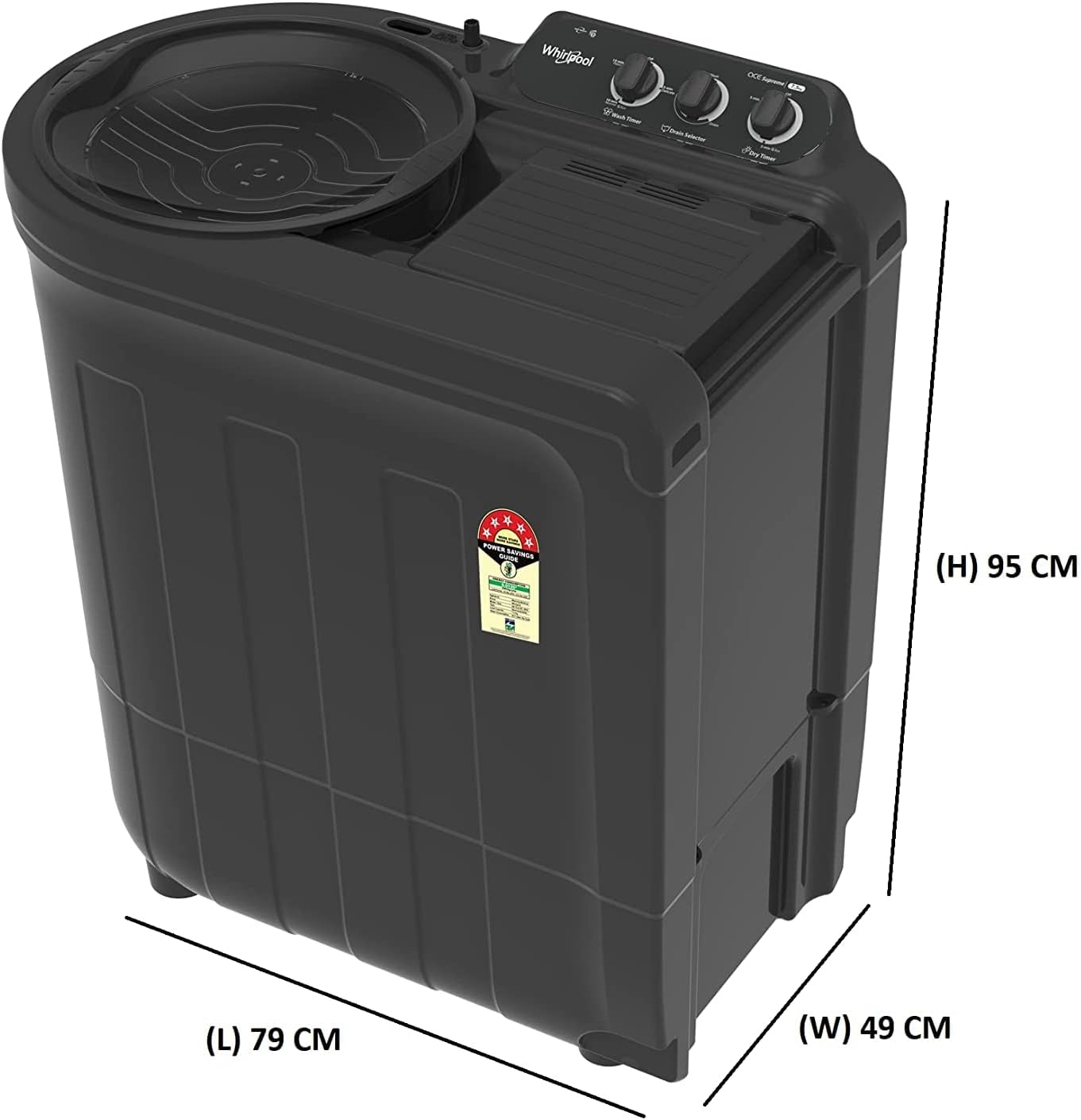

Figure 2: Side view of the washing machine with approximate dimensions (L: 79 CM, W: 49 CM, H: 95 CM) for proper placement.
3.3 Water and Power Connection
- Connect the inlet pipe to a cold water tap and securely attach it to the machine's water inlet.
- Position the drain hose to allow for proper water drainage, ensuring it is not kinked or blocked.
- Plug the power cord into a dedicated, grounded 230 Volt electrical outlet.
4. Operating Instructions
Follow these steps for effective use of your semi-automatic washing machine.
4.1 Control Panel Overview
Figure 3: Control panel featuring Wash Timer, Drain Selector, and Dry Timer.
- Wash Timer: Sets the duration for the wash cycle.
- Drain Selector: Controls water drainage from the wash tub.
- Dry Timer: Sets the duration for the spin-drying cycle.
4.2 Loading Clothes and Detergent
- Sort clothes by fabric type and color.
- Place clothes loosely into the wash tub, ensuring not to overload (maximum 7.5 kg).
- Add appropriate detergent according to the manufacturer's instructions and load size.
Figure 4: The Ace Wash Station provides a convenient area to sort, stack, and carry clothes.
4.3 Selecting Wash Programs and Washing
- Fill the wash tub with water to the desired level.
- Select one of the three available wash programs: Normal, Heavy Duty, or Delicates, based on your laundry needs.
- Set the Wash Timer to the desired duration.
- After the wash cycle, drain the water using the Drain Selector.
4.4 Spin Drying
- Transfer washed clothes to the spin tub.
- Place the spin cap over the clothes.
- Close the spin tub lid and set the Dry Timer for the desired spin duration. The machine features a 1400 RPM motor for efficient drying.
Figure 5: Additional features include Supersoak Technology, an In-built Collar Scrubber, 4 Wheels for easy mobility, and 1400 RPM Max Dry for efficient water removal.
5. Maintenance and Care
Regular maintenance ensures the longevity and efficient operation of your washing machine.
5.1 Cleaning the Lint Filter
- After every few washes, remove and clean the lint filter located inside the wash tub.
- Rinse the filter under running water to remove accumulated lint and debris.
- Reinsert the clean lint filter securely.
5.2 Cleaning the Machine Exterior
- Wipe the exterior of the machine with a soft, damp cloth.
- Do not use abrasive cleaners or solvents, as they may damage the plastic surface.
- The machine features a rust-proof body for enhanced durability.
Figure 6: Internal view highlighting the 1400 RPM motor, rust-proof body, and rat protection features, contributing to the machine's durability and ease of maintenance.
5.3 Winterizing (If Applicable)
- If the machine is stored in an area subject to freezing temperatures, drain all water from the hoses and tubs to prevent damage.
6. Troubleshooting
Refer to this section for solutions to common operational issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Power outage; Lid not closed properly | Check power connection; Restore power; Ensure lids are fully closed |
| Water not filling | Water tap closed; Inlet hose kinked; Water supply issue | Open water tap; Straighten hose; Check household water supply |
| Water not draining | Drain hose kinked or blocked; Drain selector set incorrectly | Clear drain hose; Set drain selector to 'Drain' |
| Excessive vibration/noise | Machine not level; Uneven load; Transit bolts not removed | Adjust leveling feet; Redistribute laundry; Ensure all transit bolts are removed |
| Clothes not spinning dry | Spin tub overloaded; Spin cap not placed; Dry timer not set | Reduce load; Place spin cap; Set dry timer |
If the problem persists after attempting these solutions, please contact Whirlpool customer support.
7. Specifications
Technical details of the Whirlpool ACE 7.5 SUPREME washing machine.
| Feature | Detail |
|---|---|
| Model | ACE 7.5 SUPREME |
| Capacity | 7.5 Kilograms |
| Type | Semi-Automatic Top Loading |
| Energy Rating | 5 Star |
| Wash Cycles | 3 (Normal, Heavy Duty, Delicates) |
| Maximum Rotational Speed | 1400 RPM |
| Product Dimensions (L x W x H) | 31.1 x 19.29 x 38.19 inches (79 x 49 x 95 cm) |
| Item Weight | 10.93 pounds (4960 Grams) |
| Material Type | Plastic |
| Drum Material | Stainless Steel |
| Voltage | 230 Volts |
| Noise Level | 48 dB |
Figure 7: The energy efficiency label for the Whirlpool ACE 7.5 SUPREME washing machine, indicating its 5-star rating and energy consumption details.
8. Warranty and Support
Your Whirlpool ACE 7.5 SUPREME washing machine comes with a comprehensive warranty to ensure peace of mind.
8.1 Warranty Information
- Comprehensive Warranty: 4 Years (as indicated on product imagery).
- Specific warranty details: 2 years on the product and 5 years on the motor.
- Please retain your purchase receipt for warranty claims.
8.2 Customer Support
For any service, support, or warranty inquiries, please contact Whirlpool customer service. Refer to the contact information provided in your warranty card or visit the official Whirlpool website for assistance.
