Evenflo Chase Plus 2-in-1 Booster Car Seat

Introduction

Thank you for choosing the Evenflo Chase Plus 2-in-1 Booster Car Seat. This manual provides essential information for the proper installation, use, and maintenance of your car seat. Designed for versatility, the Chase Plus transitions from a forward-facing harnessed booster to a high-back booster, accommodating children weighing 22 to 120 lbs. Please read this manual thoroughly before using the car seat to ensure maximum safety and comfort for your child.

Front view of the Evenflo Chase Plus 2-in-1 Booster Car Seat in Geneva Pink, showing the harness system and dual cup holders.

Important Safety Guidelines

Always prioritize your child's safety. Adhere to the following guidelines:

• Never use a car seat that has been involved in a moderate to severe crash, even if there is no visible damage.
• Always register your car seat with Evenflo to receive important safety notices and recall information.
• Ensure the car seat is properly installed and secured according to the instructions before every use.
• Always secure your child snugly in the harness or with the vehicle's seat belt.
• Never leave your child unattended in the car seat.
• Refer to your vehicle's owner's manual for specific car seat installation instructions and compatible seating positions.
• The Evenflo Chase Plus meets or exceeds all applicable federal safety standards and Evenflo’s side impact standard. It is designed and tested for structural integrity at energy levels approximately 2X the federal crash test standard.

Components Overview

Familiarize yourself with the main components of your Evenflo Chase Plus car seat:

• Headrest: Adjustable for height, featuring RightFit exclusive belt path technology.
• Harness System: 5-point harness for harnessed booster mode.
• Seat Pad: Padded for comfort, removable and machine-washable.
• Dual Cup Holders: Integrated for convenience.
• LATCH Connectors: For secure installation in harnessed mode.
• Tether Strap: For additional security in harnessed mode.

Angled view of the car seat, highlighting its structure and integrated cup holders.

Installation

1. Forward-Facing Harnessed Booster Installation (22-40 lbs)

For children weighing 22-40 lbs, use the 5-point harness system and secure the car seat using the vehicle's LATCH system and top tether.

1. Place the car seat forward-facing in an appropriate vehicle seating position.
2. Locate your vehicle's lower LATCH anchors and attach the car seat's LATCH connectors. Ensure a tight connection.
3. Route the top tether strap over the vehicle seat and attach it to the vehicle's top tether anchor. Tighten the tether strap.
4. Press down firmly on the car seat while pulling the LATCH strap to remove all slack. The car seat should not move more than 1 inch side-to-side or front-to-back at the belt path.

A hand demonstrating how to pull the LATCH strap to tighten the car seat installation.

2. High-Back Booster Installation (40-120 lbs)

For children weighing 40-120 lbs, the car seat converts to a high-back booster, using the vehicle's lap and shoulder belt to secure both the child and the booster seat.

1. Remove the 5-point harness system according to the instructions in the "Maintenance" section.
2. Place the booster seat forward-facing in an appropriate vehicle seating position.
3. Position your child in the booster seat.
4. Route the vehicle's lap and shoulder belt through the designated belt guides on the booster seat.
5. Ensure the shoulder belt lies flat across the child's shoulder and chest, and the lap belt is low on the hips, touching the thighs. The RightFit headrest technology will help auto-adjust the vehicle belt for a proper fit.
6. Buckle the vehicle belt.

Side view of the car seat configured as a high-back booster, without the harness system.

Operating Instructions

Adjusting the Headrest (RightFit Technology)

The RightFit headrest is designed to auto-adjust the vehicle belt path as you adjust the headrest height, ensuring a proper fit for your child as they grow.

1. Locate the headrest adjustment lever, typically at the top or back of the headrest.
2. Squeeze the lever and slide the headrest up or down until the shoulder belt (in booster mode) or harness straps (in harnessed mode) are at or just above your child's shoulders.
3. Release the lever to lock the headrest in place.

A hand demonstrating the adjustment of the car seat's headrest.

Securing Your Child (Harnessed Mode)

1. Place your child in the car seat.
2. Bring the harness straps over your child's shoulders and buckle the chest clip at armpit level.
3. Insert the two buckle tongues into the crotch buckle until they click.
4. Pull the harness adjustment strap at the front of the seat to tighten the harness until it is snug against your child's body. You should not be able to pinch any slack at the shoulder.

A close-up view of the car seat's 5-point harness system, showing the buckle and chest clip.

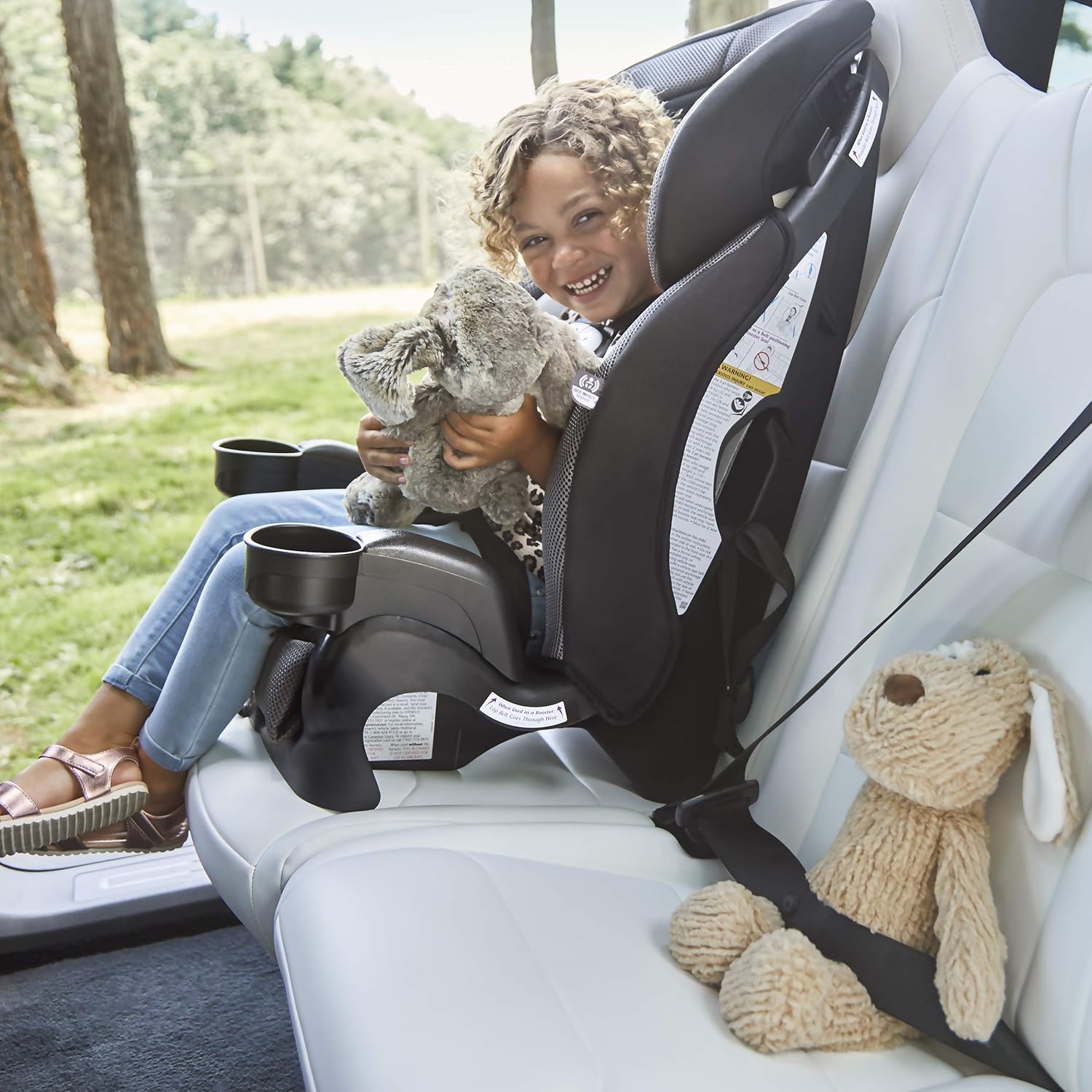

A child seated comfortably in the Evenflo Chase Plus car seat, demonstrating proper fit.

Using the Cup Holders

The integrated dual cup holders are designed to keep snacks and drinks conveniently within reach for your child.

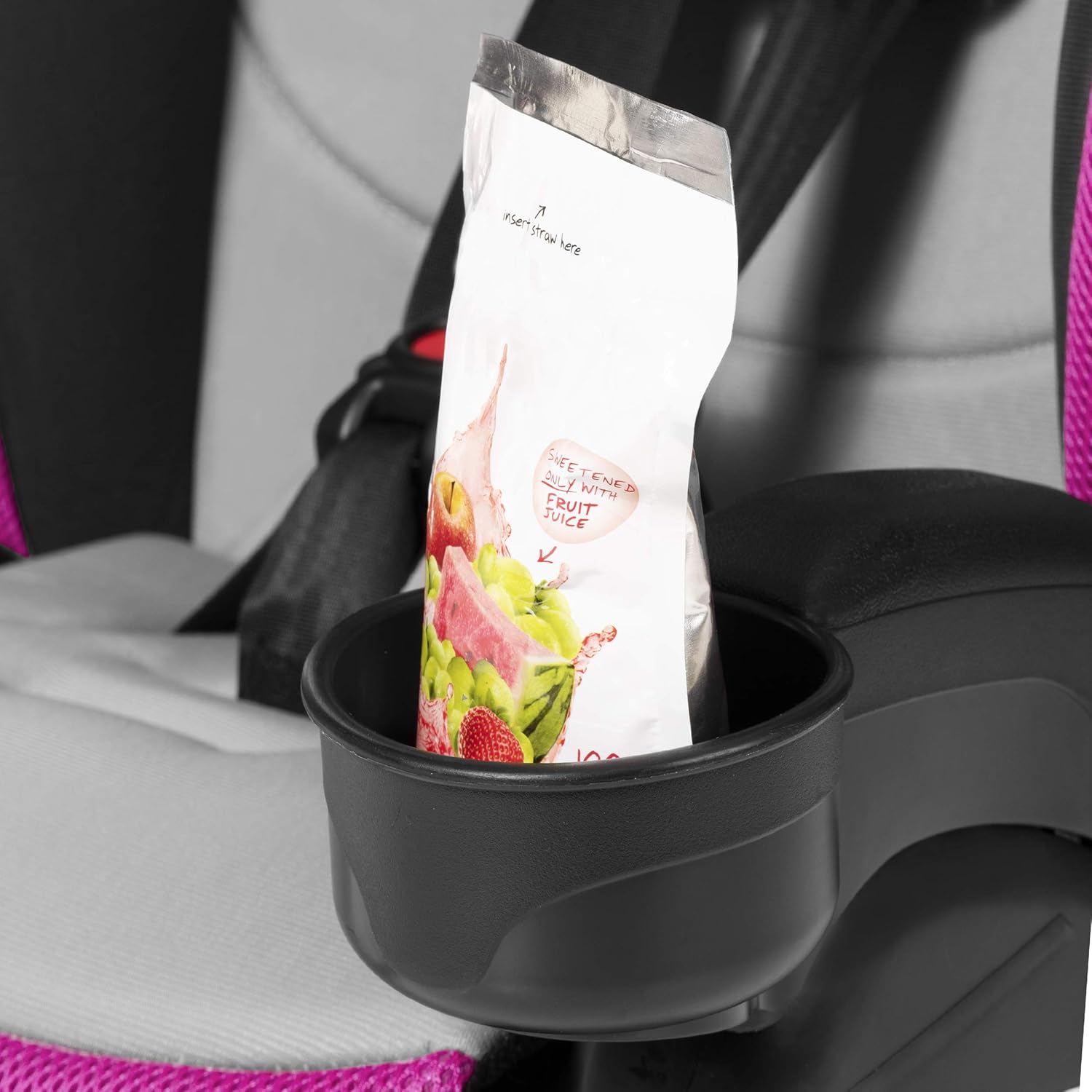

A close-up view of the car seat's integrated cup holder, holding a drink pouch.

Maintenance

Regular cleaning will help maintain the longevity and hygiene of your car seat.

• Seat Pad: The comfortable, padded seat pad is removable and machine-washable. Use cold water on a gentle cycle and tumble dry on low heat. Do not use bleach.
• Harness Straps: Wipe harness straps with a damp cloth. Do not machine wash or submerge harness straps in water, as this can weaken the webbing.
• Buckle: Clean the buckle by wiping with a damp cloth. If the buckle is sticky, rinse it under warm water without soap.
• Plastic and Metal Parts: Wipe plastic and metal parts with a mild soap and water solution.

Troubleshooting

If you encounter issues with your Evenflo Chase Plus car seat, refer to the following common solutions:

• Car Seat Feels Loose After Installation: Ensure LATCH connectors and/or vehicle belt are routed correctly and pulled tight. Press down firmly on the car seat while tightening. Check your vehicle's manual for specific LATCH weight limits.
• Harness Straps Are Difficult to Tighten/Loosen: Check for twists in the harness webbing. Ensure the harness adjustment strap is not obstructed. Clean the buckle if it feels sticky.
• Child's Head Slumps Forward: Recline the vehicle seat slightly if possible and safe to do so (check vehicle manual). Ensure the headrest is adjusted to the correct height for your child.
• Buckle Not Latching: Ensure both buckle tongues are fully inserted into the crotch buckle until you hear a click. Clean the buckle if debris is present.

If problems persist, contact Evenflo Customer Support.

Specifications

Customer Support & Warranty

Evenflo is committed to providing safe and reliable products. If you have any questions, require assistance, or need to address a warranty claim, our ParentLink customer service experts are available to help.

For real-time support, please visit the official Evenflo website or refer to the contact information provided with your product packaging. Always have your model number (30712360C) and date of manufacture ready when contacting support.

Evenflo products are designed and tested to meet or exceed federal safety standards. Specific warranty details are typically included with your product documentation. Please retain your proof of purchase for warranty purposes.
