Womow W5 S Cordless Vacuum Cleaner User Manual

Introduction

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Womow W5 S Cordless Vacuum Cleaner. Please read this manual thoroughly before first use and retain it for future reference.

The Womow W5 S is a versatile and lightweight cordless stick vacuum designed for quick and thorough cleaning of various surfaces, including hard floors, stairs, and car interiors. It features a powerful 150-Watt motor, a long-lasting rechargeable battery, and a motorized floor head with LED lights for enhanced visibility.

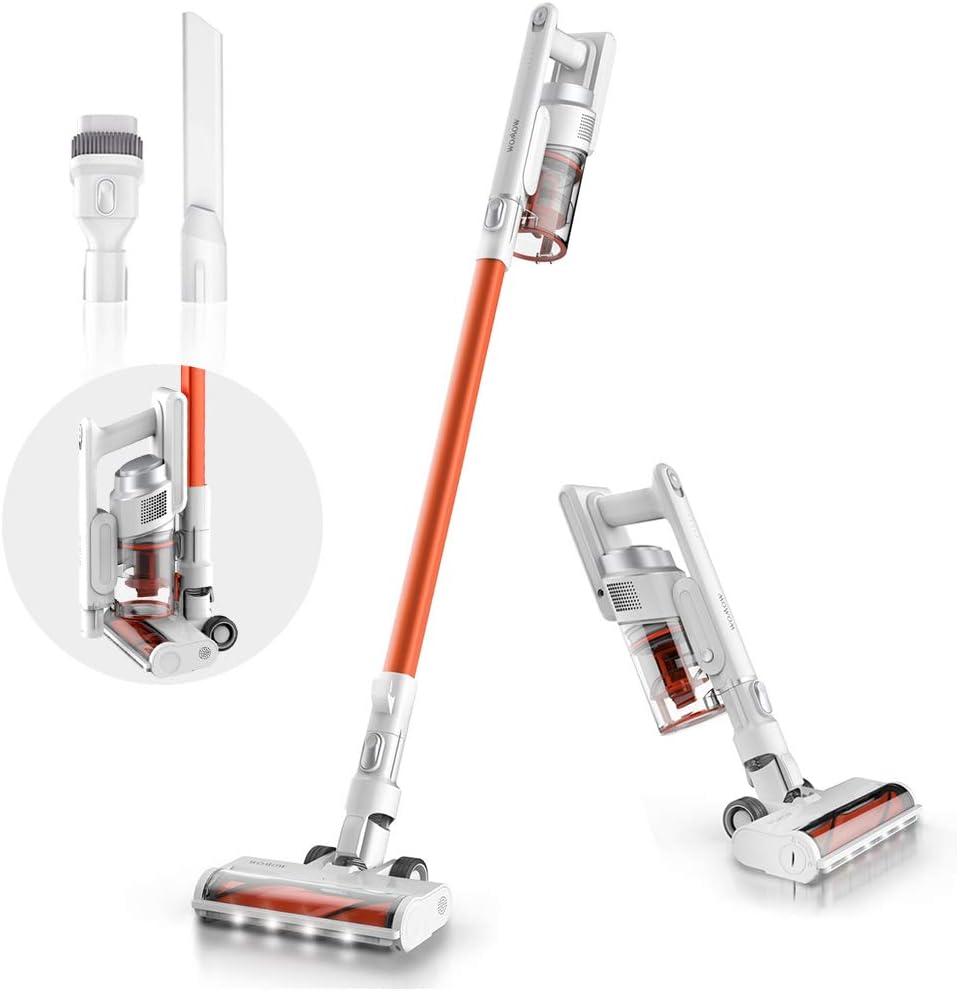

Figure 1: Womow W5 S Cordless Vacuum Cleaner and its included attachments, showcasing its versatile design.

Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust cup and/or filters in place.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

Product Components

Familiarize yourself with the various parts of your Womow W5 S vacuum cleaner:

• Main Motor Unit (Handheld Vacuum)
• Extension Wand (Red)
• Motorized Floor Head with LED Lights
• Crevice Tool
• 2-in-1 Brush Tool
• Wall Mount Bracket
• Power Adapter/Charger
• Rechargeable Lithium-Ion Battery (integrated)

Figure 2: The Womow W5 S can be configured as a stick vacuum or a handheld unit, utilizing various attachments for different cleaning tasks.

Setup and Assembly

Your Womow W5 S vacuum cleaner requires minimal assembly. Follow these steps to get started:

1. Unpack Components: Carefully remove all parts from the packaging.
2. Attach Extension Wand: Insert the top end of the extension wand into the main motor unit until it clicks securely into place.
3. Attach Floor Head: Connect the motorized floor head to the bottom end of the extension wand, ensuring it clicks firmly.
4. Charge Battery: Before first use, fully charge the vacuum. You can charge it by plugging the power adapter directly into the main motor unit, or by using the wall mount if installed. The battery indicator lights will show charging progress.

Figure 3: The vacuum supports convenient self-standing storage or can be mounted on a wall using the provided bracket for charging and organization.

Operating Instructions

The Womow W5 S offers flexible cleaning options. Ensure the battery is sufficiently charged before operation.

Powering On and Suction Modes

• To turn on the vacuum, slide the power switch located on the main motor unit.
• The vacuum has two suction modes: Regular and MAX. Toggle between these modes using the dedicated switch to adjust suction power based on your cleaning needs. Regular mode provides up to 40 minutes of runtime, while MAX mode offers stronger suction for tougher messes.

Using the Motorized Floor Head

The motorized floor head is ideal for hard floors and low-pile carpets. Its integrated LED lights illuminate dust and debris, ensuring no spot is missed.

• The flexible design allows for easy maneuvering around and under furniture.
• The self-cleaning brushroll efficiently picks up embedded dirt and pet hair.

Figure 4: The motorized floor head features LED lights to reveal hidden dust and crumbs, making cleaning more effective.

Using as a Handheld Vacuum

Detach the extension wand and floor head to convert the main motor unit into a portable handheld vacuum. This is perfect for cleaning car interiors, upholstery, stairs, and tight spaces.

• Crevice Tool: Attach for reaching narrow gaps and corners.
• 2-in-1 Brush Tool: Use the brush for dusting delicate surfaces like keyboards or blinds, and slide the brush back for a wider nozzle for general handheld cleaning.

Figure 5: The ultra-lightweight main body (2.9lb) makes it easy to use the vacuum as a handheld unit for cleaning high or hard-to-reach areas.

Figure 6: The Womow W5 S is effective at picking up pet hair, offering two speed settings and a tangle-free brush roll.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Womow W5 S vacuum cleaner.

Emptying the Dust Cup

Empty the dust cup regularly, especially when debris reaches the MAX fill line. To empty:

1. Ensure the vacuum is turned off.
2. Locate the dust cup release button on the main motor unit.
3. Press the button to detach the dust cup.
4. Hold the dust cup over a trash bin and press the bottom release latch to open the lid and empty contents.
5. Close the dust cup lid and reattach it to the main motor unit until it clicks.

Cleaning the Filters

The vacuum uses a multi-stage filtration system. Clean the filters periodically to maintain suction power.

• Pre-Motor Filter: This filter is located inside the dust cup. Twist to remove it. Tap off loose dirt or rinse under cold water. Ensure it is completely dry before reinserting.
• HEPA Filter (if applicable): Some models may include a HEPA filter. Refer to the specific instructions for cleaning or replacing this filter.

Note: Do not use detergents or hot water to clean filters. Allow filters to air dry completely for at least 24 hours before reinstallation.

Cleaning the Brushroll

Periodically check the motorized floor head's brushroll for tangled hair or debris. To clean:

1. Turn off the vacuum and detach the floor head.
2. Locate the brushroll access latch on the side of the floor head.
3. Open the latch and remove the brushroll.
4. Use scissors to cut away any tangled hair or threads.
5. Clean any debris from the brushroll housing.
6. Reinsert the brushroll and secure the access latch.

Troubleshooting

If you encounter issues with your Womow W5 S, refer to the following common problems and solutions:

Specifications

Warranty and Support

For warranty information, please refer to the warranty card included with your product packaging or the official Womow website. Keep your purchase receipt as proof of purchase for warranty claims.

If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact Womow Customer Support:

• Online Support: Visit the official Womow website for FAQs and support contact forms.
• Email Support: Refer to your product packaging or the official website for the customer service email address.
• Phone Support: Check the official Womow website for available phone support numbers.

Please have your model number (W5 S) and purchase date ready when contacting support.
