1. Introduction
This instruction manual provides comprehensive guidance for the assembly, safe operation, and maintenance of your DHP Junior Twin over Twin Bunk Bed. Designed with a space-saving profile, this bunk bed is suitable for younger children, featuring secured metal slats and full-length guardrails for enhanced safety. The integrated ladder allows for easy access to the top bunk. Please read all instructions carefully before assembly and use to ensure proper setup and safety.
2. Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always use the recommended mattress size for each bunk.
- Maximum mattress height for the top bunk is 6 inches.
- Ensure all connections are securely fastened before use. Periodically check and tighten all bolts and screws.
- The top bunk is not suitable for children under 6 years of age.
- Weight Limit for Top Bunk: 200 lb (90.7 kg).
- Weight Limit for Bottom Bunk: 250 lb (113.4 kg).
- Do not allow more than one person on the top bunk.
- Always use the ladder for entering and exiting the top bunk. Do not use the bed as a climbing frame.
- Ensure full-length guardrails are properly installed on the top bunk.
- Do not attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Metal Bed Frame Components (Headboards, Footboards, Side Rails)
- Secured Metal Slats
- Integrated Ladder
- Assembly Hardware (bolts, screws, plastic caps, Allen wrench)
- Instruction Manual
4. Setup and Assembly Instructions
Assembly is required for this bunk bed. It is recommended to have two adults for assembly. The process is designed to be straightforward, with all necessary tools and instructions included in the package. Follow the step-by-step guide provided in the included assembly instructions document.
Key Assembly Points:
- Lay out all components on a soft, clean surface to prevent scratches.
- Carefully align all parts before tightening screws to avoid damage, especially with plastic pieces.
- Ensure the ladder is securely attached to the top bunk.
- Double-check all connections for tightness once assembly is complete.
Figure 1: Bunk bed frame prior to mattress placement, showing metal slats and ladder attachment points.
Figure 2: Detailed view of the secured metal slats and frame connections, highlighting the support structure.
5. Operating Instructions
The DHP Junior Twin over Twin Bunk Bed is designed for comfortable and safe sleeping for two individuals. Follow these guidelines for proper use:
- Mattress Requirements: The bunk bed accommodates two standard twin size mattresses (sold separately). The maximum recommended mattress height for the top bunk is 6 inches to ensure adequate guardrail height.
- Ladder Use: Always use the integrated ladder to access the top bunk. Ensure the ladder is stable before climbing.
- Space-Saving Design: This bunk bed is intentionally shorter than average, making it ideal for rooms with lower ceilings or for younger children.

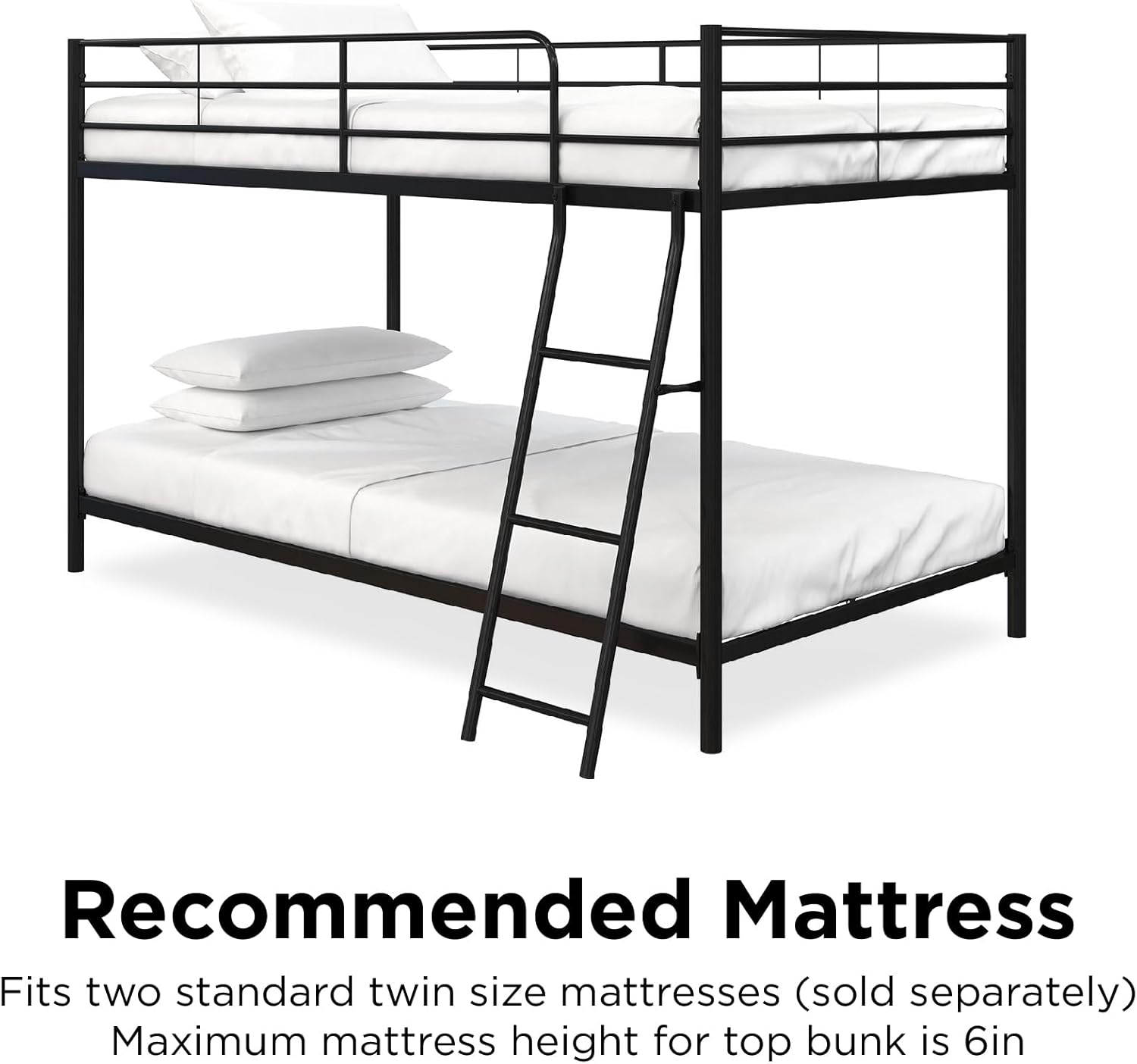

Figure 3: Illustration showing the recommended mattress height for the top bunk to maintain safety guardrail effectiveness.
Figure 4: Visual representation of key safety features including secured metal slats, full-length guardrails, and the integrated ladder.
6. Maintenance and Care
To ensure the longevity and safety of your DHP Junior Twin over Twin Bunk Bed, regular maintenance is recommended:
- Cleaning: Wipe the metal frame with a damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
- Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Tighten any loose hardware immediately.
- Structural Integrity: Regularly check the metal slats and frame for any signs of bending, cracks, or damage. Discontinue use if any structural damage is observed.
7. Troubleshooting
If you encounter any issues with your bunk bed, refer to the following common solutions:
- Squeaking Noises: Tighten all assembly hardware. Ensure the bed is on a level surface.
- Loose Parts: Re-tighten any loose bolts or screws. If plastic caps or connectors are damaged during assembly, replacement parts may be available.
- Instability: Verify that all frame components are correctly aligned and securely connected according to the assembly instructions.
For persistent issues or if you require replacement parts, please contact DHP customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | DHP |
| Model Number | DZ40601 |
| Color | Black |
| Material | Metal |
| Product Dimensions (L x W x H) | 77.5" x 51" x 49.5" |
| Item Weight | 65 pounds |
| Compatible Mattress Size | Twin |
| Max Mattress Height (Top Bunk) | 6 inches |
| Weight Limit (Top Bunk) | 200 lb |
| Weight Limit (Bottom Bunk) | 250 lb |
| Assembly Required | Yes |
| Special Feature | No Box Spring Needed |
Figure 5: Visual representation of the bunk bed's overall dimensions.

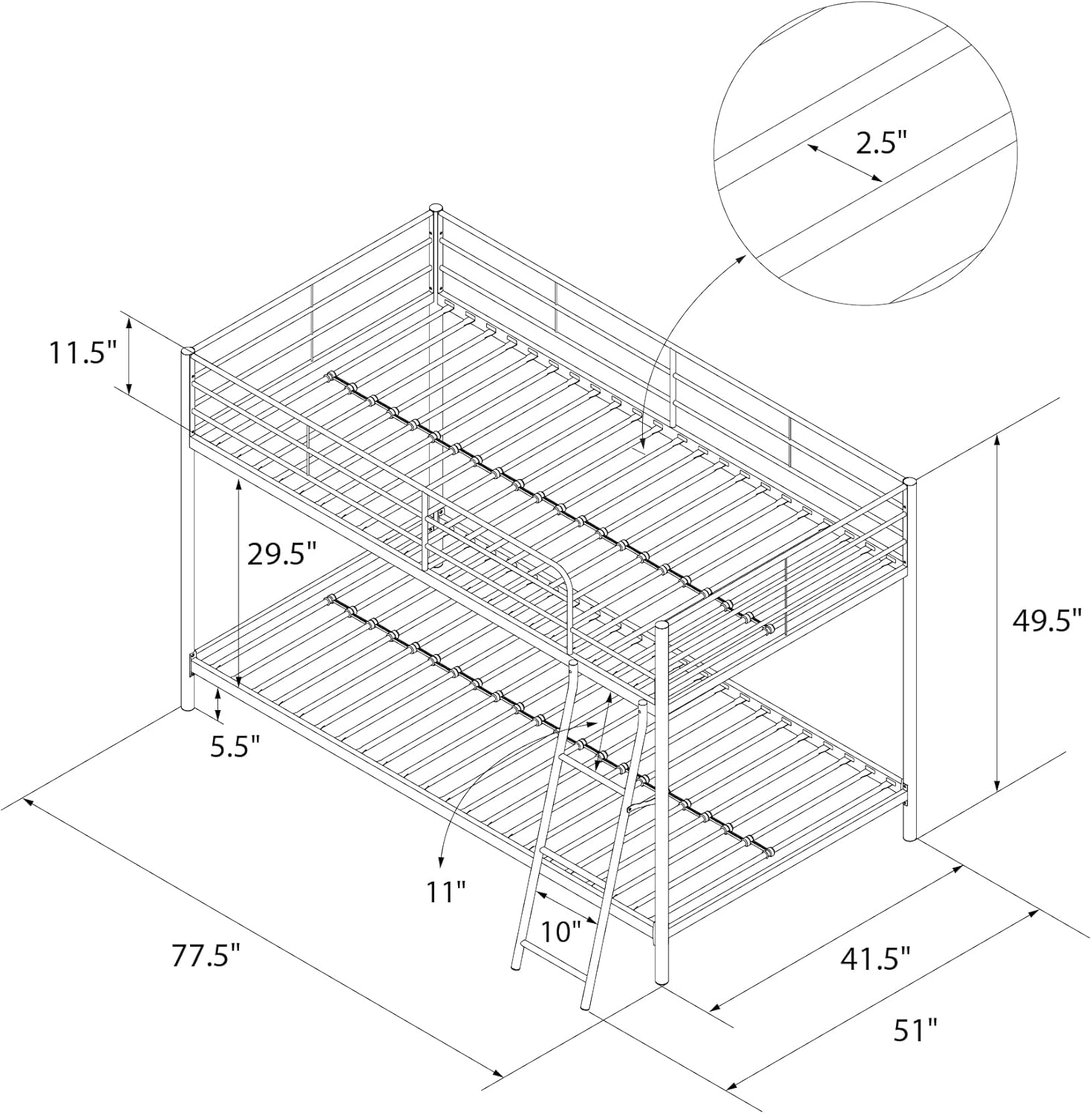

Figure 6: Detailed diagram illustrating various dimensions and clearances of the bunk bed.
9. Warranty and Support
Your DHP Junior Twin over Twin Bunk Bed comes with a 1-year limited warranty. For warranty claims, replacement parts, or any product-related inquiries, please contact DHP customer support.
For further assistance, please refer to the contact information provided in your product packaging or visit the official DHP website.
