Introduction
Thank you for choosing the Puroma PMD153 Essential Oil Diffuser. This ultrasonic aromatherapy diffuser is designed to provide a soothing cool mist and ambient lighting, enhancing your environment with essential oils. Please read this manual carefully before use to ensure proper operation and maintenance.
Product Features
- Small Design with Multi-function: Compact size (approximately 3.9 inches diameter, 5.5 inches height) suitable for various spaces.
- Unique Sleep Mode: Designed to create a comfortable sleeping atmosphere.
- Auto Shut-off Function: Automatically turns off when water runs low to protect the unit and increase safety.
- BPA Free Material: Constructed from safe materials, suitable for use around babies and pregnant women.

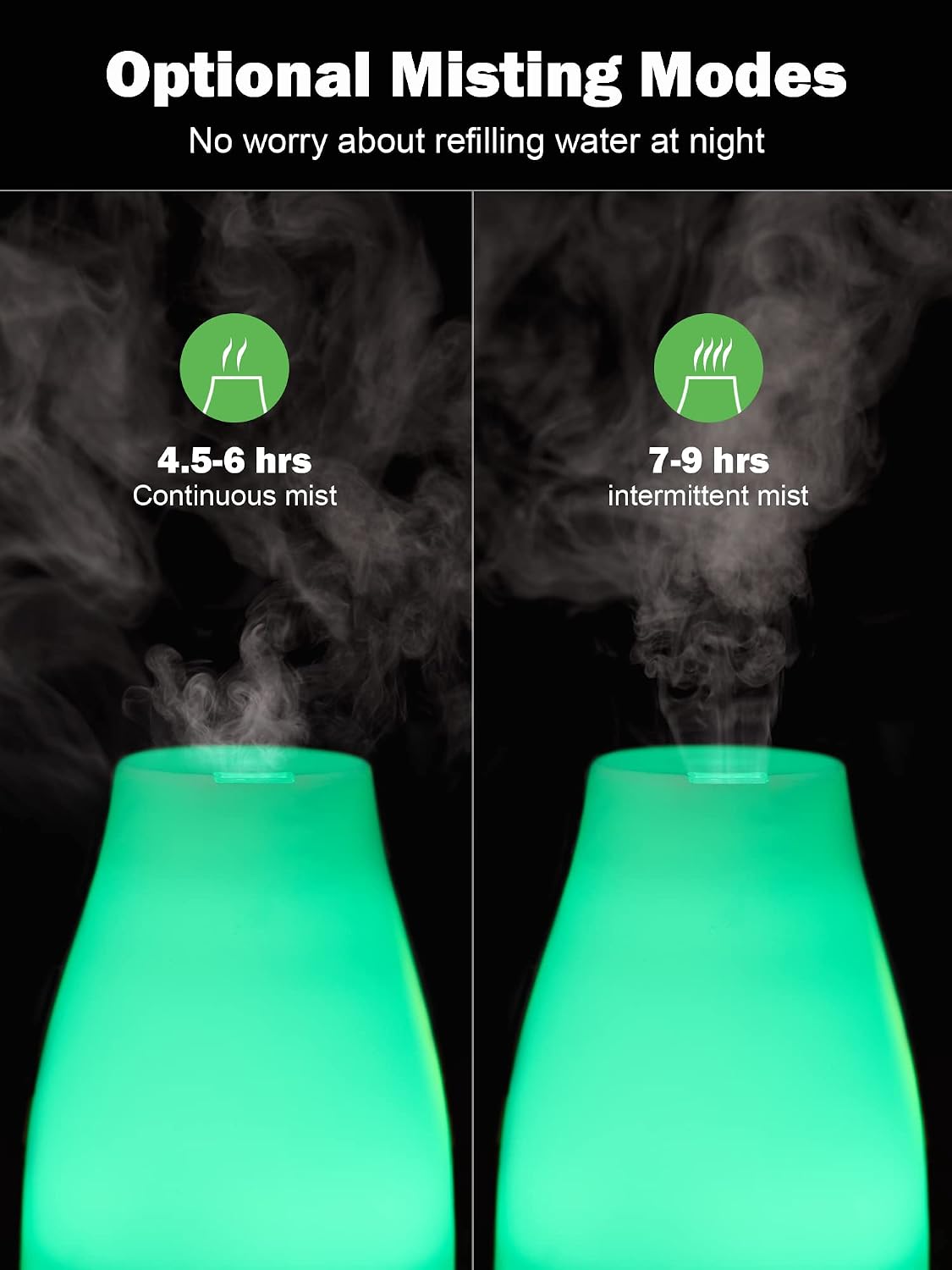

- Optional Misting Modes: Offers continuous mist for 4.5-6 hours or intermittent mist for 7-9 hours.
- 7 Colors Mood Light: Features 7 colorful LED lights that can cycle or be set to a single color, also functions as a night light.
Setup
- Unpack: Carefully remove the diffuser and all accessories from the packaging.
- Placement: Place the diffuser on a flat, stable surface away from direct sunlight, heat sources, and electronic devices.
- Open Lid: Gently remove the top cover of the diffuser.
- Add Water: Fill the water tank with clean tap water or distilled water up to the maximum water level line. Do not overfill.
- Add Essential Oils: Add 3-5 drops of your preferred essential oil directly into the water tank. Adjust the amount based on personal preference.
- Close Lid: Replace the top cover, ensuring it is securely seated.
- Connect Power: Plug the power adapter into the diffuser's power input port, then plug the adapter into a standard electrical outlet.
Operating Instructions
The diffuser features three control buttons: LIGHT, SLEEP, and MIST.
- MIST Button:
- Press once for continuous mist mode (approx. 4.5-6 hours).
- Press a second time for intermittent mist mode (approx. 7-9 hours).
- Press a third time to turn off the mist function.
- LIGHT Button:
- Press once to turn on the LED light, which will cycle through 7 colors.
- Press again to fix the light to a specific color. Continue pressing to cycle through colors.
- Press and hold for 2 seconds to turn off the light.
- SLEEP Button:
- Press once to activate Sleep Mode. In this mode, the mist operates quietly, and the light dims to a soft, non-disruptive glow.
- Press again to exit Sleep Mode and return to previous settings or turn off.
Maintenance
Regular cleaning helps ensure optimal performance and extends the lifespan of your diffuser.
Daily Maintenance:
- Empty any remaining water from the tank.
- Wipe the inside of the water tank with a clean, soft cloth.
Weekly Cleaning:
- Unplug the diffuser from the power outlet.
- Remove the top cover and empty any water from the tank.
- Add 1 tablespoon of white vinegar to the water tank.
- Fill the tank with clean water up to about half capacity.
- Run the diffuser for 10-15 minutes to allow the vinegar to clean the ultrasonic plate.
- Empty the water tank and wipe it thoroughly with a soft cloth.
- Rinse the tank with clean water to remove any vinegar residue.
- Wipe the exterior of the diffuser with a soft, dry cloth.
Important: Do not use harsh detergents, abrasive cleaners, or solvents, as these can damage the diffuser. Always unplug the unit before cleaning.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No mist or low mist output. | Insufficient water; water level too high; ultrasonic plate dirty; lid not properly closed. | Add water to the correct level; clean the ultrasonic plate; ensure the lid is securely closed. |
| Diffuser does not turn on. | No power; power adapter not connected correctly. | Check power connection; ensure outlet is functional. |
| Leaking water. | Overfilled water tank; lid not properly sealed; diffuser placed on an uneven surface. | Do not exceed max water line; ensure lid is sealed; place on a flat surface. |
| Light not working. | Light function turned off. | Press the LIGHT button to activate. |
Specifications
- Model Number: PMD153
- Dimensions: Approximately 3.9 x 5.5 inches (Diameter x Height)
- Weight: Approximately 11.36 ounces
- Material: BPA Free
- Mist Modes: Continuous (4.5-6 hours), Intermittent (7-9 hours)
- LED Lights: 7 Color Changing
- Safety: Waterless Auto Shut-off
Warranty and Support
Puroma provides a limited warranty for this product against defects in materials and workmanship under normal use. For specific warranty details, duration, and terms, please refer to the warranty card included with your purchase or contact Puroma customer support.
If you encounter any issues or have questions regarding your Puroma PMD153 Essential Oil Diffuser, please contact our customer support team for assistance. Contact information can typically be found on the product packaging or the official Puroma website.
