Product Overview
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your MASTERCANOPY 8x8 Pop-Up Canopy Tent. Designed for durability and ease of use, this canopy offers shade and protection for various outdoor activities.
Please read all instructions carefully before assembly and use to ensure safe and proper operation.
Important Safety Information
- Always ensure the canopy is properly anchored to the ground to prevent it from tipping over in windy conditions.
- Do not use the canopy in thunderstorms or lightning conditions.
- Keep the canopy away from heat sources to prevent fire hazards.
- Always follow the manufacturer's instructions for setup, use, and dismantling.
Package Contents
Verify all components are present before beginning assembly:
- 1x Pop-up Canopy Frame
- 1x Canopy Tent Top Cover
- 1x Roller Bag
- 4x Weight Bags (sand not included)
- 8x Stakes
- 4x Ropes
Figure 1: All components included in the MASTERCANOPY 8x8 Pop-Up Canopy Tent package.
Setup Guide
- Step 1: Unpack the Frame. Take the fully assembled frame with the top cover out of the roller bag. Place the frame in the desired setup location.
- Step 2: Expand the Frame. With a partner, pull the frame open to arms' width. Ensure the fabric is draped over the frame.
- Step 3: Secure the Canopy Top. Place the fabric over the frame and extend the legs. The improved fabric is UV coated to reflect 99% of harmful sun rays and is water-resistant.
- Step 4: Adjust Height. Use the thumb press buttons on each leg to easily adjust the height. There are three different height settings: High 81", Medium 77", Low 73.2". Snap into place.
- Step 5: Anchor the Canopy. Secure the canopy using the provided stakes, ropes, and weight bags (fill with sand or other heavy material). This is crucial for stability, especially in windy conditions.

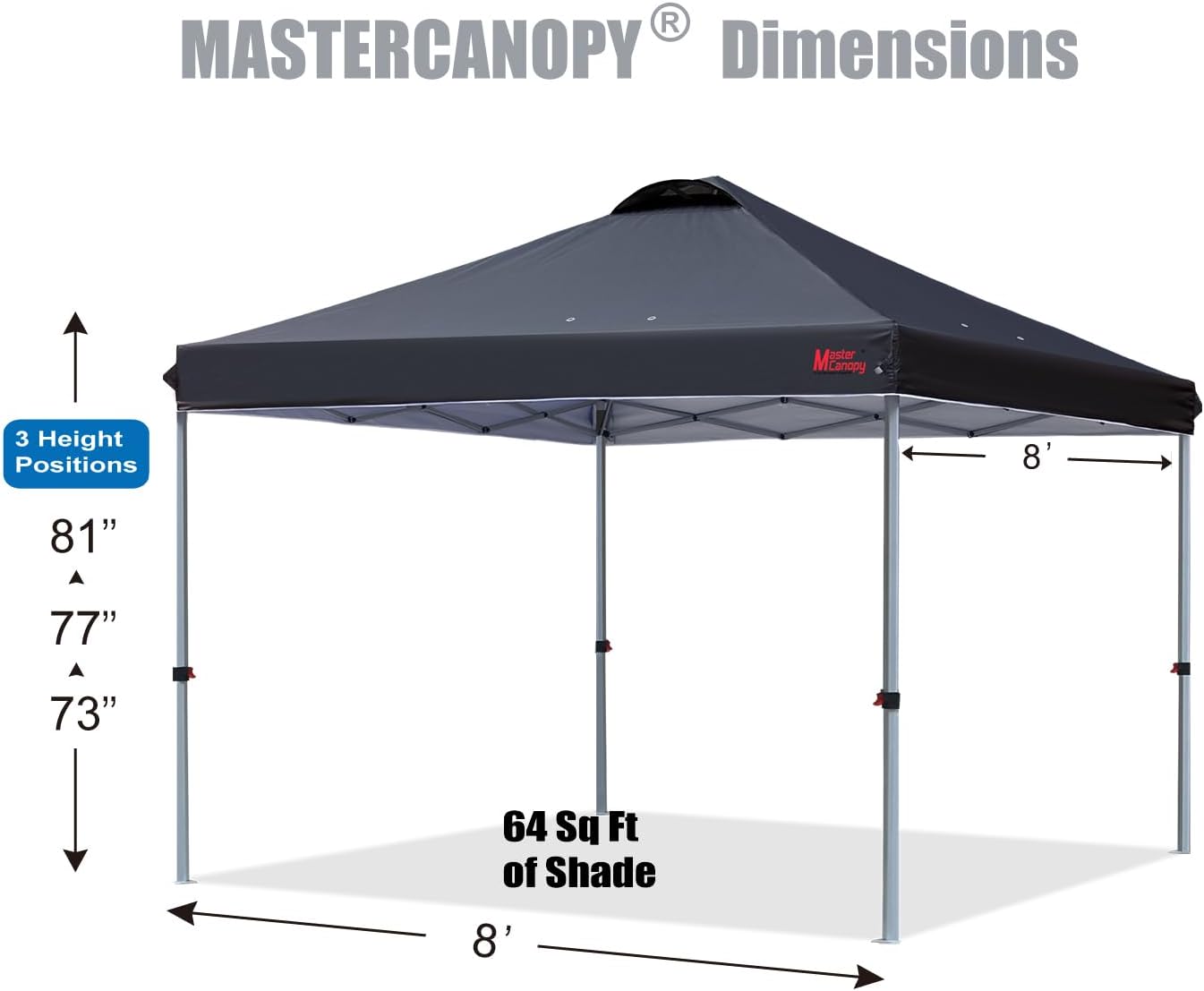

Figure 2: Canopy dimensions and adjustable height settings.
Figure 3: Key features of the canopy's construction for durability and ventilation.
Setup Video
Video 1: Step-by-step guide on setting up the MASTERCANOPY Pop Up Instant Shelter.
Operating Instructions
The MASTERCANOPY 8x8 Pop-Up Canopy Tent is designed for temporary outdoor use. Follow these guidelines for optimal performance:
- Weather Conditions: While the canopy is water-resistant and offers UV protection, it is not designed for extreme weather. Dismantle the canopy during heavy winds, storms, or snow to prevent damage.
- Ventilation: The canopy features a ventilated top to improve air circulation and cooling.
- Stability: Always use all provided anchoring equipment (stakes, ropes, and filled weight bags) to ensure maximum stability.
Maintenance
- Cleaning: Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow the fabric to dry completely before storage to prevent mildew.
- Frame Care: Inspect the steel frame regularly for any signs of damage or rust. Clean any dirt or debris from the frame.
- Storage: Store the canopy in its roller bag in a cool, dry place when not in use. Ensure all components are dry before packing to prevent rust and mildew.
Dismantling and Storage
- Step 1: Lower the Legs. Press the thumb press buttons on each leg to retract them to their lowest setting.
- Step 2: Collapse the Frame. With a partner, gently push the frame inwards from all sides until it is fully collapsed.
- Step 3: Remove Canopy Top. Carefully detach the canopy top from the frame.
- Step 4: Pack into Roller Bag. Fold the canopy top neatly and place it inside the collapsed frame. Slide the entire unit into the provided roller bag. The wheeled bag (49x9x8, 300D coated PVC fabric) is designed for easy transport.
Figure 4: The collapsed canopy frame and top, ready for storage in the roller bag.
Figure 5: The roller bag with wheels for convenient transportation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Canopy is unstable. | Insufficient anchoring. | Ensure all stakes, ropes, and filled weight bags are properly utilized. Do not use in high winds. |
| Water pooling on top. | Incorrect setup or heavy rainfall. | Ensure the frame is fully extended and the canopy top is taut. Clear any accumulated water immediately. Consider dismantling during heavy rain. |
| Difficulty collapsing the frame. | Legs not fully retracted or buttons stuck. | Press the thumb buttons firmly to release the leg locks. Gently push the frame inwards from all sides. |
Specifications
- Brand: MASTERCANOPY
- Model: 8x8
- Color: Black
- Product Dimensions: 96"L x 96"W x 81"H
- Floor Area: 64 Square Feet
- Frame Material: Alloy Steel
- Canopy Material: Polyvinyl Chloride (PVC) coated polyester
- Water Resistance Level: Water Resistant
- Ultraviolet Light Protection: True (99% UV reflection)
- Item Weight: 30.4 pounds (13.8 Kilograms)
- Assembly Required: Yes
- UPC: 619548561005
Additional Product Views
MASTERCANOPY Escape Shelter Canopy
Video 2: Overview of the MASTERCANOPY Escape Shelter Canopy, showcasing its features and ease of setup.
MASTERCANOPY Pop-up Canopy Tent with Double Awnings
Video 3: Demonstrates the MASTERCANOPY Pop-up Canopy Tent with Double Awnings, highlighting its design and functionality.
Warranty and Support
For warranty information, replacement parts, or technical support, please contact MASTERCANOPY customer service directly. Refer to the product packaging or the official MASTERCANOPY website for contact details.
Always retain your proof of purchase for warranty claims.
