Tangkula 10x10 Ft Outdoor Storage Shelter Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Tangkula 10x10 Ft Outdoor Storage Shelter. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Important Safety Information

• Always secure the carport to the ground using the provided pegs and ropes to prevent it from tipping over in windy conditions.
• Be cautious when opening and closing the removable door to avoid tripping.
• Do not use the carport in high winds or during severe weather conditions.

3. Parts List

Please ensure all components are present before starting assembly. Refer to the diagram below for visual identification.

Figure 1: Exploded view of all components included in the Tangkula 10x10 Ft Outdoor Storage Shelter.

• Carport Frame (Alloy Steel, Metal)
• Waterproof Ripstop Cover (Polyethylene (PE))
• Ground Stakes (8 Small, 4 Big)
• Wind Ropes (4)
• Ball Bungees (32)
• Instruction Manual

4. Setup and Assembly

Assembly is designed to be straightforward. It is recommended to have at least two people for efficient setup. No additional tools are typically required as most tubes are equipped with buckles for easy connection.

4.1. Frame Assembly

1. Lay out all frame components on a flat, clear surface.
2. Connect the horizontal and vertical poles according to the provided diagrams, ensuring all buckles snap into place.
3. Assemble the base frame first, then attach the upright poles and roof structure.

4.2. Cover Installation

1. Carefully drape the waterproof ripstop cover over the assembled frame.
2. Secure the cover to the frame using the provided ball bungees, threading them through the grommets and around the poles.
3. Ensure the cover is taut and evenly distributed to prevent water pooling.

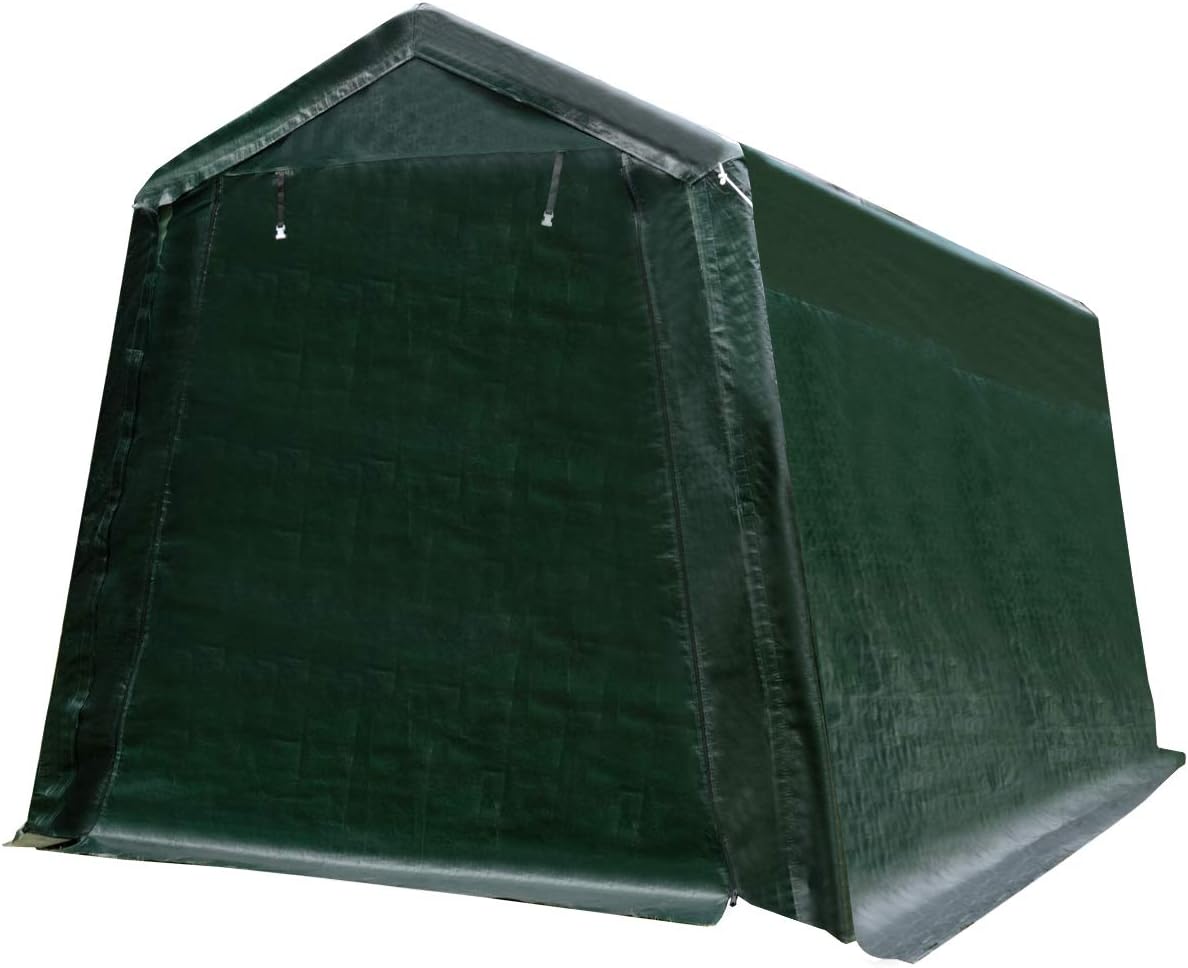

Figure 2: Fully assembled Tangkula 10x10 Ft Outdoor Storage Shelter.

4.3. Ground Anchoring

1. Use the strong pegs and long ropes to anchor the carport securely to the ground. This is crucial for stability, especially in windy conditions.
2. Attach the ropes to the designated points on the cover and frame, then drive the pegs firmly into the ground.

5. Operating Instructions

5.1. Detachable Door for Ventilation

The storage shelter features a double-zippered door for easy access and ventilation. The door can be rolled up and fastened with two clasps from either the outside or inside. It is also fixed to the frame with hook and loop fasteners, allowing for easy removal to enhance air circulation.

Figure 3: Details of the double zipper and hasp for securing the door.

5.2. Multipurpose Use

This shelter is designed for various outdoor storage needs. It can provide shade and protection for motorcycles, bicycles, garden tools, firewood, and other items. Its waterproof and windproof features make it suitable for placement in gardens, backyards, or patios.

Figure 4: Examples of multipurpose uses for the storage shelter.

6. Maintenance

• Cover Care: Regularly inspect the PE cover for any tears or damage. Repair small tears promptly to maintain waterproof integrity. Clean the cover periodically with mild soap and water to remove dirt and debris. Avoid harsh chemicals that could degrade the material.
• Frame Care: The all-steel metal frame is designed to resist rust with its white powder coat. However, inspect the frame periodically for any signs of rust or damage. Tighten any loose bolts or connections.
• Anchoring: Periodically check the ground pegs and ropes to ensure they remain securely anchored, especially after strong winds or heavy rain.

7. Troubleshooting

• Instability in Wind: Ensure all ground pegs are firmly driven into the ground and ropes are taut. Consider adding additional anchoring points or sandbags in extremely windy areas.
• Water Pooling on Roof: Verify the cover is stretched tightly and evenly over the frame. Adjust bungee cords if necessary to eliminate slack.
• Difficulty Rolling Up Door: Check for any obstructions or misalignments in the zipper tracks. Ensure the fabric is not caught.

8. Specifications

9. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact Tangkula customer service directly. Specific warranty terms and conditions may apply.
