Product Overview
The MB Quart PS1-316 Premium 3-Way Component Car Speaker System is engineered to deliver exceptional sound clarity and rich audio quality for your vehicle. This system features a sophisticated design with separate tweeters, mid-range, and mid-bass drivers, all managed by an external audiophile crossover network. Built with high-quality materials, including magnesium dome tweeters and lightweight aerated pop paper cones, these speakers are designed for superior performance and durability in various automotive environments.

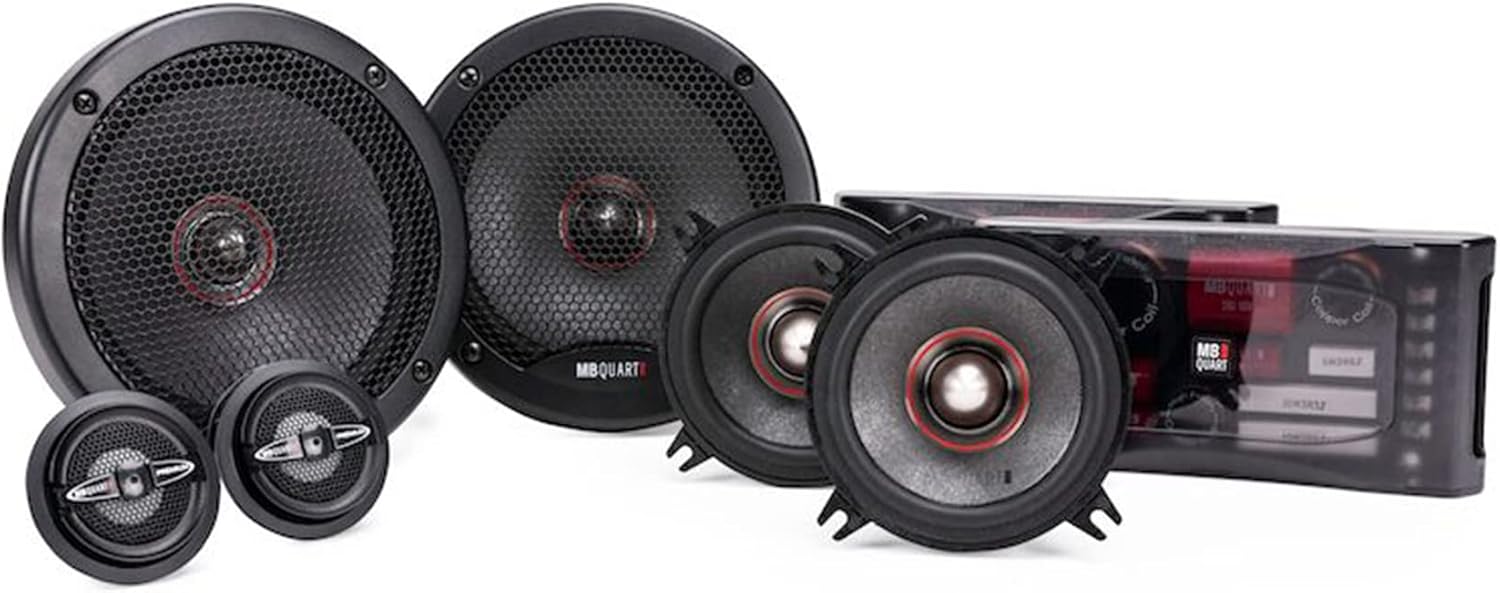

Figure 1: Complete MB Quart PS1-316 Component Speaker System
This image displays the full MB Quart PS1-316 system, showcasing the two 6.5-inch mid-bass speakers, two mid-range speakers, two tweeters, and the two external crossover networks, all designed for a comprehensive car audio setup.
Key Features
- Three-Way Component System: Six individual drivers (speakers) create a wide sound stage by separating tweeters, mid-range, and mid-bass, precisely controlled by an engineered crossover network.
- Magnesium Dome Tweeters: 1-inch dome tweeters with WideSphere Technology ensure deep and powerful bass, featuring a tunable waveguide tweeter housing with removable phase lens for optimized sound dispersion.
- Superior Bass Reproduction: Lightweight aerated pop paper cones with Mica Blend Design enhance strength and provide excellent bass frequency reproduction, preventing distortion from cone flexing.
- External Component Crossover: Audiophile-grade crossover networks guide frequencies to each speaker with tight tolerance components for the highest sound quality.
- Robust Power Handling: RMS Power Handling of 100 Watts per speaker (200 Watts system) and Peak Power Handling of 200 Watts per speaker (400 Watts system) at 4 OHMS impedance.
What's in the Box
Your MB Quart PS1-316 Premium 3-Way Component Car Speaker System package includes the following components:
- External Component Audiophile Crossover Networks (2 units)
- Molded Polymer Sealing Gaskets
- Speaker Grills
- 6.5-inch Mid-bass Speakers (2 units)
- Mid-range Speakers (2 units)
- Tweeters (2 units)
Setup and Installation
Proper installation is crucial for optimal performance of your MB Quart PS1-316 speaker system. Due to the complexity of car audio systems and the need for precise wiring and mounting, professional installation is highly recommended. If you choose to install the system yourself, please follow these general guidelines:
1. Planning and Preparation
- Vehicle Compatibility: Ensure your vehicle has adequate space and mounting locations for 6.5-inch mid-bass speakers, separate mid-range speakers, and tweeters.
- Tools Required: Gather necessary tools including wire strippers, crimpers, screwdrivers, drill, and sound deadening material (recommended).
- Safety First: Disconnect the vehicle's battery before beginning any electrical work.
2. Speaker Mounting
Mount the mid-bass speakers, mid-range speakers, and tweeters securely in their designated locations. Use the provided molded polymer sealing gaskets to ensure a tight seal and protect against water and dust intrusion.
Figure 2: 6.5-inch Mid-bass Speaker with Grill
This image shows the 6.5-inch mid-bass speaker with its protective grill, ready for installation in a vehicle door or panel.

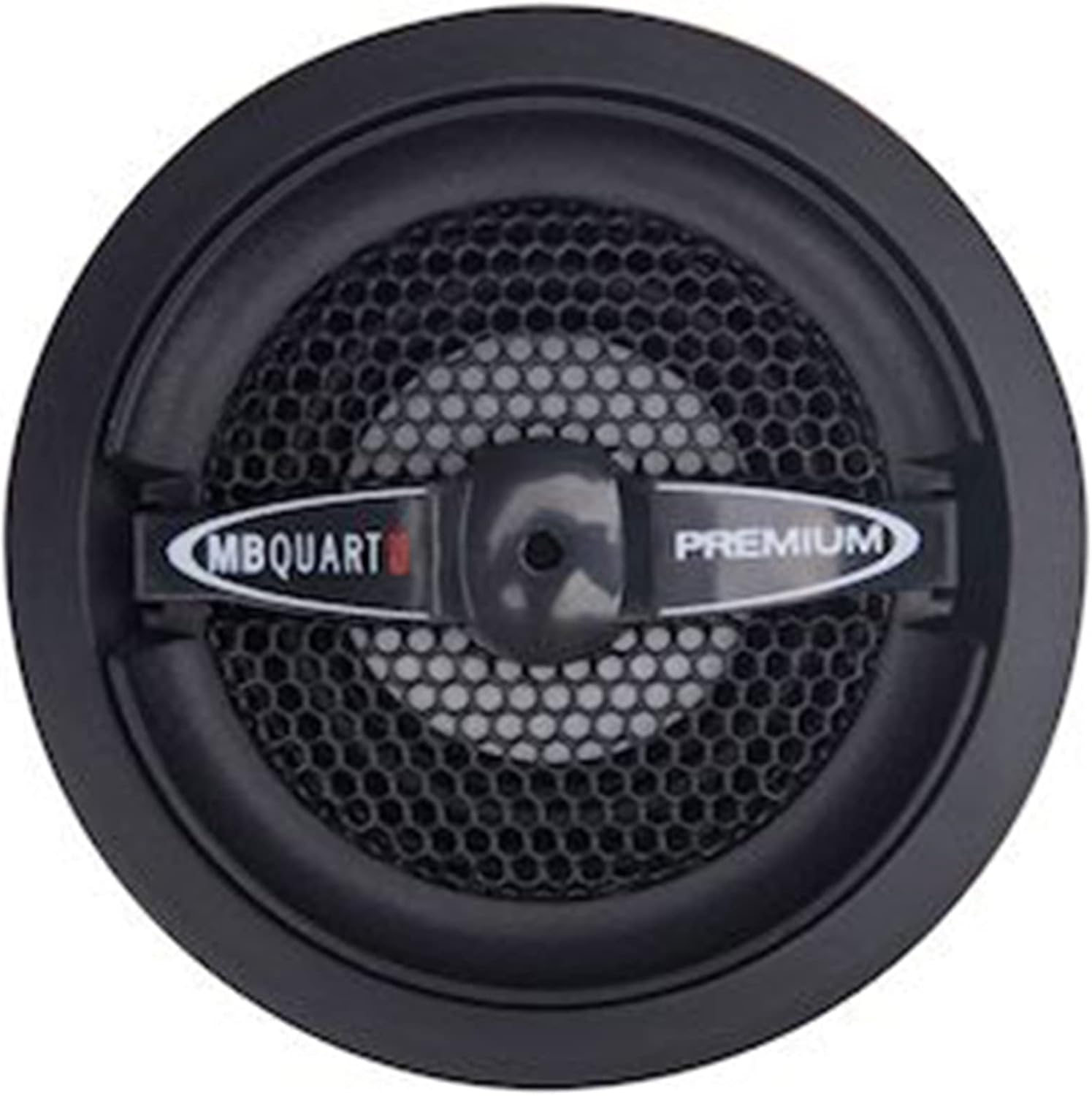

Figure 3: Tweeter Component
A close-up of one of the magnesium dome tweeters, featuring the MB Quart Premium branding and a fine mesh grill.
3. Crossover Network Connection
The external audiophile crossover networks are essential for directing the correct frequency ranges to each speaker (tweeter, mid-range, mid-bass). Connect your amplifier's output to the crossover's input, and then connect the crossover's outputs to the respective speakers. Ensure all connections are secure and use the stainless steel push and insert connectors for a superior electrical connection.

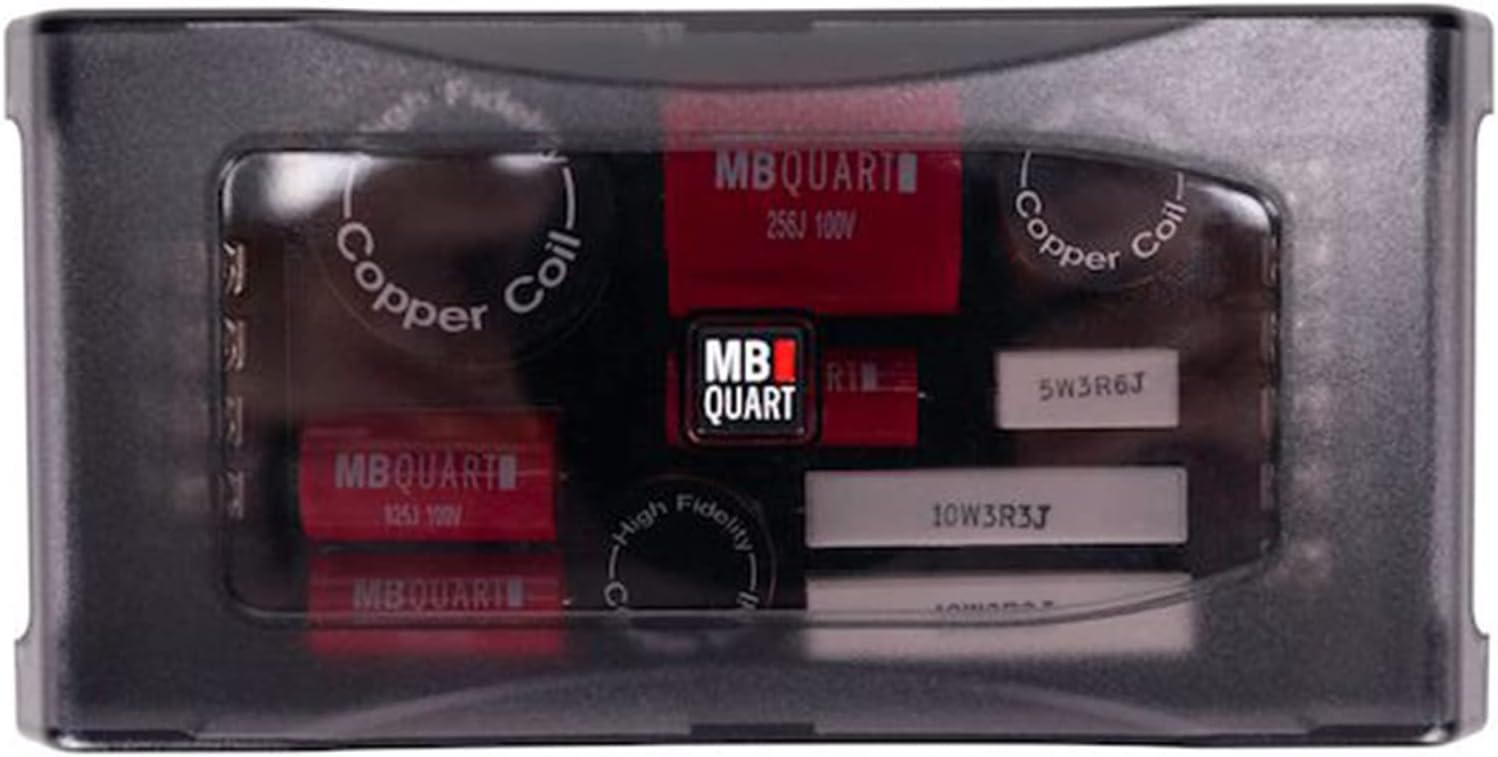

Figure 4: External Crossover Network
This image shows the compact external crossover network, which manages frequency distribution to the individual speaker components for optimal sound.
4. Wiring
Use appropriate gauge speaker wire for all connections. Route wires carefully to avoid pinching or damage, and keep them away from moving parts or heat sources. Pay close attention to polarity (+/-) for all connections to ensure proper sound reproduction.
Operating Instructions
Once installed, your MB Quart PS1-316 speaker system is ready for use. Follow these guidelines for optimal operation:
- Amplifier Settings: Adjust your amplifier's gain settings carefully. Start with low gain and gradually increase until desired volume is achieved without distortion. Avoid setting the gain too high, as this can damage the speakers.
- Equalization: Use your head unit's or amplifier's equalizer to fine-tune the sound to your preference. The 3-way component design allows for precise sound staging and imaging.
- Break-in Period: Allow a short break-in period (typically 20-50 hours of normal listening) for the speaker components to loosen up and achieve their full sonic potential.
- Volume Control: While these speakers are designed for high power handling, prolonged listening at extremely high, distorted volumes can cause damage. Listen responsibly.
Maintenance
The MB Quart PS1-316 speakers are built for durability and require minimal maintenance. Follow these simple steps to ensure their longevity:
- Cleaning: Gently wipe the speaker grills and surrounds with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.
- Inspection: Periodically check all wiring connections for tightness and ensure no wires are frayed or exposed. Inspect the speaker cones and surrounds for any signs of damage.
- Environmental Protection: The molded polymer sealing gaskets provide protection from water and dust. Ensure these are properly seated during installation.
Troubleshooting
If you encounter issues with your MB Quart PS1-316 speaker system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No Sound from Speakers |
|
|
| Distorted Sound |
|
|
| Weak or No Bass |
|
|
If problems persist, consult a professional car audio installer or contact MB Quart customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Name | PS1-316 |
| Speaker Type | Component (3-Way) |
| RMS Power Handling (Each) | 100 Watts |
| RMS Power Handling (System) | 200 Watts |
| Peak Power Handling (Each) | 200 Watts |
| Peak Power Handling (System) | 400 Watts |
| Impedance | 4 Ohm |
| Mid-bass Speaker Size | 6.5 Inches |
| Tweeter Diameter | 1 Inches |
| Frequency Response (Lower) | 55 Hz |
| Mounting Type | Car Mount |
| Color | Black |
| Product Dimensions (Package) | 5"D x 17.3"W x 15.3"H |
| Item Weight (Package) | 9 Pounds |
| Manufacturer | Maxxsonics USA |
| UPC | 806576230373 |
