MB Quart PS1-216 Premium 6.5-inch Car Speakers Instruction Manual

1. Introduction and Overview

The MB Quart PS1-216 Premium 6.5-inch Car Speakers are designed to deliver high-quality audio in your vehicle. This 2-way component system features WideSphere Technology for clear highs and a broad sound stage. The speakers utilize aerated pop paper cones blended with Mica for robust, distortion-free bass and superior frequency reproduction. An external audiophile crossover network ensures precise sound quality across all frequencies. Each speaker handles 60W RMS and 120W peak power with a 4 OHMS impedance.

MB Quart PS1-216 Speaker System components: two 6.5-inch woofers, two tweeters, and a crossover network. This image highlights the 240 watts power, compact design, high-quality sound, enhanced ventilation, and immersive audio experience.

2. What's in the Box

The MB Quart PS1-216 Premium 6.5-inch Car Speaker system includes:

• Two 6.5-inch woofers
• Two 1-inch magnesium dome tweeters
• Two external audiophile crossover networks
• Speaker grills
• MB Quart Premium Speakers (PK1/PS1) Quick Start Guide (Rev1)

3. Setup and Installation

Installation of the MB Quart PS1-216 component speaker system requires technical knowledge and experience with car audio systems. Professional installation is recommended to ensure optimal performance and to prevent damage to your vehicle or the speakers.

3.1. Mounting Location

Select appropriate mounting locations for the 6.5-inch woofers and 1-inch tweeters. Ensure sufficient depth and clearance. The woofers have a 5.59-inch diameter/cut-out and 2.48-inch mounting depth.

Detailed view of the MB Quart PS1-216 speaker system showing key specifications: 5.59-inch diameter/cut-out, 2.48-inch mounting depth, 4 OHMS impedance, 120/240 Watts peak power handling, 55Hz-22kHz frequency response, and 6 lbs weight.

3.2. Wiring

Connect the woofers and tweeters to the external crossover networks. Observe correct polarity. Refer to the included Quick Start Guide for detailed wiring diagrams. Ensure all connections are secure to prevent signal loss or short circuits.

Rear view of the MB Quart PS1-216 6.5-inch woofer, showing the speaker terminals for wiring connections.

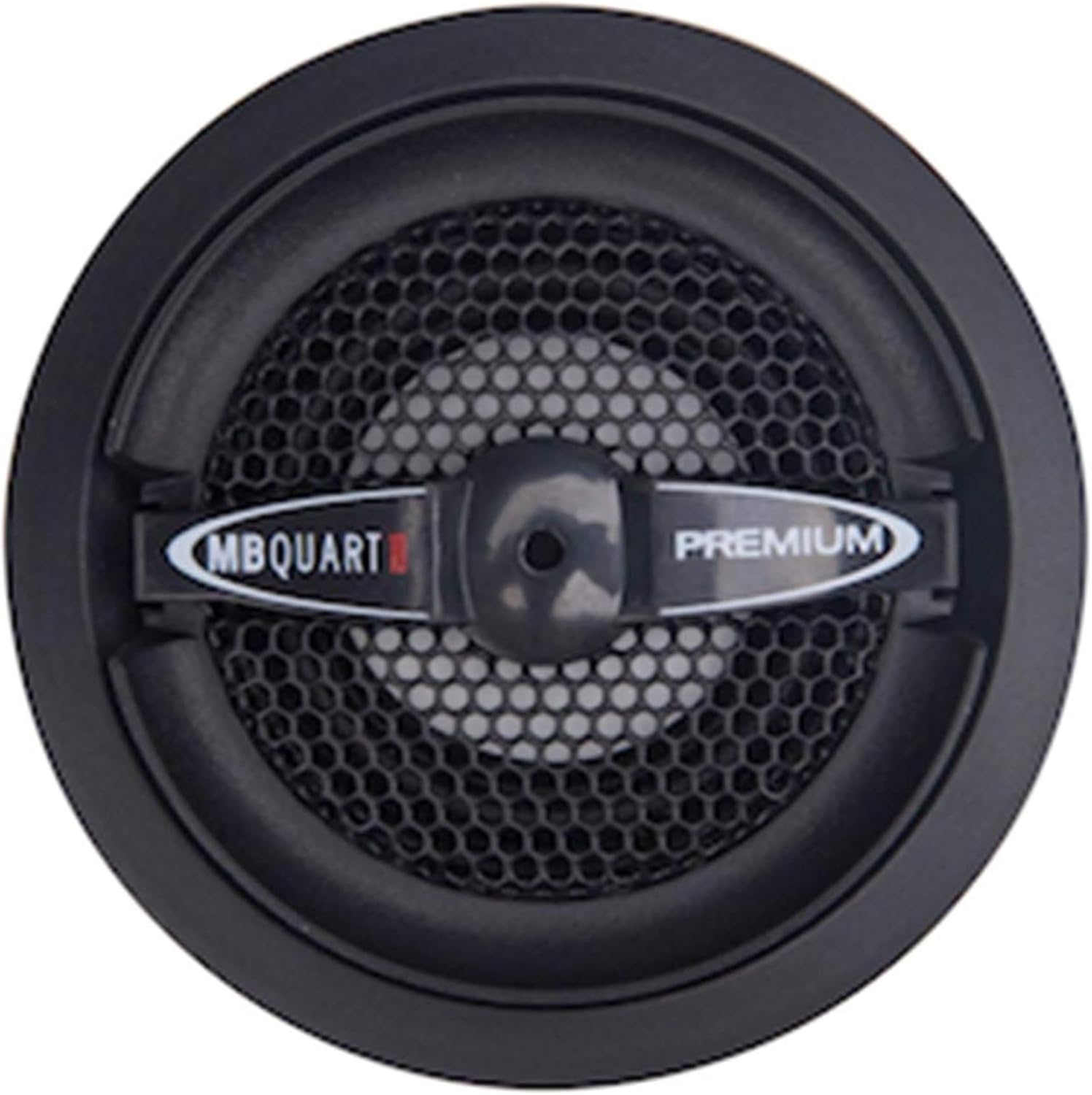

Front view of an MB Quart PS1-216 tweeter with its protective grill, featuring the MB Quart logo.

3.3. Crossover Connection

Connect the crossover networks to your car's amplifier or head unit outputs. The crossover separates audio signals, directing low frequencies to the woofers and high frequencies to the tweeters. Incorrect connection can damage speakers or result in poor sound quality.

3.4. Testing

After installation, test the system at a low volume to verify all connections are correct and sound is being produced properly from each component. Gradually increase volume to ensure no distortion or unexpected noises.

An MB Quart PS1-216 speaker installed in a car door panel, demonstrating a typical mounting scenario.

4. Operating Instructions

Once installed, operate your MB Quart PS1-216 speakers as part of your car's audio system.

• Volume Control: Adjust the volume gradually to avoid sudden loud sounds that could damage your hearing or the speakers.
• Equalization: Use your head unit or amplifier's equalizer settings to fine-tune the sound to your preference. Start with flat settings and make small adjustments to bass, mid, and treble frequencies.
• Power Handling: These speakers are rated for 60W RMS and 120W peak power per speaker. Avoid exceeding these limits to prevent distortion and potential damage.

5. Maintenance

Proper maintenance ensures the longevity and performance of your speakers.

• Cleaning: Gently wipe the speaker grills and surrounds with a soft, dry cloth. Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the speaker materials.
• Inspection: Periodically check speaker connections for tightness and ensure no wires are frayed or exposed. Loose connections can lead to intermittent sound or poor performance.
• Environmental Factors: While designed for vehicle use, avoid prolonged exposure to extreme moisture or direct sunlight, as these can degrade materials over time. The product is not waterproof.

6. Troubleshooting

If you encounter issues with your MB Quart PS1-216 speakers, refer to the following common problems and solutions:

• No Sound:
  • Check all wiring connections from the head unit/amplifier to the crossovers, and from the crossovers to the speakers. Ensure correct polarity.
  • Verify the amplifier is powered on and receiving a signal.
  • Check the head unit's settings and volume level.
• Distorted Sound:
  • Reduce the volume level. Overdriving the speakers or amplifier can cause distortion.
  • Check for loose connections or damaged speaker wires.
  • Adjust equalizer settings; excessive bass or treble can lead to distortion.
  • Ensure the amplifier's gain settings are correctly matched to the head unit's output.
• One Speaker Not Working:
  • Check the specific speaker's wiring and connection to its crossover.
  • Swap the non-working speaker with a known working one (if possible and safe) to determine if the issue is with the speaker or the wiring/crossover.
• Lack of Bass or Treble:
  • Verify crossover connections are correct. Incorrect wiring can send wrong frequencies to components.
  • Adjust equalizer settings on your head unit or amplifier.

7. Specifications

8. Warranty and Support

The MB Quart PS1-216 speakers come with a 1-Year Manufacturer Warranty. For warranty claims, technical support, or further assistance, please contact MB Quart customer service through their official website or the retailer where the product was purchased. Keep your proof of purchase for warranty validation.

For more information, visit the official MB Quart website: MB Quart Store
