Candy CSO4 H7A2DE-S Tumble Dryer User Manual

Introduction

This manual provides essential information for the safe and efficient use of your Candy CSO4 H7A2DE-S Tumble Dryer. Please read these instructions carefully before using the appliance and keep them for future reference. This appliance is a 7 kg capacity condensation dryer with A++ energy efficiency, featuring Wi-Fi and Bluetooth connectivity for enhanced control.

Image 1: Front view of the Candy CSO4 H7A2DE-S Tumble Dryer. The dryer is white with a transparent door, a control panel at the top, and a ventilation grille at the bottom right.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. Keep children away from the appliance. Do not allow children to play with the appliance. Ensure the appliance is properly earthed. Do not install the appliance behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

• Read all instructions before use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes, and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber-backed articles, and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that will not damage them.
• Remove all objects from pockets such as lighters and matches.

Setup and Installation

Proper installation is crucial for the performance and safety of your tumble dryer.

Unpacking

• Remove all packaging materials from the appliance.
• Check for any damage during transit. If damaged, do not install and contact your retailer.

Positioning

• Place the dryer on a firm, level floor.
• Ensure adequate ventilation around the appliance. Do not block the air intake at the front or rear.
• The appliance dimensions are approximately 46.5 cm (depth) x 66 cm (width) x 53 cm (height). Allow sufficient space for opening the door and maintenance.

Image 2: The Candy tumble dryer shown stacked on top of a washing machine in a modern laundry room setting. This illustrates a common installation method for space-saving.

Electrical Connection

• Connect the appliance to a properly earthed power socket.
• Ensure the voltage and frequency match the specifications on the rating plate.
• Do not use extension cords or multiple adapters.

Condensate Drain (Optional)

Your dryer collects water in a removable tank. For continuous drainage, an optional drain hose can be connected to a suitable waste pipe. Refer to the detailed instructions in the full manual for this procedure.

Operating Instructions

Follow these steps for effective and safe operation of your tumble dryer.

Before Each Cycle

1. Load Preparation: Sort laundry by fabric type and desired dryness level. Close zippers, hooks, and tie loose belts.
2. Load Capacity: Do not overload the dryer. The maximum capacity is 7 kg.
3. Clean Filter: Always ensure the lint filter is clean before starting a new cycle.
4. Empty Water Tank: If not using continuous drainage, empty the water collection tank.

Starting a Drying Cycle

1. Load Laundry: Open the door and place the laundry inside the drum. Close the door firmly.
2. Select Program: Turn the program selector knob to choose the desired drying program. The control panel will display the estimated drying time.
3. Adjust Options (if needed): Use the control panel buttons to select additional options such as dryness level, anti-crease, or delayed start.
4. Start: Press the Start/Pause button to begin the cycle.

Smart Features (Wi-Fi & Bluetooth)

Your Candy CSO4 H7A2DE-S dryer is equipped with Wi-Fi and Bluetooth connectivity. Download the Candy simply-Fi app to your smartphone or tablet to access additional programs, monitor cycles, and receive notifications. Refer to the app's instructions for pairing and usage.

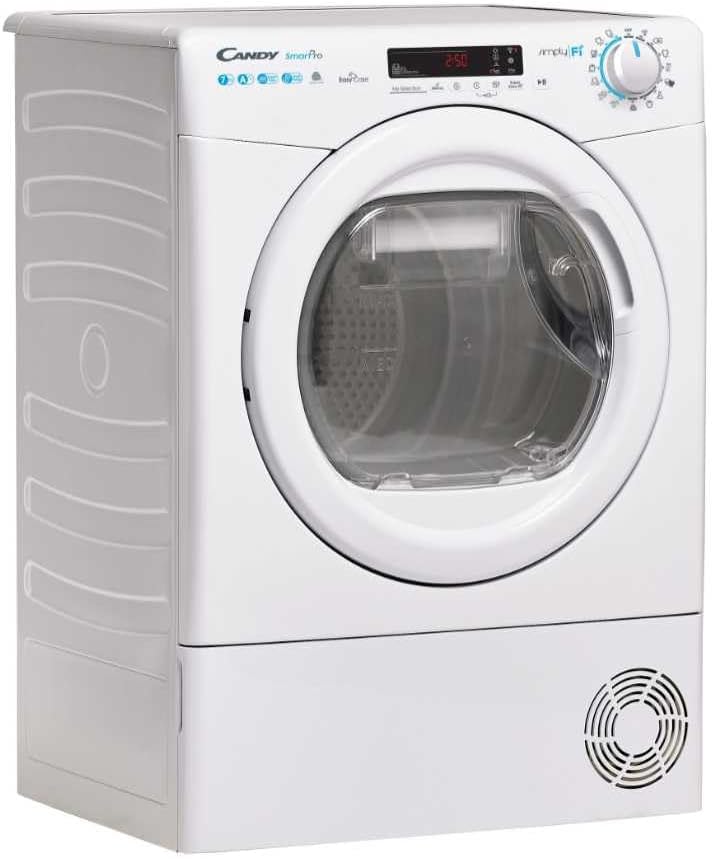

Image 3: Angled view of the Candy CSO4 H7A2DE-S Tumble Dryer, highlighting the control panel with its digital display, program selector knob, and various function buttons. The 'simply-Fi' logo is visible, indicating smart connectivity.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your dryer.

Cleaning the Lint Filter

• After every cycle, open the dryer door and pull out the lint filter located inside the door opening.
• Remove accumulated lint by hand or with a soft brush.
• Rinse the filter under running water if necessary, and ensure it is completely dry before reinserting.

Emptying the Water Tank

• The water tank is typically located at the bottom of the appliance.
• Pull out the tank and empty the collected water into a sink.
• Reinsert the tank firmly.

Cleaning the Condenser

The condenser should be cleaned periodically (e.g., monthly or every 10-15 cycles) to maintain drying efficiency.

1. Open the condenser cover, usually located at the bottom front of the dryer.
2. Remove the condenser unit.
3. Rinse the condenser thoroughly under running water to remove any lint or debris.
4. Allow the condenser to dry completely before reinserting it.
5. Close the condenser cover securely.

Image 4: Close-up view of the lower front section of the Candy tumble dryer, with the access panel open, revealing the condenser unit and filter compartments. Red handles indicate removable parts for cleaning.

Cleaning the Exterior

• Wipe the exterior surfaces with a soft, damp cloth.
• Do not use abrasive cleaners or solvents.

Troubleshooting

If you encounter issues with your dryer, refer to the following common problems and solutions before contacting service.

Specifications

Key technical specifications for the Candy CSO4 H7A2DE-S Tumble Dryer.

Image 5: Energy efficiency label for the tumble dryer, clearly displaying an A++ rating, indicating high energy efficiency.

Warranty and Support

Your Candy CSO4 H7A2DE-S Tumble Dryer comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or to schedule a service appointment, please contact Candy customer support. Contact details can typically be found on the manufacturer's official website or in the documentation provided with your appliance.

• Manufacturer: Candy
• Model Number: ASCCNDCSO4H7A2
• ASIN: B0832Z82RX
• First Available Date: February 21, 2020
