VICCO Ilias Vanity Storage Unit Instruction Manual

1. Introduction

Thank you for choosing the VICCO Ilias Vanity Storage Unit. This manual provides essential information for the safe assembly, proper use, and maintenance of your new bathroom cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.

The VICCO Ilias Vanity Storage Unit is designed to offer practical storage solutions for your bathroom. It features a modern concrete wood finish, a hinged door, and three functional drawers, along with a dedicated space for a siphon, making it suitable for installation under a sink.

2. Safety Information

• Proper Installation: Ensure the unit is installed correctly and securely to prevent tipping.
• Weight Capacity: Do not exceed the maximum weight capacity of 12 kg (26.4 lbs) for the unit. Overloading can lead to instability and damage.
• Siphon Cut-out: Be cautious when handling the unit around the siphon cut-out to avoid pinch points or injury during installation.
• Children and Pets: Keep small children and pets away from the assembly area. Small parts can be a choking hazard.
• Tools: Use appropriate tools for assembly. Exercise caution to prevent injury.

3. Package Contents

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• VICCO Ilias Vanity Storage Unit components
• Assembly instructions (English language not guaranteed, but this manual serves as a guide)
• Assembly hardware (screws, dowels, hinges, drawer slides, handles)

4. Setup and Assembly

Assembly of the VICCO Ilias Vanity Storage Unit requires careful attention to detail. It is recommended to have at least two people for assembly. Follow the provided assembly instructions step-by-step.

4.1. Required Tools (Not Included)

• Screwdriver (Phillips head)
• Hammer
• Measuring tape
• Level

4.2. Assembly Steps

1. Unpack Components: Carefully unpack all parts and lay them out on a clean, soft surface to prevent scratches. Identify each part using the assembly diagram.
2. Assemble the Frame: Connect the side panels, bottom, and top panels using the provided hardware. Ensure all connections are tight and secure.
3. Install Drawer Slides: Attach the drawer slides to the cabinet frame and the drawer sides according to the instructions.
4. Assemble Drawers: Construct the three drawers and install them onto the slides.
5. Attach Door Hinges and Door: Secure the hinges to the cabinet frame and then attach the hinged door. Adjust the door for proper alignment.
6. Install Handles: Attach the handles to the door and drawers.
7. Position the Unit: Carefully place the vanity unit in its desired location. Ensure it is level and stable. The unit is designed to be self-standing.
8. Siphon Integration: Position the unit under your sink, aligning the siphon cut-out with the plumbing.

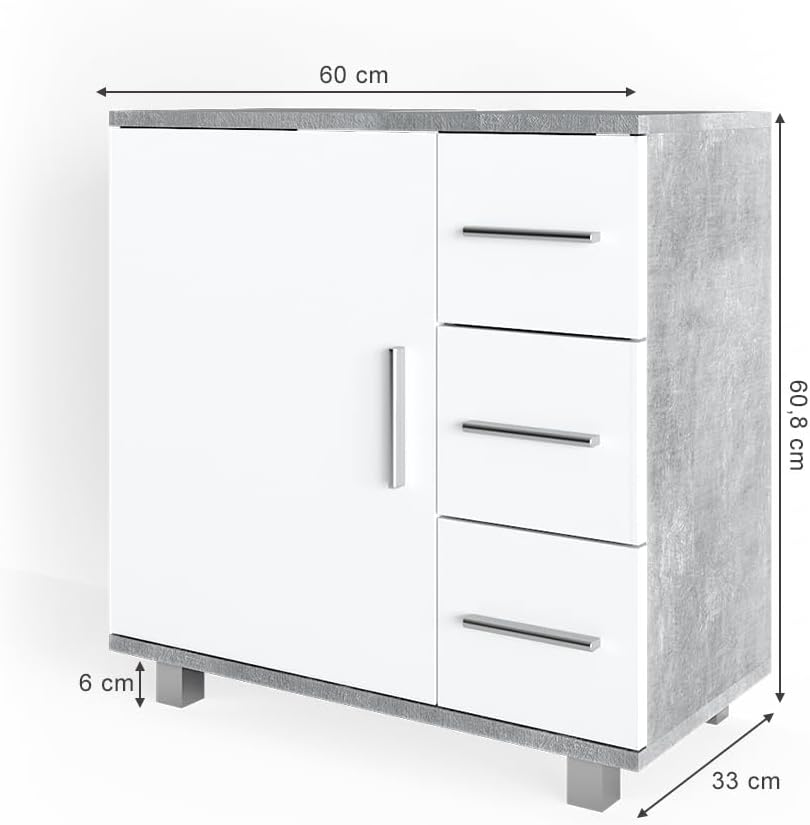

Image 1: Dimensions of the Vanity Storage Unit (Width: 60 cm, Height: 60.8 cm, Depth: 33 cm).

Image 2: Vanity unit installed under a sink, highlighting the siphon cut-out for plumbing.

5. Operating Instructions

The VICCO Ilias Vanity Storage Unit is designed for straightforward use. It provides organized storage for bathroom essentials.

• Door Operation: Gently pull the handle to open the hinged door. Push to close. Avoid slamming the door to prevent damage to hinges and the unit.
• Drawer Operation: Pull the drawer handles to open the drawers. Push them back in until they are fully closed. Do not overload drawers to ensure smooth operation.
• Storage: Utilize the internal shelves and drawers to store toiletries, towels, cleaning supplies, and other bathroom items. Distribute weight evenly to maintain stability.

Image 3: Interior view showing storage capacity with door and drawers open.

6. Maintenance

To ensure the longevity and appearance of your VICCO Ilias Vanity Storage Unit, follow these simple maintenance guidelines:

• Cleaning: Wipe the surfaces with a dry cloth. For stubborn marks, use a slightly damp cloth with mild soap, then dry immediately. Avoid abrasive cleaners or harsh chemicals.
• Moisture: While designed for bathroom use, avoid prolonged exposure to excessive moisture. Wipe up spills immediately.
• Hardware: Periodically check all screws and fittings to ensure they remain tight. Retighten if necessary.

7. Troubleshooting

If you encounter any issues with your vanity storage unit, refer to the following common problems and solutions:

• Unit is wobbly: Ensure the unit is placed on a flat, level surface. Check all assembly screws and tighten them if loose.
• Drawers do not slide smoothly: Check that the drawer slides are correctly installed and free from obstructions. Ensure drawers are not overloaded.
• Door does not close properly: Adjust the hinges to align the door. Check for any obstructions preventing the door from closing fully.
• Damage during assembly: If a part is damaged during assembly, stop and contact customer support for replacement parts. Do not force damaged parts.

8. Specifications

9. Warranty Information

VICCO products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact VICCO customer service. Typically, warranties cover manufacturing defects under normal use conditions.

10. Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact VICCO customer support. Have your model number (30802) and purchase information ready when contacting support.

For further assistance, please visit the official VICCO website or refer to your purchase documentation for contact details.
