VOLTCRAFT FG-32502T Function Generator User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your VOLTCRAFT FG-32502T Function Generator. Please read this manual thoroughly before using the device and keep it for future reference. The FG-32502T is a versatile 2-channel arbitrary waveform generator capable of producing various waveforms including sine, square, pulse, ramp, noise, and arbitrary signals across a frequency range of 1µHz to 250MHz.

2. Safety Instructions

WARNING: Failure to follow these safety instructions may result in electric shock, fire, or damage to the device.

• Always connect the device to a grounded power outlet.
• Do not open the device casing. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.
• Avoid operating the device in wet or damp conditions.
• Ensure proper ventilation to prevent overheating.
• Use only the power cord supplied with the device.
• Disconnect power before cleaning or moving the device.

Observe all warning labels on the device. The rear panel of the device contains important safety warnings, including a German warning indicating that the protective conductor must be connected to counteract electric shocks and that there are no user-serviceable parts inside. It also states not to remove covers and to always leave maintenance work to qualified personnel.

Image: Rear panel of the VOLTCRAFT FG-32502T Function Generator, featuring warning labels in German, various input/output ports such as USB, LAN, and power input, and regulatory markings.

3. Package Contents

Verify that all items are present and in good condition upon unpacking:

• VOLTCRAFT FG-32502T Function Generator (1 unit)
• Power Cord (1 unit)
• User Manual (this document)
• USB Cable (for PC connection)

If any items are missing or damaged, please contact your supplier immediately.

4. Product Overview

4.1 Front Panel

The front panel features the main display, control buttons, a rotary encoder, and output connectors for Channel 1 (CH1) and Channel 2 (CH2).

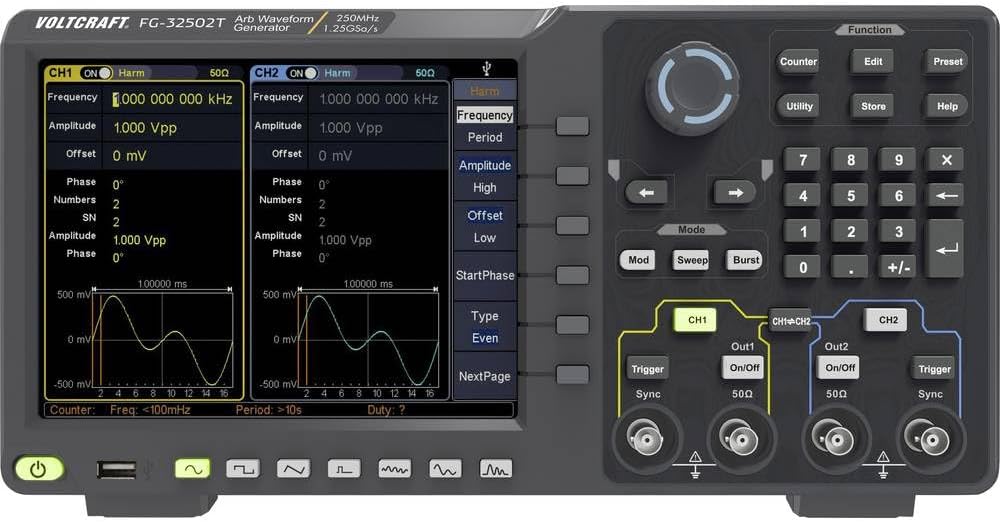

Image: Front panel of the VOLTCRAFT FG-32502T Function Generator, showing the display with two active channels (CH1 and CH2) displaying sine waves, various function buttons, a rotary encoder, and output connectors.

4.2 Rear Panel

The rear panel includes the power input, USB host, USB device, LAN interface, external modulation input, external reference clock input, and external trigger input.

Image: Rear panel of the VOLTCRAFT FG-32502T Function Generator, featuring warning labels in German, various input/output ports such as USB, LAN, and power input, and regulatory markings.

5. Setup

1. Placement: Place the function generator on a stable, level surface with adequate ventilation.
2. Power Connection: Connect the supplied power cord to the power input on the rear panel of the device, then plug the other end into a grounded AC power outlet (100-240V, 50/60Hz).
3. Power On: Press the power button located on the front panel to turn on the device. The display will illuminate, and the system will perform a self-test.
4. Output Connection: Connect your test leads or cables to the desired output channels (CH1 or CH2) on the front panel.

6. Operating Instructions

The FG-32502T offers a wide range of waveform generation and modulation capabilities. The main display shows the settings for both channels, and dedicated buttons and a rotary encoder allow for precise control.

6.1 Basic Waveform Generation (Sine, Square, Pulse, Ramp)

1. Select Channel: Press the CH1 or CH2 button to select the channel you wish to configure.
2. Select Waveform: Press the 'Function' button, then use the navigation keys or rotary encoder to select the desired basic waveform (e.g., Sine, Square, Pulse, Ramp).
3. Adjust Parameters: Use the dedicated parameter buttons (e.g., Frequency, Amplitude, Offset) and the rotary encoder to adjust the waveform characteristics.

Example: Pulse Waveform Setup

To set up a pulse waveform, select 'Pulse' from the function menu. You can then adjust parameters such as Frequency, Amplitude, Offset, Width, Rising Edge, and Falling Edge.

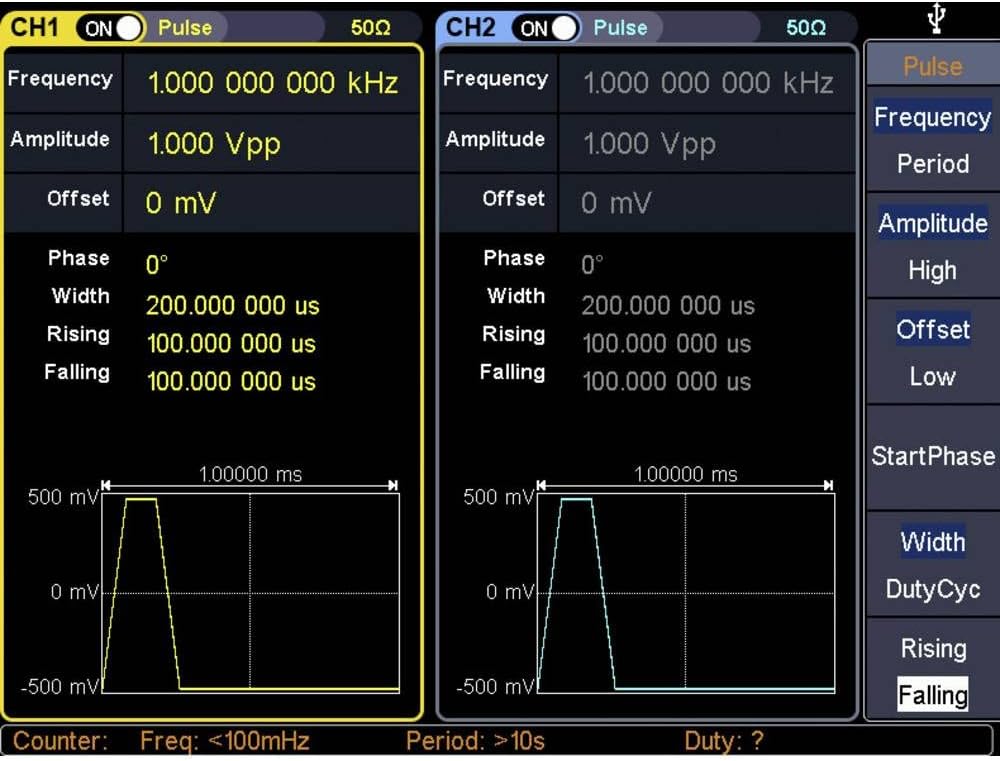

Image: Close-up of the VOLTCRAFT FG-32502T display, illustrating the settings for a Pulse waveform on both channels, including frequency, amplitude, offset, width, rising, and falling edge parameters.

Example: Square Waveform Setup

To set up a square waveform, select 'Square' from the function menu. You can adjust parameters such as Frequency, Amplitude, and Offset.

Image: Close-up of the VOLTCRAFT FG-32502T display, illustrating the settings for a Square waveform on both channels, including frequency, amplitude, and offset parameters.

6.2 Arbitrary Waveforms

The device supports 152 built-in arbitrary waveform groups. To use an arbitrary waveform:

1. Select 'Arb' from the function menu.
2. Navigate through the available arbitrary waveform groups using the rotary encoder.
3. Adjust parameters like frequency and amplitude as needed.

6.3 Modulation Options

The FG-32502T offers various modulation types, including AM, FM, PM, FSK, ASK, BPSK, PSK, PWM, and 3FSK. To apply modulation:

1. Select the desired waveform for the carrier signal.
2. Press the 'Mod' button.
3. Select the modulation type and adjust its parameters (e.g., modulation depth, frequency, source).

6.4 Counter Function

The device includes a frequency counter. To use the counter:

1. Connect the signal to be measured to the counter input.
2. Press the 'Counter' button to activate the function.
3. The display will show the measured frequency.

7. Maintenance

7.1 Cleaning

To clean the device, disconnect it from the power supply. Use a soft, dry cloth to wipe the exterior. For stubborn dirt, a slightly damp cloth with mild detergent can be used, ensuring no liquid enters the device. Do not use abrasive cleaners or solvents.

7.2 Storage

When not in use for extended periods, store the function generator in a dry, dust-free environment, away from direct sunlight and extreme temperatures.

8. Troubleshooting

• Device does not power on:
  • Check if the power cord is securely connected to both the device and the power outlet.
  • Ensure the power outlet is functional.
• No output signal:
  • Verify that the output channel (CH1/CH2) is enabled.
  • Check the amplitude settings; ensure it is not set to 0V.
  • Ensure the output cables are correctly connected and not damaged.
• Incorrect waveform displayed:
  • Review the waveform type and parameter settings on the display.
  • Perform a factory reset if settings appear corrupted (refer to the utility menu for this option).

For issues not covered here, please contact VOLTCRAFT customer support.

9. Specifications

10. Warranty and Support

For warranty information, technical support, or service requests, please refer to the documentation included with your product or visit the official VOLTCRAFT website. Keep your purchase receipt as proof of purchase.
