Introduction
This manual provides essential instructions for the safe and efficient use of your KITCHEN MOVE Narvik Automatic Kitchen Waste Bin, model BAT-SD802. Please read this manual thoroughly before operating the product and retain it for future reference.
The Narvik waste bin features an automatic sensor lid, multiple compartments for waste separation, and a durable stainless steel construction, designed for convenience and hygiene in your kitchen, bathroom, or office.
Safety Information
- Do not immerse the lid or electronic components in water. Clean with a damp cloth only.
- Ensure batteries are inserted correctly according to polarity markings.
- Do not mix old and new batteries, or different types of batteries.
- Keep the sensor area clear of obstructions to ensure proper operation.
- This product is intended for indoor use only.
- Keep out of reach of children to prevent accidental injury or damage.
Package Contents
Verify that all components are present:
- 1 x KITCHEN MOVE Narvik Automatic Waste Bin (Main Unit)
- 1 x 47L Automatic Bin (Top Compartment)
- 1 x 3L Removable Plastic Table Bin (Compost/Small Waste)
- 1 x 25L Bin (Bottom Drawer, with optional divider)
- 1 x Plastic Strapping (for securing trash bags)
- 1 x Floor Protection Ring
Image: Exploded view showing the main unit, top bin, bottom drawer, and the small removable bin.
Setup Instructions
1. Battery Installation
- Locate the battery compartment on the underside of the lid.
- Open the battery compartment cover.
- Insert 6 x LR06 (AA) batteries (not included), ensuring correct polarity (+/-).
- Close the battery compartment cover securely.
Image: Detail of the lid, showing the location of the control buttons and implicitly, the battery compartment on the underside.
2. Installing Trash Bags
- For the top 47L compartment: Place a trash bag inside the bin. Use the provided plastic strapping ring to secure the bag's edges, preventing it from slipping.
- For the bottom 25L compartment: Pull out the bottom drawer. Place a trash bag inside the removable inner bin. If using the divider for sorting, ensure the bag is placed appropriately for each section.
- The 3L removable plastic table bin does not typically require a bag, but small liners can be used if desired.
Image: Components for bag installation, showing the strapping ring and the small removable bin being placed into the top compartment.
3. Optional Divider for Bottom Compartment
The 25L bottom compartment includes an optional divider for waste separation. Insert the divider into the designated slots within the inner bin to create two smaller sections for recycling or different waste types.
Image: The bottom drawer pulled out, showing the inner bin with an optional divider for separating recycling waste.
Operating Instructions
1. Automatic Sensor Operation
The lid of the top compartment operates automatically using an infrared sensor. Simply move your hand or an object approximately 15cm (6 inches) above the electric photo cell located on the lid. The lid will open automatically and close after a few seconds of inactivity.
Image: The KITCHEN MOVE Narvik bin positioned in a kitchen, illustrating its functional presence.
2. Manual Open/Close Buttons
For extended opening or manual control, use the "OPEN" and "CLOSE" buttons located on the lid. Press "OPEN" to keep the lid open indefinitely. Press "CLOSE" to close the lid. The sensor will reactivate once the lid is manually closed.
Image: A detailed view of the "OPEN" and "CLOSE" buttons on the lid, providing manual control.
3. Using the Bottom Compartment
The bottom compartment is a pull-out drawer. Simply pull the handle to access the 25L inner bin. This is ideal for recycling items such as bottles, cans, or paper, especially when utilizing the optional divider.
Image: The bottom drawer of the bin pulled out, revealing the inner compartment used for recycling.
4. Using the 3L Removable Bin
The small 3L removable plastic bin is designed for convenient disposal of organic waste, peelings, or other small items. It can be placed inside the top compartment or used separately on a countertop.

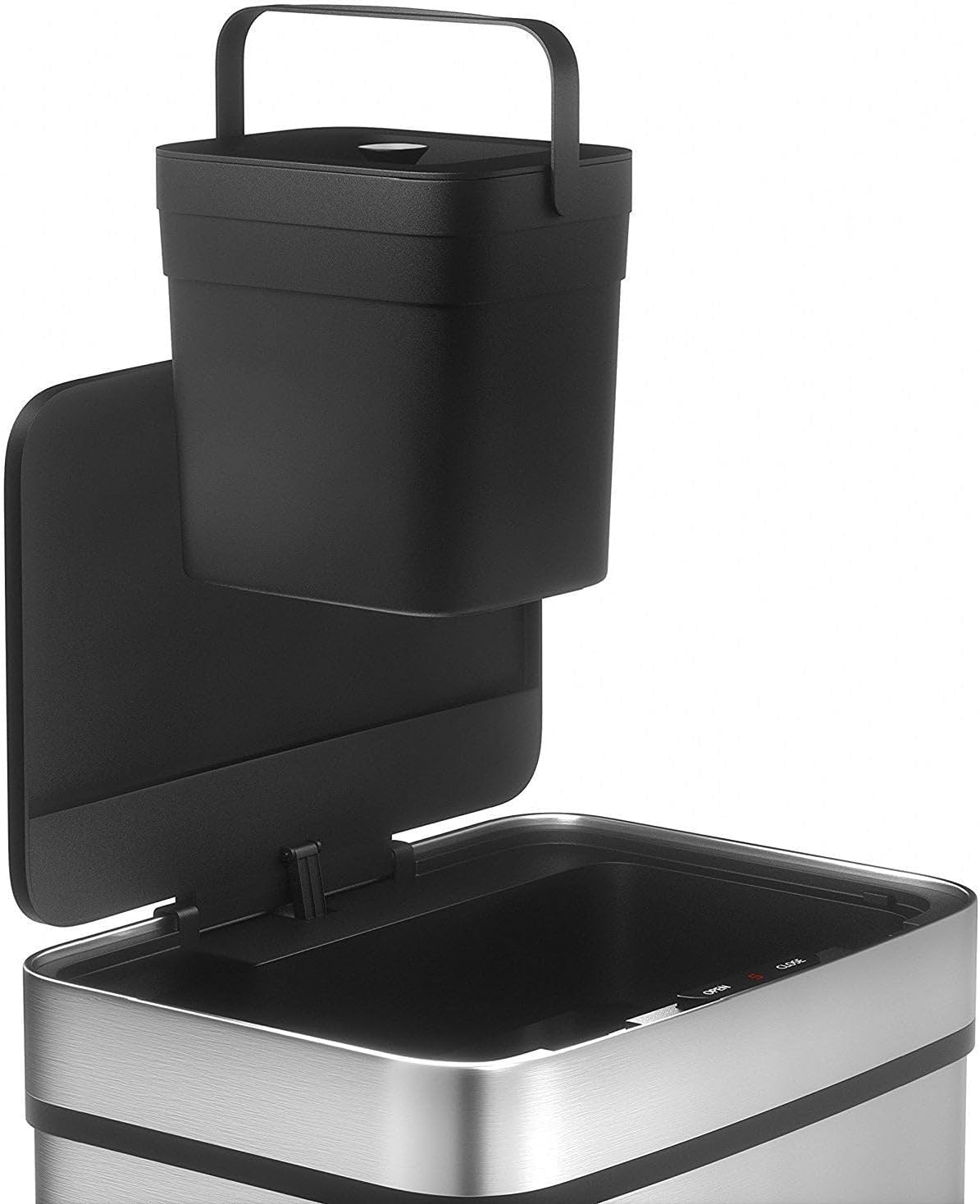

Image: The small 3L removable bin being lifted from the top compartment, highlighting its portability.
Maintenance
Cleaning
- Wipe the stainless steel exterior with a soft, damp cloth and a mild, non-abrasive cleaner. Dry thoroughly to prevent water spots.
- Clean the plastic inner bins with soap and water. Rinse and dry completely before returning them to the main unit.
- Do not use harsh chemicals, abrasive pads, or steel wool, as these can damage the finish.
- Ensure the sensor area on the lid is kept clean and free of dust or debris for optimal performance.
Battery Replacement
When the sensor operation becomes inconsistent or stops working, it is likely time to replace the batteries. Follow the battery installation steps in the "Setup Instructions" section.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lid does not open automatically. | Dead or incorrectly installed batteries. Sensor obstructed or dirty. | Replace batteries, ensuring correct polarity. Clean the sensor area. Ensure nothing is blocking the sensor's path. |
| Lid opens and closes randomly. | Sensor is too sensitive or detecting nearby movement. | Ensure the bin is not placed in a high-traffic area or near objects that might trigger the sensor. Try turning the unit off and on using the ON/OFF button. |
| Lid does not close completely. | Obstruction in the lid's path. Mechanism jammed. | Check for any debris or objects preventing the lid from closing. Gently clear any obstructions. If manually pressed down, the automatic opening might be temporarily disengaged; press "CLOSE" button. |
Specifications
- Model: BAT-SD802
- Brand: KITCHEN MOVE
- Total Capacity: 75 Liters (47L top, 25L bottom, 3L removable)
- Dimensions: 42 cm (L) x 32 cm (W) x 83 cm (H) / 16.54"L x 12.6"W x 32.68"H
- Weight: 8.8 kg / 23.8 pounds
- Material: Stainless Steel (body), ABS (cover)
- Color: Silver
- Opening Mechanism: Motion-Sensor, Manual Buttons
- Power: 6 x LR06 (AA) batteries (not included)
- Special Features: Multi-compartment for sorting, Floor protection ring, Bag strapping.
Warranty and Support
This KITCHEN MOVE product comes with a 2-year warranty. For warranty claims, technical support, or replacement parts, please contact KITCHEN MOVE customer service. Refer to the product packaging or the official KITCHEN MOVE website for contact details.
Note: The warranty does not cover damage caused by improper use, neglect, or unauthorized modifications.
Image: Product label showing warranty information and manufacturer contact details.
