Goodream 48-inch Tailgate LED Light Strip Instruction Manual

1. Setup

1.1 Package Contents

Before beginning installation, please ensure all components are present:

• Goodream 48-inch Tailgate LED Light Strip
• Wiring harness with controller
• High-quality 3M automotive adhesive (pre-applied)
• Plug and play connectivity components

1.2 Pre-Installation Checks

• Compatibility: This 48-inch light strip is designed for most compact cars. For SUVs, a 60-inch version is typically recommended. Verify your vehicle's tailgate width before installation.
• Power Source: The light strip operates on a 12V DC power supply.
• Tools Required (not included): Basic automotive wiring tools (wire strippers, crimpers, electrical tape, multimeter/test pencil for identifying wires).

1.3 Installation Guide

Follow these steps for proper installation:

1. Clean the Mounting Surface:

   Thoroughly clean the area on your vehicle's tailgate where the LED strip will be mounted. Use rubbing alcohol or a suitable automotive cleaner to remove all dirt, dust, and grease. A clean surface is crucial for optimal adhesive bonding.



   Image: A hand cleaning the car trunk area, preparing it for the LED strip installation.

2. Determine Mounting Location:

   The light strip can be mounted in various locations on the rear of the vehicle, typically along the lower edge of the trunk lid or tailgate. Ensure the chosen location allows for clear visibility of the lights and does not obstruct the trunk's operation.



   Image: The 48-inch LED light strip installed on the rear of a car, illuminating the tailgate area.

3. Apply the LED Strip:

   Carefully peel off the protective backing from the pre-applied 3M automotive adhesive on the back of the LED strip. Align the strip with your chosen mounting location and firmly press it into place along its entire length to ensure strong adhesion.



   Image: A close-up view of the LED strip, highlighting the blue protective film over the 3M adhesive backing.

4. Wiring Connections:

   The light strip comes with a multi-wire harness for various functions. Refer to the wiring diagram below and your vehicle's wiring schematics to identify the correct wires for connection.

   Wiring Diagram:



   Image: A detailed wiring diagram showing connections for Red (ACC Positive), Black (ACC Negative), Yellow (Left/Right Turn Signal), White (Brake Light), Blue (Reverse Light), and Green (Driving Mode Light).

   • Red Wire: Connect to ACC Positive (+) 12V power.
   • Black Wire: Connect to ACC Negative (-) or vehicle ground.
   • Yellow Wires (2 pcs): Connect one to the Left Turn Signal positive and the other to the Right Turn Signal positive.
   • White Wire: Connect to the Brake Light positive.
   • Blue Wire: Connect to the Reverse Gear Light positive.
   • Green Wire: Connect to the taillight/driving mode light. If connected to ACC Positive (+), the driving running lights will be ice blue. If not connected, the lights will display a dream color.

   Use a multimeter or test pencil to accurately identify your vehicle's wiring. Ensure all connections are secure and properly insulated with electrical tape or heat shrink tubing.

5. Secure Wiring:

   Route the wires safely away from moving parts, heat sources, and sharp edges. Use zip ties or automotive clips to secure the wiring harness to prevent damage or interference.

6. Test Functionality:

   Before finalizing the installation, test all light functions (running, brake, turn signals, reverse, hazard) to ensure they operate correctly.

2. Operating Instructions

The Goodream Tailgate LED Light Strip offers multiple lighting functions to enhance vehicle visibility and aesthetics.

2.1 Light Modes

• Running/Driving Light: When connected to ACC Positive, the strip illuminates in a steady ice blue or dream color, depending on the green wire connection.
• Brake Light: When the brake pedal is pressed, the entire strip illuminates in bright red.
• Turn Signal Light: When the left or right turn signal is activated, the corresponding side of the strip illuminates in sequential yellow, indicating the turn direction.
• Parking Light: Functions as a steady red light when parking lights are on.
• Hazard Light (Double Flash): When hazard lights are activated, the entire strip flashes yellow.
• Reverse Light: When the vehicle is put into reverse, the strip illuminates in bright white.

Image: Visual representation of the various light modes including driving (ice blue), brake (red), back up (white), double flash (yellow), turn left (yellow), and turn right (yellow).

3. Maintenance

3.1 Cleaning

To maintain optimal brightness and appearance, regularly clean the LED light strip with a soft cloth and mild automotive soap. Avoid abrasive cleaners or high-pressure water jets directly on the strip, especially near the wiring connections.

3.2 Water Resistance

The light strip features an IP65 waterproof rating, ensuring protection against dust and low-pressure water jets. This makes it suitable for use in various weather conditions, including rain and car washes. However, prolonged submersion is not recommended.

Image: The LED strip being shown in a flexible, coiled state with water droplets, illustrating its IP65 waterproof and flexible design.

4. Troubleshooting

• Lights Not Illuminating:
  • Check all wiring connections for proper contact and secure fit.
  • Verify the power source (ACC Positive and Negative) is providing 12V DC.
  • Inspect the fuse in your vehicle's fuse box that supplies power to the connected circuit.
• Incorrect Light Function/Color:
  • Re-check the wiring diagram and ensure each wire from the LED strip is connected to the correct corresponding vehicle wire (e.g., white to brake, yellow to turn signal).
  • Ensure the green wire is connected as desired for ice blue or dream color driving mode.
• Dim or Uneven Lighting:
  • Ensure the power connection is stable and not experiencing voltage drops.
  • Verify the LED strip is fully adhered to a flat surface without kinks or damage.
  • Compare the brightness to the product's expected performance (e.g., 5050 LED source for bright, saturated light).

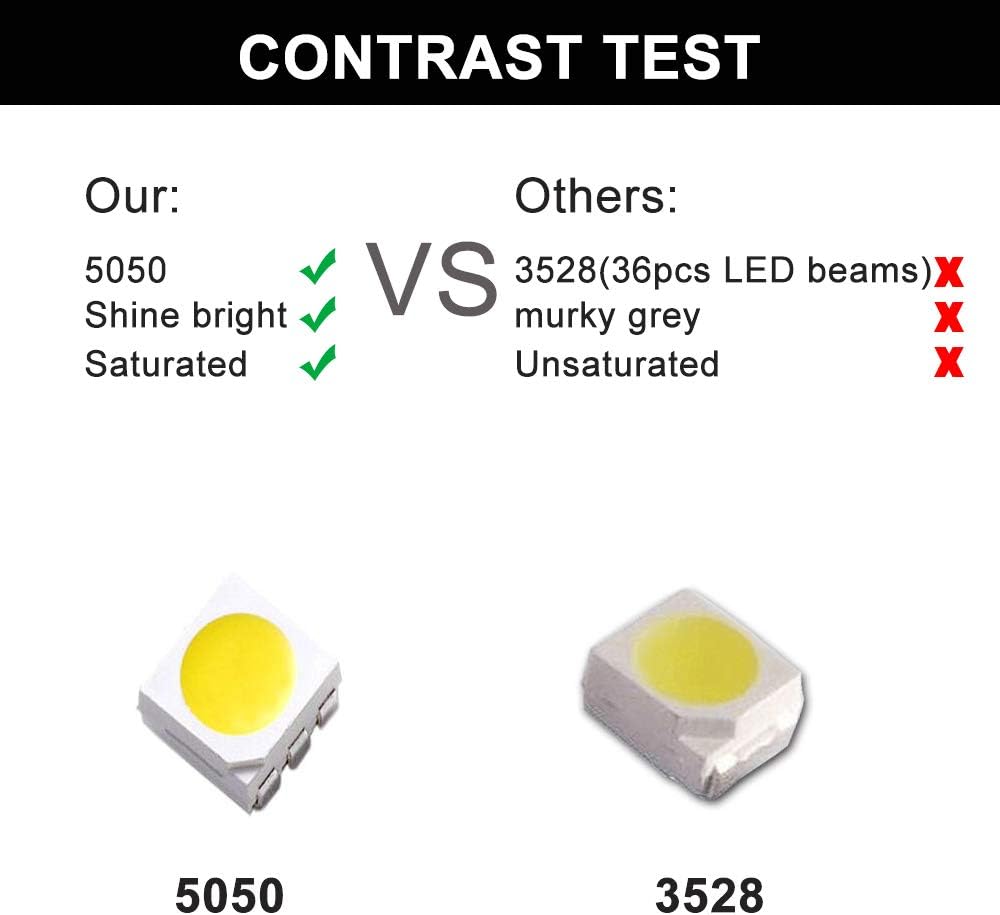

  Image: A comparison image highlighting the superior brightness and saturation of 5050 LED chips used in this product versus 3528 LEDs.

• Adhesive Not Holding:
  • Ensure the mounting surface was thoroughly cleaned and dry before application.
  • Apply firm, even pressure along the entire strip during installation.
  • Avoid installing in extremely cold temperatures, as adhesive performance can be reduced.

5. Specifications

Image: Diagram showing the thickness (5mm) and width (13mm) of the LED strip, with available lengths of 1200mm (48 inches) and 1500mm (60 inches).

6. Support

For further assistance, technical support, or inquiries regarding your Goodream Tailgate LED Light Strip, please refer to the contact information provided with your purchase or visit the official Goodream store on Amazon.

Goodream is dedicated to providing quality automotive parts and customer satisfaction. Any issues will receive a response within 24 hours.
