1. Introduction
This manual provides detailed instructions for the assembly, installation, and proper use of your Yaheetech Over-the-Toilet Storage Cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This cabinet is designed to maximize storage space in your bathroom by utilizing the area above your toilet.
2. Safety Information
- Anchor cabinet to wall to prevent tipping. This is a critical safety step, especially in households with children or pets.
- Ensure all fasteners are securely tightened during assembly.
- Do not overload shelves. Refer to the 'Specifications' section for weight limits.
- Keep small parts and packaging materials away from children during assembly.
3. Package Contents
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Cabinet panels (top, bottom, sides, back, shelves)
- Glass door(s)
- Hardware pack (screws, cam locks, shelf pins, door hinges, handle, wall anchoring kit)
- Instruction manual
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Yaheetech |
| Model Number | 689806362262 |
| Color | Espresso |

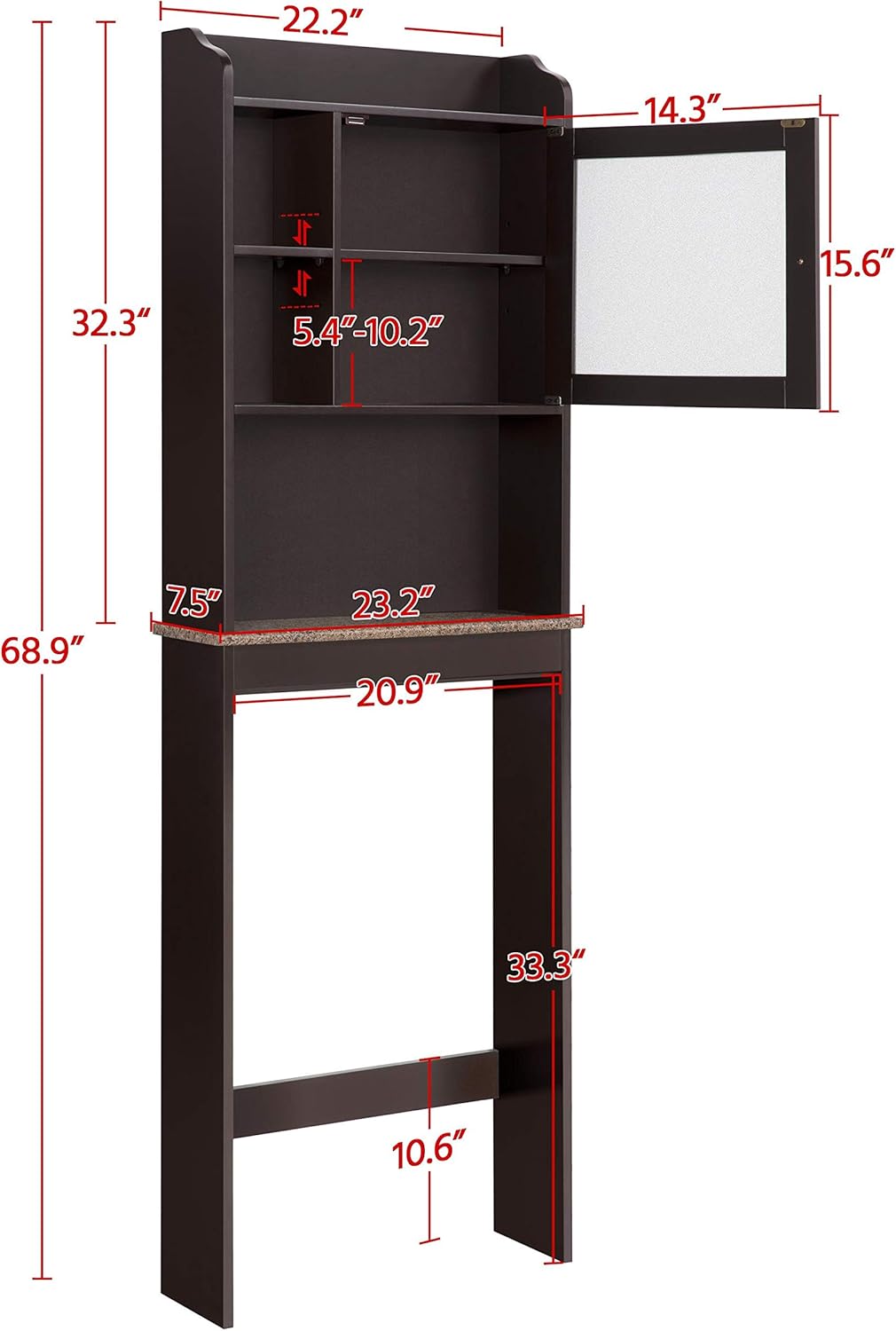

| Product Dimensions (D x W x H) | 7.5" x 23.2" x 68.9" (19cm x 59cm x 175cm) |
| Material | P2 MDF (Engineered Wood), Tempered Glass |
| Mounting Type | Floor Mount (Freestanding) |
| Special Feature | Adjustable Shelves |
| Number of Shelves | 6 (including fixed and adjustable) |
| Weight Limit (Fixed Shelves) | 6kg / 13.2lb |
| Weight Limit (Adjustable Shelf) | 5kg / 11lb |
| Weight Limit (Bottom Shelf) | 10kg / 22lb |
| Assembly Required | Yes |
5. Setup and Assembly Instructions
This cabinet is designed for straightforward assembly. A screwdriver is the primary tool required. Follow the included illustrated guide for step-by-step instructions. Typical assembly time is less than 30 minutes for individuals familiar with furniture assembly.
- Unpack and Identify Parts: Carefully unpack all components and lay them out. Compare them against the parts list in your separate instruction guide to ensure everything is present.
- Assemble the Base: Begin by assembling the lower frame that will sit around the toilet. Ensure all connections are secure.
- Attach the Main Shelf: Secure the faux marble shelf onto the assembled base.
- Construct the Upper Cabinet: Assemble the side panels and fixed shelves for the upper section.
- Install Adjustable Shelves: Insert the shelf pins into the desired height positions for the adjustable shelves. The shelves can be adjusted to 3 heights: 26cm, 20.2cm, and 13.7cm.
- Attach the Glass Door: Carefully install the glass door using the provided hinges and handle. Ensure proper alignment for smooth operation.
- Position the Cabinet: Once fully assembled, carefully position the cabinet over your toilet. Ensure it is stable and level.
- Crucial Step: Wall Anchoring: Use the provided anti-tipping hardware to securely anchor the cabinet to the wall. This prevents accidental tipping and ensures safety.
6. Operating Instructions
The Yaheetech Over-the-Toilet Storage Cabinet is designed for convenient storage of various bathroom items.
- Open Shelves: Use the top open shelf for decorative items or small plants. The middle open cubic shelf is suitable for frequently accessed items like tins or scented candles.
- Glass Door Cabinet: Store items requiring privacy or protection from splashes, such as tissues, tampons, or medicines, behind the glass door.
- Faux Marble Shelf: The spacious faux marble shelf provides a stable surface for bulkier items or additional decorative elements.
- Adjustable Shelves: Customize the height of the two middle cubic shelves to accommodate items of different sizes. Simply remove the shelf pins, reposition the shelf to the desired height, and reinsert the pins.
7. Maintenance
To ensure the longevity and appearance of your cabinet, follow these maintenance guidelines:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Spills: Promptly clean up any spills to prevent water damage or staining.
- Hardware: Periodically check all screws and fasteners to ensure they remain tight. Tighten as necessary.
- Glass Care: Clean the glass door with a standard glass cleaner and a soft cloth.
8. Troubleshooting
If you encounter any issues with your Yaheetech Over-the-Toilet Storage Cabinet, refer to the following common solutions:
- Cabinet does not fit over the toilet: Verify the dimensions of your toilet and the cabinet (refer to Figure 2). Ensure the lower support bars are correctly positioned and not obstructing the toilet. Some toilet designs may require specific clearance.
- Door does not close properly: Check the alignment of the hinges and the door. Ensure all hinge screws are tightened. If the door was forced during assembly, it might be damaged or misaligned. Re-adjust hinges if possible.
- Cabinet feels wobbly or unstable: Double-check that all assembly screws are fully tightened. Ensure the cabinet is placed on a level surface. Most importantly, confirm that the cabinet is securely anchored to the wall using the provided anti-tipping kit.
- Damaged parts during assembly: If parts were damaged during assembly, it is recommended to contact customer support for replacement parts rather than attempting to repair them, which may compromise the cabinet's structural integrity.
9. Warranty and Support
For warranty information, replacement parts, or further assistance, please contact Yaheetech customer support through your original point of purchase. Please have your model number (689806362262) and purchase date available when contacting support.
