1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Combuh 24-inch LED Vanity Light Bar. Please read these instructions thoroughly before installation and retain them for future reference.
Figure 1: Combuh 24-inch LED Vanity Light Bar.
The Combuh LED Vanity Light Bar is designed to provide modern, cool white illumination for bathrooms and vanity areas. Featuring a sleek design, durable construction, and energy-efficient LED technology, this fixture is suitable for indoor use only.
2. Important Safety Information
- Always turn off the power at the circuit breaker before beginning installation.
- Installation should be performed by a qualified electrician or a person with adequate electrical knowledge.
- Ensure all electrical connections are secure and comply with local electrical codes.
- This fixture is designed for 110 Volts AC power supply.
- Do not use with a dimmer switch. Using a dimmer switch will cause stroboscopic flicker. Use a standard ON/OFF switch (not included).
- This product is rated IP44 for splash-proof protection, suitable for humid bathroom environments.
- This light is intended as an auxiliary light source and may not provide sufficient illumination for an entire bathroom.
3. Package Contents
Verify that all components are present before installation:
- 1 x Combuh LED Vanity Light Bar
- 1 x Mounting Plate
- 3 x Screws
- 3 x Expansion Anchors
- 3 x Wire Nuts

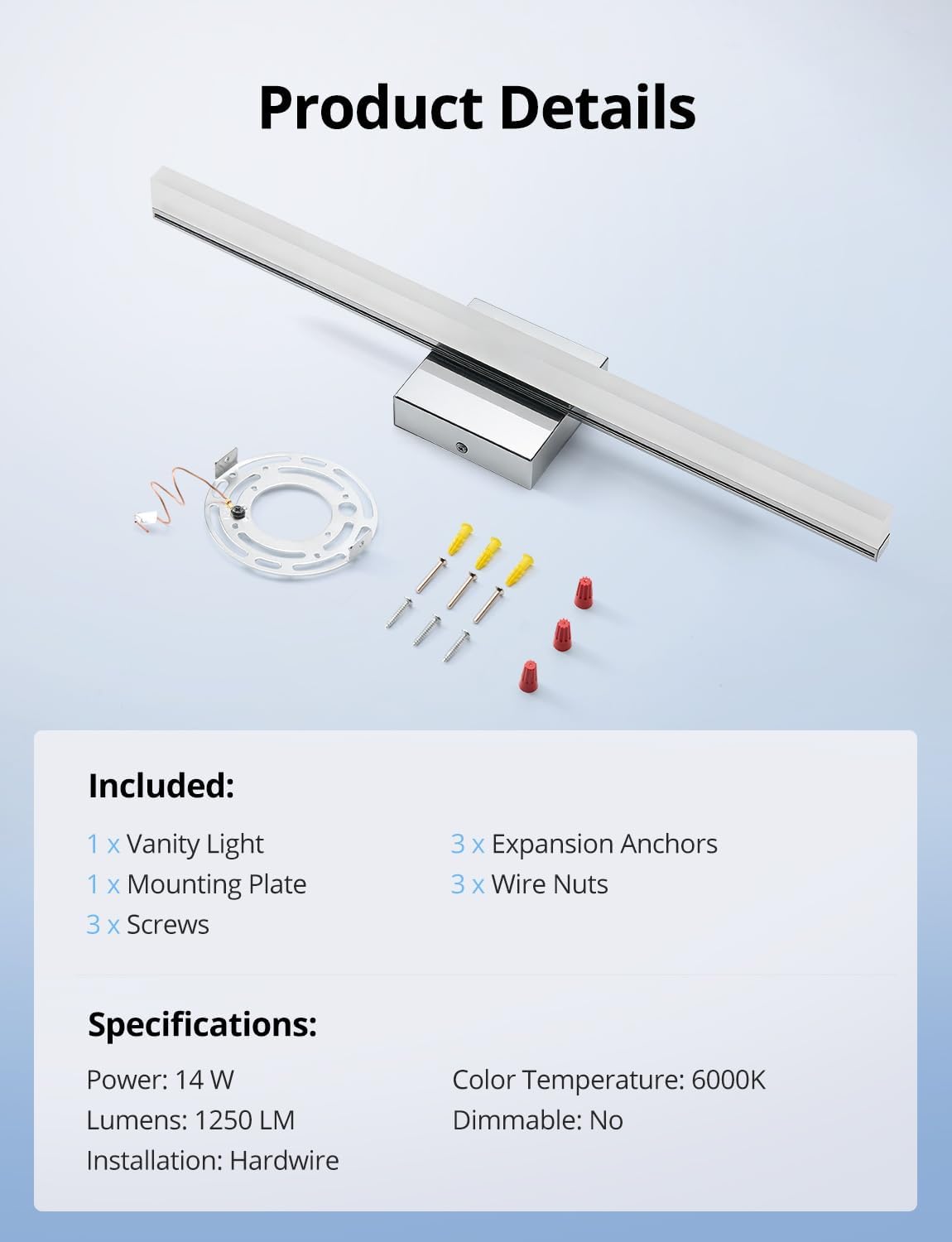

Figure 2: Included components for installation.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Combuh |
| Model Number | 4894773455992 |
| Dimensions | 24"L x 3.3"W x 4.3"H (60cm L x 11cm W x 11cm H) |
| Power Source | Corded Electric |
| Voltage | 110 Volts |
| Wattage | 14 Watts |
| Brightness | 1250 Lumens |
| Color Temperature | 6000 Kelvin (Cool White) |
| Material | Aluminum, SUS304 Stainless Steel, Acrylic |
| Finish Type | Chrome mirror shining base |
| Special Features | Not Dimmable, IP44 Anti-Fog |
| Installation Type | Wall Mount (Hardwire) |
| Recommended Use | Indoor use only: Bathroom, Washroom, WC, Living Room, Cabinet, Table |
Figure 3: Product dimensions and key specifications.
5. Installation Instructions
Follow these steps for safe and proper installation. Ensure power is OFF at the circuit breaker before starting.
- Prepare the Mounting Surface: Ensure the electrical junction box is securely installed in the wall.
- Attach Mounting Plate: Secure the provided mounting plate to the junction box using the screws. Ensure it is level.
- Wire Connections: Connect the electrical wires from the fixture to the house wiring using the wire nuts. Match live (black), neutral (white), and ground (green/bare copper) wires.
- Secure Fixture: Align the light fixture with the mounting plate and secure it with the provided screws.
Figure 4: Step-by-step installation guide.
Video 1: Installation overview of the Combuh Bathroom Light Fixtures by Combuh_usa.
Video 2: Detailed installation and features of the Combuh 24 inch Modern LED Vanity Light by Combuh_usa.
6. Operation
Once installed, operate the light fixture using a standard wall switch. This fixture is not dimmable and will provide a consistent 6000K cool white light.
Figure 5: The vanity light provides soft, uniform illumination for daily tasks.
7. Maintenance
- Cleaning: To clean the fixture, ensure power is off. Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- LED Longevity: The integrated LED module is designed for long-term use and does not require bulb replacement.
- IP44 Rating: The IP44 rating ensures resistance to splashes, making it suitable for bathroom environments.
Figure 6: The IP44 splash-proof design ensures durability in wet environments.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; loose wiring; faulty switch. | Check circuit breaker. Verify all wire connections. Test the wall switch. |
| Light flickers. | Incompatible dimmer switch; loose wiring. | Ensure a standard ON/OFF switch is used (not dimmable). Check wiring connections. |
| Light is not bright enough. | Fixture used as primary light source in a large area. | This fixture is designed for auxiliary lighting. Consider additional lighting for larger spaces. |
9. Warranty and Support
This product comes with a manufacturer-and-seller-combination warranty. For specific warranty details or technical support, please refer to your purchase documentation or contact Combuh customer service.
For further assistance, please visit the Combuh Store on Amazon.
