1. Introduction
This manual provides essential instructions for the safe and proper setup, operation, and maintenance of your Ohuhu Hammock Chair. Please read this manual thoroughly before installation and retain it for future reference.
The Ohuhu Hammock Chair is designed for relaxation, featuring a comfortable macramé design made from 100% cotton rope. It is suitable for both indoor and outdoor use, offering a versatile seating option.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury or damage to the product.
- Maximum Weight Capacity: This hammock chair is designed to support a maximum weight of 330 pounds (150 kg). Do not exceed this limit.
- Secure Installation: Ensure the hanging hooks and all installation hardware are securely installed into a structural support (e.g., a ceiling joist or concrete beam) capable of safely bearing the chair's weight and dynamic load. Do not install into drywall or plaster alone.
- Regular Inspection: Before each use, inspect the hammock chair, ropes, and all hanging hardware for any signs of wear, fraying, damage, or loose connections. Discontinue use immediately if any damage is found.
- Supervision: Children should be supervised when using the hammock chair.
- Clearance: Ensure adequate clearance around the hammock chair to prevent collisions with walls, furniture, or other objects.
- Avoid Sharp Objects: Keep sharp objects away from the hammock chair to prevent damage to the cotton ropes.
3. Package Contents
Please verify that all components are present before beginning installation:
- 1 x Ohuhu Hammock Chair (Macrame Swing)
- 1 x Cushion (if included in your specific model)
- 1 x Heavy Duty Hardware Kit (includes chain, ceiling plate, screws for wood, and expansion bolts for concrete)

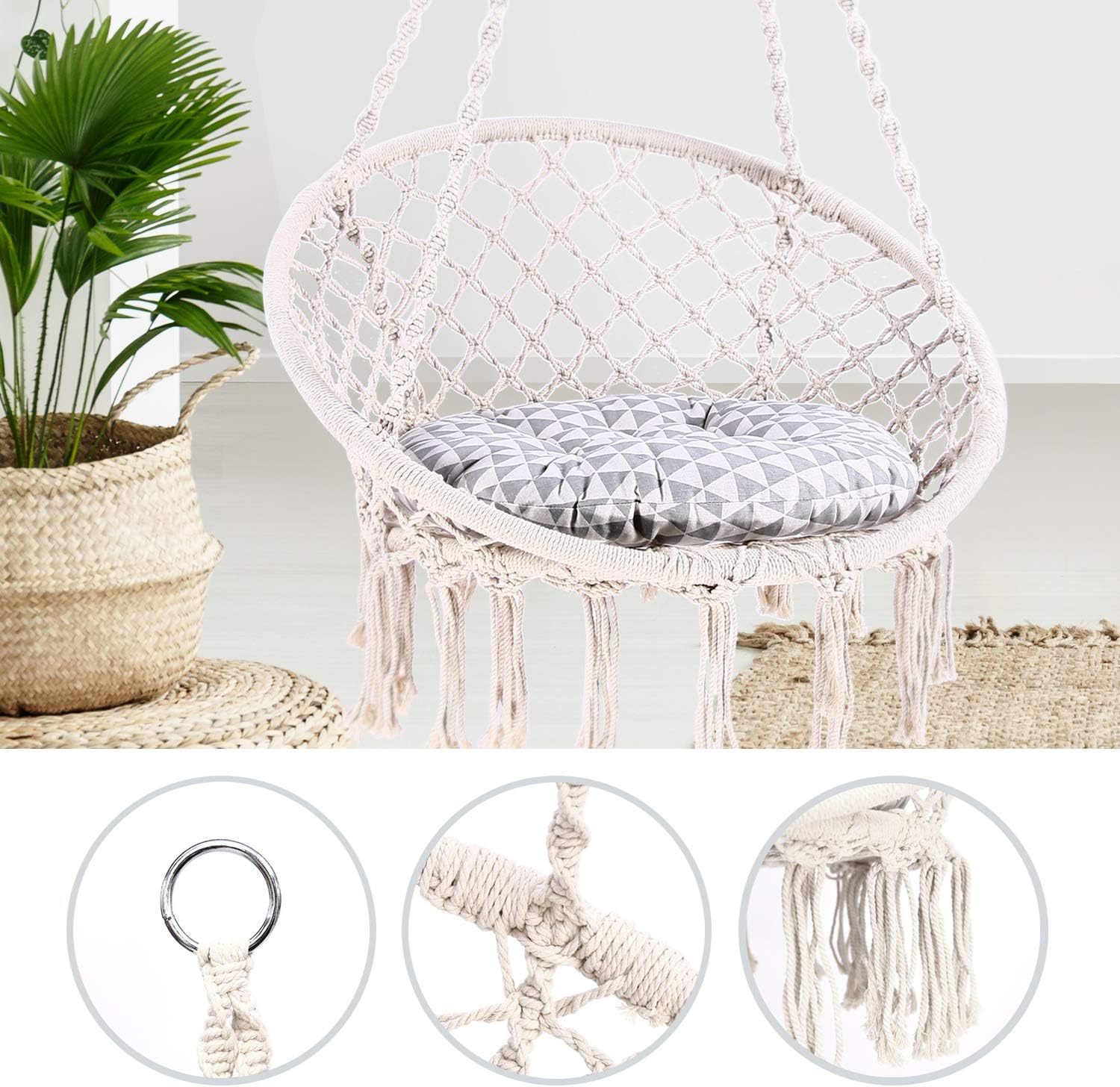

Image: Close-up view of the hammock chair's details, showing the sturdy hanging ring, the intricate braided cotton rope, and the decorative tassels at the bottom. A cushion is also visible within the chair.
4. Setup and Installation
The Ohuhu Hammock Chair comes with a complete hardware kit for installation. It supports two primary installation methods: into a wood ceiling or into a concrete ceiling. Always ensure you are drilling into a structural support.
Required Tools (Not Included):
- Drill
- Drill bits appropriate for wood or concrete
- Stud finder (for wood ceilings)
- Pencil
- Measuring tape
Installation Steps:
- Choose Location: Select a suitable location with adequate overhead clearance and a strong structural support.
- Identify Support:
- For wood ceilings, use a stud finder to locate a ceiling joist. Mark the center of the joist.
- For concrete ceilings, ensure the concrete is solid and free of cracks. Mark the desired installation point.
- Drill Pilot Holes:
- For wood ceilings: Drill pilot holes for the wood screws provided.
- For concrete ceilings: Drill holes for the expansion bolts provided. Insert the expansion bolts into the drilled holes.
- Attach Ceiling Plate: Securely fasten the ceiling plate using the appropriate screws (for wood) or expansion bolts (for concrete). Ensure it is tightened firmly.
- Attach Chain: Connect one end of the provided chain to the ceiling plate.
- Hang Hammock Chair: Attach the hammock chair's hanging ring to the other end of the chain. Adjust the chain length to achieve your desired hanging height.
Image: A diagram illustrating two common installation methods for the hammock chair. The left side shows a single-point hanging setup with a chain. The right side shows a two-point hanging setup, also with a chain, and details the included hardware: screws for wood walls and expansion bolts for concrete walls, along with their dimensions.
5. Operating Instructions
Once properly installed, your Ohuhu Hammock Chair is ready for use.
- Entering the Chair: Carefully sit into the chair, distributing your weight evenly. Avoid jumping or forcefully dropping into the chair.
- Positioning: The chair is designed to cradle you comfortably. Adjust your position to find the most relaxing posture.
- Indoor/Outdoor Use: This chair is suitable for various environments, including bedrooms, living rooms, balconies, porches, decks, and backyards. For outdoor use, consider bringing the chair indoors during inclement weather to prolong its lifespan.
Image: A young girl in a red sweater and jeans is shown happily sitting in the Ohuhu Hammock Chair, which is suspended indoors. She is reaching upwards, illustrating the comfortable and playful use of the chair.
6. Maintenance
Proper care will extend the life and appearance of your hammock chair.
- Cleaning: For minor spills, spot clean with a mild detergent and a damp cloth. For deeper cleaning, hand wash the cotton ropes with cold water and a gentle soap. Avoid harsh chemicals or bleach.
- Drying: Air dry completely in a well-ventilated area, away from direct sunlight, to prevent mildew and shrinkage. Do not machine wash or tumble dry.
- Storage: When not in use for extended periods, especially outdoors, store the hammock chair in a dry, protected area to prevent weather damage and prolong its lifespan.
- Hardware: Periodically check all metal hardware for rust or corrosion, especially if used outdoors. Clean and treat as necessary.
7. Troubleshooting
If you encounter issues with your Ohuhu Hammock Chair, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair feels unstable or wobbly | Loose installation hardware; inadequate structural support | Re-tighten all screws/bolts. Ensure installation is into a solid joist or concrete. Consult a professional if unsure. |
| Ropes appear frayed or damaged | Wear and tear; exposure to sharp objects or harsh weather | Discontinue use immediately. Contact customer support for replacement options or professional repair. |
| Squeaking noise during use | Friction in metal hardware | Apply a small amount of lubricant (e.g., silicone spray) to the metal connections. |
| Cushion does not sit correctly | Incorrect placement or cushion shape | Adjust the cushion to fit the contour of the chair. Consider adding additional pillows for personalized comfort. |
8. Specifications
| Model Number | Y11-86000-14-SZTS |
| Material | 100% Cotton Rope, Iron Chain |
| Color | Beige |
| Product Dimensions (L x W) | 45"L x 24"W (approximate) |
| Maximum Weight Recommendation | 330 Pounds (150 kg) |
| Item Weight | 563 Grams (approximate) |
Image: A comparative diagram highlighting the quality of Ohuhu's hammock chair components versus others. It shows Ohuhu uses iron for material (vs. galvanized), 0.8cm thickness (vs. 0.6cm), and 0.5cm rope diameter (vs. 0.4cm).
9. Warranty Information
Specific warranty details for the Ohuhu Hammock Chair (Model Y11-86000-14-SZTS) are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact Ohuhu customer support directly.
10. Customer Support
If you have any questions, require assistance with installation, or need to report a problem with your Ohuhu Hammock Chair, please contact Ohuhu customer support. Contact information can typically be found on the product packaging, the official Ohuhu website, or through the retailer where the product was purchased.
For online inquiries, you may visit the Ohuhu Store on Amazon.
