1. Introduction
Thank you for choosing the NEXTORCH myStar R AA Headlamp. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your headlamp. Please read this manual thoroughly before using the product and retain it for future reference.
2. Product Overview
The NEXTORCH myStar R AA is a high-performance LED headlamp designed for various activities requiring hands-free illumination. It features a maximum output of 600 lumens and a beam distance of up to 180 meters, powered by AA batteries for reliable operation.

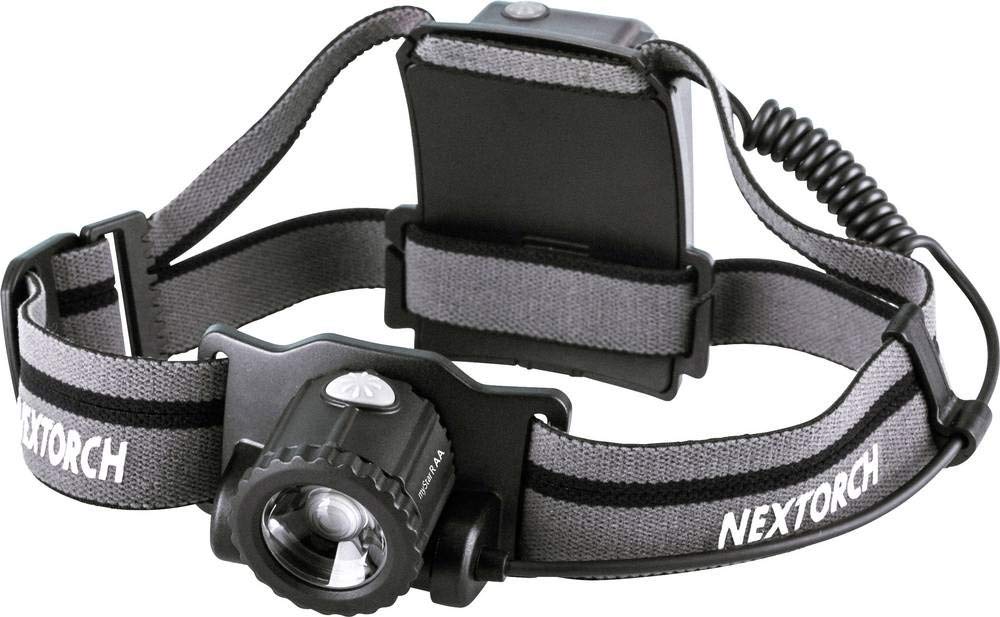

Figure 1: NEXTORCH myStar R AA Headlamp. This image shows the headlamp with its adjustable strap and main light unit.
3. Setup
3.1. Unpacking
Carefully remove all components from the packaging. Ensure the following items are present:
- NEXTORCH myStar R AA Headlamp
- 3 x AA Alkaline Batteries (included)
- User Manual (this document)
3.2. Battery Installation
The NEXTORCH myStar R AA Headlamp operates on three (3) AA alkaline batteries. Follow these steps to install or replace batteries:
- Locate the battery compartment on the headlamp unit.
- Open the battery compartment cover.
- Insert three AA batteries according to the polarity indicators (+/-) inside the compartment. Ensure correct orientation to prevent damage.
- Close the battery compartment cover securely until it clicks into place.
Note: Always use fresh, high-quality AA alkaline batteries for optimal performance. Do not mix old and new batteries, or different types of batteries.
4. Operating Instructions
4.1. Power On/Off
- To turn the headlamp ON: Press the power button located on the top of the headlamp.
- To turn the headlamp OFF: Press and hold the power button for approximately 1 second.
4.2. Mode Selection
The myStar R AA headlamp features multiple lighting modes to suit various needs. While the specific modes are not detailed, typical operation involves cycling through brightness levels:
- With the headlamp ON, short press the power button to cycle through available brightness modes (e.g., Low, Medium, High, Strobe).
- The headlamp may have a memory function, recalling the last used mode when turned on again.
4.3. Headband Adjustment
Adjust the elastic headband to ensure a comfortable and secure fit on your head or helmet. The lamp unit can typically be tilted up or down to direct the beam as needed.
5. Maintenance
5.1. Cleaning
- Wipe the headlamp body with a soft, damp cloth.
- Do not use abrasive cleaners or solvents, as these can damage the finish or internal components.
- Keep the lens clean for optimal light output.
5.2. Storage
- If the headlamp will not be used for an extended period, remove the batteries to prevent leakage and potential damage.
- Store the headlamp in a cool, dry place, away from direct sunlight and extreme temperatures.
6. Troubleshooting
If you encounter issues with your NEXTORCH myStar R AA Headlamp, please refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Headlamp does not turn on. |
|
|
| Light is dim or flickers. |
|
|
If the problem persists after trying these solutions, please contact NEXTORCH customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model | myStar R AA (006-6005141) |
| Light Source | LED |
| Maximum Brightness | 600 Lumens |
| Beam Distance | 180 Meters |
| Power Source | Battery Powered |
| Battery Type | 3 x AA Alkaline Batteries (included) |
| Maximum Runtime | Up to 55 hours (depending on mode) |
| Material | Other (as per product specifications) |
| Weight | 120 Grams |
| Color | Black |
8. Warranty and Support
NEXTORCH products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official NEXTORCH website. For technical support or service inquiries, please contact NEXTORCH customer service through their official channels.
Official NEXTORCH Website: www.nextorch.com
