Cuisinart CDF-100 Compact 1.1-Liter Deep Fryer

1. Introduction

Thank you for purchasing the Cuisinart CDF-100 Compact 1.1-Liter Deep Fryer. This appliance is designed for convenient and efficient deep frying of various foods. Please read this instruction manual thoroughly before first use to ensure safe operation and optimal performance. Keep this manual for future reference.

2. Important Safety Instructions

WARNING: When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons.

• Read all instructions before using the deep fryer.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or heating element in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the lid is properly closed during operation to prevent oil splatters.
• Always use the fry basket for lowering and raising food.

3. Product Components

Familiarize yourself with the parts of your Cuisinart CDF-100 Deep Fryer:

•

  Image 1: Cuisinart CDF-100 Compact Deep Fryer, front view. This image displays the main unit with its brushed stainless steel housing, black lid, control dial, and indicator lights.

•

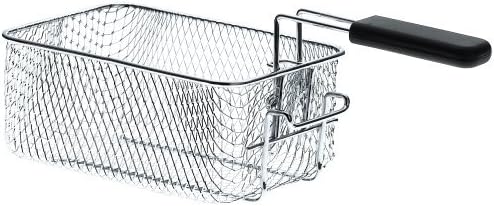

  Image 2: Removable fry basket for the Cuisinart CDF-100 Deep Fryer. This shows the wire mesh basket with a detachable handle, designed for safely lowering and lifting food from the hot oil.
•

  Image 3: Dimensions of the Cuisinart CDF-100 Compact Deep Fryer. This image illustrates the product's measurements: 11 inches deep, 8 inches wide, and 7.5 inches high.

4. Setup and Initial Use

1. Unpack: Carefully remove all packaging materials and labels. Ensure all components are present.
2. Clean: Wash the fry basket and lid in warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the deep fryer with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the deep fryer on a stable, heat-resistant, and dry surface, away from the edge of the counter. Ensure there is adequate ventilation around the unit.
4. Add Oil: Pour cooking oil (suitable for deep frying) into the nonstick die-cast bowl. Do not exceed the maximum fill line (1.1-liter capacity) and do not fill below the minimum line.
5. Attach Basket: Ensure the fry basket handle is securely attached to the basket.
6. Power Connection: Plug the power cord into a standard electrical outlet.

5. Operating Instructions

This section guides you through the process of using your deep fryer.

5.1 Preheating the Oil

1. After adding oil, close the lid.
2. Turn the temperature control dial to your desired frying temperature (e.g., 375°F). The 'Heat-Up' indicator light will illuminate.
3. Allow the oil to preheat. The 'Ready' indicator light will turn on when the oil has reached the set temperature. This typically takes several minutes.

5.2 Frying Food

1. Prepare your food items. Ensure they are dry to minimize splattering.
2. Place the food into the fry basket. Do not overload the basket; fry in small batches for best results. The basket holds up to 3/4 pound of food.
3. Carefully lower the fry basket into the hot oil. Close the lid immediately.
4. Fry for the recommended time or until golden brown and cooked through.
5. Periodically check the food by carefully lifting the lid.
6. Once food is cooked, carefully lift the fry basket and hook it onto the edge of the deep fryer to allow excess oil to drain.
7. Remove food from the basket and place it on paper towels to absorb any remaining oil.
8. Repeat for additional batches if necessary.

5.3 After Frying

1. Once frying is complete, turn the temperature control dial to the 'MIN' or 'OFF' position.
2. Unplug the deep fryer from the electrical outlet.
3. Allow the oil and the appliance to cool completely before cleaning or storing. This may take several hours.

6. Cleaning and Maintenance

Proper cleaning ensures the longevity and hygiene of your deep fryer.

6.1 Cleaning the Fryer

1. Cool Down: Always ensure the deep fryer and oil are completely cool before cleaning.
2. Oil Disposal/Storage: Carefully pour the cooled oil into a suitable container for disposal or storage. If reusing, filter the oil to remove food particles.
3. Basket and Lid: The fry basket and lid are dishwasher safe or can be washed by hand in warm, soapy water. Rinse thoroughly and dry completely.
4. Nonstick Bowl: The nonstick die-cast bowl with the attached heating element is not removable. Wipe the interior of the bowl with a damp cloth and mild detergent. For stubborn residue, use a non-abrasive sponge. Rinse with a clean damp cloth and dry thoroughly.
5. Exterior: Wipe the exterior brushed stainless steel housing with a damp cloth. Do not use abrasive cleaners or scouring pads.
6. Never immerse the main unit or power cord in water or any other liquid.

6.2 Storage

Once clean and dry, store the deep fryer in a cool, dry place. Ensure the lid is securely placed on the unit.

7. Troubleshooting

8. Product Specifications

• Model: CDF-100
• Brand: Cuisinart
• Material: Brushed Stainless Steel
• Color: Silver
• Product Dimensions: 11"D x 8"W x 7.5"H
• Wattage: 1000 watts
• Oil Capacity: 1.1 Liters (Maximum)
• Fry Basket Capacity: Up to 3/4 pound
• Item Weight: 4.05 pounds
• UPC: 786513009890

9. Warranty and Customer Support

For warranty information or customer support, please refer to the warranty card included with your product or visit the official Cuisinart website. You may also contact Cuisinart customer service directly for assistance with product operation, parts, or service inquiries.

Cuisinart Customer Service: Please refer to your product packaging or the official Cuisinart website for current contact information.
