Accurate Shaft B-Type S098B Instruction Manual

1. Product Overview

The Accurate Shaft B-Type S098B is a precision-engineered component designed for various industrial and research applications. Made from high-quality SUS304 stainless steel, this shaft offers excellent corrosion resistance and durability. It is manufactured to precise specifications to ensure reliable performance in demanding environments.

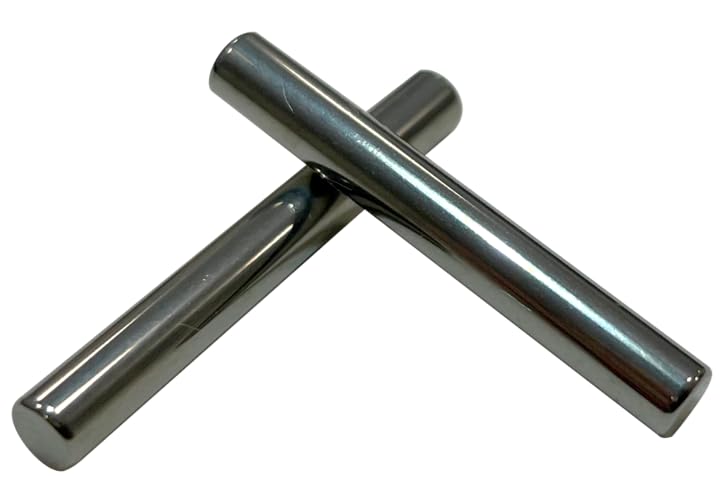

Figure 1: Two Accurate B-Type S098B shafts, showcasing their polished stainless steel finish.

2. Specifications

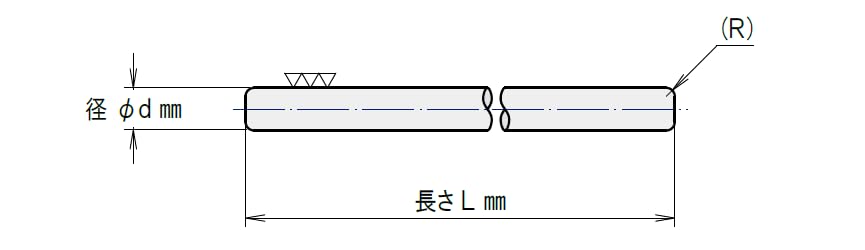

Figure 2: Technical drawing illustrating the dimensions (length L and diameter φd) of the Accurate Shaft B-Type.

3. Setup and Installation

The Accurate Shaft B-Type S098B is designed for integration into various mechanical assemblies. Proper installation is crucial for optimal performance and longevity.

3.1. Preparation

• Ensure the receiving bore or component is clean and free from debris, burrs, or contaminants.
• Verify that the dimensions of the receiving component are compatible with the shaft's specifications (diameter φd and length L).
• Handle shafts with clean gloves to prevent contamination from skin oils, which can lead to corrosion or affect precision.

3.2. Installation Procedure

1. Carefully align the shaft with the receiving bore.
2. Apply gentle, even pressure to insert the shaft. Avoid forcing the shaft, as this can damage the shaft or the receiving component.
3. For press-fit applications, use appropriate tooling to ensure even pressure distribution and prevent bending or deformation of the shaft.
4. Once installed, verify that the shaft is seated correctly and securely.

4. Operating Considerations

While the shaft itself does not have "operating" functions in the traditional sense, its performance is directly tied to the system it is integrated into. Consider the following:

• Load Capacity: Ensure that the applied loads (axial, radial, torsional) do not exceed the material's yield strength or the design limits of the overall assembly.
• Environmental Conditions: Although SUS304 is corrosion-resistant, prolonged exposure to harsh chemicals or extreme temperatures outside its operational range may affect its integrity.
• Vibration and Resonance: In dynamic applications, ensure the system design accounts for potential vibrations and resonance frequencies that could lead to fatigue or failure.

5. Maintenance

The Accurate Shaft B-Type S098B requires minimal maintenance due to its robust SUS304 construction. However, periodic inspection and proper handling are recommended to ensure long-term performance.

• Cleaning: If the shaft becomes soiled, clean it with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the surface finish.
• Inspection: Periodically inspect the shaft for any signs of wear, corrosion, bending, or surface damage, especially if it operates in a high-stress environment.
• Storage: Store unused shafts in a clean, dry environment, preferably in their original packaging, to prevent damage or contamination.

6. Troubleshooting

Most issues related to the shaft itself stem from improper installation or application. Consider the following if problems arise:

• Shaft Not Fitting:
  • Verify the dimensions of both the shaft and the receiving component.
  • Check for burrs or foreign material in the bore or on the shaft surface.
  • Ensure proper alignment during installation.
• Premature Wear or Damage:
  • Review the applied loads against the material specifications.
  • Inspect for signs of misalignment in the assembly.
  • Assess environmental factors (e.g., excessive heat, corrosive agents).
• Corrosion:
  • Ensure the shaft is not exposed to chemicals or conditions that can degrade SUS304.
  • Verify proper cleaning and storage procedures are followed.

7. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the official Accurate website or contact your authorized distributor. Keep your purchase receipt as proof of purchase.

For further assistance, you may contact Accurate customer support:

• Website: www.accurate.co.jp (Example link, replace with actual if known)
• Email: support@accurate.co.jp (Example email, replace with actual if known)

Figure 3: Accurate Company Logo.
