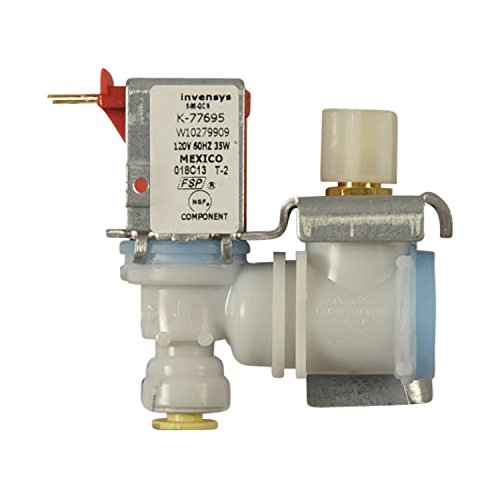

ForeverPRO W10279909 Refrigerator Water Inlet Valve Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the ForeverPRO W10279909 Refrigerator Water Inlet Valve. This component is designed to control the flow of water into your refrigerator for the ice maker and water dispenser functions. Proper installation and care are essential for optimal performance and longevity of the part.

2. Safety Information

WARNING: Before beginning any repair or installation, always disconnect the refrigerator from its power source by unplugging it or turning off the circuit breaker. Failure to do so can result in electrical shock, serious injury, or death. Always turn off the water supply to the refrigerator before disconnecting any water lines to prevent flooding.

• Wear appropriate personal protective equipment, such as gloves and safety glasses.
• Ensure the work area is well-lit and clear of obstructions.
• If you are unsure about any step, consult a qualified appliance technician.

3. Compatibility

The ForeverPRO W10279909 Water Inlet Valve is a replacement part compatible with various Whirlpool refrigerators. It replaces part numbers 2117143, AH3500311, EA3500311, and PS3500311. This part is also compatible with refrigerators from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper. Always verify compatibility with your specific refrigerator model number before installation.

4. Tools Required

The following tools may be required for installation:

• Phillips head screwdriver
• Flathead screwdriver
• Adjustable wrench or pliers
• Towels or a shallow pan to catch water
• Nut driver (if applicable for specific fasteners)

5. Installation Instructions

Follow these steps carefully to replace the water inlet valve:

1. Disconnect Power: Unplug the refrigerator from the electrical outlet or turn off the circuit breaker supplying power to the refrigerator.
2. Turn Off Water Supply: Locate the water shut-off valve for your refrigerator (usually behind the unit or under the sink) and turn it off.
3. Access the Valve: Carefully pull the refrigerator away from the wall. The water inlet valve is typically located on the lower back panel of the refrigerator. You may need to remove a rear access panel using a screwdriver.
4. Disconnect Water Lines: Place towels or a shallow pan beneath the valve to catch any residual water. Disconnect the water supply line from the valve using an adjustable wrench. Then, disconnect the water lines leading to the ice maker and water dispenser from the valve.
5. Disconnect Electrical Connections: Carefully disconnect the electrical wire harness from the valve. Note the orientation of the wires if they are not color-coded or keyed.
6. Remove Old Valve: Unscrew or unclip the old water inlet valve from its mounting bracket.
7. Install New Valve: Mount the new ForeverPRO W10279909 valve onto the bracket, ensuring it is secure.
8. Reconnect Electrical and Water Lines: Reconnect the electrical wire harness to the new valve. Reconnect the water lines to the valve, ensuring all connections are tight to prevent leaks.
9. Restore Water Supply and Check for Leaks: Slowly turn on the main water supply valve. Check all connections around the new valve for any signs of leaks. Tighten connections as needed.
10. Restore Power and Test: Plug the refrigerator back into the electrical outlet or turn on the circuit breaker. Allow several hours for the ice maker to produce ice and test the water dispenser function.

6. Operating Verification

After installation, verify proper operation:

• Water Dispenser: Dispense water for approximately 2-3 minutes to purge air from the lines and ensure a steady flow.
• Ice Maker: Allow several hours for the ice maker to cycle and produce ice. The first few batches of ice may be smaller or have an unusual taste; discard them.
• Leak Check: Periodically check the valve and connections for any signs of water leaks over the next 24 hours.

7. Maintenance

The ForeverPRO W10279909 Water Inlet Valve is designed for durability and requires minimal maintenance. However, regular checks can help ensure its longevity:

• Periodic Inspection: Annually inspect the valve and its connections for any signs of corrosion, wear, or leaks.
• Cleanliness: Keep the area around the valve clean and free of dust or debris, which can accumulate on the refrigerator's condenser coils and affect overall performance.
• Water Filter: Ensure your refrigerator's water filter is replaced according to the manufacturer's recommendations to prevent sediment buildup that could affect the valve.

8. Troubleshooting

If you encounter issues after installing the valve, consider the following:

• No Water from Dispenser/No Ice Production:
  • Ensure the refrigerator is plugged in and receiving power.
  • Verify the water supply valve is fully open.
  • Check for kinks in the water supply line.
  • Ensure the electrical connection to the valve is secure.
  • Check if the refrigerator's water filter is clogged and needs replacement.
• Slow Water Flow:
  • Partially closed water supply valve.
  • Clogged water filter.
  • Low household water pressure.
• Water Leaks:
  • Ensure all water line connections are tight. Do not overtighten, as this can damage fittings.
  • Check for cracks or damage to the water lines themselves.
  • Verify that the valve is properly seated and secured.

9. Specifications

10. Warranty and Support

For specific warranty information regarding your ForeverPRO W10279909 Water Inlet Valve, please refer to the documentation provided with your purchase or contact ForeverPRO customer service directly. If you require further assistance with installation or troubleshooting, it is recommended to consult a certified appliance repair technician.
