ForeverPRO W10822635 Refrigerator Motor Instruction Manual

1. Product Overview

The ForeverPRO W10822635 is a high-quality replacement motor designed for various refrigerator models. This motor is engineered to meet or exceed original equipment manufacturer (OEM) specifications, ensuring reliable performance for your appliance.

It directly replaces part numbers W10271507, 2315544, and 2315546. This motor is compatible with a wide range of refrigerators from brands including Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper. Please verify compatibility with your specific refrigerator model before installation.

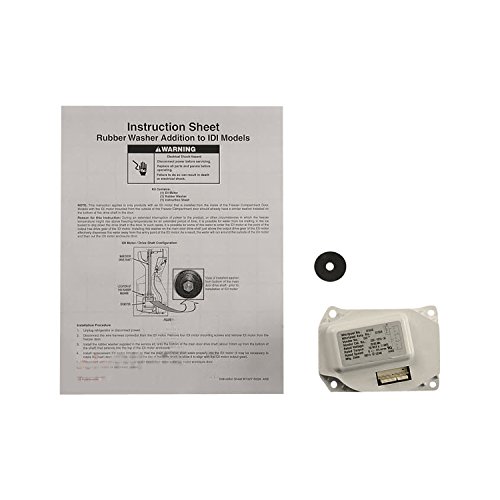

Image of the ForeverPRO W10822635 replacement refrigerator motor, showing its compact design and electrical connectors.

2. Installation Guidelines

Safety First: Before attempting any installation or repair, always disconnect power to the refrigerator by unplugging it or turning off the circuit breaker. Failure to do so can result in serious injury or electrical shock.

Installation of refrigerator components can be complex. If you are not experienced with appliance repair, it is highly recommended to seek assistance from a qualified appliance technician. Improper installation can lead to damage to the appliance or personal injury.

General Installation Steps (Consult your refrigerator's service manual for specific instructions):

1. Disconnect Power: Ensure the refrigerator is completely unplugged from the electrical outlet.
2. Access the Motor: Locate the existing motor within your refrigerator. This may require removing panels or other components. Refer to your refrigerator's specific service manual for access instructions.
3. Document Connections: Before disconnecting, take photos or make notes of all wiring connections to the old motor. This will aid in correct reassembly.
4. Remove Old Motor: Carefully disconnect the wiring and any mounting hardware securing the old motor. Remove it from the appliance.
5. Install New Motor: Position the ForeverPRO W10822635 motor in the same location as the old one. Secure it with the appropriate mounting hardware.
6. Reconnect Wiring: Using your documented connections, carefully attach all wiring to the new motor. Ensure all connections are secure and correct.
7. Reassemble: Replace any panels or components that were removed to access the motor.
8. Restore Power: Plug the refrigerator back into the electrical outlet or turn on the circuit breaker.
9. Test Functionality: Verify that the refrigerator and the newly installed motor are functioning correctly.

3. Operating Instructions

The ForeverPRO W10822635 motor operates automatically as an integral part of your refrigerator's system. There are no direct user controls for this component. Its function is to facilitate the operation of specific refrigerator features, such as the dispenser mechanism.

Once correctly installed, the motor will engage and disengage as required by the refrigerator's internal controls. Ensure your refrigerator is plugged in and receiving power for the motor to function.

4. Maintenance

The ForeverPRO W10822635 motor is designed for durability and typically requires minimal maintenance. However, following general appliance care practices can help ensure its longevity and optimal performance:

• Keep Area Clear: Ensure the area around the motor and its associated components is free from dust, debris, and obstructions.
• Listen for Unusual Noises: Periodically listen for any unusual grinding, squealing, or excessive noise coming from the motor area. Such sounds could indicate a potential issue.
• Regular Refrigerator Cleaning: Maintain overall cleanliness of your refrigerator, as this can prevent issues that might indirectly affect motor performance.

If you suspect an issue with the motor, it is advisable to consult a qualified technician for inspection and diagnosis.

5. Troubleshooting

If you experience issues after installing the ForeverPRO W10822635 motor, consider the following troubleshooting steps:

• Motor Not Running:
  • Verify the refrigerator is plugged in and receiving power.
  • Check the circuit breaker for the refrigerator's outlet.
  • Ensure all wiring connections to the motor are secure and correctly attached.
• Unusual Noises:
  • Disconnect power and carefully inspect the motor area for any obstructions (e.g., loose wires, debris) that might be interfering with its operation.
  • Check if the motor is securely mounted; loose mounting can cause vibrations and noise.
• Dispenser Not Working (if applicable):
  • Confirm the motor is receiving power and operating.
  • Inspect the dispenser mechanism itself for any blockages or mechanical failures.

For persistent or complex issues, it is recommended to contact a professional appliance repair technician. Do not attempt repairs beyond your skill level, as this can cause further damage or pose safety risks.

6. Specifications

7. Warranty and Support

ForeverPRO stands by the quality of its products. This motor comes with a No Questions Asked Money Back Guarantee, reflecting the manufacturer's confidence in its performance and durability.

ForeverPRO is a proud USA-based company committed to providing high-quality replacement parts. For any questions regarding installation, compatibility, or warranty claims, please refer to the retailer where the product was purchased or visit the official ForeverPRO website for customer support contact information.
