ForeverPRO W10168822 Sump Housing for Whirlpool Dishwasher

1. Introduction

This document provides essential information for the installation, operation, and maintenance of the ForeverPRO W10168822 Sump Housing. This component is a critical part of your dishwasher's drainage and circulation system. Proper installation and care ensure optimal performance and longevity of your appliance.

The ForeverPRO W10168822 Sump Housing is designed as a replacement part for various dishwasher models. It is important to verify compatibility with your specific appliance before proceeding with installation.

2. Product Description

The W10168822 Sump Housing is a replacement component for dishwashers. It functions as the central collection point for water within the dishwasher tub, housing the wash pump, drain pump, and often the heating element. This part is crucial for circulating water during wash cycles and draining it at the end of a cycle.

This ForeverPRO part number W10168822 directly replaces the following manufacturer part numbers: 1455333, W10134035, and W10208687.

3. Compatibility

The ForeverPRO W10168822 Sump Housing is compatible with a wide range of dishwashers from various brands. It is designed to fit models from Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper. Always cross-reference the part number with your appliance's specific model number to ensure correct fitment.

Some compatible Whirlpool dishwasher models include, but are not limited to:

• JDB3200AWB0, JDB3200AWB1, JDB3200AWB2, JDB3200AWB3, JDB3200AWB4, JDB3200AWB5
• JDB3200AWS0, JDB3200AWS1, JDB3200AWS2, JDB3200AWS3, JDB3200AWS4, JDB3200AWS5
• JDB3200AWW0, JDB3200AWW1, JDB3200AWW2, JDB3200AWW3, JDB3200AWW4, JDB3200AWW5
• JDB3600AWP0, JDB3600AWP1, JDB3600AWP2, JDB3600AWP3, JDB3600AWP4, JDB3600AWP5
• JDB3600AWS0, JDB3600AWS1, JDB3600AWS2, JDB3600AWS3, JDB3600AWS4, JDB3600AWS5
• JDB3600AWX0, JDB3600AWX1, JDB3600AWX2, JDB3600AWX3, JDB3600AWX4, JDB3600AWX5
• JDB3650AWF0, JDB3650AWF1, JDB3650AWF2, JDB3650AWF3, JDB3650AWF4, JDB3650AWF5
• JDB3650AWR0, JDB3650AWR1, JDB3650AWR2, JDB3650AWR3, JDB3650AWR4, JDB3650AWR5
• JDB3650AWY0, JDB3650AWY1, JDB3650AWY2, JDB3650AWY3, JDB3650AWY4, JDB3650AWY5
• JDB8000AWB0, JDB8000AWC0, JDB8000AWS0, JDB8200AWP0, JDB8200AWS0, JDB8700AWP0, JDB8700AWS0
• KUDE48FXBL2, KUDE48FXSS2, KUDE48FXWH2, BLB14BRANA0
• GU2800XTVB0, GU2800XTVB1, GU2800XTVB2, GU2800XTVB3, GU2800XTVQ0, GU2800XTVQ1, GU2800XTVQ2, GU2800XTVQ3
• GU2800XTVS0, GU2800XTVS1, GU2800XTVS2, GU2800XTVS3, GU2800XTVT0, GU2800XTVT1, GU2800XTVT2, GU2800XTVT3
• GU2800XTVY0, GU2800XTVY1

4. Included Components

The ForeverPRO W10168822 Sump Housing package typically includes the main sump housing unit and necessary installation hardware. Refer to the image below for a visual representation of the components.

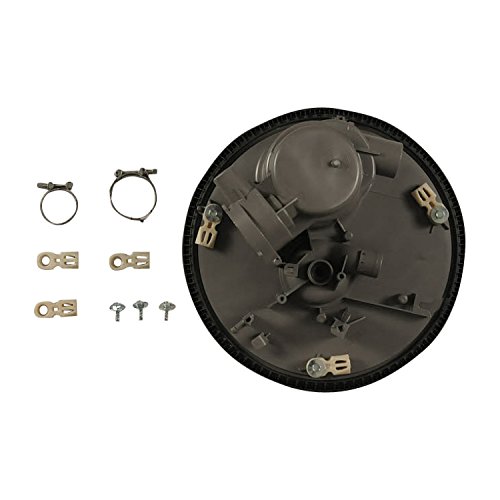

This image displays the ForeverPRO W10168822 Sump Housing unit. The main circular housing component is visible on the right, featuring various internal structures and connection points. To the left, several accessory components are shown: two hose clamps of different sizes, three small fasteners (screws), and three beige-colored clips or brackets. These components are typically used for installation and securing the sump housing within a dishwasher.

• Sump Housing Unit
• Hose Clamps (quantity may vary)
• Fasteners/Screws (quantity may vary)
• Mounting Clips/Brackets (quantity may vary)

5. Installation (Setup)

Safety Warning: Before attempting any repair or installation, ensure the dishwasher is disconnected from its power supply and water supply. Failure to do so can result in electric shock, water damage, or personal injury. If you are unsure about any step, it is recommended to consult a qualified appliance technician.

General Installation Steps:

1. Disconnect Power and Water: Unplug the dishwasher from the electrical outlet or turn off the circuit breaker. Turn off the water supply valve to the dishwasher.
2. Access the Sump: Depending on your dishwasher model, you may need to remove the lower spray arm, filter assembly, and possibly the inner tub components to access the sump housing.
3. Disconnect Hoses and Wiring: Carefully disconnect any hoses (e.g., drain hose, circulation pump hose) and electrical wiring connected to the old sump housing. Note their positions for reassembly.
4. Remove Old Sump Housing: Unfasten any screws, clamps, or clips securing the old sump housing in place. Gently remove it from the dishwasher tub.
5. Install New Sump Housing: Position the new ForeverPRO W10168822 Sump Housing into the dishwasher tub. Ensure it seats correctly and securely.
6. Secure and Reconnect: Fasten the new sump housing using the provided screws, clamps, and clips. Reconnect all hoses and electrical wiring to their correct positions. Double-check all connections for tightness.
7. Reassemble Dishwasher: Reinstall any removed internal components such as the filter and spray arm.
8. Restore Power and Water: Turn on the water supply and check for leaks. Restore electrical power to the dishwasher.
9. Test Operation: Run a short wash cycle to ensure proper function and check for any leaks or unusual noises.

6. Operating Principles

The sump housing is integral to the dishwasher's cleaning process. During operation, water collects in the sump, where it is then drawn by the circulation pump and sprayed through the wash arms to clean dishes. After the wash and rinse cycles, the drain pump, also located within or connected to the sump, activates to remove the dirty water from the dishwasher tub. A properly functioning sump housing ensures efficient water circulation and complete drainage.

7. Maintenance

While the sump housing itself typically requires minimal direct maintenance, regular care of your dishwasher can prevent issues that might affect the sump's performance:

• Clean Filters Regularly: Many dishwashers have filters located in the sump area. Clean these filters frequently to prevent food particles from accumulating and obstructing the pump or drainage.
• Scrape Dishes: Remove large food scraps from dishes before loading them into the dishwasher to reduce the amount of debris entering the sump.
• Use Dishwasher Cleaner: Periodically run a dishwasher cleaning cycle with a specialized cleaner to remove grease and mineral buildup that can affect internal components.
• Inspect for Leaks: Regularly check around the dishwasher for any signs of water leaks, which could indicate an issue with the sump seal or connections.

8. Troubleshooting

If your dishwasher experiences issues related to water circulation or drainage, the sump housing or its associated components might be involved. Here are some common problems and potential causes:

• Dishwasher Not Draining: This could be due to a clogged drain pump, a faulty drain pump, or an obstruction in the sump area. Check filters and ensure the drain hose is not kinked.
• Poor Cleaning Performance: Reduced water circulation can lead to dishes not getting clean. This might be caused by a faulty circulation pump within the sump, or blockages preventing water flow.
• Leaking from Dishwasher Base: A leak from the sump housing itself, or its seals and connections, can cause water to appear at the base of the dishwasher. Inspect all connections and the housing for cracks.
• Unusual Noises: Grinding or humming noises from the bottom of the dishwasher could indicate an issue with the pump motor or debris caught in the impeller within the sump.

For complex issues, it is advisable to consult the dishwasher's service manual or contact a professional technician.

9. Specifications

10. Warranty and Support

ForeverPRO products are designed to meet or exceed OEM specifications for quality and performance. For specific warranty details or support inquiries regarding your W10168822 Sump Housing, please refer to the documentation provided with your purchase or contact ForeverPRO customer service directly. Many ForeverPRO products are backed by a money-back guarantee, reflecting the company's commitment to customer satisfaction.
