ForeverPRO W10846093 Motor-Pump Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your ForeverPRO W10846093 Motor-Pump. This replacement part is designed to be compatible with various Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper appliances, replacing part number W10610147. Please read this manual thoroughly before attempting any installation or repair to ensure proper function and safety.

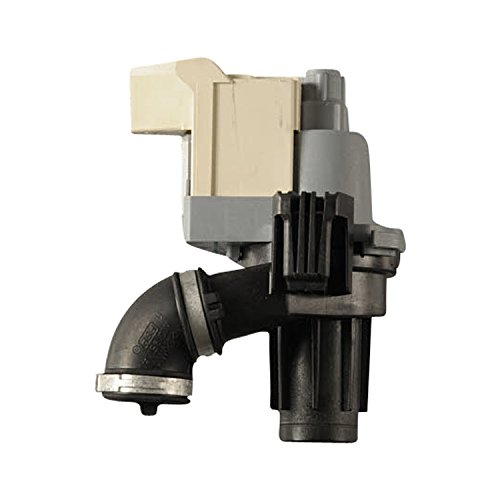

Figure 1: The ForeverPRO W10846093 Motor-Pump. This image shows the general appearance of the replacement motor-pump unit, which is crucial for water circulation in compatible appliances.

2. Safety Information

WARNING: Always disconnect power to the appliance before servicing to prevent electric shock. Failure to do so can result in serious injury or death.

• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation.
• Ensure the work area is well-lit and clear of obstructions.
• If you are unsure about any step, consult a qualified appliance technician.
• Keep children and pets away from the work area.
• Properly dispose of old parts according to local regulations.

3. Installation Instructions

3.1 Tools Required

• Screwdrivers (Phillips and Flathead)
• Pliers
• Nut drivers or wrenches
• Towels or rags for spills
• Bucket for draining water

3.2 Pre-Installation Steps

1. Disconnect Power: Unplug the appliance from the electrical outlet or turn off the circuit breaker supplying power to the appliance.
2. Turn Off Water Supply: If installing in a dishwasher or similar appliance, turn off the water supply valve.
3. Drain Water: If applicable, drain any remaining water from the appliance.
4. Access the Motor-Pump: Depending on your appliance model, you may need to remove access panels, the lower kick plate, or tilt the appliance to gain access to the motor-pump assembly. Refer to your appliance's specific service manual for detailed access instructions.

3.3 Motor-Pump Replacement

1. Identify Connections: Carefully note the position and connection of all hoses, wires, and mounting hardware attached to the old motor-pump. Taking photos can be helpful.
2. Remove Hoses: Use pliers to loosen hose clamps and carefully detach the hoses from the old motor-pump. Be prepared for residual water.
3. Disconnect Wiring: Disconnect any electrical connectors from the motor-pump.
4. Remove Old Motor-Pump: Unfasten any screws, clips, or mounting brackets securing the old motor-pump to the appliance frame. Carefully remove the old unit.
5. Install New Motor-Pump: Position the new ForeverPRO W10846093 Motor-Pump in the same location as the old one. Secure it with the original mounting hardware.
6. Reconnect Wiring: Reattach all electrical connectors to the new motor-pump, ensuring they are secure.
7. Reconnect Hoses: Reattach all hoses to the new motor-pump, securing them with hose clamps. Ensure a tight seal to prevent leaks.
8. Verify Compatibility: This part is compatible with models including ADB1100AWB5, ADB1100AWS5, ADB1100AWW5, ADB1300AFB0, ADB1300AFS0, ADB1300AFW0, IDF320PAFW0, IUD3100BW4, IUD3100BW5, IUD7070DS1, IUD7070DS2, WDF110PABB4, WDF110PABS4, WDF110PABT4, WDF110PABW4, WDF111PABB4, WDF111PABW4, WDF320PADB1, WDF320PADB2, WDF320PADD1, WDF320PADD2, WDF320PADS1, WDF320PADS2, WDF320PADT1, WDF320PADT2, WDF320PADW1, WDF320PADW2, WDF520PADB2, WDF520PADB3, WDF520PADB5, WDF520PADM2, WDF520PADM3, WDF520PADM5, WDF520PADW2, WDF520PADW3, WDF520PADW5, WDP350PAAB5, WDP350PAAB6, WDP350PAAW5, WDP350PAAW6.

3.4 Post-Installation

1. Reassemble Appliance: Reattach any access panels or components that were removed.
2. Restore Water and Power: Turn on the water supply valve (if applicable) and plug the appliance back into the electrical outlet or turn on the circuit breaker.
3. Test Appliance: Run a short cycle on the appliance to check for proper operation and any leaks.

4. Operation

The ForeverPRO W10846093 Motor-Pump is an internal component that facilitates the circulation of water within your appliance. Once correctly installed, its operation is integrated with the appliance's normal functions. Refer to your appliance's user manual for specific operating instructions.

If the appliance operates correctly after installation, the motor-pump is functioning as intended. Listen for unusual noises or observe for any leaks during the first few cycles after replacement.

5. Maintenance

The ForeverPRO W10846093 Motor-Pump is designed for durability and typically requires no specific routine maintenance. However, general appliance maintenance can prolong the life of all components, including the motor-pump.

• Regularly clean your appliance according to its manufacturer's instructions to prevent buildup that could strain the pump.
• Avoid overloading appliances, which can put undue stress on internal components.
• Inspect hoses and connections periodically for signs of wear or leaks.

6. Troubleshooting

If your appliance is not functioning correctly after installing the new motor-pump, consider the following common issues:

If these steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.

7. Specifications

• Part Number: W10846093
• Replaces Part Number: W10610147
• Item Weight: Approximately 1 pound
• Package Dimensions: Approximately 9 x 6 x 4 inches
• Power Source: AC/DC
• Included Components: Motor-Pump
• Compatibility: Compatible with various Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper appliances. Refer to the detailed list in Section 3.3.

8. Warranty & Support

8.1 Product Warranty

ForeverPRO products are designed to meet or exceed OEM specifications. For specific warranty information regarding your ForeverPRO W10846093 Motor-Pump, please refer to the documentation included with your purchase or contact ForeverPRO directly. General return policies typically allow for returns within 30 days of purchase.

8.2 Customer Support

For technical assistance, installation questions, or warranty claims, please contact ForeverPRO customer support. Contact information can usually be found on the product packaging or the seller's website. When contacting support, please have your product model number (W10846093) and purchase details ready.

You can also visit the ForeverPRO brand page on Amazon for more information.
