SteamOne S-Nomad SN506SB Garment Steamer

1. Introduction

Thank you for purchasing the SteamOne S-Nomad SN506SB Garment Steamer. This portable and powerful steamer is designed to quickly and effectively remove wrinkles from your clothes, offering a convenient alternative to traditional ironing. Its simple, self-standing design integrates seamlessly into any home environment. Please read this manual thoroughly before use to ensure safe and optimal performance.

2. Safety Instructions

• Always ensure the voltage matches your power supply before plugging in the appliance.
• Do not immerse the steamer in water or other liquids.
• Keep the steamer out of reach of children and pets.
• Use only distilled or demineralized water to prevent mineral buildup and white powder discharge.
• Never direct steam towards people, animals, or electrical appliances. Steam is hot and can cause burns.
• Unplug the steamer from the power outlet when not in use, during filling, or during cleaning.
• Do not operate the steamer if the cord or plug is damaged, or if the appliance has been dropped or damaged.
• Allow the steamer to cool completely before storing.

3. Package Contents

Verify that all items are present in the package:

• SteamOne S-Nomad SN506SB Garment Steamer
• Suction Hanger Hook
• Universal Bottle Connector
• Brush Attachment
• Dedicated Pouch
• Instruction Manual

4. Product Overview

Familiarize yourself with the components of your S-Nomad garment steamer:

Figure 4.1: The SteamOne S-Nomad SN506SB Garment Steamer in black.

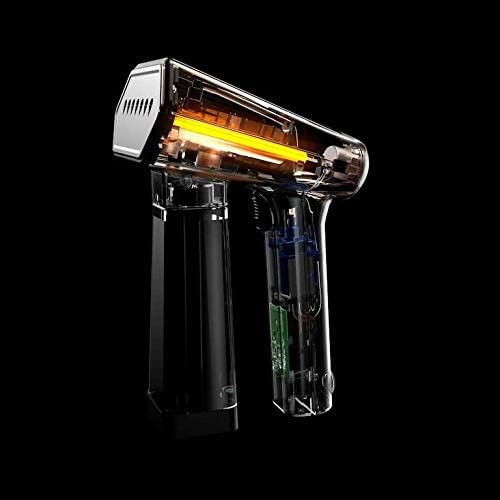

Figure 4.2: Internal view of the steamer, highlighting the heating element.

• Steam Head: Emits steam for wrinkle removal.
• Water Tank: Removable tank for water.
• Power Button/Steam Trigger: Activates and controls steam output.
• Handle: Ergonomic grip for comfortable use.
• Power Cord: Connects the steamer to an electrical outlet.

5. Setup

5.1 Filling the Water Tank

1. Ensure the steamer is unplugged.
2. Remove the water tank from the main unit.
3. Open the cap of the water tank.
4. Fill the tank with distilled or demineralized water up to the MAX line. Do not overfill.

Figure 5.1: Filling the water tank with distilled water.
5. Close the cap securely and reattach the water tank to the steamer until it clicks into place.

5.2 Using a PET Bottle (Optional)

For extended use without refilling, you can attach a standard PET bottle:

1. Ensure the steamer is unplugged.
2. Remove the standard water tank.
3. Attach the universal bottle connector to a clean PET bottle filled with distilled water.
4. Screw the PET bottle with the connector onto the steamer unit.

Figure 5.2: Attaching a PET bottle for continuous steaming.

6. Operating Instructions

6.1 Powering On and Preheating

1. Plug the power cord into a suitable electrical outlet (100V).
2. Press the power button. The indicator light will illuminate.
3. The steamer will begin to preheat. This typically takes about 30 seconds.
4. Once preheated, the indicator light may change color or stop blinking, and steam will be ready.

6.2 Steaming Garments

1. Hang the garment on a hanger. Use the provided suction hanger hook for convenience.
2. Hold the steamer upright, ensuring the steam head is facing away from you.
3. Press and hold the steam trigger to release steam. The S-Nomad offers two steam modes for gentle wrinkle removal.

Figure 6.1: Pressing the steam button to activate steam.


Figure 6.2: The steamer in action, emitting powerful steam.

4. Gently pull the garment taut with your free hand.
5. Move the steam head slowly over the fabric, from top to bottom, allowing the steam to penetrate and relax the fibers.


Figure 6.3: Demonstrating the steaming technique on a shirt.

6. For stubborn wrinkles, use the brush attachment to gently brush the fabric while steaming.
7. Release the steam trigger to stop steaming.
8. Allow the garment to cool and dry for a few minutes before wearing or storing.

7. Maintenance

7.1 Cleaning the Water Tank

After each use, or when storing the steamer for an extended period:

1. Unplug the steamer and allow it to cool completely.
2. Remove the water tank and empty any remaining water.
3. Rinse the tank with clean water.
4. Wipe the exterior of the tank with a soft, damp cloth.
5. Allow the tank to air dry completely before reattaching or storing.

7.2 Descaling (If Necessary)

If you notice reduced steam output or white residue, descaling may be necessary. This is less common with distilled water but can occur over time.

1. Mix a solution of equal parts white vinegar and distilled water.
2. Fill the water tank with this solution.
3. Plug in the steamer and allow it to heat up.
4. Run the steamer until half of the solution has been used, directing steam into a sink or basin.
5. Unplug and let it cool. Empty the remaining solution.
6. Rinse the tank thoroughly and refill with clean distilled water. Run the steamer again to flush out any remaining vinegar.

8. Troubleshooting

9. Specifications

• Model: SN506SB
• Brand: SteamOne
• Color: Black
• Steam Output: Approximately 15g/minute
• Power Consumption: 1000 W
• Voltage: 100 V
• Item Weight: 1.1 kg
• Preheating Time: Approximately 30 seconds

10. Warranty and Support

The SteamOne S-Nomad SN506SB Garment Steamer comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your product, please refer to the contact information provided on the product packaging or the official SteamOne website. Please have your proof of purchase and model number (SN506SB) ready when contacting support.
