Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your LANDXCAPE LX790i Robotic Lawnmower. Please read this manual thoroughly before operating the device and keep it for future reference.
Safety Instructions
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
- Read all instructions carefully before use.
- Keep hands and feet away from the cutting blades.
- Do not operate the mower in wet conditions or rain, unless specifically designed for it (this model has a rain sensor, but caution is advised).
- Ensure the boundary wire is correctly installed to prevent the mower from leaving the designated area.
- Turn off the mower and remove the battery before performing any maintenance or cleaning.
- Keep children and pets away from the operating area.
Package Contents
Verify that all items are present in the package:
- LANDXCAPE LX790i Robotic Lawnmower
- 1 Hexagonal Key
- 2 Distance Gauges
- 9 Blades and Screws
- 1 Charger
- 1 Battery (Lithium-ion)
- 1 Charging Station
- 7 Screws for Fixing the Charging Station
- 210 Staples
- 150m Boundary Wire
- 2 Connectors
Setup
1. Charging Station Placement
Select a flat area with access to a power outlet. Ensure the charging station is placed on a level surface and is not exposed to direct sunlight or rain. Secure the charging station to the ground using the provided screws.
2. Boundary Wire Installation
Lay the boundary wire around the perimeter of your lawn, ensuring it defines the mowing area. Use the provided staples to secure the wire to the ground. Maintain a minimum distance from obstacles as specified in the quick start guide (not provided, but implied for a product like this). Connect the ends of the boundary wire to the charging station using the connectors.
3. Initial Charging
Place the robotic lawnmower onto the charging station. Ensure the charging contacts align. The digital display will indicate charging status. Allow the battery to fully charge before the first operation.

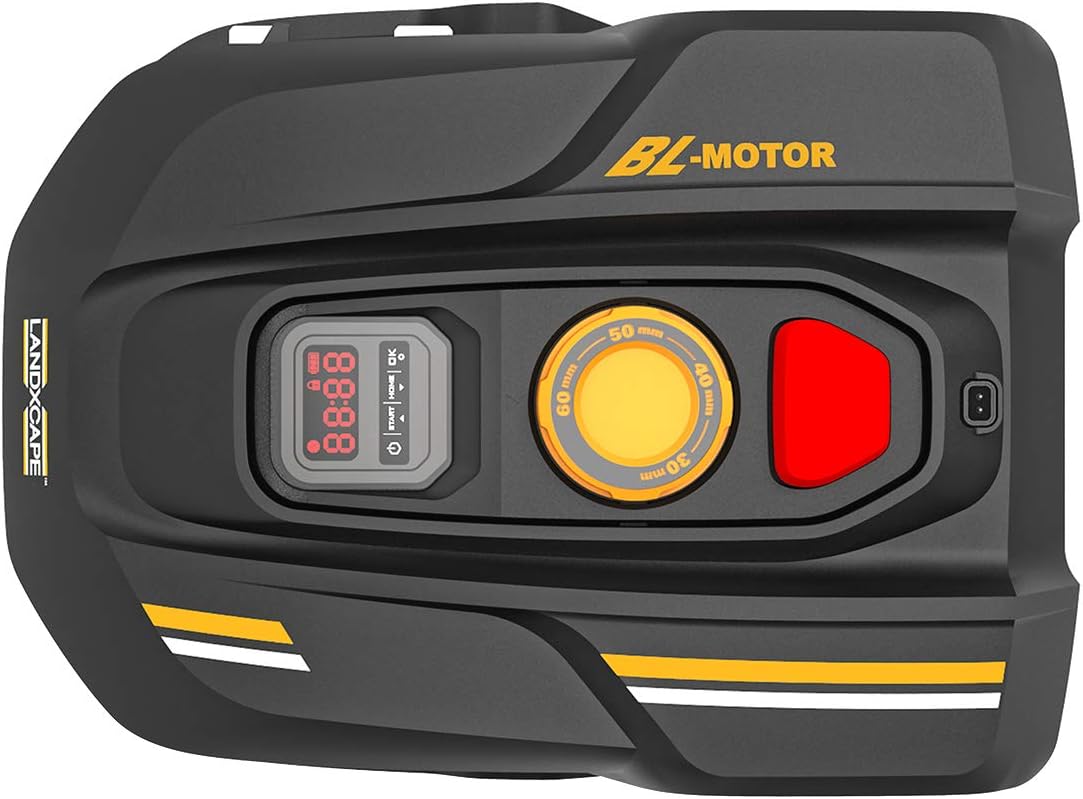

Figure 1: Top view of the LANDXCAPE LX790i Robotic Lawnmower, showing the control panel and overall design.
Operating Instructions
1. Starting the Mower
The LX790i is designed for ease of use. Simply press the "Start" button on the digital display to begin mowing. No complex programming is required for basic operation.
Figure 2: Close-up of the digital display and control panel on the LX790i, showing buttons and settings.
2. Adjusting Cutting Height
The cutting height can be adjusted using the rotary dial on the top of the mower. Available cutting heights are typically between 30mm and 60mm. Rotate the dial to your desired setting.
3. Rain Sensor Functionality
The integrated rain sensor detects precipitation. When rain is detected, the robotic lawnmower will automatically return to its charging station to protect itself from adverse weather conditions.
4. Forward-Reverse Rotation
The mower features a forward-reverse blade rotation system. This intelligent design helps to reduce blade wear by utilizing both sides of the cutting edges, extending the lifespan of the blades.
Figure 3: The LANDXCAPE LX790i robotic lawnmower operating on a well-maintained lawn, demonstrating its compact size and maneuverability.
Maintenance
1. Blade Replacement
Regularly inspect the blades for wear and damage. Worn blades can affect cutting performance. To replace, turn off the mower, wear protective gloves, and use the provided hexagonal key to unscrew the old blades and install new ones. The package includes 9 replacement blades and screws.
2. Cleaning
Periodically clean the underside of the mower to remove grass clippings and debris. Use a soft brush or cloth. Do not use high-pressure water jets. Clean the wheels and charging contacts to ensure proper operation.
Figure 4: Close-up view of the robust wheel design of the LX790i, highlighting the traction pattern suitable for various lawn conditions.
3. Battery Care
The LX790i uses a Lithium-ion battery. For optimal battery life, store the mower in a cool, dry place during off-season periods. Ensure the battery is partially charged before long-term storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mower not starting | Low battery; Emergency stop button pressed; PIN not entered. | Charge battery; Release emergency stop; Enter correct PIN on digital display. |
| Mower not charging | Mower not correctly docked; Dirty charging contacts; Power supply issue. | Ensure mower is properly aligned; Clean charging contacts on both mower and station; Check power connection to charging station. |
| Mower stays in charging station during rain | Rain sensor activated. | This is normal behavior. The mower will resume operation once the rain stops and the sensor dries. |
| Uneven cutting | Worn or damaged blades; Incorrect cutting height setting. | Replace blades; Adjust cutting height. |
Specifications
- Model: LX790i (600M2 20V/2.0Ah)
- Brand: LANDXCAPE
- Dimensions (L x W x H): 54 x 40.5 x 23.5 cm (21.3 x 15.9 x 9.3 inches)
- Weight: 14 kg (30.9 lbs)
- Battery Type: 1 Lithium-ion
- Material: Metal
- Power Source: Battery Powered
- Cutting Width: 18 cm (7.1 inches)
- Operating Mode: Automatic
- Recommended Lawn Area: Up to 600 m²
- Features: Rain Sensor, Digital Display, Forward-Reverse Blade Rotation
Customer Support
For further assistance or technical support, please contact LANDXCAPE customer service. Refer to the product packaging or the manufacturer's website for the most up-to-date contact information.
