Introduction
This instruction manual provides comprehensive guidance for the Byron DBY-24722 Wireless Doorbell Kit. This kit includes a plug-in chime unit and a wireless push button, designed to alert you when someone is at your door. It offers a wireless range of up to 200 meters, customizable melodies, adjustable volume, and visual LED alerts. The system is also compatible with the Smartwares PRO series for smart home integration.
Package Contents
Ensure all components are present before proceeding with installation:
- Byron Wireless Plug-in Chime Unit (DBY-24722)
- Wireless Push Button
- Double-sided Adhesive Tape for Push Button
- Instruction Manual
Image Description: A white Byron wireless doorbell kit, showing the rectangular plug-in chime unit on the left and the smaller, oval-shaped wireless push button on the right. Both units are white with a silver-colored ring around the central button area.
Setup and Installation
- Install Push Button: Select a suitable location for the wireless push button, typically near your front door. Ensure the surface is clean and dry. Use the provided double-sided adhesive tape to securely attach the push button. The push button is weatherproof (IP44 rated).
- Install Chime Unit: Plug the chime unit into a standard electrical outlet within your home. For optimal performance, choose a central location or an area where you wish to be alerted. The chime unit operates on 220-240V~ 50Hz.
- Initial Pairing (if necessary): The units are typically pre-paired from the factory. If they do not connect automatically, refer to the full manual for pairing instructions if needed.
Image Description: A side view of the Byron DBY-24722 doorbell kit. The plug-in chime unit is shown with its electrical prongs extending from the back, ready to be plugged into an outlet. The wireless push button is positioned next to it.
Operating Instructions
Once installed, the Byron DBY-24722 Wireless Doorbell Kit is ready for use.
- When the push button is pressed, the chime unit will sound the selected melody and illuminate its LED indicator.
- The LED indicator on the chime unit will light up in your chosen color, providing a visual alert in addition to the audio.
Customization
The doorbell offers several customization options:
- Melody Selection: Choose from 8 different digital melodies. Refer to the chime unit's controls for melody selection.
- Volume Adjustment: Adjust the volume of the chime up to 85 decibels. This ensures you can hear the doorbell clearly in various environments.
- LED Color Choice: The chime unit's LED can illuminate in various colors. Select your preferred color for visual alerts.
- Mute Function: Activate the mute function to silence the chime while still receiving visual alerts via the LED indicator. This is useful for quiet periods or when children are sleeping.
Smart Home Integration (Smartwares PRO)
The Byron DBY-24722 doorbell is compatible with the Smartwares PRO series, allowing for integration into your smart home system.
- To enable smart home features, you will need the Smartwares Link (available separately).
- Connect the doorbell and your smartphone to the Smartwares Link network.
- Once connected, you can receive notifications on your smartphone when someone presses the doorbell, regardless of your location.
Maintenance
- Cleaning: Wipe the chime unit and push button with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Battery Replacement (Push Button): The push button requires 1 Lithium metal battery (CR2450, 3V). If the push button stops functioning, replace the battery. Ensure correct polarity. The battery is not included in the package.
- Chime Unit: The plug-in chime unit does not require battery replacement as it is powered by the mains electricity.

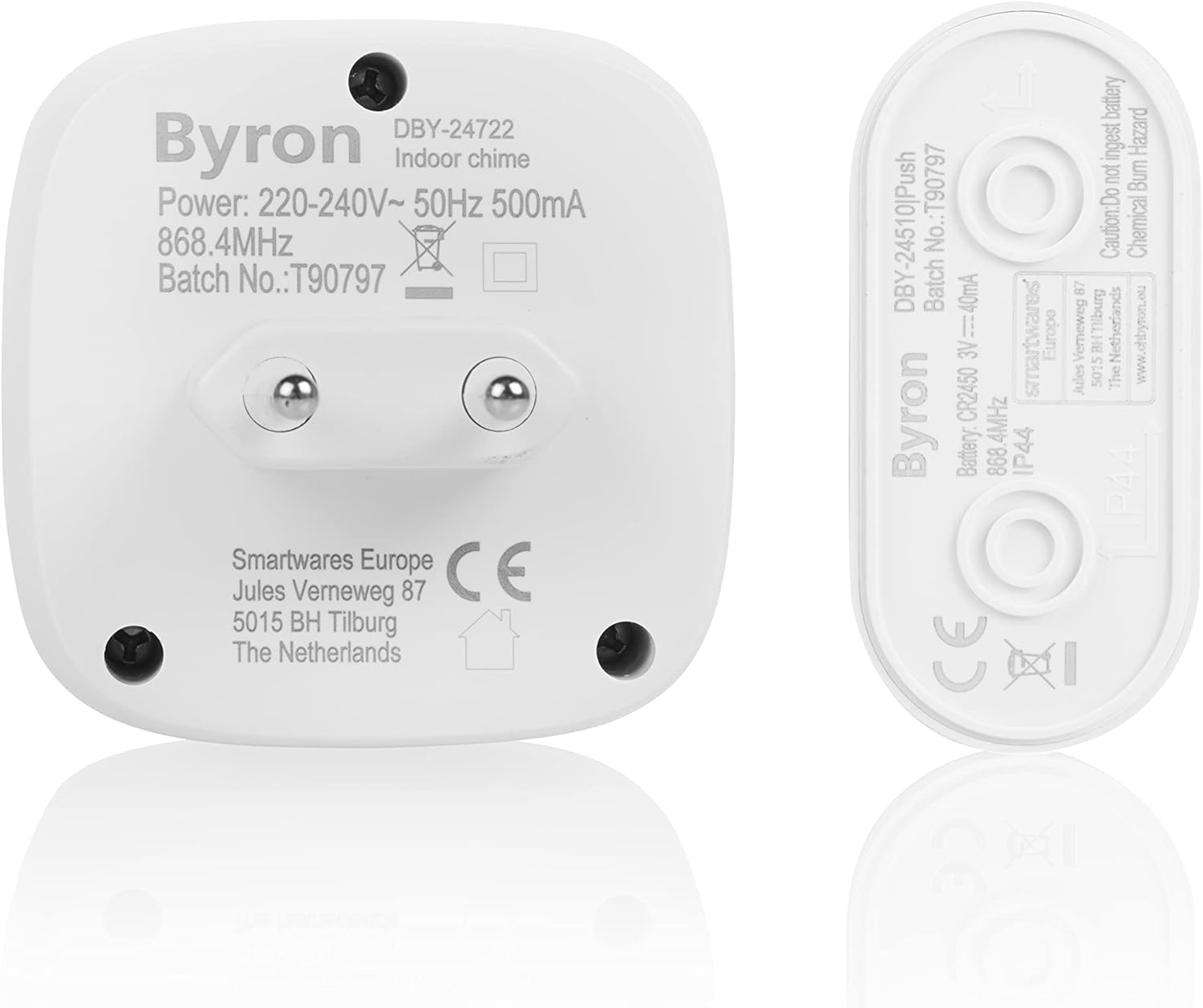

Image Description: A view of the back of the Byron DBY-24722 plug-in chime unit and the wireless push button. Labels on the back of both units show model numbers, power requirements, and other technical specifications, including battery type for the push button.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chime does not sound when button is pressed. |
|
|
| Chime sounds intermittently. |
|
|
| LED indicator not lighting up. |
|
|
Specifications
- Model Number:
- DBY-24722
- Brand:
- Byron
- Chime Power Source:
- AC (220-240V~ 50Hz 500mA)
- Push Button Battery:
- 1 x Lithium Metal (CR2450, 3V 40mA) - Not included
- Wireless Range:
- Up to 200 meters (open field)
- Sound Level:
- Up to 85 dB
- Melodies:
- 8 digital melodies
- Control Method:
- Tactile
- Product Dimensions (L x W x H):
- 11 x 16 x 14.8 cm (Chime unit)
- Product Weight:
- 128 Grams
- Material:
- Plastic casing
- IP Rating (Push Button):
- IP44
- Compatibility:
- Smartwares PRO series, Smartwares Link
Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Byron/Smartwares website. Keep your proof of purchase for warranty claims.
