Introduction
Thank you for choosing the Ibergrif M14550 Pull-Out Kitchen Mixer Tap. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read these instructions carefully before installation and keep them for future reference.
Safety Information
- Always turn off the main water supply before beginning any installation or maintenance work.
- Ensure all connections are secure to prevent leaks. Do not overtighten.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Keep small parts out of reach of children.
- Protect the chrome finish from abrasive cleaners or harsh chemicals.
Package Contents
Before you begin, please verify that all components are present in the package:

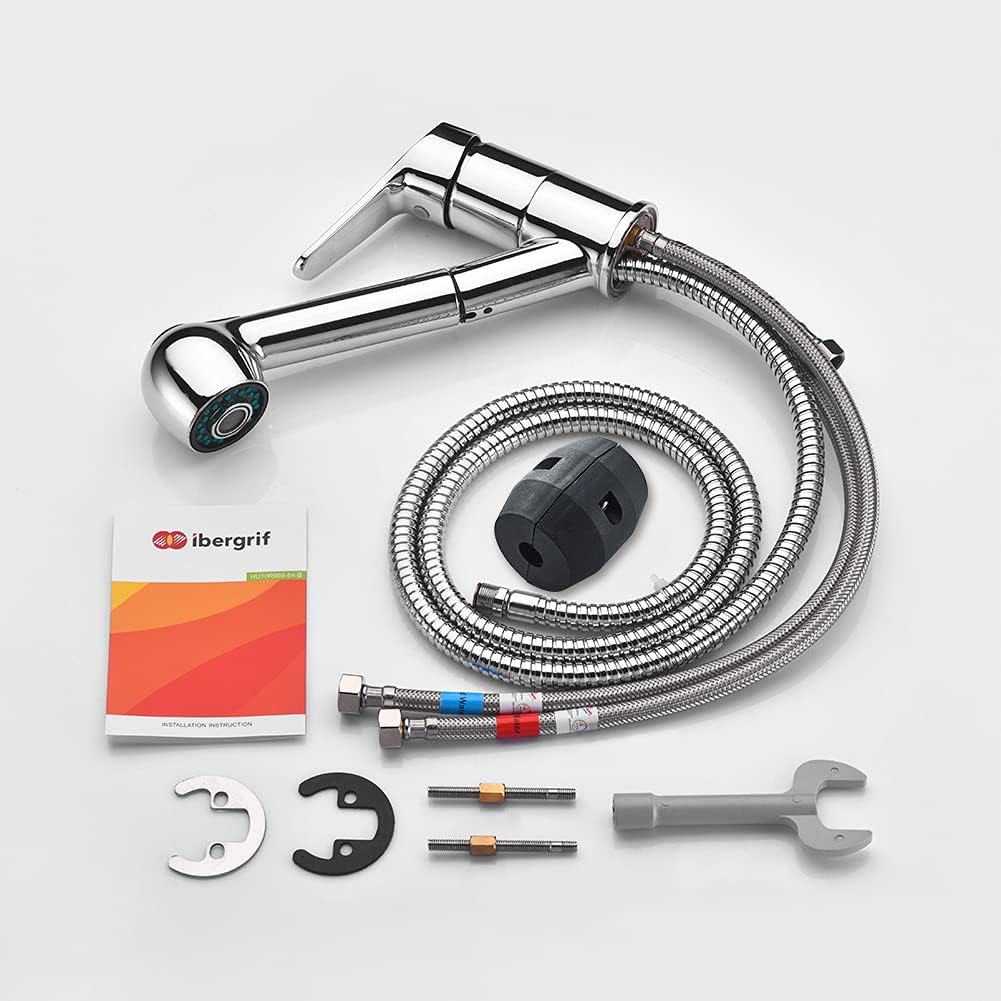

Figure 1: Included Components. This image displays the complete set of parts for the Ibergrif M14550 faucet, ensuring you have everything needed for installation.
- 1 x Pull-Out Kitchen Faucet
- 1 x Installation Kits (mounting hardware, gaskets)
- 2 x Water Supply Hoses (Hot & Cold)
- 1 x Counterweight for Pull-Out Hose
- 1 x Installation Wrench
Setup and Installation
The Ibergrif M14550 is designed for easy DIY installation with all necessary fixings provided. It features a single-hole mounting method.
- Prepare the Sink: Ensure the mounting hole on your sink or countertop is clean and clear. The faucet is designed for a single-hole installation.
- Install the Faucet:
- Insert the faucet body into the mounting hole.
- From underneath the sink, secure the faucet using the provided mounting hardware (gasket, washer, and mounting nut). Tighten the nut firmly but avoid overtightening to prevent damage.
- Connect Water Supply Hoses:
- Attach the hot and cold water supply hoses to the corresponding inlets on the faucet body. The hoses are typically marked for hot (red) and cold (blue).
- Connect the other ends of the supply hoses to your hot and cold water supply lines. Ensure a tight seal to prevent leaks.
Figure 2: Hot and Cold Water Connections. This diagram illustrates the proper connection points for hot and cold water supply lines, crucial for correct faucet operation.
- Install Pull-Out Hose and Counterweight:
- Feed the pull-out spray hose through the faucet body.
- Attach the counterweight to the pull-out hose at a suitable height to ensure smooth retraction of the spray head.
- Connect the pull-out hose to the designated connection point on the faucet body.
- Test for Leaks: Once all connections are made, slowly turn on the main water supply and check for any leaks. Tighten connections as needed.
Operating Instructions
The Ibergrif M14550 features a single-lever handle for easy control and a versatile pull-out spray head.
- Water Flow and Temperature Control:
The single metal lever handle controls both water flow and temperature. Lift the handle to increase flow, and move it left for hot water or right for cold water.
- 360° Rotatable Spout:
The faucet spout can rotate 360 degrees, providing maximum convenience and flexibility for various sink tasks.
Figure 3: Faucet Dimensions and 360° Rotation. This image highlights the key dimensions of the faucet and its ability to rotate fully, offering enhanced usability.
- Pull-Out Spray Head:
The pull-out design offers superior flexibility. Simply pull the spray head from the spout to extend its reach. The spray head allows you to switch between two spray modes:
- Stream Spray: For targeted filling and general washing.
- Shower Spray: For thorough rinsing and wider coverage.
Figure 4: Pull-Out Spray Head in Use. This image demonstrates the practical application of the pull-out spray head for rinsing dishes, showcasing its extended reach and functionality.
Figure 5: Water Flow from Main Spout. This image shows the faucet in operation, with water flowing from the primary spout, illustrating its standard use.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your Ibergrif M14550 faucet.
- Cleaning the Finish:
Clean the chrome finish regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Rinse thoroughly and dry to prevent water spots.
- Ceramic Cartridge:
The faucet is equipped with a superior ceramic disc cartridge, designed to reduce leaks and drips and extend the faucet's lifespan. If you experience persistent dripping, the cartridge may need inspection or replacement.
Figure 6: Ceramic Cartridge. This image highlights the durable ceramic cartridge, which is key to the faucet's leak-free performance and long service life.
- Water-Saving Aerator:
The integrated water-saving aerator helps conserve water. Periodically unscrew and clean the aerator to remove any mineral buildup that might affect water flow.
Figure 7: Water-Saving Aerator. This image shows the Neoperl aerator, which helps optimize water usage and can be cleaned for consistent flow.
Troubleshooting
If you encounter any issues with your faucet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from faucet base. | Loose mounting nut or worn gasket. | Ensure the mounting nut underneath the sink is securely tightened. Check and replace the gasket if worn. |
| Dripping from spout. | Worn or faulty ceramic cartridge. | Replace the ceramic disc cartridge. |
| Low water flow. | Clogged aerator or partially closed shut-off valves. | Unscrew and clean the aerator. Ensure hot and cold water shut-off valves are fully open. |
| Pull-out spray head does not retract smoothly. | Improperly positioned counterweight or obstruction. | Adjust the position of the counterweight on the pull-out hose. Check for any obstructions under the sink that might impede hose movement. |
Specifications
Detailed specifications for the Ibergrif M14550 Pull-Out Kitchen Mixer Tap:
| Feature | Detail |
|---|---|
| Manufacturer | Ibergrif Griferias SL |
| Product Dimensions (L x W x H) | 27 x 19 x 8 cm; 1.94 kilograms |
| Model Number | M14550 |
| Color | Chrome (with Shower) |
| Finish Type | Chrome |
| Material | Brass, Plastic |
| Pattern | Unique |
| Installation Method | Single Hole |
| Number of Handles | 1 |
| Handle Material | Metal |
| Spout Height | 121 Millimeters |
| Spout Reach | 150 Centimeters |
| Hose Length | 150 Centimeters |
| Special Feature | Rotatable (360°) |
| Included Components | 1 x Pull-Out Kitchen Faucet, 1 x Installation Kits, 2 x Supply Hoses |
Figure 8: Ibergrif M14550 Product View. This image provides an overall view of the faucet, showcasing its design and chrome finish.
Warranty and Support
Ibergrif products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the warranty card included with your product or visit the official Ibergrif website. Keep your purchase receipt as proof of purchase.
For further assistance, you may also contact Ibergrif customer service through their official channels.
Online Resources: Visit the Ibergrif Store on Amazon
