Ibergrif M22119-9 Kitchen Faucet User Manual

Introduction

Thank you for choosing the Ibergrif M22119-9 Grey Kitchen Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read this manual thoroughly before installation and keep it for future reference.

Image: The Ibergrif M22119-9 Grey Kitchen Faucet, featuring a flexible grey spout and a brushed stainless steel body.

Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Always turn off the main water supply before beginning any installation or maintenance work.
• Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
• Ensure all connections are secure and watertight to prevent leaks.
• Do not use abrasive cleaners or harsh chemicals on the faucet's finish, as this may cause damage.
• If you are unsure about any part of the installation process, consult a qualified plumber.

Package Contents

Verify that all components are present before beginning installation.

Image: All components included in the package, showing the faucet, hoses, and installation hardware.

• 1 x Kitchen Faucet (Ibergrif M22119-9)
• 1 x Installation Kits (Mounting hardware, washers, nuts)
• 2 x Hose Pipe (Hot and Cold water supply lines)
• 1 x User Manual (This document)

Setup and Installation

Follow these steps for proper installation of your Ibergrif kitchen faucet.

1. Prepare the Sink: Ensure the sink hole is clean and free of debris. The faucet is designed for single-hole installation.
2. Install the Faucet: Insert the faucet body into the sink hole. Ensure the base gasket is properly seated to prevent leaks.
3. Secure the Faucet: From underneath the sink, slide the rubber washer, metal washer, and mounting nut onto the threaded shank of the faucet. Tighten the mounting nut securely using the provided tool or an adjustable wrench.

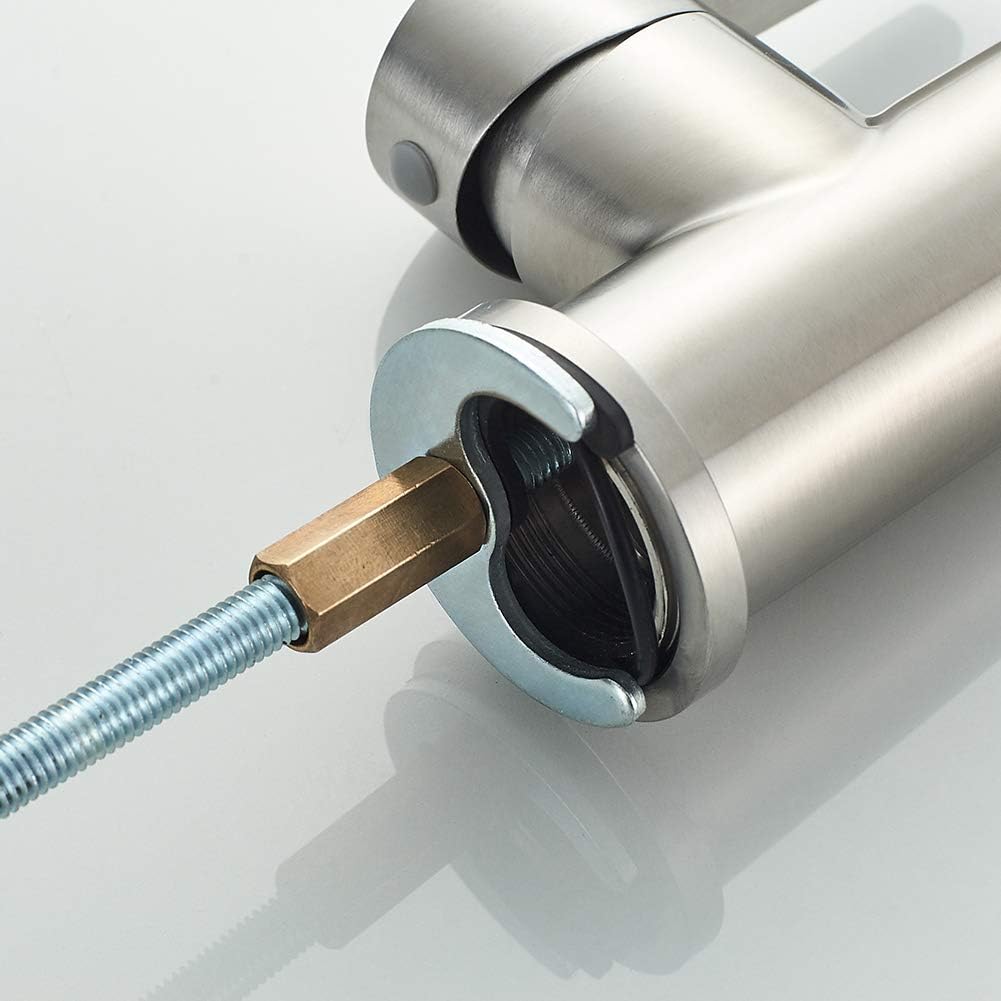

   Image: Close-up view of the faucet's threaded shank and mounting hardware from underneath the sink, showing how to secure it.

4. Connect Water Supply Lines: Attach the hot and cold water supply hoses to the corresponding inlets on the faucet body. Connect the other ends of the hoses to your hot and cold water supply valves. Hand-tighten first, then use a wrench for a final quarter-turn, being careful not to overtighten.
5. Check for Leaks: Once all connections are made, slowly turn on the main water supply. Check all connections for any signs of leaks. Tighten any leaking connections as necessary.

Operating Instructions

Your Ibergrif M22119-9 kitchen faucet is designed for ease of use and flexibility.

• Water Flow and Temperature Control: The single lever handle controls both water flow and temperature.
  • Lift the handle to increase water flow.
  • Move the handle left for hot water and right for cold water.

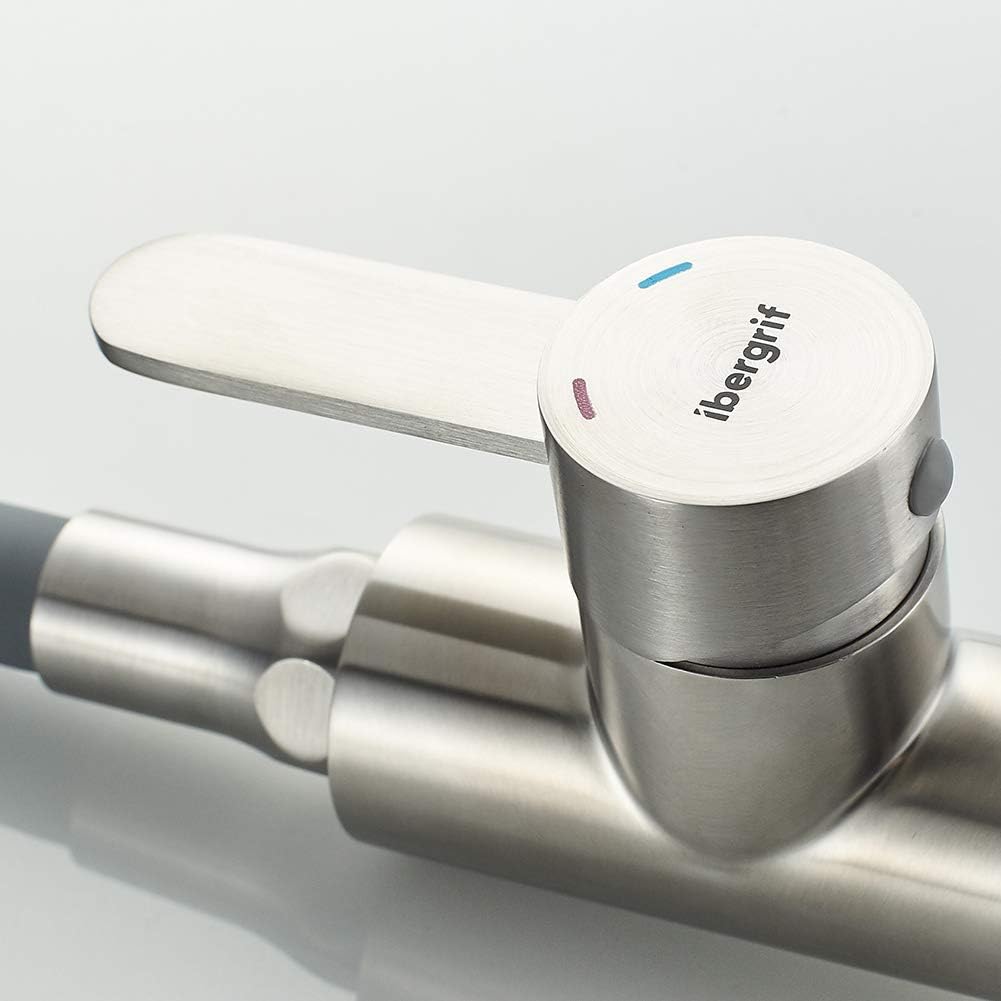

  Image: Close-up of the single lever handle, showing the hot and cold indicators for temperature control.

• Flexible Spout: The universal flexible spout allows you to direct water precisely where needed. It can be bent and positioned in various angles for convenience during kitchen tasks, such as filling large pots or rinsing the sink.


  Image: A series of four images demonstrating the flexibility and adjustability of the faucet's spout, showing it bent into different positions.



  Image: A person using the flexible spout to rinse a plate under running water, demonstrating its practical application.

• Water Saving Aerator: The faucet is equipped with a NEOPERL water-saving aerator, which helps reduce water consumption without compromising performance.


  Image: Close-up of the faucet's spout with an overlay highlighting the NEOPERL water-saving aerator, indicating its "flow, stop and go" function.

Maintenance

Proper care and maintenance will ensure the longevity and performance of your Ibergrif faucet.

• Cleaning the Finish: Clean the faucet regularly with a soft, damp cloth. For stubborn spots, use a mild soap and water solution, then rinse thoroughly and dry. Avoid abrasive cleaners, scouring pads, or chemicals containing ammonia, bleach, or alcohol, as these can damage the brushed stainless steel finish.
• Cleaning the Aerator: If water flow becomes restricted or uneven, the aerator may be clogged with mineral deposits.
  1. Unscrew the aerator from the end of the spout.
  2. Rinse the aerator screen under running water to remove debris.
  3. For stubborn mineral deposits, soak the aerator in a solution of equal parts white vinegar and water for 15-30 minutes.
  4. Reassemble the aerator and screw it back onto the spout.


  Image: Detailed close-up of the faucet's spout end, showing the aerator screen.

Troubleshooting

Refer to this section for common issues and their solutions.

Specifications

Key technical specifications for the Ibergrif M22119-9 Kitchen Faucet.

• Model: M22119-9
• Color: Grey
• Finish: Brushed Stainless Steel
• Material: Stainless Steel
• Installation Method: Single Hole
• Number of Handles: 1 (Single Lever)
• Spout Type: Universal Flexible Spout
• Cartridge Type: Wear-resistant ceramic disc
• Hose Length: 51 Centimeters
• Item Weight: 2.12 Kilograms
• Product Dimensions: 33 x 16 x 5 cm (Faucet body dimensions, excluding flexible spout extension)

Image: Diagram showing key dimensions of the Ibergrif M22119-9 faucet, including height (15.8 inches / 401mm) and spout reach (8.5 inches / 216mm).

Warranty and Support

Ibergrif products are manufactured to high-quality standards. For warranty information, technical support, or to purchase replacement parts, please contact Ibergrif customer service through their official website or the retailer where the product was purchased. Keep your proof of purchase for warranty claims.

For more information, visit: www.ibergrif.com
