1. Product Overview
The Ibergrif Professional Kitchen Faucet (Model: M22115B-3) is designed to provide a comfortable and efficient experience in your kitchen. This single-lever sink mixer features a flexible spout and a hand shower, offering versatility for various kitchen tasks. Its intelligent design and easy installation make it a practical addition to any modern kitchen.
Figure 1.1: Overview of the Ibergrif Professional Kitchen Faucet. This image displays the faucet's sleek design with its black body, chrome accents, and white flexible spout.
Key Features:
- Dual Spray Function: Offers both a laminar spray for specific filling and a shower spray for comprehensive rinsing.
- 360-Degree Rotation: The smooth rotating spring arm and flexible hose allow for easy adjustment of water flow direction.
- Drip-Free Ceramic Cartridge: Equipped with durable ceramic disc valves for long-lasting, smooth operation.
- Single-Lever Control: Provides effortless precision and comfort for adjusting water temperature and flow.
- Easy Installation: Designed for straightforward setup with all necessary accessories included.

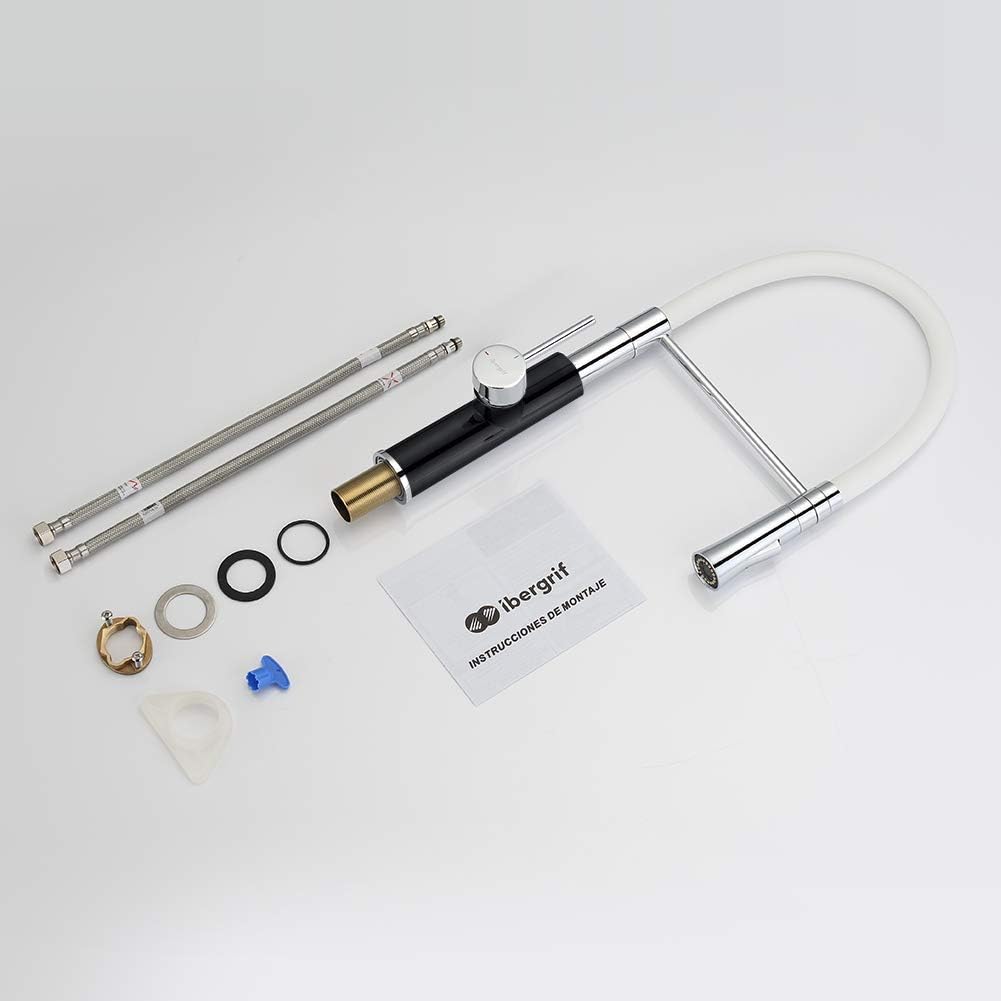

Figure 1.2: Included components for the Ibergrif kitchen faucet. This image shows the faucet unit, flexible hoses, mounting hardware, and instruction manual.
2. Setup & Installation
Before beginning installation, ensure you have all components and necessary tools. It is recommended to turn off the main water supply before starting. This faucet is designed for single-hole installation.
Installation Steps:
- Prepare the Mounting Hole: Ensure your sink or countertop has a standard single mounting hole (approximately Ø35mm).
- Insert the Faucet: Place the faucet body into the mounting hole. Ensure the base gasket is properly seated to prevent leaks.
- Secure the Faucet: From underneath the sink, slide the rubber washer, metal washer, and then thread the mounting nut onto the faucet shank. Tighten the nut securely using a basin wrench or appropriate tool.
- Connect Water Lines: Attach the hot (H) and cold (C) water supply lines to the corresponding inlets on the faucet and to your home's water supply valves. Ensure connections are tight to prevent leaks.
- Connect Spray Hose: Connect the flexible spray hose to the designated outlet on the faucet body.
- Test for Leaks: Once all connections are made, slowly turn on the main water supply and check for any leaks. Operate the faucet to ensure proper hot and cold water flow and spray functions.
Figure 2.1: Visual guide for faucet installation. This image illustrates the four main steps: inserting the faucet into the hole, securing it with the mounting nut, and connecting the hot and cold water lines.
Figure 2.2: Close-up view of the faucet's threaded base and mounting hardware, showing how it secures to the sink or countertop.
3. Operating Instructions
The Ibergrif kitchen faucet is designed for intuitive and efficient operation.
Water Flow and Temperature Control:
- Flow Control: Lift the single lever handle to increase water flow. Push down to decrease or turn off.
- Temperature Control: Move the lever to the left for hot water and to the right for cold water. The faucet features a "Cold Start" function, meaning when the lever is in the central position, only cold water is used, saving energy by not activating the water heater unnecessarily.
Figure 3.1: Illustration of the "Cold Start" feature, showing how the lever position affects water temperature and energy saving. This image also highlights water savings and low noise operation.
Flexible Spout and Hand Shower:
- Spout Rotation: The main spout arm can rotate 360 degrees, providing flexibility for various sink configurations and tasks.
- Hand Shower Function: Pull the hand shower from the main spout to extend it. A button or switch on the hand shower allows you to toggle between laminar stream and spray modes.
- Adjustable Angle: The flexible silicone tube allows you to adjust the angle and position of the spout or hand shower as needed.
Figure 3.2: Demonstration of the faucet's 360-degree rotatable spout, illustrating its flexibility for use in different directions.
Figure 3.3: Close-up view of the hand shower demonstrating the two spray patterns: a focused stream and a wider spray.

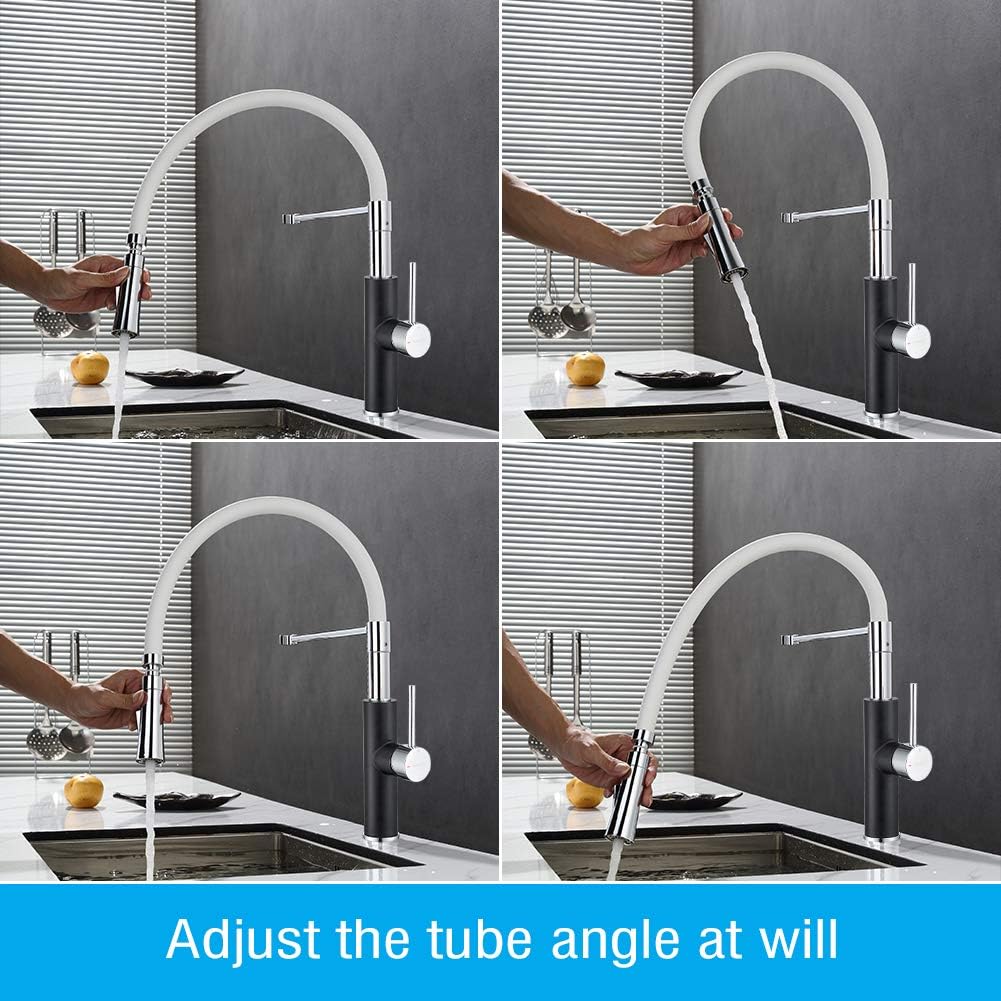

Figure 3.4: Series of images showing the flexible spout being adjusted to various angles and positions, highlighting its adaptability.
4. Care & Maintenance
Proper care and maintenance will ensure the longevity and optimal performance of your Ibergrif kitchen faucet.
Cleaning:
- Regular Cleaning: Clean the faucet regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome finishes.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, or cleaners containing ammonia, bleach, or acids, as these can damage the finish.
- Drying: After cleaning, wipe the faucet dry to prevent water spots and mineral buildup.
Aerator Maintenance:
Periodically, the aerator (at the tip of the spout/hand shower) may accumulate mineral deposits, affecting water flow. To clean:
- Remove Aerator: Unscrew the aerator from the spout. Some aerators may require a special key (often included with the faucet).
- Clean: Rinse the aerator under running water. Use a soft brush or toothpick to remove any debris or mineral deposits from the screen. For stubborn deposits, soak the aerator in a solution of equal parts white vinegar and water for a few hours.
- Reinstall: Screw the clean aerator back onto the spout, ensuring it is hand-tightened.
Figure 4.1: Close-up of the NEOPERL water-saving aerator, indicating its function for flow control. Regular cleaning of this component is essential for optimal performance.
5. Troubleshooting
This section addresses common issues you might encounter with your kitchen faucet. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve; kinked supply line. | Clean the aerator (refer to Maintenance section); ensure shut-off valves are fully open; check supply lines for kinks. |
| Leaking from Spout | Worn-out ceramic cartridge; debris in cartridge. | Replace the ceramic cartridge; flush the water lines before installing a new cartridge. |
| Leaking from Base | Loose mounting nut; damaged O-rings or gaskets. | Tighten the mounting nut underneath the sink; inspect and replace O-rings or gaskets if damaged. |
| Water Temperature Issues | Incorrect hot/cold supply line connection; water heater issues. | Verify hot and cold lines are connected correctly; check your water heater settings. |
6. Product Specifications
Detailed technical specifications for the Ibergrif Professional Kitchen Faucet.
| Attribute | Value |
|---|---|
| Model Number | M22115B-3 |
| Brand | Ibergrif |
| Color | White/Black |
| Style | Modern |
| Finish | Chrome |
| Material | Brass and Silicone |
| Installation Method | Single-hole (Surface Mount) |
| Flow Rate | 8.32 Liters per minute |
| Number of Handles | 1 |
| Handle Material | Brass |
| Special Features | Rotatable Spout, Flexible Hand Shower, Cold Start Function |
| Product Dimensions (L x W x H) | 47 x 28 x 5 cm |
| Item Weight | 2.46 Kilograms |
| Recommended Use | Kitchen |
| Country of Origin | Spain |
Figure 6.1: Detailed dimensions of the Ibergrif kitchen faucet, including height, reach, and base diameter.
7. Warranty & Support
Ibergrif products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Ibergrif website.
Customer Support:
If you have any questions, require technical assistance, or need to order replacement parts, please contact Ibergrif customer support. Contact details can typically be found in the product packaging or on the official brand website.
