Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ibergrif M22011 Concealed Bidet Shower Mixer Set. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Package Contents
The package includes the following components:
- 1 x Concealed bidet tap (main body, panel, controller)
- 1 x Shower Hose (1.2 meters)
- 1 x Bidet Shower Sprayer (Hand Spray)
- 1 x Installation Kits (screws, wall plugs, Allen keys, seals)
Image description: A flat lay showing all components included in the Ibergrif M22011 package: the concealed mixer unit, bidet sprayer, shower hose, mounting hardware (screws, wall plugs, Allen keys), and an instruction leaflet.
Safety Information
Please observe the following safety precautions during installation and use:
- Ensure the main water supply is turned off before beginning any installation work.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the chrome finish, as this may damage the product.
- Verify all connections are secure and watertight to prevent leaks.
- Be cautious when first operating the bidet sprayer, as water temperature can be very hot before mixing.
Product Overview
The Ibergrif M22011 is a square concealed shower mixer set designed for bidet use, featuring a hot and cold water mixer, a shattaf sprayer, and a flexible hose.
Key Features
- Concealed design for a clean aesthetic.
- Hot and cold water mixing valve.
- Easy-to-clean limescale removal nozzles on the sprayer.
- Durable brass handle material.
- Chrome finish.
Image description: A front view of the Ibergrif M22011 concealed bidet shower mixer set, showing the square chrome panel, the mixer handle on the left, and the bidet sprayer connected via a flexible hose on the right.

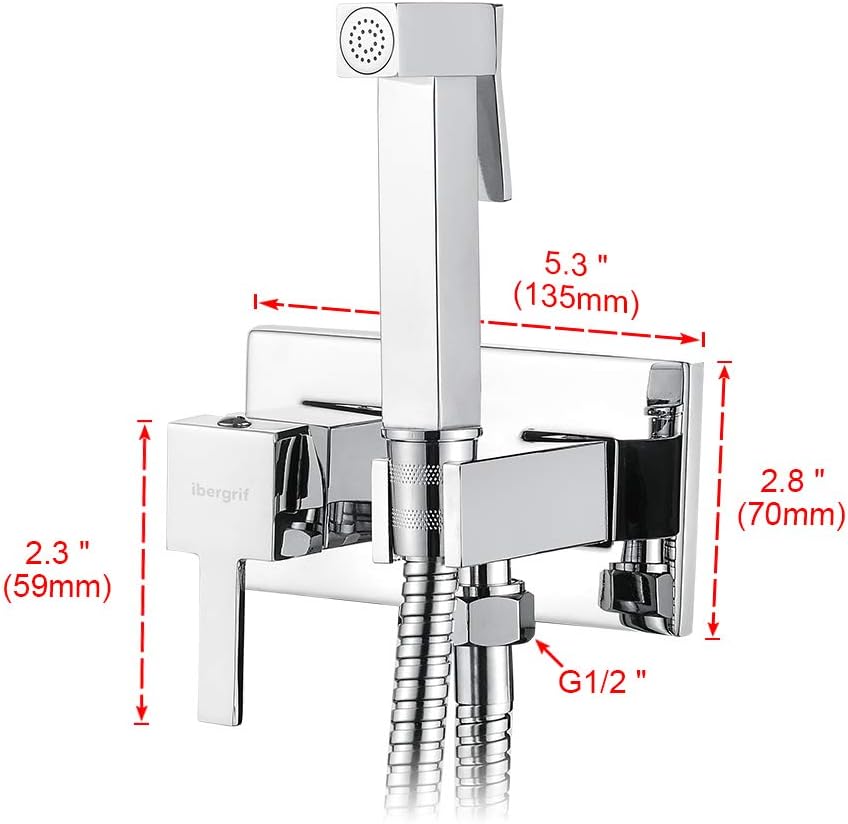

Image description: A diagram illustrating the dimensions of the Ibergrif M22011 concealed bidet shower mixer set, including the panel width (5.3 inches / 135mm), panel height (2.8 inches / 70mm), and mixer depth (2.3 inches / 59mm), with G1/2" connection indicated.
Installation Instructions
Follow these steps for proper installation. It is recommended to have this unit installed by a professional plumber.
Tools Required (Not Included)
- Adjustable wrench
- Screwdriver
- Drill
- Measuring tape
- Level
- Sealant tape (PTFE tape)
Step-by-Step Guide
- Prepare the Wall: Ensure the wall cavity is prepared for the concealed mixer unit. The unit requires a single-hole installation.
- Connect Water Lines: Connect the hot and cold water supply lines to the main body of the mixer. Use sealant tape on threaded connections to prevent leaks. The main body has clearly marked inlets for hot and cold water.
Image description: A multi-panel diagram showing the installation steps for the Ibergrif M22011. Panel 1 shows the main body being inserted into the wall. Panel 2 shows the panel being attached. Panel 3 shows the handle and hose connection. Panel 4 shows the final assembly. Panel 5 and 6 show the complete unit and hose. A spare parts list is also included.
- Secure the Main Body: Mount the main body securely within the wall cavity using appropriate fasteners. Ensure it is level and flush with the finished wall surface.
- Attach the Panel: Once the main body is secured and water connections are tested, attach the decorative chrome panel over the main body.
- Install the Handle: Mount the mixer handle onto the designated spindle on the panel.
- Connect the Hose and Sprayer: Attach one end of the shower hose to the outlet on the mixer panel and the other end to the bidet shower sprayer. Hand-tighten connections, then use a wrench for a final snug fit, being careful not to overtighten.
- Test for Leaks: Slowly turn on the main water supply and check all connections for any signs of leakage.
Operating Instructions
To operate your Ibergrif M22011 bidet shower mixer set:
- Turn On Water: Rotate the mixer handle to turn on the water flow.
- Adjust Temperature: Adjust the handle left or right to achieve the desired water temperature (left for hot, right for cold).
- Activate Sprayer: Press the lever on the bidet shower sprayer to release water. Release the lever to stop the flow.
Image description: A hand holding the chrome bidet sprayer, demonstrating water spraying from its nozzle.
Image description: A collage showing various applications of the bidet sprayer, including for elderly adults, diaper cleaning, feminine hygiene, and pet wash.
Maintenance
Cleaning
To maintain the chrome finish and ensure optimal performance:
- Clean the surface regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome fixtures.
- Avoid using abrasive sponges, scouring pads, or harsh chemical cleaners, as these can damage the finish.
- For limescale removal, gently rub the nozzles on the sprayer with your fingertips.
Ceramic Cartridge
The mixer features a superior ceramic cartridge designed for long-lasting performance, tested for up to 500,000 cycles.
Image description: A composite image showing a ceramic cartridge and brass bars, highlighting the quality materials used in the product. The text indicates the ceramic cartridge supports up to 500,000 tests.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow or low pressure | Main water supply off; clogged sprayer nozzles; kinked hose. | Check main water supply; clean sprayer nozzles; straighten hose. |
| Water leakage from connections | Loose connections; worn seals; insufficient sealant tape. | Tighten connections; replace seals; reapply sealant tape. |
| Inconsistent water temperature | Improper mixer adjustment; issues with hot/cold water supply. | Adjust mixer handle carefully; check household hot/cold water supply. |
| Sprayer not stopping water flow | Faulty sprayer lever; debris in sprayer mechanism. | Clean sprayer; if issue persists, sprayer may need replacement. |
Specifications
- Model: M22011
- Brand: Ibergrif
- Manufacturer: Ibergrif Griferias S.L
- Product Dimensions: 18 x 17 x 8 cm
- Item Weight: 1.61 kg
- Colour: Silver
- Style: Square
- Finish: Chrome
- Installation Method: Single Hole, Wall Mount
- Hose Length: 1.2 Meters
- Number of Handles: 1
- Handle Material: Brass
- Included Components: Concealed bidet tap, Shower Hose, Bidet Shower Sprayer, Installation Kits
Warranty and Support
This product comes with a five-year manufacturer's warranty. For warranty claims, technical support, or spare parts, please contact Ibergrif customer service.
Manufacturer: Ibergrif Griferias S.L
Email: email@ibergrif.es
Website: www.ibergrif.es
