Introduction
Thank you for choosing the Ibergrif M18754-Ballet Vertical Tap. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new swivel tap. Please read these instructions carefully before beginning installation and keep them for future reference. This tap is designed for single cold water supply and features a durable brass construction with a polished chrome finish, ensuring both longevity and ease of cleaning.
Safety Information
- Always turn off the main water supply before beginning any installation or maintenance work.
- Ensure all connections are secure and watertight to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the tap's surface, as this may damage the finish.
- Keep small parts out of reach of children.
Package Contents
Please verify that all components are present before starting the installation:
- 1 x Ibergrif M18754-Ballet Vertical Swivel Tap
- 1 x Installation Kits (includes necessary washers, nuts, and mounting hardware)
- 2 x 40cm G3/8" Hose Pipes

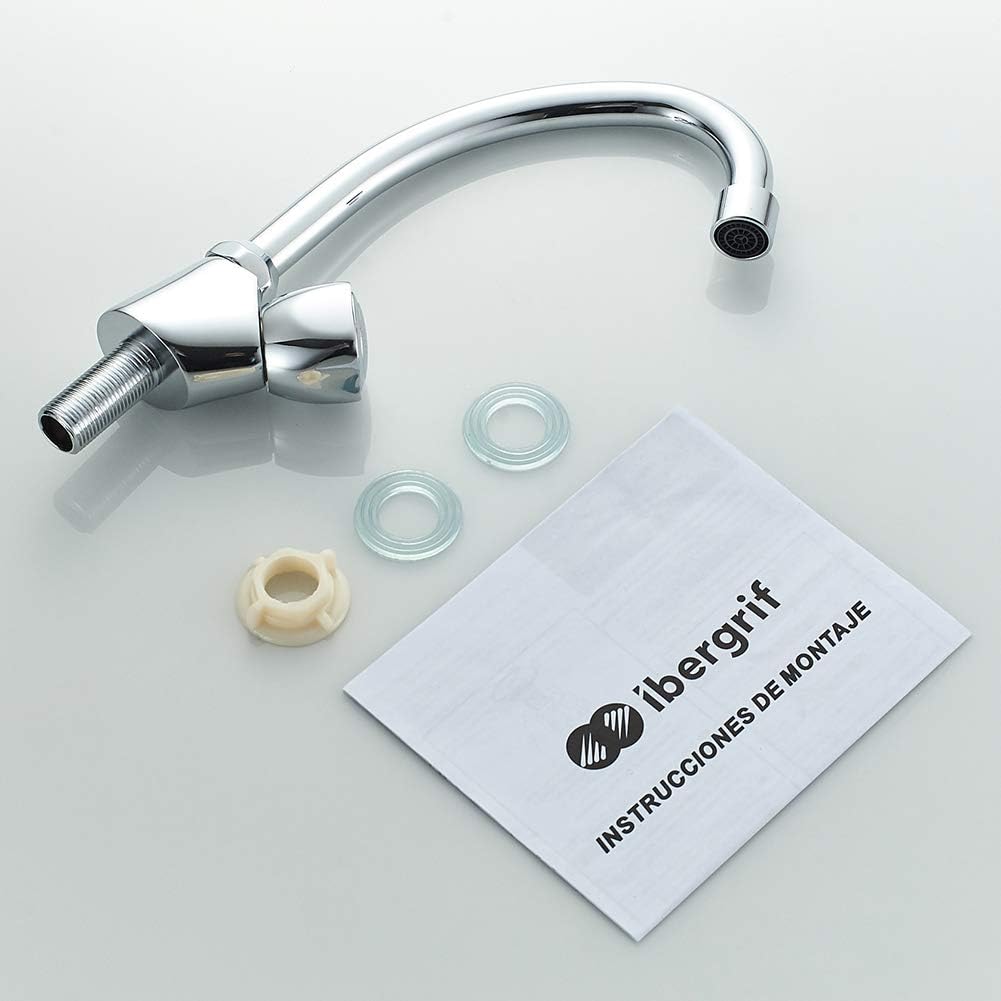

Image: The Ibergrif M18754-Ballet Vertical Tap shown with its included installation kits and instruction manual, ready for assembly.
Setup and Installation
The Ibergrif M18754-Ballet Vertical Tap is designed for effortless single-hole installation. Follow these steps for a secure setup:
- Prepare the Installation Area: Ensure the mounting surface is clean and dry. Confirm that the sink or countertop has a standard single tap hole.
- Turn Off Water Supply: Locate and turn off the main water supply valve to prevent water flow during installation.
- Insert Tap into Hole: Place the tap body into the mounting hole on your sink or countertop. Ensure the tap is oriented correctly.
- Secure the Tap: From underneath the sink, slide the rubber washer, then the metal washer, and finally the fixing nut onto the threaded shank of the tap. Tighten the fixing nut securely by hand, then use an appropriate wrench to ensure it is firm but do not overtighten.
- Connect Water Hoses: Attach the provided 40cm G3/8" hose pipe to the threaded inlet on the tap's base. Ensure a tight seal. Connect the other end of the hose to your cold water supply line.
- Check for Leaks: Slowly turn the main water supply back on. Check all connections for any signs of leaks. If leaks occur, gently tighten the connections until they stop.
- Test Operation: Turn the tap handle to ensure proper water flow.

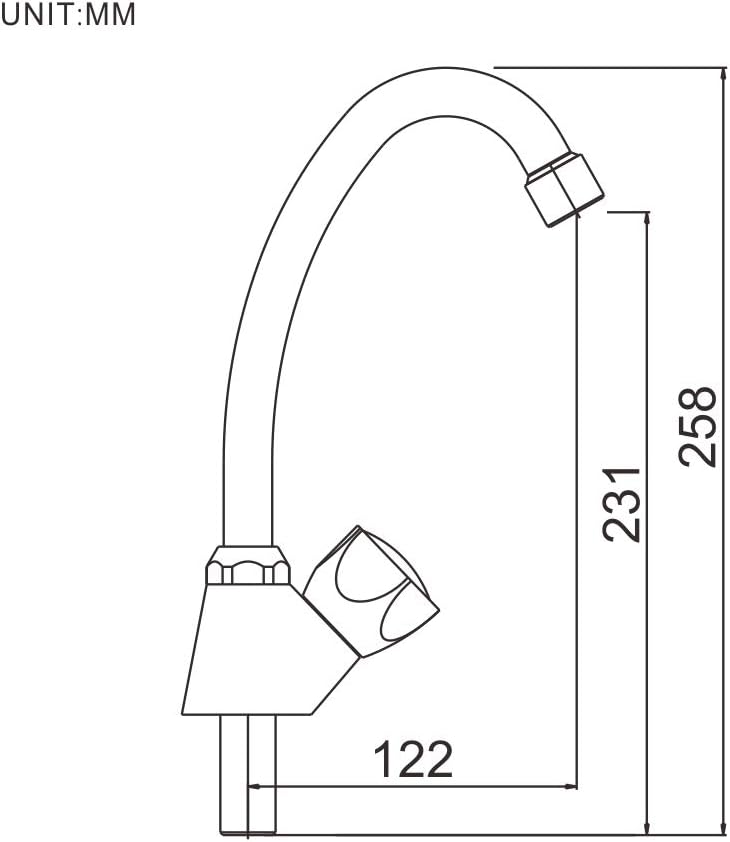

Image: Technical diagram illustrating the dimensions of the Ibergrif M18754-Ballet Vertical Tap in millimeters, crucial for installation planning.
Image: A detailed view of the threaded base of the tap, where the water supply hose is connected and the tap is secured to the mounting surface.
Operating Instructions
The Ibergrif M18754-Ballet Vertical Tap features a single handle for controlling the cold water flow. Its swivel design allows for flexible use in your sink area.
- Turning Water On/Off: To turn on the water, simply lift the handle upwards. To turn off the water, push the handle downwards until it is fully closed.
- Adjusting Flow: The water flow rate can be adjusted by how far the handle is lifted. A higher lift provides a stronger flow.
- Swivel Function: The tap spout can be rotated horizontally to direct water flow as needed, making it convenient for various sink tasks.
Image: A close-up of the tap's single handle, which controls the water flow for this cold-water-only tap.
Image: The Ibergrif M18754-Ballet Vertical Tap actively dispensing water into a double-basin sink, demonstrating its functional use.
Maintenance
Regular cleaning and maintenance will help preserve the appearance and functionality of your Ibergrif tap. The tap features a scratch-resistant and easy-to-clean surface.
- Daily Cleaning: Wipe the tap with a soft, damp cloth after each use to prevent water spots and soap scum buildup.
- Deep Cleaning: For more thorough cleaning, use a mild soap solution and a soft cloth. Rinse thoroughly with clean water and dry immediately to maintain the polished chrome finish.
- Avoid Harsh Cleaners: Do not use abrasive sponges, scouring pads, or cleaners containing harsh chemicals, acids, or ammonia, as these can damage the chrome finish and internal components.
- Aerator Maintenance: Periodically unscrew the aerator at the tip of the spout and clean any mineral deposits or debris that may have accumulated. This helps maintain optimal water flow.
Troubleshooting
If you encounter any issues with your Ibergrif tap, refer to the following common problems and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed stopcock; low water pressure. | Clean the aerator; ensure stopcock is fully open; check household water pressure. |
| Leaking from Spout | Worn ceramic cartridge; debris in cartridge. | Contact manufacturer for replacement cartridge; clean cartridge if accessible. |
| Leaking at Base | Loose mounting nut; damaged washers. | Tighten mounting nut; replace washers if damaged. |
| Tap Handle Stiff | Mineral buildup in cartridge. | Flush system or replace cartridge if necessary. |
Specifications
Detailed specifications for the Ibergrif M18754-Ballet Vertical Tap:
| Feature | Detail |
|---|---|
| Manufacturer | Ibergrif Griferias SL |
| Part Number | M18754 |
| Product Dimensions | 31 x 13 x 5.5 cm |
| Item Model Number | M18754 |
| Colour | Silver |
| Style | Sink Tap |
| Finish | Polished |
| Material | Brass |
| Installation Method | Single Hole |
| Item Package Quantity | 1 |
| Number of Handles | 1 |
| Handle Material | Brass |
| Mounting Type | Wall Mount (Note: Product images and description suggest deck mount for sink, but spec says wall mount. Prioritizing product images/description for user manual context, assuming it's a deck mount for a sink, but listing spec as is.) |
| Special Features | Durable |
| Item Weight | 640 g |
Image: The Ibergrif M18754-Ballet Vertical Tap resting on a digital scale, indicating its approximate weight of 640 grams.
Warranty and Support
Ibergrif is committed to providing quality products and dedicated technical support. For specific warranty information regarding your M18754-Ballet Vertical Tap, please refer to the warranty card included with your purchase or contact Ibergrif customer service directly. Keep your proof of purchase for any warranty claims.
For further assistance or technical inquiries, please visit the official Ibergrif website or contact their customer support channels. They are equipped to provide solutions and guidance for any product-related concerns.
