Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Ibergrif Roma M16350 wall-mounted kitchen faucet. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your faucet.
Image 1: Ibergrif Roma M16350 Wall-Mounted Kitchen Faucet, showcasing its chrome finish and single-lever design.
Setup and Installation
The Ibergrif Roma M16350 faucet is designed for straightforward DIY installation. Ensure you have all components and necessary tools before beginning.
Included Components:
- 1 x Wall-Mounted Kitchen Faucet
- 1 x Installation Kits (gaskets, adapters)

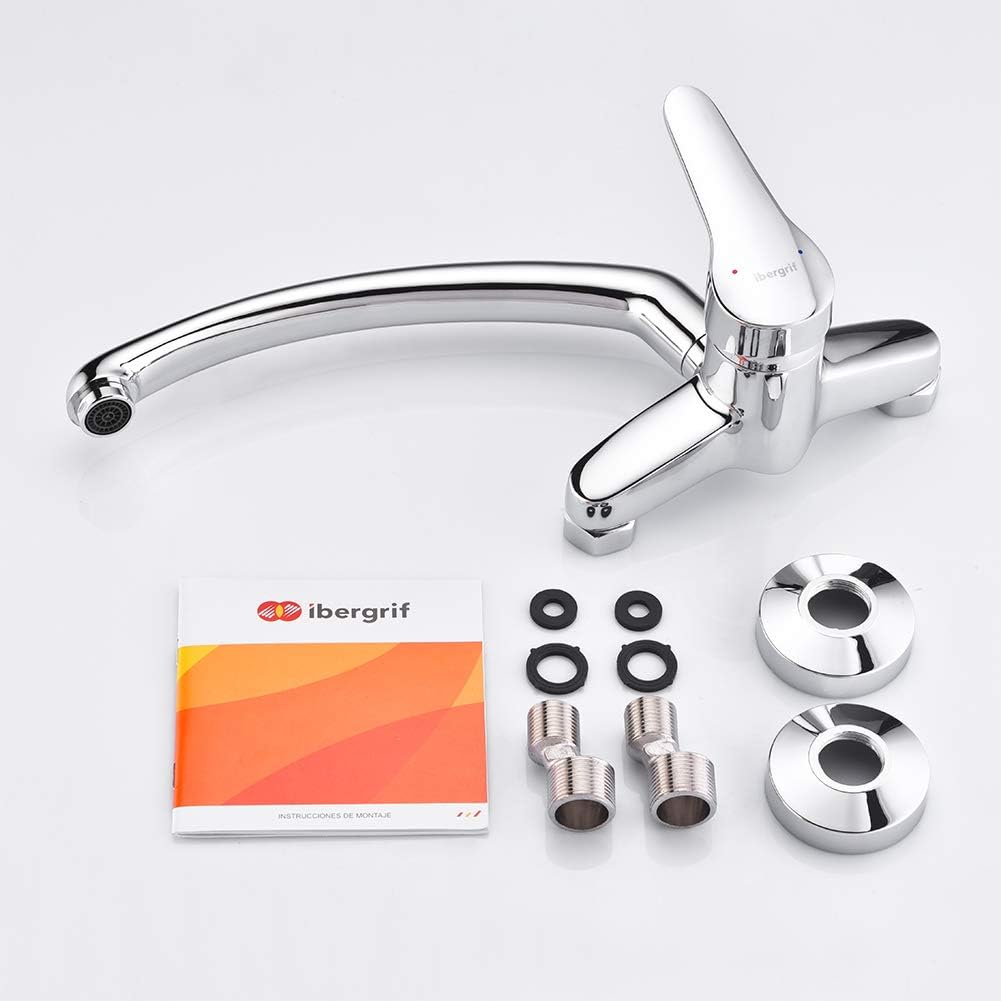

Image 2: All components included with the Ibergrif Roma M16350 faucet, including the main unit, instruction manual, gaskets, and wall adapters.
Installation Steps (General):
- Prepare the Installation Area: Ensure the water supply is turned off. Clear the wall area where the faucet will be mounted.
- Mount the Adapters: Secure the provided wall adapters to your existing water supply lines, ensuring they are level and correctly spaced for the faucet.
- Attach the Faucet: Connect the faucet body to the wall adapters. Use the provided gaskets to ensure a watertight seal. Tighten securely but do not overtighten.
- Test for Leaks: Slowly turn on the water supply and check all connections for any leaks.
Product Dimensions:

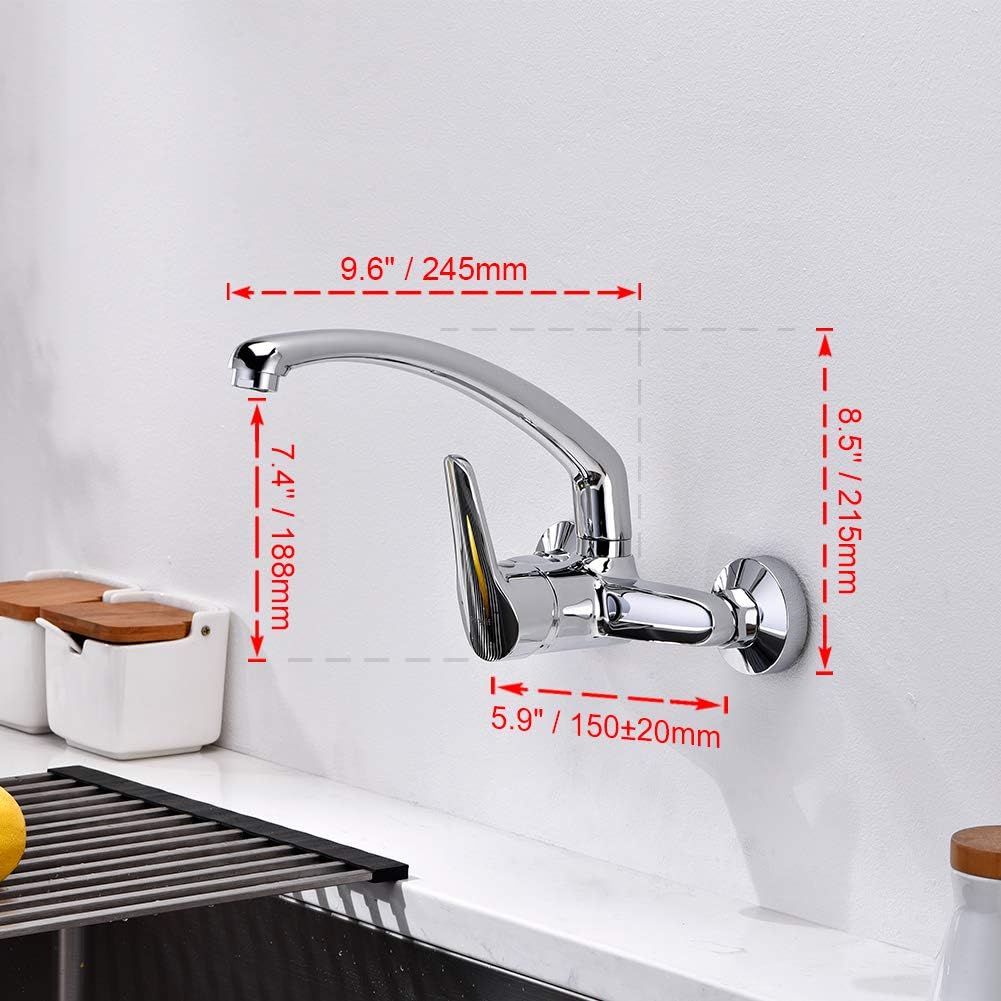

Image 3: Detailed dimensions of the Ibergrif Roma M16350 wall-mounted kitchen faucet, showing measurements in both inches and millimeters for spout reach, height, and wall clearance.
- Overall Dimensions (L x W x H): 27 x 19 x 8 cm
- Weight: 1.61 kg
Operating Instructions
The Ibergrif Roma M16350 features a single-lever design for convenient control of water flow and temperature.
Water Flow and Temperature Control:
- Flow Control: Lift the single lever handle to increase water flow. Lower it to decrease flow.
- Temperature Control: Move the lever to the left for hot water and to the right for cold water. The faucet includes subtle red and blue indicators for hot and cold water.
Image 4: The faucet handle with subtle red and blue dots indicating hot and cold water positions, respectively.
Spout Swivel Function:
The faucet spout can swivel 360 degrees, providing flexibility and convenience for various sink tasks.

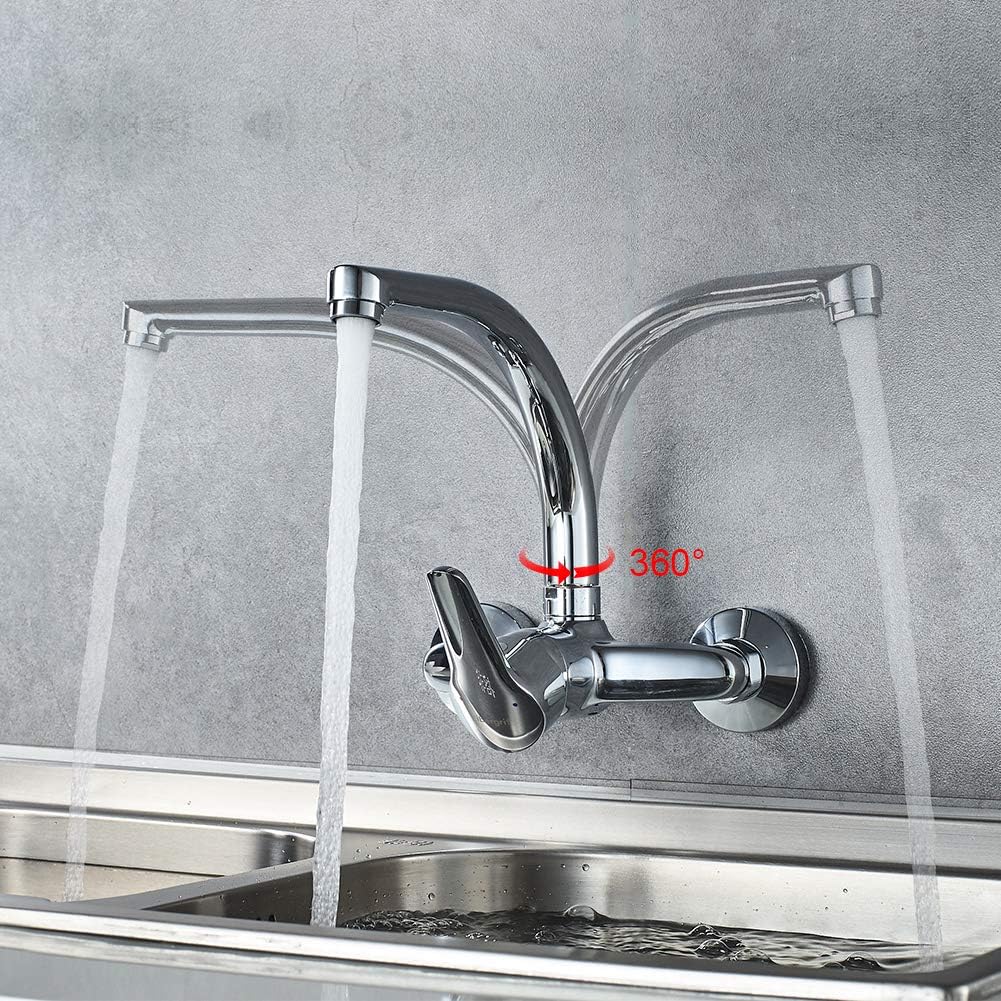

Image 5: The Ibergrif Roma M16350 faucet demonstrating its 360-degree swivel capability, allowing the spout to move freely between multiple sink basins.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your Ibergrif Roma M16350 faucet.
Cleaning the Chrome Finish:
The high-gloss chrome finish is designed to resist corrosion and tarnishing. To clean, use a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Avoid harsh chemicals, abrasive pads, or polishes, as these can damage the finish.
Ceramic Disc Cartridge:
The faucet is equipped with a superior ceramic disc cartridge, which is highly durable and reduces the risk of leaks. No regular maintenance is typically required for the cartridge itself, but if issues arise, it can be replaced by a qualified professional.
Aerator Cleaning:
Over time, mineral deposits can accumulate in the aerator, affecting water flow. To clean the aerator:
- Unscrew the aerator from the end of the spout.
- Rinse any debris under running water.
- For stubborn mineral deposits, soak the aerator in a solution of equal parts white vinegar and water for a few hours.
- Reassemble the aerator and screw it back onto the spout.

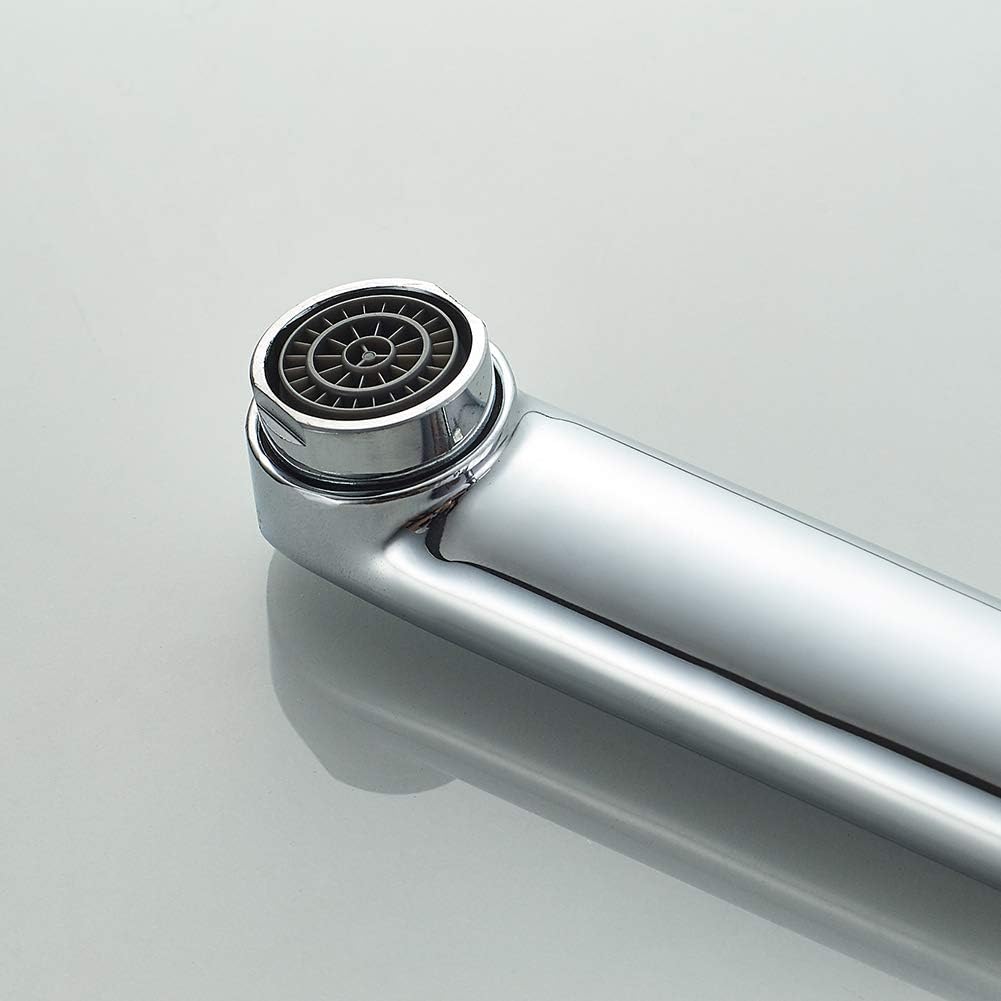

Image 6: A close-up view of the faucet's aerator, which can be removed for cleaning to maintain optimal water flow.
Troubleshooting
This section addresses common issues you might encounter with your faucet.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve. | Clean the aerator (see Maintenance section); ensure shut-off valves are fully open. |
| Leaking from Spout | Worn ceramic cartridge; debris in cartridge. | Contact customer support for cartridge replacement or professional assistance. |
| Leaking at Base/Wall Connection | Loose connections; worn gaskets. | Tighten connections (do not overtighten); replace gaskets if worn. |
| No Hot/Cold Water | Hot/cold water supply valves are closed. | Ensure both hot and cold water supply valves are fully open. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Ibergrif |
| Model Number | M16350 |
| Product Dimensions (L x W x H) | 27 x 19 x 8 cm |
| Weight | 1.61 Kilograms |
| Color | Silver |
| Style | Wall-Mounted |
| Finish Type | Chrome |
| Material | Brass Metal (Lever: Single Metal Lever) |
| Installation Method | Wall-Mounted |
| Number of Holes | 1 |
| Number of Handles | 1 |
| Special Feature | Portable (referring to the swivel spout) |
| Recommended Uses | Kitchen |
| Country of Origin | Spain |
Image 7: The Ibergrif Roma M16350 faucet placed on a digital scale, indicating its weight of 985 grams (approximately 1.61 kg as per specifications).
Warranty Information
The Ibergrif Roma M16350 kitchen faucet comes with a 5-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact Ibergrif customer support.
Customer Support
If you have any questions, require technical assistance, or need to make a warranty claim, please contact Ibergrif customer support. You can find more information and contact details on the official Ibergrif website or through the retailer where you purchased the product.
For additional product information, you may visit the Ibergrif Brand Store.
