Ibergrif M14453
Ibergrif M14453-Bari Kitchen Mixer Tap with Medical Handle Instruction Manual
Model: M14453
1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ibergrif M14453-Bari Kitchen Mixer Tap. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

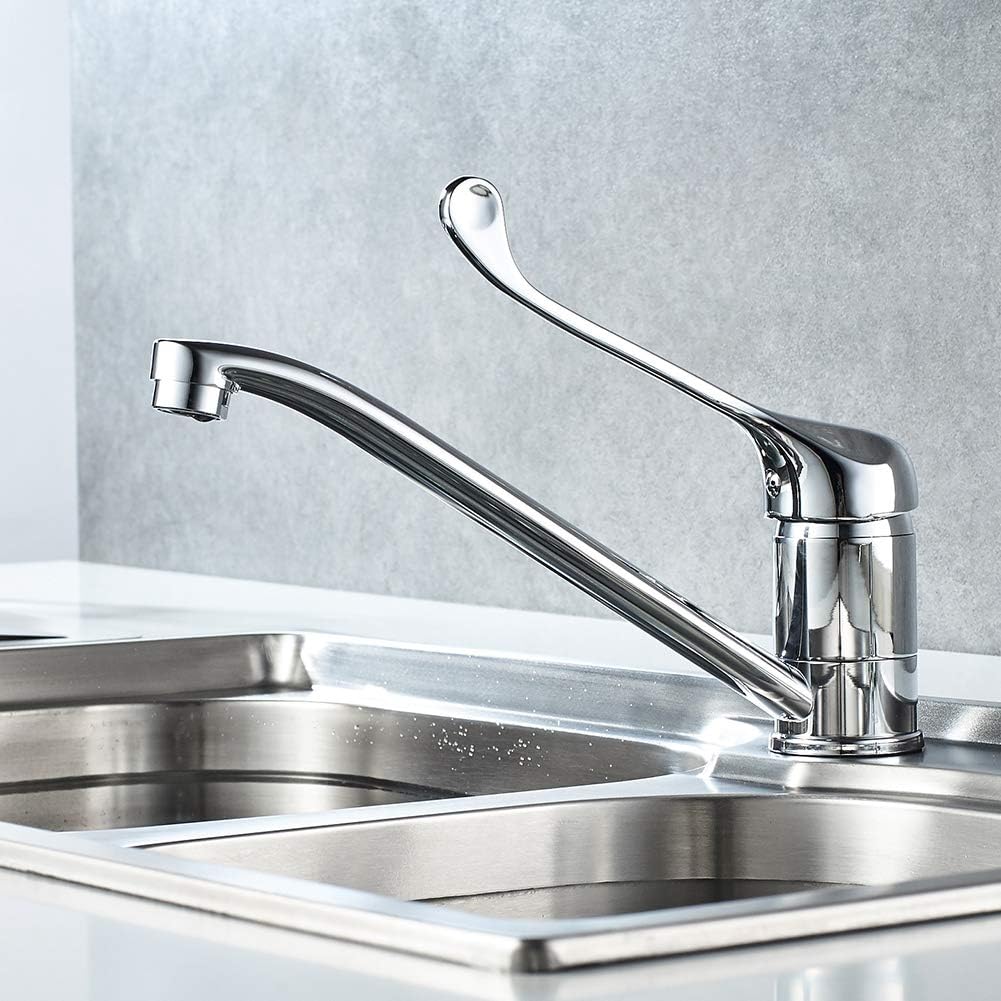

Image 1.1: The Ibergrif M14453-Bari Kitchen Mixer Tap, featuring a chrome finish and a medical-style handle.
2. Safety Information
- Always turn off the main water supply before beginning any installation or maintenance work.
- Ensure all connections are secure to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the chrome finish, as this may cause damage.
3. Package Contents
Verify that all components listed below are present in the package before starting installation.
Image 3.1: All components included in the Ibergrif M14453-Bari package, including the tap, hoses, and mounting hardware.
- 1 x Ibergrif M14453-Bari Kitchen Mixer Tap
- 1 x Installation Kits (gaskets, nuts, washers)
- 2 x 40 cm G3/8 inch Hose Pipes (hot and cold)
- 1 x Instruction Manual (this document)
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Ibergrif |
| Model Name | M14453 |
| Mounting Type | Deck Mount, Single Hole |
| Finish Type | Chrome |
| Material | Brass |
| Color | Silver |
| Number of Handles | 1 (Medical Handle) |
| Item Weight | 1.1 Kilograms (2.41 pounds) |
| Product Dimensions | 12.2 x 4.72 x 2.56 inches |
Image 4.1: Dimensional drawing of the Ibergrif M14453-Bari tap, showing key measurements in millimeters.
5. Installation Instructions
Follow these steps carefully for a successful installation. Tools required (not included): adjustable wrench, screwdriver, sealant tape (optional).
- Prepare the Sink/Countertop: Ensure the mounting hole on your sink or countertop is clean and free of debris. The tap requires a single hole installation.
- Attach Water Hoses: Screw the two 40 cm G3/8 inch hose pipes into the base of the tap. Hand-tighten first, then use a wrench for a snug fit. Do not overtighten.
- Insert Tap into Hole: Place the tap into the mounting hole from above the sink. Ensure the base gasket is properly seated between the tap and the sink surface.
- Secure the Tap: From underneath the sink, slide the rubber washer, metal washer, and then the fixing nut onto the threaded rods extending from the tap base. Tighten the fixing nut securely using the provided installation tool or an adjustable wrench. Ensure the tap is straight and stable.
- Connect Water Supply: Connect the hot and cold water supply lines to the corresponding hose pipes. The hot water line is typically on the left, and the cold water line on the right. Use sealant tape on the threads if desired for an extra seal.
- Test for Leaks: Slowly turn on the main water supply. Check all connections for leaks. If any leaks are detected, tighten the connections carefully until the leak stops.
Image 5.1: Underside view of the tap showing the threaded rods and water hose connections, ready for mounting.
Image 5.2: Close-up of the mounting threads and base plate, illustrating how the tap is secured to the countertop.
Image 5.3: The Ibergrif M14453-Bari tap fully installed in a kitchen sink, ready for use.
6. Operating Instructions
The Ibergrif M14453-Bari features a single medical-style handle for controlling both water flow and temperature.
- Water Flow: Lift the handle upwards to increase water flow. Push it downwards to decrease flow and turn off the water.
- Temperature Control: Move the handle to the left for hot water and to the right for cold water. Adjust the handle position between left and right to achieve the desired water temperature.
Image 6.1: The Ibergrif M14453-Bari tap with water flowing, demonstrating its functionality.
7. Maintenance
Regular cleaning and maintenance will help preserve the appearance and functionality of your tap.
- Cleaning the Finish: Clean the chrome finish with a soft cloth and mild soap and water. Rinse thoroughly and dry immediately to prevent water spots. Do not use abrasive sponges, scouring pads, or chemical cleaners containing ammonia, bleach, or alcohol, as these can damage the finish.
- Cleaning the Aerator: Periodically unscrew the aerator at the end of the spout to clean out any mineral deposits or debris that may affect water flow. Rinse it under running water and reattach.
Image 7.1: Close-up view of the tap's aerator, located at the end of the spout, which can be removed for cleaning.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed stopcock; kinked supply hose. | Clean the aerator (see Section 7); ensure stopcocks are fully open; check supply hoses for kinks. |
| Leaking from Base | Loose mounting nut; damaged base gasket. | Tighten the mounting nut (see Section 5); inspect and replace base gasket if damaged. |
| Leaking from Connections | Loose hose connections; worn washers. | Tighten hose connections; replace washers if necessary. |
| No Hot/Cold Water | Supply valve closed; issue with water heater/supply. | Check that the corresponding hot/cold supply valve is open; consult a plumber if the issue persists. |
9. Warranty and Support
Ibergrif products are manufactured to high-quality standards. This product comes with a 5-Year Limited Warranty from Ibergrif Faucet, covering manufacturing defects.
For warranty claims, technical support, or replacement parts, please contact Ibergrif customer service. You can find contact information on the official Ibergrif website or through your point of purchase.
Please retain your proof of purchase for warranty validation.
