1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Ibergrif M11103 Mundo Single Handle Basin Tap. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
Image: The Ibergrif M11103 Mundo single handle basin tap, showcasing its polished gray finish and modern design.
2. Safety Information
- Always turn off the main water supply before beginning any installation or maintenance.
- Ensure all connections are secure to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the tap's finish, as this may cause damage.
- Protect the product from freezing temperatures.
3. Package Contents
Verify that all components are present before beginning installation.
- 1 x Basin Tap
- 1 x Installation Kits (mounting hardware)
- 2 x 40 cm G3/8 inch Hose Pipes (hot and cold water supply lines)
Image: The Ibergrif M11103 Mundo basin tap, its internal ceramic cartridge, 304 stainless steel material, and the product packaging.
4. Specifications
| Model Name | M11103 |
| Brand | Ibergrif |
| Mounting Type | Deck Mount |
| Installation Type | Single Hole |
| Number of Handles | 1 (Single Lever) |
| Handle Material | Brass |
| Finish Type | Polished |
| Color | Gray (Stainless Steel appearance) |
| Special Feature | Water Saving Aerator |
| Product Dimensions | 5.71 x 1.97 x 6.69 inches (145 x 50 x 170 mm) |
| Spout Height | 98 mm |
| Item Weight | 2.64 pounds (1.2 Kilograms) |
| Material | 304 Stainless Steel (body), Brass (handle) |
| UPC | 600358596080 |
Image: Technical drawing showing the dimensions of the Ibergrif M11103 Mundo basin tap, including total height (170mm), spout reach (145mm), spout height (98mm), and base diameter (50mm).
5. Setup and Installation
Before starting, ensure you have the necessary tools: adjustable wrench, screwdriver, plumber's tape, and a basin wrench (if needed).
5.1 Preparation
- Turn off the main water supply to your home.
- Clear the area under the sink for easy access.
- If replacing an old faucet, remove it and clean the mounting surface.
5.2 Installation Steps
Follow these steps for a single-hole deck mount installation:
- Step 1: Insert Faucet into Mounting Hole. Place the faucet body into the pre-drilled hole on your basin. Ensure the hole diameter is approximately 35mm.
- Step 2: Secure Faucet from Below. From underneath the basin, slide the rubber washer, metal washer, and then the mounting nut onto the threaded shank of the faucet.
- Step 3: Tighten Mounting Nut. Hand-tighten the mounting nut, then use a screwdriver or basin wrench to firmly secure it, ensuring the faucet is stable and centered.
- Step 4: Connect Water Supply Lines. Connect the hot (H) and cold (C) water supply hoses to the corresponding inlets on the faucet and to your water supply valves. Use plumber's tape on threaded connections and tighten securely with a wrench. Do not overtighten.

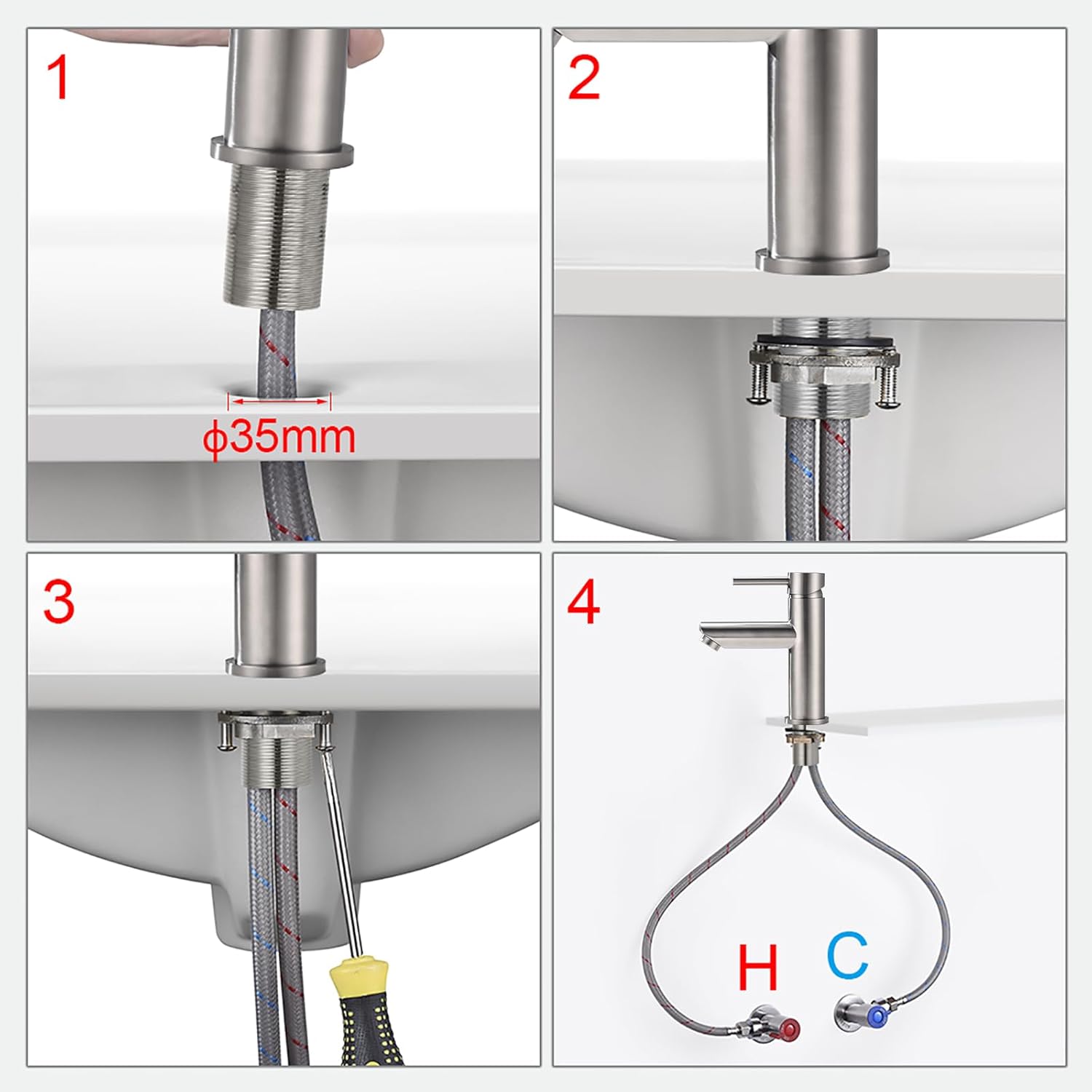

Image: A visual guide demonstrating the four key steps for installing the Ibergrif M11103 Mundo basin tap, including inserting the faucet, securing it with a nut, tightening the nut, and connecting hot and cold water lines.
5.3 Post-Installation
- Slowly turn on the main water supply.
- Check all connections for leaks. If leaks occur, tighten the connections slightly.
- Remove the aerator and flush the faucet for a few minutes to clear any debris from the water lines. Reinstall the aerator.
Image: Illustration showing the Ibergrif M11103 Mundo basin tap is suitable for basins mounted under the desktop, with examples of compatible and incompatible basin types.
6. Operating Instructions
The Ibergrif M11103 Mundo features a single lever handle for easy control of water flow and temperature.
- Water Flow: Lift the handle upwards to increase water flow. Push it downwards to decrease or turn off the flow.
- Temperature Control: Move the handle to the left for hot water and to the right for cold water. Adjust the position between left and right to achieve the desired water temperature.

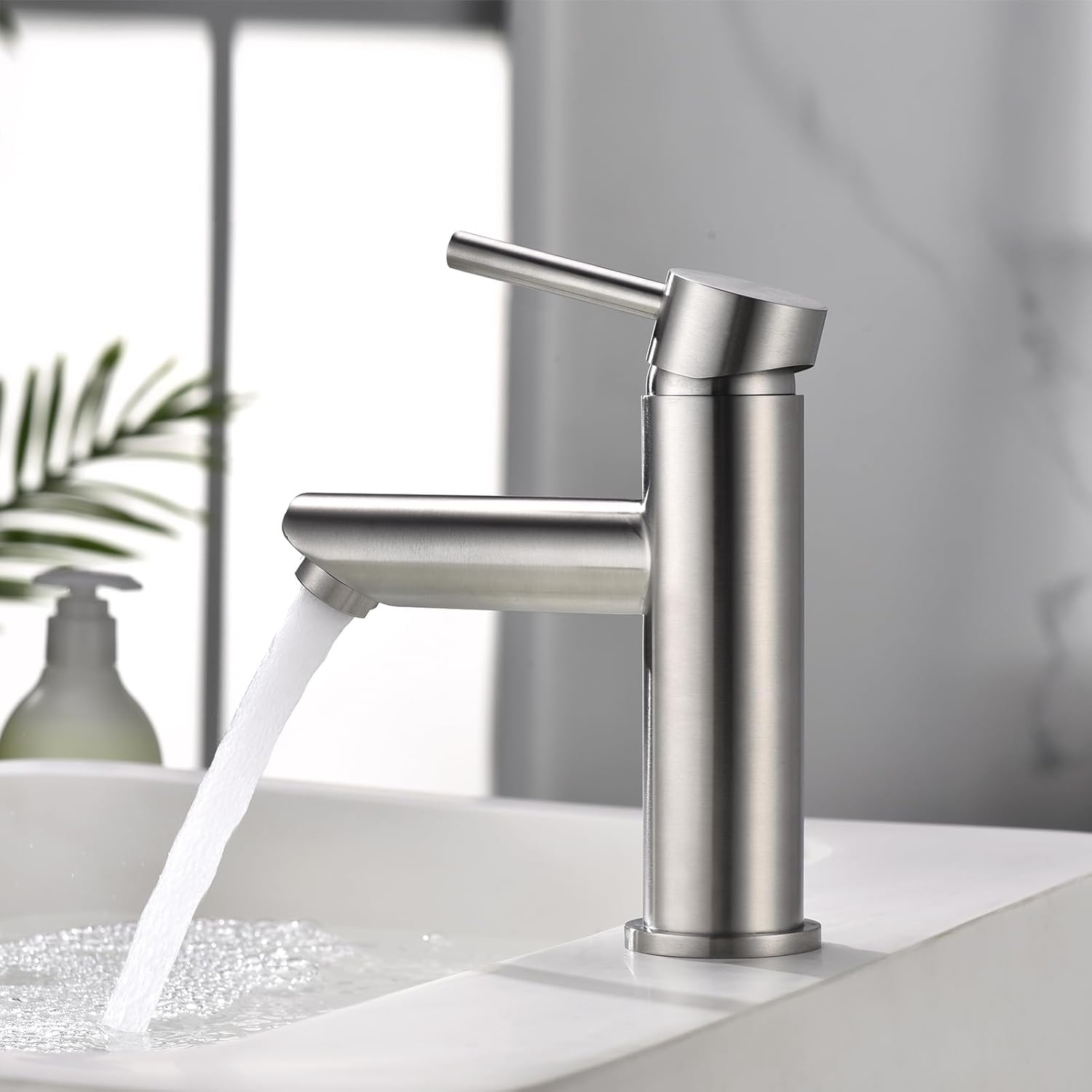

Image: The Ibergrif M11103 Mundo basin tap in operation, showing a steady stream of water flowing from the spout into a sink.
7. Maintenance
Regular maintenance will help preserve the finish and functionality of your tap.
7.1 Cleaning the Tap
- Clean the tap regularly with a soft cloth and mild soap or a non-abrasive liquid cleaner.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Do not use abrasive cleaners, scouring pads, or chemical solvents, as these can damage the polished finish.
7.2 Aerator Maintenance
The tap is equipped with a water-saving NEOPERL aerator. If water flow decreases or becomes irregular, the aerator may need cleaning.
- Unscrew the aerator from the tip of the spout.
- Rinse the aerator components under running water to remove any debris or mineral deposits. A soft brush can be used for stubborn deposits.
- Reassemble the aerator and screw it back onto the spout.
Image: Close-up view of the Ibergrif M11103 Mundo basin tap's spout, highlighting the NEOPERL water-saving aerator and its internal components.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed stopcock; kinked supply line. | Clean the aerator (refer to Section 7.2); ensure stopcocks are fully open; check supply lines for kinks. |
| Leaks from Faucet Base | Loose mounting nut; damaged washer. | Tighten the mounting nut from underneath the basin; inspect and replace washers if damaged. |
| Leaks from Spout | Worn ceramic cartridge. | Contact customer support for a replacement ceramic cartridge. |
| Water Temperature Issues | Incorrect supply line connection; water heater issue. | Verify hot and cold supply lines are connected correctly; check your water heater settings. |
9. Warranty and Support
The Ibergrif M11103 Mundo Single Handle Basin Tap comes with a 5-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use and service.
For warranty claims, technical support, or replacement parts, please contact Ibergrif customer service. Keep your purchase receipt as proof of purchase.
You can find more information and contact details on the official Ibergrif website: Ibergrif Store on Amazon
