1. Introduction
Thank you for choosing the Ibergrif Flexible Spout Kitchen Faucet. This manual provides essential information for the safe installation, operation, and maintenance of your new faucet. Please read these instructions carefully before installation and retain them for future reference.
Image 1.1: Ibergrif Flexible Spout Kitchen Faucet, White finish.
2. Safety Information
- Always turn off the main water supply before beginning any installation or maintenance.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Ensure all connections are secure to prevent leaks. Do not overtighten.
- If you are unsure about any part of the installation, consult a qualified plumber.
- Keep small parts out of reach of children.
3. Package Contents
Verify that all components are present before starting installation:
Image 3.1: Exploded view of faucet components.
- Flexible Spout Kitchen Faucet (1)
- Installation Kit (includes washers, mounting nut, and plate) (1)
- Hot and Cold Water Supply Hoses (2)
4. Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Ibergrif Griferias S.L |
| Model Number | M22119-3 |
| Product Dimensions (L x W x H) | 33 x 16 x 5 cm |
| Weight | 2.15 Kilograms |
| Color | White |
| Finish | Brushed |
| Material | Silicone Gel, Steel, Metal |
| Installation Method | Single-hole, Surface Mount |
| Number of Handles | 1 |
| Spout Height | 9.7 Inches (246mm) |
| Special Features | Rotatable Spout |

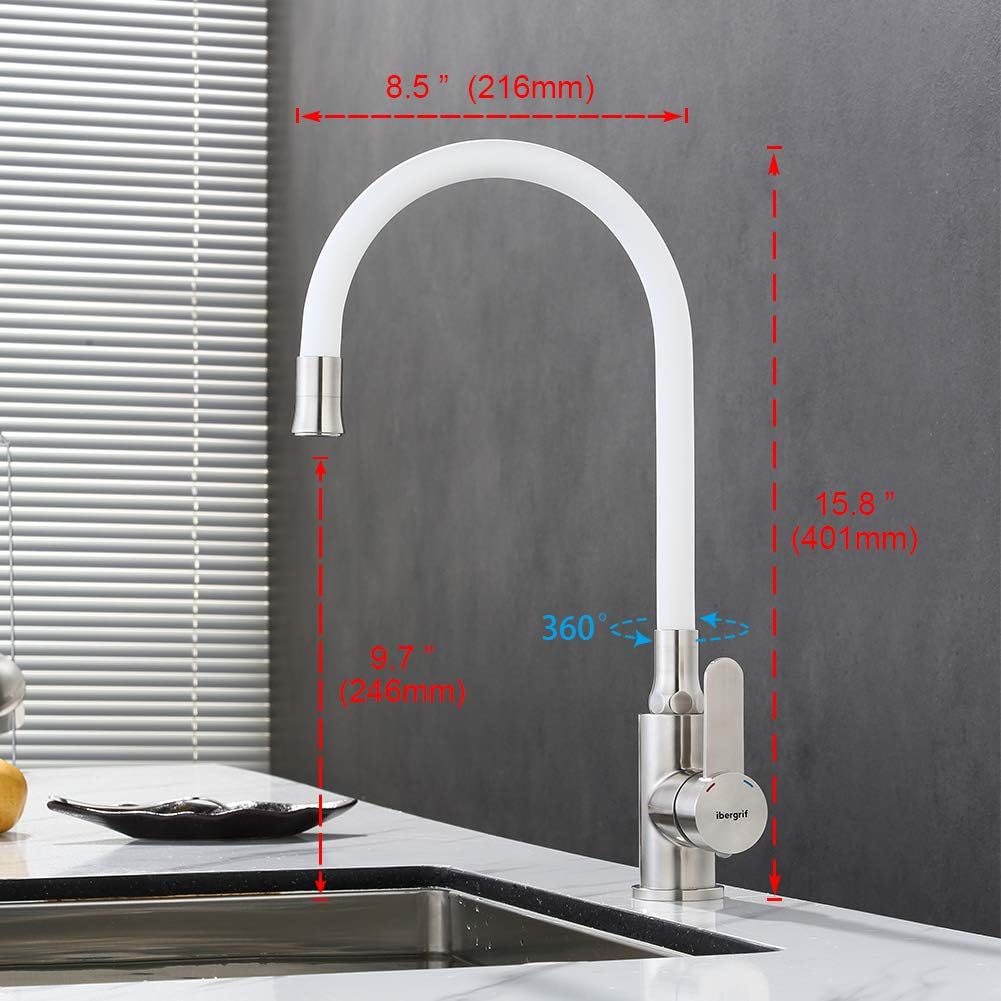

Image 4.1: Key dimensions of the Ibergrif Flexible Spout Kitchen Faucet.
5. Setup and Installation
Follow these steps for proper installation:
Image 5.1: Visual guide for faucet installation.
- Prepare the Sink Hole: Ensure your sink has a single mounting hole with a diameter of approximately 35mm.
- Insert the Faucet: Place the faucet body into the sink hole, ensuring the base gasket is correctly positioned.
- Secure the Faucet: From underneath the sink, slide the rubber washer, metal washer, and mounting nut onto the threaded shank. Tighten the mounting nut securely using the provided tool or an adjustable wrench.
- Connect Water Supply Lines: Attach the hot (red indicator) and cold (blue indicator) water supply hoses to the corresponding connections on the faucet body. Connect the other ends of the hoses to your hot and cold water supply valves. Ensure all connections are hand-tightened, then use a wrench for a final quarter-turn.
- Test for Leaks: Slowly turn on the main water supply and check all connections for any signs of leaks.
6. Operating Instructions
Your Ibergrif faucet is designed for ease of use and flexibility:
- Water Flow and Temperature: The single lever handle controls both water flow and temperature. Lift the handle to increase flow. Move the handle left for hot water and right for cold water.
- Flexible Spout: The silicone-covered spout can be bent and positioned in various directions to suit your needs, providing a wide range of motion for washing and rinsing.
Image 6.1: Adjusting the flexible spout angle.
Image 6.2: Faucet in operation, demonstrating water flow and spout flexibility.
7. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your faucet:
- Cleaning the Finish: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed finish. The brushed nickel finish is designed to resist water spots and fingerprints.
- Aerator Cleaning: If water flow becomes restricted or uneven, the aerator may be clogged. Unscrew the aerator from the end of the spout, clean any debris or mineral deposits, and then reattach it.
Image 7.1: Detail of the water-saving aerator.
8. Troubleshooting
Here are solutions to common issues you might encounter:
- Low Water Flow:
- Check if the aerator is clogged (refer to Maintenance section).
- Ensure water supply valves are fully open.
- Inspect supply hoses for kinks.
- Leaks from Faucet Base:
- Ensure the mounting nut underneath the sink is securely tightened.
- Verify that the base gasket is correctly seated.
- Leaks from Handle:
- This may indicate a worn cartridge. Contact customer support for assistance.
- Water Temperature Issues:
- Ensure both hot and cold water supply lines are connected correctly and supply valves are open.
9. Warranty and Support
The Ibergrif Flexible Spout Kitchen Faucet comes with a 5-year manufacturer's warranty, ensuring confidence in your purchase. This warranty covers defects in materials and workmanship under normal use.
For technical assistance, warranty claims, or to purchase replacement parts, please visit the official Ibergrif store or contact customer service:
- Online Store: Visit the Ibergrif Store on Amazon
- Manufacturer: Ibergrif Griferias S.L
