Ibergrif M22110 Kitchen Faucet User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Ibergrif M22110 C-Spout kitchen faucet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.

Figure 1: Ibergrif M22110 C-Spout Kitchen Faucet

This image displays the Ibergrif M22110 kitchen faucet, featuring a high C-shaped spout and a single lever handle, finished in brushed stainless steel.

2. Product Features

• Durable Construction: Constructed from solid stainless steel, designed for extended product life.
• Smooth Operation: Equipped with drip-free ceramic disc valves for reliable performance and a smooth handle feel.
• Corrosion Resistance: Superior brushed nickel finish resists corrosion and tarnishing, maintaining a clean surface.
• Water-Saving Aerator: Features a silicone aerator that allows for easy removal of mineral build-up, ensuring a consistent and powerful water flow while conserving water.
• 360° Swivel Spout: The heavy-duty spout rotates 360 degrees, providing full range of motion and increased clearance for larger items.
• Cold Start Function: Designed to deliver cold water when the handle is in the central position, promoting energy savings by preventing the water heater from activating unnecessarily.
• Compact Handle Design: Single lever handle operates with a 90-degree forward rotation, facilitating installation in tighter spaces without requiring backsplash clearance.

Figure 2: Key Features of the Ibergrif Faucet

This image highlights the water-saving silicone aerator, the 360-degree swivel spout, and the compact single-lever handle design of the Ibergrif kitchen faucet.

Figure 3: Cold Start Functionality

This diagram illustrates the "Cold Start" feature, showing that moving the handle to the left activates hot water, while the central position provides cold water, contributing to energy savings.

3. Package Contents

Before beginning installation, verify that all components are present and undamaged. The package should contain the following items:

• 1 x Ibergrif Kitchen Faucet with High Spout
• 1 x Installation Kit (includes mounting hardware)
• 2 x Flexible Hoses (for hot and cold water connections)

Figure 4: Contents of the Ibergrif Faucet Package

This image displays the main faucet unit, the flexible hot and cold water supply lines, and the mounting hardware included in the product package.

4. Setup and Installation

Installation of the Ibergrif M22110 faucet is designed to be straightforward. Follow these steps carefully for a secure and leak-free installation.

1. Prepare the Sink: Ensure the mounting hole on your sink or countertop is clean and has a diameter of approximately Ø35mm.
2. Insert the Faucet: Feed the faucet's threaded pipe and the attached flexible hoses through the mounting hole from above the sink.
3. Secure the Faucet: From underneath the sink, slide the rubber washer, metal washer, and then the mounting nut onto the threaded pipe. Tighten the mounting nut securely to hold the faucet in place.
4. Connect Water Lines: Connect the hot (red indicator) and cold (blue indicator) flexible hoses to your corresponding hot and cold water supply lines. Ensure connections are tight to prevent leaks.

Figure 5: Step-by-Step Installation Guide

This image illustrates the four main steps for installing the Ibergrif kitchen faucet: inserting the faucet, securing it with mounting hardware, and connecting the hot and cold water supply lines.

Important: It is recommended to have a qualified plumber perform the installation if you are unsure about any steps. Always turn off the main water supply before starting installation.

5. Operating Instructions

The Ibergrif M22110 faucet features a single lever for controlling both water flow and temperature.

• Water Flow Control: Lift the lever upwards to increase water flow. Push it downwards to decrease or stop the flow.
• Temperature Control:
  • When the lever is in the central position (aligned with the faucet body), it provides cold water (Cold Start feature).
  • Move the lever to the left to increase the hot water temperature.
  • Move the lever to the right to increase the cold water temperature (or decrease hot water).
• Spout Rotation: The high C-spout can be rotated 360 degrees to direct water flow as needed, providing flexibility for various sink tasks.

Figure 6: Faucet in Operation

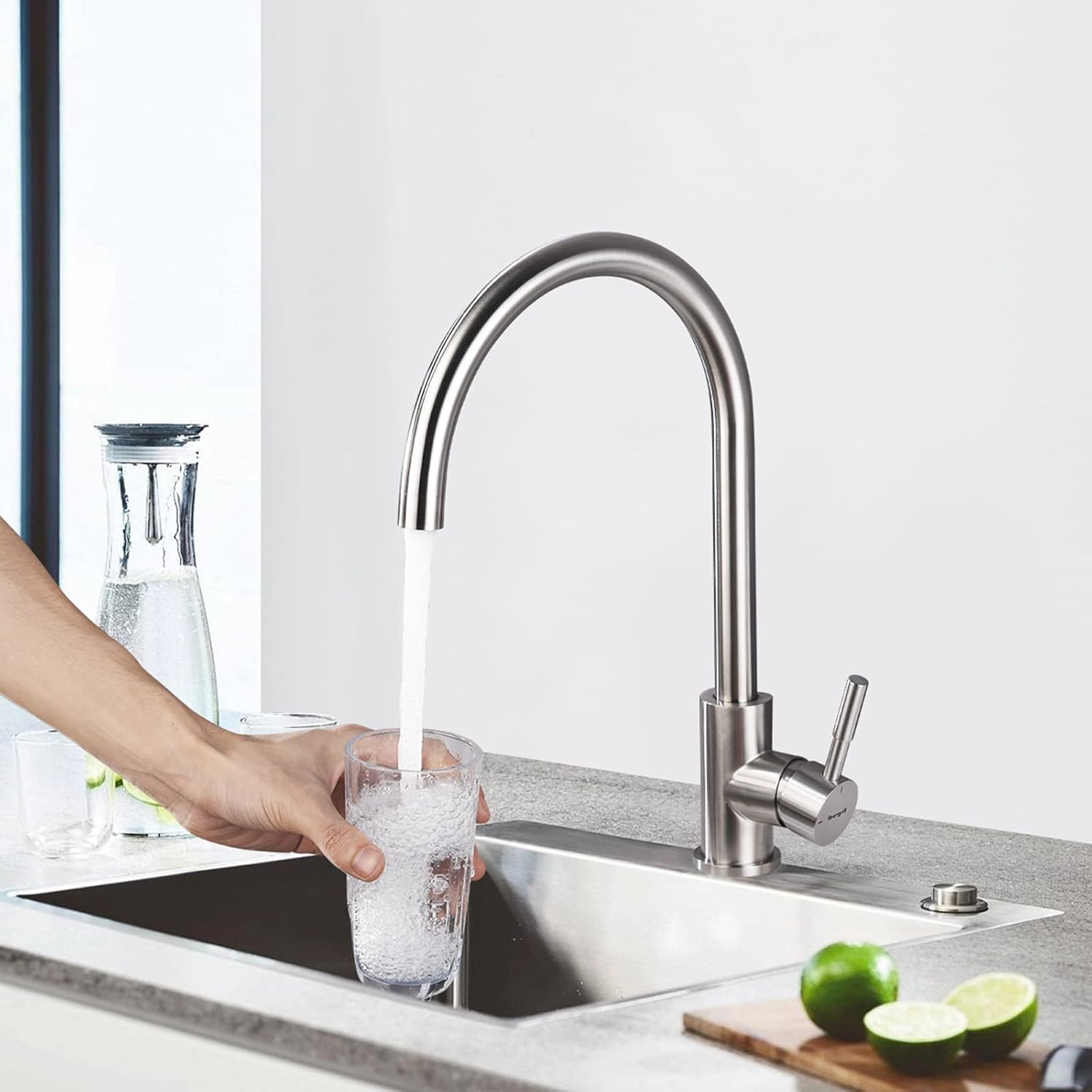

This image shows the Ibergrif faucet actively dispensing water into a glass, demonstrating its functionality during typical kitchen use.

6. Maintenance

Regular maintenance will help preserve the appearance and functionality of your Ibergrif faucet.

• Cleaning the Finish: Clean the brushed stainless steel finish with a soft, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Aerator Cleaning: Periodically unscrew the aerator from the spout and rinse away any mineral deposits or debris. The silicone aerator is designed for easy cleaning. Reattach securely.
• Leak Checks: Regularly inspect the connections under the sink for any signs of leaks. Tighten connections if necessary, but do not overtighten.

Figure 7: Aerator for Easy Cleaning

This image shows the removable aerator component, designed for easy cleaning to prevent mineral buildup and maintain optimal water flow.

7. Troubleshooting

If you encounter issues with your faucet, refer to the following common troubleshooting steps:

8. Specifications

Figure 8: Faucet Dimensions

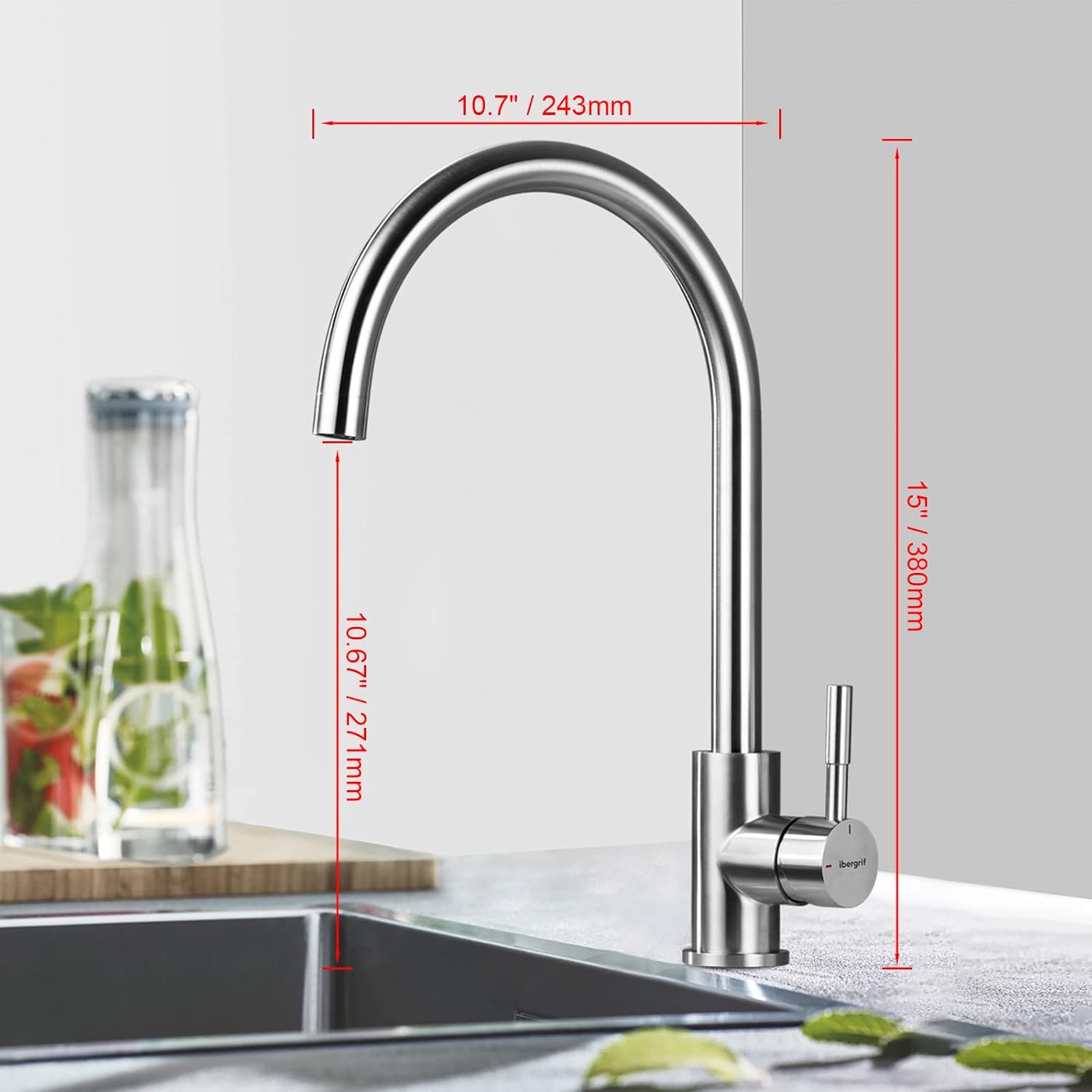

This image provides key dimensions of the Ibergrif kitchen faucet, including overall height (380mm / 15 inches) and spout reach (243mm / 10.7 inches).

9. Warranty and Support

Ibergrif products are manufactured to high-quality standards. For warranty information or technical support, please contact Ibergrif customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, you may visit the official Ibergrif store on Amazon: Ibergrif Store
