X-PRO 125cc ATV User Manual

Important Safety Information

Before operating the X-PRO 125cc ATV, it is crucial to read and understand all instructions and safety warnings in this manual. Failure to follow these instructions can result in serious injury or death. Always wear appropriate safety gear, including a helmet, eye protection, gloves, and sturdy footwear. Adult supervision is required for youth riders.

• Always wear a DOT-compliant helmet, eye protection, and protective clothing.
• Never operate the ATV under the influence of alcohol or drugs.
• Do not carry passengers on this ATV. It is designed for a single rider.
• Always keep both hands on the handlebars and both feet on the footrests during operation.
• Operate at a safe speed appropriate for the terrain, visibility, and your experience level.
• Be aware of the remote engine stop and speed governor features, which are designed for enhanced safety and parental control.

Unpacking and Initial Inspection

Carefully unpack the X-PRO 125cc ATV from its shipping container. It is recommended to have at least two people for this process due to the weight and size of the unit. Inspect all components for any signs of shipping damage. Report any damage to your dealer immediately.

Ensure all parts listed in the packing list are present before proceeding with assembly. Keep the packaging materials until the ATV is fully assembled and operational, in case return or warranty service is required.

Assembly

The X-PRO 125cc ATV requires some assembly. Please follow these steps carefully. It is recommended to have basic tools available, such as wrenches and screwdrivers.

1. Install Handlebar Brackets: Secure the handlebar brackets (c-clamps) to the steering column. Ensure they are tightened to the manufacturer's specifications.
2. Attach Wheels: Mount all four wheels to their respective axles. Ensure lug nuts are tightened securely.
3. Install Front and Rear Racks: If included with your model, attach the front and rear utility racks using the provided hardware.
4. Connect Rear Shock: Install the rear shock absorber, ensuring all mounting points are secure.
5. Connect Battery: Connect the battery terminals, ensuring correct polarity (red to positive, black to negative).
6. Fluid Checks: Before first use, check engine oil, brake fluid, and fuel levels. Refer to the maintenance section for details.

Controls and Features

Engine and Transmission

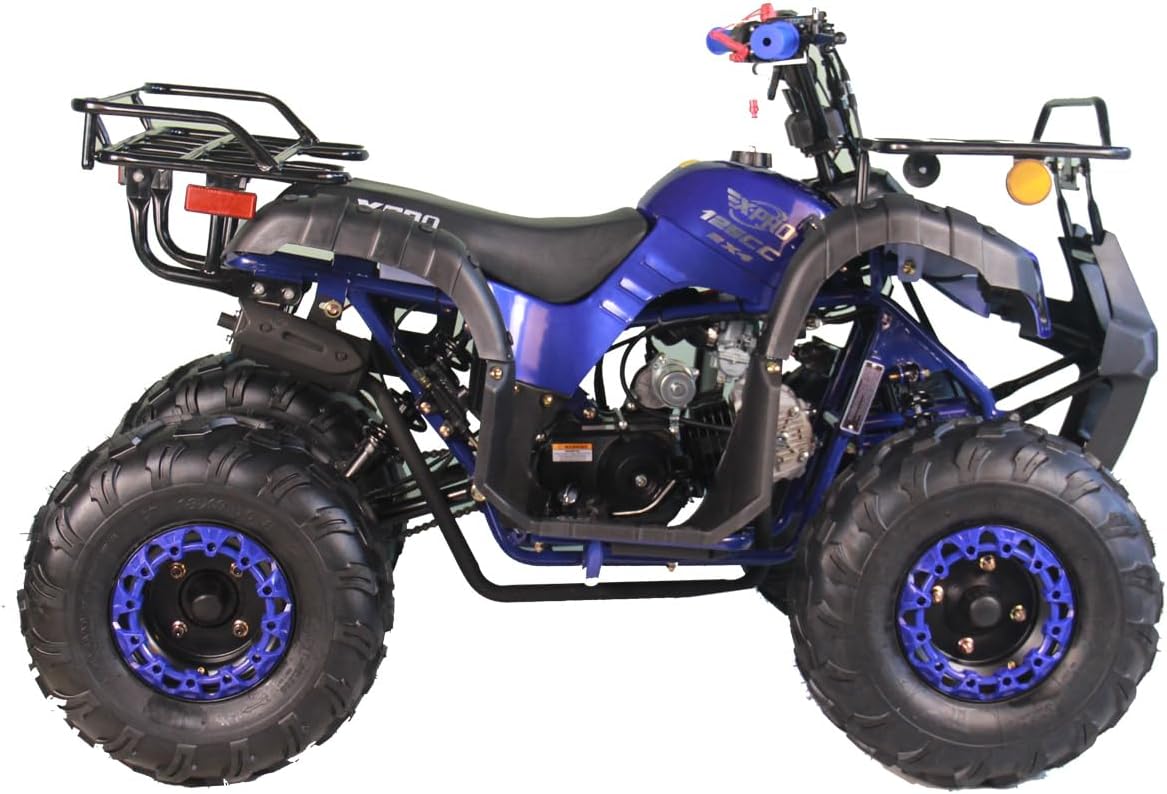

The ATV is equipped with a reliable 125cc 4-stroke air-cooled engine, featuring an electric start for easy ignition. The automatic clutch transmission simplifies operation, making it suitable for various skill levels. A reverse gear is included to facilitate backing up and maneuvering in tight spaces.

Lighting System

For enhanced visibility and safe operation during low-light conditions, the ATV features bright headlights and large tail lights. The tail lights also function as brake lights, providing clear indication to others when braking.

Safety Features

• Remote Control Engine Stop: A remote control allows parents or supervisors to stop the engine from a distance of up to 30 feet, providing an immediate safety measure.
• Speed Governor: Located on the right handlebar, the speed governor allows for adjustment of the ATV's maximum speed, down to 5 mph. This feature enables customization of speed based on the rider's experience and skill level.

Operation

Starting the ATV

1. Ensure the ATV is on a level surface and the parking brake is engaged.
2. Turn the ignition key to the 'ON' position.
3. Press the electric start button. If the engine does not start immediately, release the button and try again after a few seconds.
4. Allow the engine to warm up for a short period before riding.

Driving

• To move forward, release the parking brake and gently apply the throttle.
• To engage reverse, shift the transmission into reverse gear (consult the specific shift mechanism on your ATV model).
• Adjust the speed governor as needed to match the rider's skill and the operating environment.

Stopping

• To slow down or stop, gradually release the throttle and apply the brakes.
• In an emergency, the remote engine stop can be activated to immediately shut down the engine.
• Always engage the parking brake when the ATV is stationary.

Maintenance

Regular maintenance is essential for the safe and reliable operation of your X-PRO 125cc ATV. Perform the following checks and tasks regularly:

• Pre-Ride Inspection: Before each ride, check tire pressure, brake function, throttle operation, and fluid levels (engine oil, fuel).
• Engine Oil: Check engine oil level regularly and change according to the recommended schedule in the full service manual.
• Air Filter: Inspect and clean or replace the air filter as needed, especially when operating in dusty conditions.
• Chain Lubrication: Keep the drive chain properly tensioned and lubricated.
• Brakes: Inspect brake pads for wear and ensure brake fluid levels are adequate. Adjust brakes as necessary.
• Fasteners: Periodically check all nuts, bolts, and fasteners for tightness.

For detailed maintenance schedules and procedures, please refer to the comprehensive service manual provided with your ATV or contact X-PRO customer support.

Troubleshooting

This section provides basic troubleshooting steps for common issues. For more complex problems, consult a qualified technician or X-PRO customer support.

• ATV Does Not Start:
  • Check if the ignition key is in the 'ON' position.
  • Ensure there is sufficient fuel in the tank.
  • Verify the battery connections are secure and the battery is charged.
  • Check if the remote engine stop has been activated.
• Engine Runs Poorly:
  • Check the fuel quality and ensure the fuel filter is not clogged.
  • Inspect the air filter for dirt and clean or replace if necessary.
• Brakes Not Effective:
  • Check brake fluid levels.
  • Inspect brake pads for wear and replace if worn.
  • Adjust brake cables or hydraulic system as per the service manual.

If these steps do not resolve the issue, please contact X-PRO customer service for further assistance.

Specifications

Warranty and Support

X-PRO is committed to providing high-quality products and excellent customer service. We maintain a stock of parts for most vehicles we sell, ensuring fast and reliable support for our customers. Our dedicated after-sales team is known for quick response times and a strong commitment to customer satisfaction.

For any questions regarding warranty, parts, service, or technical advice, please refer to the warranty documentation included with your purchase or visit the official X-PRO website for contact information. Our knowledgeable team is ready to provide a hassle-free experience and ensure your riding enjoyment.

You can also visit the X-PRO Store on Amazon for more information and support resources.
